1 Introduction to Fluoroscopy & Radiation Safety RTEC 124 - Week 10 Rev 2010 References: Merrills CH 16 & 17 Bushong – Ch 21
2 CONVENTIONAL FLUOROSCOPY INVENTED BY THOMAS EDISON Early Fluoroscopy
3 Digital / Fluoro Equipment Check off • MUST BE COMPLETED PRIOR TO DOING ANY PATIENT EXAMS • Fluoroscopy Procedures must ALWAYS be supervised – even after a check off • You MUST be a CRT to have a Fluoroscopy Lic to operated fluoro units in California (CDPH-RHB Title 17)
4 Fluoroscopy: Images in Motion Conventional & Digital Fluoro Principles • Fluoroscopy is a common technique used by clinical physicians to obtain real time images of moving body parts and internal structures of a patient compared to static radiographic examinations.
Objectives 5 • Differentiate fluoroscopic examinations from static diagnostic radiographic examinations • Describe a typical basic fluoroscopic image chain (RT 244 – detailed) • Explain difference between fluoroscopic operation and a diagnostic x-ray tube • Safety Principles
6 Types of Equipment • C-arm • Under table/over table units • Conventional & Digital Units
7 Recording the Fluoroscopic Image • Cassettes • 105 mm chip film • Digital fluoroscopy Dynamic Systems • Cine film (cardiac cath) • Videotape (OPMS)
8 IMAGE INTENSIFICAITON photons are ampilfied + multiplied • IMAGES ARE VIEWED ON A TV SCREEN/MONITOR
Image Intensifier & Cassette loading 9 Digital & Conventional Units
10 Bushong – Ch 21 Image Intensifier
11 Important to limit the field of view (collimation)
12 Conventional Fluoro X-ray tube located under the table
13 DIGITAL FLUORO X-ray tube located under or over the table – remote controls
14 • • • The Role of the Technologist Provide Assistance To the Patient And Radiologist Before, during and after the procedure Prep the room Prep the contrast Prep the patient Get a history from the patient Aftercare instructions and clean up of supplies
Carlton – Ch. 40 15 Fluoroscopic Uses Functional studies – xrays in motion GI tract studies – – – Esophagus /OPMS Upper GI SMB BE ERCP GU studies - VCU's, RT 255 The “OGRAMS” – Angiograms – Hysterosalpingograms – Venogram – Myelogram – Sialogram – Tube /Line placement – Fistulograms – ETC – PAIN CLINIC (C-ARM)
Radiation Safety and Fluoroscopy 16 Time Distance Shielding The Patient & Scatter
17 Radiation Protection During Fluoroscopy • The patient • The radiographer and radiologist • Others
18 RADIATION PROTECTION The Patient is the largest scattering object • Lower at a 90 DEGREE ANGLE from the patient + PRIMARY BEAM AT 1 METER DISTANCE • 1/1000 OF INTENSITY PRIMARY XRAY or 0. 1%
19 Room design Remember to move the overhead tube out of the way!
20 Protective Barriers • Primary barrier – protection from Primary radiation (for the patient& technologist ) • The II is a 2. 0 mm pb eq barrier • Secondary barrier - protection from Secondary radiation (from the patient) - Protection for the technologists, etc
21 Iso Exposure Curves Where is it SAFE? ? Behind the lead shield and behind the Radiologist!
22 Patient entrance skin exposure (ESE) is higher when the fluoroscopic x-ray tube is too close to the tabletop. • Minimum source-to-skin distance – 12” for mobile equipment – 15” for stationary systems • Audible alarm at 5 mins. • Same rules for collimation
23 PATIENT EXPOSURE KEEP I. I. CLOSE TO PATIENT • REDUCE DISTANCE OF IMAGE INTESIFIER • INCREASE DISTANCE FROM THE TUBE Patient entrance skin exposure (ESE) is ALSO higher when the IMAGE INTENSIFIER is too FAR to from the patient.
24 Over vs Under the table fluoro tubes & Scatter
25 Under table tube vs Over table tube (remote units) Digital & Conventional Fluoro
26 Fluoroscopic X-Ray Tubes • m. A range: 0. 5 – 5. 0 m. A • KVP: 70 – 110 – depending on exam and contrast used • 15” minimum SOD in fixed fluoroscopic equipment • Foot switch (dead man)
27 Iso. Exposure Curves Where is it SAFE? ? VCUG
28
29 Fluoroscopic Positioning Previewing • Radiographers are trained in positioning • Unnecessary radiation exposure to patient is unethical • Fluoroscopic equipment should not be used to preview patient’s position
30 Principles of Personnel Exposure Reduction • Time • Distance • Shielding – Protective barriers – Protective devices
31 Important to keep the curtain in place
32 Protection of Radiographer and Radiologist • Lead apron – 0. 25 mm Pb/eq • Highest energy scatter – Same level as radiographer /radiologist’s gonads (135 o under table) – OR for eyes (over table 45 o) see diagrams – 90 o angle to the incident beam (lowest) • (without shield – still high • see isoexposure curves)
33 Protection of • Radiographer and Radiologist • Single step away from the table decreases exposure exponentially (inverse sq law) • Bucky slot cover • Lead rubber drape • Radiologist as shielding • Used when it is not possible to remain behind a barrier – Lead aprons – Lead gloves – Lead glasses – Thyroid shields 0. 25 – 1. 0 mm lead eq
34 Shielding • PATIENT – • WHEN NOT IN AREA OF INTEREST • REMEMBER WHERE THE SOURCE OF THE XRAY BEAM IS COMING FROM!. 5 MM FOR GONADS • TECHNOLOGIST • . 25 MM LEAD APRON • THYROID SHEILD What is the pb eq? Can this be used for gonads?
35 WHATS WRONG?
36
37 Patient Protection • Tabletop exposure rate –Maximum 10 R/min –Typically 1 – 3 R/min • Typical exposure rates – Cinefluorography • 7. 2 R/min – Cassettes • 30 m. R/exposure – 105 mm film • 10 m. R/exposure
38 ALARA: As Low As Reasonably Achievable • Radiologic personnel are responsible for minimizing radiation exposure to patients • Achieved through thoughtful approach and application of radiation protection practices Procedure dose to patient

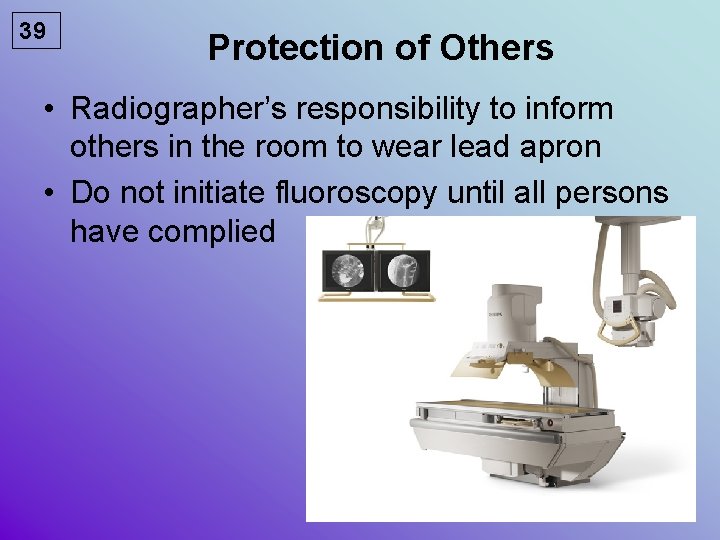

39 Protection of Others • Radiographer’s responsibility to inform others in the room to wear lead apron • Do not initiate fluoroscopy until all persons have complied
40 Protection of Personnel during FLUOROSCOPY • Radiologic personnel should not hold patients for exposures • Student SHALL not hold patient during radiation exposure • Family or friend better choice • Immobilization devices best choice
41 Bucky Slot Cover
42 TABLE MOVEMENT
43 Always make sure the foot Board is correctly in place BEFORE standing a pt on the table Check weight limit for table
44 BASIC PROCEDURES For FLUOROSCOPY Note – do not allow pt to place Cup on the II - Table will move from vertical to horizontal!
45 Depending on the study – the patient may begin in the upright position The Radiologist may then place the patient and table recumbant to finish the fluoro study
46 Depending on the study – the patient may begin in the upright position The Radiologist may then place the patient and table recumbant to finish the fluoro study OVERHEADS taken after DR leaves room
47 “OVERHEADS” • AFTER FLUOROSCOPY IS COMPLETE • LARGER FORMAT IMAGE 14 X 17 • DIGITAL 14 X 14 MAX
48
49
50
51 Enteroclysis procedure (SMB)
52 Single contrast Double Contrast

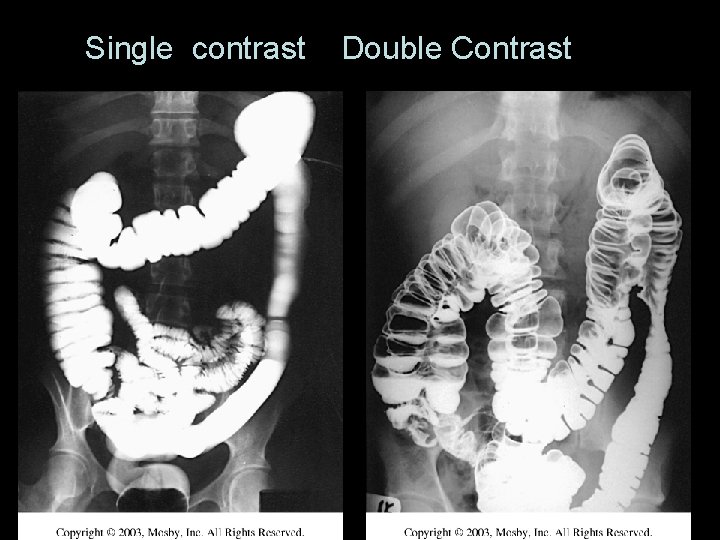

53
54 PROCEDURE? ? ?
55 Problem ? Pathology? • DO NOT give • Barium to this • Patient……. • Why Not? • Will cover with contrast media lecture
