1 Hadron spectroscopy results from Belle Y Kato

1 Hadron spectroscopy results from Belle Y. Kato (KMI, Nagoya University) 2019/2/14 KEK-FF 2019 1

2 Introduction Success of constituent quark model Mesons Int. J. Mod. Phys. A, 21, 5583 (2006) Phys. Rev. D 18 (1978) 4187 Baryons ”Constituent quark” must be a good approximation… but not the end. ・Why does it work so well? Exotic hadrons ・Where is the adaptive limit? Heavy hadrons ・Any other degrees of freedom? e+e- collider (especially B-factory) is a powerful probe! 2019/2/14 KEK-FF 2019 2

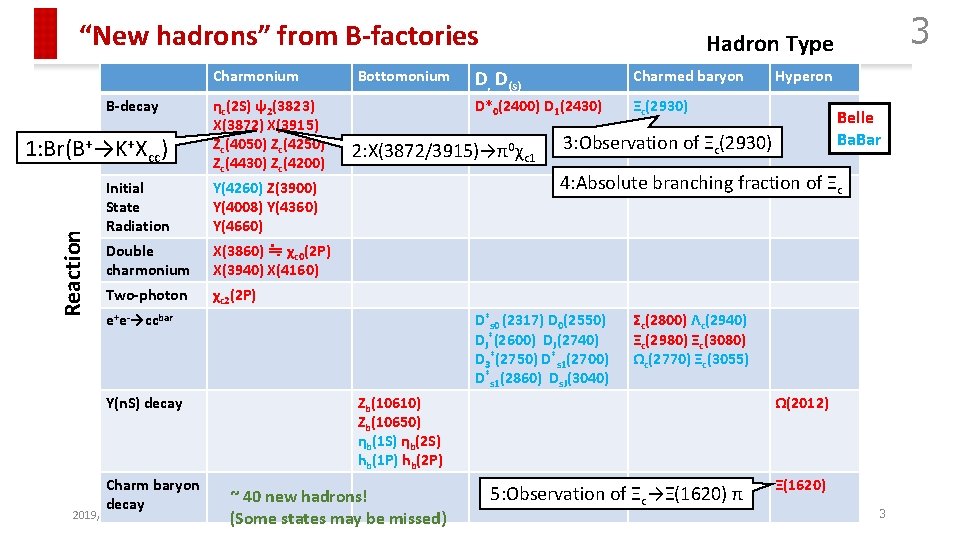

“New hadrons” from B-factories Charmonium B-decay Reaction 1: Br(B+→K+Xcc) ηc(2 S) ψ2(3823) X(3872) X(3915) Zc(4050) Zc(4250) Zc(4430) Zc(4200) Initial State Radiation Y(4260) Z(3900) Y(4008) Y(4360) Y(4660) Double charmonium X(3860) ≒ χc 0(2 P) X(3940) X(4160) Two-photon χc 2(2 P) Bottomonium Charm baryon decay 2019/2/14 Charmed baryon D*0(2400) D 1(2430) Ξc(2930) Hyperon Belle Ba. Bar 3: Observation of Ξc(2930) 4: Absolute branching fraction of Ξc e+e-→ccbar Y(n. S) decay D, D(s) 2: X(3872/3915)→π0χc 1 3 Hadron Type D*s 0 (2317) D 0(2550) DJ*(2600) DJ(2740) D 3*(2750) D*s 1(2700) D*s 1(2860) Ds. J(3040) Σc(2800) Λc(2940) Ξc(2980) Ξc(3080) Ωc(2770) Ξc(3055) Zb(10610) Zb(10650) ηb(1 S) ηb(2 S) hb(1 P) hb(2 P) 5: Observation of Ξc→Ξ(1620) π ~ 40 new hadrons! (Some states may be missed) KEK-FF 2019 Ω(2012) Ξ(1620) 3

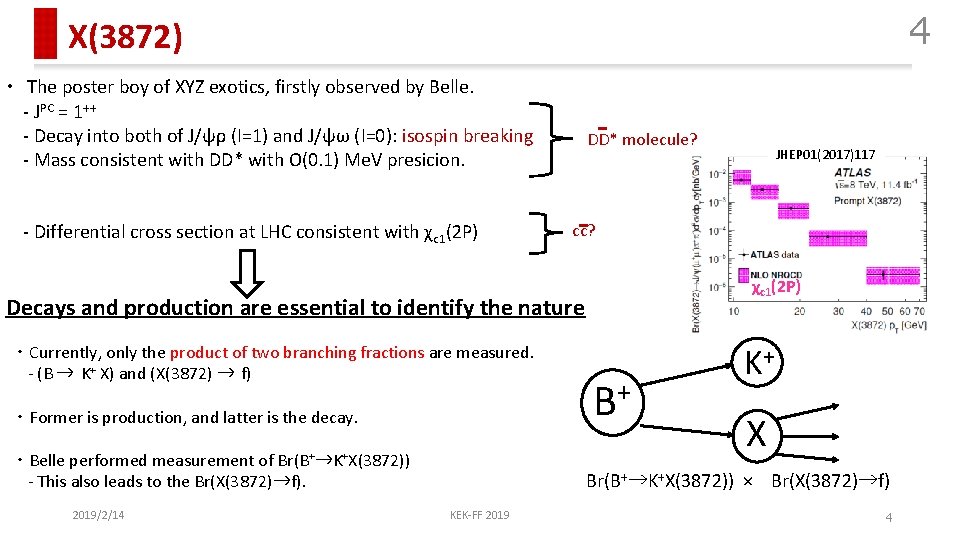

4 X(3872) ・ The poster boy of XYZ exotics, firstly observed by Belle. - JPC = 1++ - Decay into both of J/ψρ (I=1) and J/ψω (I=0): isospin breaking - Mass consistent with DD* with O(0. 1) Me. V presicion. - Differential cross section at LHC consistent with χc 1(2 P) DD* molecule? cc? χc 1(2 P) Decays and production are essential to identify the nature ・Currently, only the product of two branching fractions are measured. - (B → K+ X) and (X(3872) → f) ・Former is production, and latter is the decay. ・Belle performed measurement of Br(B+→K+X(3872)) - This also leads to the Br(X(3872)→f). 2019/2/14 JHEP 01(2017)117 B+ K+ X Br(B+→K+X(3872)) × Br(X(3872)→f) KEK-FF 2019 4

5 Principle of the measurement ・Extract Br (B+→Xcc K+) → Do not look for Xcc decays - Fully reconstruct B meson decaying hadronically. - Reconstruct K+ mesons from the signal B meson. - Reconstruct Xcc from Missing mass: Mx 2 = (Pbeam-PBTag-PK+)2 ・ Belle performed the analysis with full data sets and measured 9 X ηc, J/ψ, χc 0, χc 1, ηc(2 S), ψ(3770), X(3872), and X(3915) Detect Reconstruct Hadronic decay B 2019/2/14 cc states: + B KEK-FF 2019 K+ X 5

K+ Missing Mass distributions 6 Phys. Rev. D 97, 012005 Low mass High mass 2019/2/14 KEK-FF 2019 6

7 Results Xcc σ Br (B+→Xcc. K+) (10 -4) Ba. Bar PDG (10 -4) ηc 14. 2 12. 0± 0. 8± 0. 7 8. 4± 1. 3± 0. 8 9. 6± 1. 1 ηc(2 S) 4. 1 4. 8± 1. 1± 0. 3 3. 4± 1. 8 X(3872) 1. 1 1. 2± 1. 1 (<2. 6) <3. 2 (<3. 2) X(3915) 0. 3 0. 4± 1. 6± 0. 0 (<2. 8) - - ・The best precision for ηc. ・First significant measurement of ηc(2 S). : Br(ηc(2 S)→KKπ) = (1. 3± 0. 4)× 10 -2 (my personal calculation) ・The most stringent upper limit for X(3872). : (Br(X 3872)→J/ψπ+π-) > 3. 2% @PDG ・The first limit for X(3915) : Br(X(3915)→J/ψω) > ~10%. Γ(J/ψω) > O( 1 Me. V). Very large as OZI suppressed mode 2019/2/14 KEK-FF 2019 7

8 Search for X(3872/3915)→χc 1π0 in B decays ・ BES III observed X(3872) → χc 1π0 in e+e- → γX(3872) (ar. Xiv: 1901. 03992) Br(π0χc 1)/Br(J/ψπ+π-) = 0. 88+0. 33 -0. 27± 0. 10 ・ π0χc 1 is isospin 1, which is suppressed in pure cc state. - Another evidence for non-cc. ・ Belle previously measured B+→χc 1π0 K+ using full statistics and found no structure in M(χc 1π0 ) (Phys. Rev. D 93, 052016). However, no upper limit is put. ・ Belle re-analyzed the same data and set upper limit for Br(X(3872/3915)→π0χc 1). 2019/2/14 KEK-FF 2019 8

9 Upper limit on X(3872/3915)→χc 1π0 in B decays 0) Zoomed M(χ π P c 1 ・ No X(3872/3915) signals. rel ・ c 1 (0. 88+0. 33 -0. 27± 0. 10 @ BES III) Br(π0χ )/Br(J/ψπ+π-) < 0. 97 at 90% C. L. im ina r y ・ Belle neither confirms nor rejects BES III result. ・ First limit on the X(3915)→π0χc 1 Yields X(3872) 2. 7± 5. 5 X(3915) 42± 14 2019/2/14 Significance Br(B+X)×Br(X→π0χc 1) Pre 0. 3 <8. 1× 10 -6 lim ina -5 ry 2. 3 <3. 8× 10 KEK-FF 2019 9

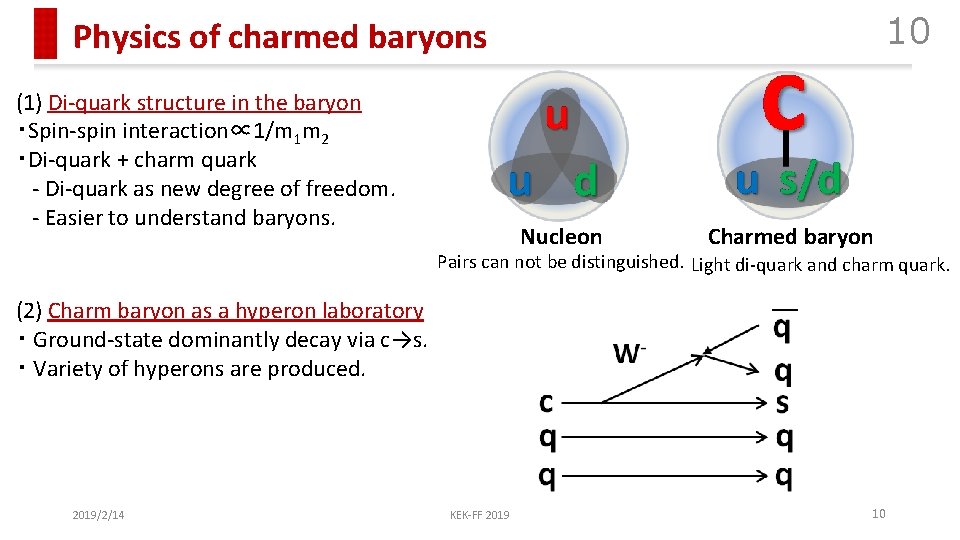

10 Physics of charmed baryons (1) Di-quark structure in the baryon ・Spin-spin interaction∝ 1/m 1 m 2 ・Di-quark + charm quark - Di-quark as new degree of freedom. - Easier to understand baryons. Nucleon Charmed baryon Pairs can not be distinguished. Light di-quark and charm quark. (2) Charm baryon as a hyperon laboratory ・ Ground-state dominantly decay via c→s. ・ Variety of hyperons are produced. 2019/2/14 KEK-FF 2019 10

11 Currently observed charmed baryons LHCb Belle Ba. Bar CLEO - State with [] observed in single exp. - JP with () is QM prediction 2019/2/19 2019/2/14 (udc) KMI 2019 KEK-FF 2019 (udc, uuc, ddc) (usc, dsc) (ssc) 11 ar. Xiv: 1810. 03748

12 Observation of Ξc(2930)0 ・ Weak evidence of Ξc(2930) was reported by Ba. Bar in B-→Ξc(2930)Λc , Ξc(2930)→Λc+K・ Assigned as one star in PDG (need confirmation). ・ Belle performed the same study with ~3 times statistics. Previous study by Ba. Bar (2008) New study by Belle (2018) Eur. Phys. J. C (2018) 78: 252. Phys. Rev. D 77, 031101(R) 2019/2/14 Mass (Me. V/c 2) Width (Me. V) Ba. Bar 2931± 3± 5 36± 7± 11 Belle 2928. 9± 3. 0+0. 8 -12. 0 19. 5± 8. 4+5. 4 -7. 9 ・ The statistical significance of the peak at Belle is 5. 1σ. KEK-FF 2019 ・ Mass and width are consistent each other 12

13 Evidence for charged partner Ξc(2930)+ Belle also found 4. 1σ evidence for charged partner Ξc(2930)+ in B 0→ Ξc(2930)+ Λc-, Ξc(2930)+→ Λc+KS 0 Ξc(2930)+ Mass (Me. V/c 2) 2928. 9± 3. 0+0. 8 -12. 0 2942. 3± 4. 4± 1. 5 Width (Me. V) 19. 5± 8. 4+5. 4 -7. 9 14. 8± 8. 8± 2. 5 Eur. Phys. J. C (2018) 78: 928 2019/2/14 KEK-FF 2019 13

14 Some comments on Ξc(2930) ・ Ξc(2930)0 is the first charmed baryon established in the B-decay. Phys. Rev. D 77, 012002 M(Λc+K-) in e+e-→cc by Ba. Bar. ・As it is two-body B-decay, spin can be determined un-ambiguously from helicity constraint if we have enough statistics. 2019/2/14 Λc B Ξc* J=1/2 J=0 J=? Jz = 1/2 KEK-FF 2019 14

15 Absolute branching fractions of Ξc 0 ・Absolute branching fractions for ground state charmed baryons are not determined except for Λ c+ - For Ξc 0, all the branching fractions are measured relative to Ξc 0→Ξ-π+ ・Belle determined Ξc 0→ Ξ-π+, ΛK-π+, p. K-K-π+ in following steps: 1): Measure Br(B-→Λc-Ξc 0) using missing mass technique. 2): Measure Br(B-→Λc-Ξc 0) × Br(Ξc 0→f) by exclusively reconstructing Ξc 0 (f = Ξ-π+, ΛK-π+, p. K-K-π+). 3): Divide 2) by 1). 1) Reconstruct Hadronic decay + B B Missing mass 2019/2/14 2) Λ c- Ξc 0 KEK-FF 2019 B Λ c. Reconstruct Ξc 0 Ξ -π + ΛK-π+ p. K-K-π+ 15

16 Results on branching ratios 1) Missing mass against Btag Λc- ar. Xiv: 1811. 09738 ・Ξc 0 signal is observed by missing mass for the first time with 5. 5σ (40. 9± 9. 0 counts) ・Br(B-→Λc-Ξc 0) = (9. 51± 2. 10± 0. 88)× 10 -4 2) M(Ξc)-M(Λc) Mbc ΔE ・ Signal yields are obtained by 2 D fit on Mbc-ΔE after selecting signal region in M(Ξc)-M(Λc) plane. Ξc 0→Ξ-π+ Ξc 0→ΛK-π+ Ξc 2019/2/14 0→p. K-K-π+ KEK-FF 2019 3) Decay Br(B→ΞcΛc)x. Br(Ξc→f) (10 -5) Br(Ξc 0→f) (%) Significance Ξ-π+ 1. 71± 0. 28± 0. 15 1. 8± 0. 5± 0. 14 9. 5σ ΛK-π+ 1. 11± 0. 26± 0. 10 1. 17± 0. 37± 0. 09 6. 8σ p. K-K-π+ 0. 547± 0. 178± 0. 057 0. 58± 0. 23± 0. 05 4. 6σ 16

17 Ξc+→Ξ(1620/1690)π+, Ξ(1620/1690)→Ξ-π+ ・Not much is known about the S=-2 baryon family(Ξ). - Even first orbital excitation with JP=1/2 - is not identified. - In the S=-1, JP=1/2 - = Λ(1405) is a candidate of meson-baryon molecule state. - Ξ(1620/1690) are candidates of Ξ analogue of Λ(1405). Evidence for Ξ(1620) is poor (1 star state) in PDG. ・ Belle studied Ξ* in Ξc+→(Ξ-π+)π+ decay chain. Ξc+ from Ξ-π+π+ decay Belle has ~50000 Ξc+ on ~11500 BG. Ξ(1620) Phys. Lett. 38 B (1972) 177 -180 2019/2/14 KEK-FF 2019 17

18 M(Ξ-π+) distribution ・Peaks correspond to Ξ(1530), Ξ(1620), and Ξ(1690) can be seen. - Ξ(1620) and Ξ(1690) are not visible in the Ξc sideband. ・Fit are performed with floating Ξ(1530) and Ξ(1620) masses/widths. Ξ(1690) mass and width are fixed with PDG values. ar. Xiv: 1810. 06181 (Accepted by PRL) Ξ(1530) Ξ(1620) Ξ(1690) ・Interference with non-resonant background is included. Mass (Me. V/c 2) Width (Me. V) Significance Ξ(1620) 1610. 4± 6. 0+6. 1 -4. 2 59. 9± 4. 8+2. 8 -7. 1 25σ Ξ(1690) fixed 4σ ・Ξ(1620) is the first hyperon established by charm baryon decay! 2019/2/14 KEK-FF 2019 18
