- Slides: 71
![1 1](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-1.jpg)
1
![Frame Relay Overview n Frame Relay defines the interconnection process between the DTE and Frame Relay Overview n Frame Relay defines the interconnection process between the DTE and](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-2.jpg)
Frame Relay Overview n Frame Relay defines the interconnection process between the DTE and the DCE (the Frame Relay network switch, not the CSU/DSU). – It does not define the way the data is transmitted within the service provider’s Frame Relay cloud. 2
![What Is Frame Relay Frame Relay defines the interconnection process between a router and What Is Frame Relay? Frame Relay defines the interconnection process between a router and](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-3.jpg)
What Is Frame Relay? Frame Relay defines the interconnection process between a router and the service provider’s local access switching equipment. 3
![NBMA NonBroadcast Multiple Access n n Frame Relay networks are known as NBMA NBMA - Non-Broadcast Multiple Access n n Frame Relay networks are known as NBMA,](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-4.jpg)
NBMA - Non-Broadcast Multiple Access n n Frame Relay networks are known as NBMA, Nonbroadcast Multi-Access networks. NBMA networks allow a router to set up and maintain several logical connections over a single physical serial interface. The “cloud” is a single network to which multiple devices are attached. Unlike Ethernet and Token Ring, which are broadcast networks, non-broadcast networks means a packet sent into the network might not be seen by all other routers attached to the network. 4
![Frame Relay Terminology 1 n Local access rate LAR The maximum physical media Frame Relay Terminology #1 n Local access rate (LAR) – The maximum physical media](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-5.jpg)
Frame Relay Terminology #1 n Local access rate (LAR) – The maximum physical media speed of the link used by the Frame Relay interface. Frame Relay may or may not use this full bandwidth, but cannot exceed it • Common local access rates include T 1 (1. 544 Mbps) and could be up to T 3 (44. 476 Mbps). n Committed information rate (CIR) – The transmission rate that the frame relay provider guarantees without frame drops • Any frames sent above this rate has the DE bit set to one allowing them to be dropped if congestion occurs. • Monthly service charge is based heavily on this rate. 5
![Frame Relay Terminology 2 n Excess burst The maximum bits that the Frame Frame Relay Terminology #2 n Excess burst – The maximum bits that the Frame](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-6.jpg)
Frame Relay Terminology #2 n Excess burst – The maximum bits that the Frame Relay switch will attempt to transfer beyond the CIR. Can not exceed the local access rate. 6
![Frame Relay Operation 7 Frame Relay Operation 7](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-7.jpg)
Frame Relay Operation 7
![DLCIs n n A datalink connection identifier DLCI identifies the logical VC between the DLCIs n n A data-link connection identifier (DLCI) identifies the logical VC between the](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-8.jpg)
DLCIs n n A data-link connection identifier (DLCI) identifies the logical VC between the CPE and the Frame Relay switch. The Frame Relay switch maps the DLCIs between each pair of routers to create a PVC. DLCIs have local significance Your Frame Relay provider sets up the DLCI numbers to be used by the routers for establishing PVCs. 8
![DLCI Mapping to Network Address n Manual Manual Administrators use a frame relay DLCI Mapping to Network Address n Manual – Manual: Administrators use a frame relay](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-9.jpg)
DLCI Mapping to Network Address n Manual – Manual: Administrators use a frame relay map statement. n Dynamic: – Inverse Address Resolution Protocol (I-ARP) provides a given DLCI and requests next-hop protocol addresses for a specific connection. – The router then updates its mapping table and uses the information in the table to forward packets on the correct route. 9
![10 10](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-10.jpg)
10
![Inverse ARP The Inverse ARP mechanism allows the router to automatically build the Inverse ARP – The Inverse ARP mechanism allows the router to automatically build the](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-11.jpg)
Inverse ARP – The Inverse ARP mechanism allows the router to automatically build the Frame Relay map. – The router learns the DLCIs that are in use from the switch during the initial LMI exchange and then sends an Inverse ARP request to each DLCI for each protocol configured on the interface if the protocol is supported. – The return information, the remote network address, from the Inverse ARP is then used to build the Frame Relay map. 11
![Minimum Frame Relay Configuration Hub Cityconfig interface serial 0 Hub Cityconfigif ip address 172 Minimum Frame Relay Configuration Hub. City(config)# interface serial 0 Hub. City(config-if)# ip address 172.](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-12.jpg)
Minimum Frame Relay Configuration Hub. City(config)# interface serial 0 Hub. City(config-if)# ip address 172. 16. 1. 2 255. 0 Hub. City(config-if)# encapsulation frame-relay Spokane(config)# interface serial 0 Spokane(config-if)# ip address 172. 16. 1. 1 255. 0 Spokane(config-if)# encapsulation frame-relay 12
![Routerconfigifencapsulation framerelay cisco ietf n cisco is the default Use this if connecting Router(config-if)#encapsulation framerelay [cisco | ietf] n cisco is the default. Use this if connecting](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-13.jpg)
Router(config-if)#encapsulation framerelay [cisco | ietf] n cisco is the default. Use this if connecting to another Cisco router. n ietf—Select this if connecting to a non. Cisco router. - RFC 1490 13
![n Cisco Router is now ready to act as a FrameRelay DTE device The n Cisco Router is now ready to act as a Frame-Relay DTE device. The](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-14.jpg)
n Cisco Router is now ready to act as a Frame-Relay DTE device. The following process occurs: 1. The interface is enabled. 2. The Frame-Relay switch announces the configured DLCI(s) to the router. 3. Inverse ARP is performed to map remote network layer addresses to the local DLCI(s). The routers can now ping each other! 14
![Inverse ARP Hub City show framerelay map Serial 0 up ip 172 16 1 Inverse ARP Hub. City# show frame-relay map Serial 0 (up): ip 172. 16. 1.](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-15.jpg)
Inverse ARP Hub. City# show frame-relay map Serial 0 (up): ip 172. 16. 1. 1 dlci 101, dynamic, broadcast, status defined, active (dynamic refers to the router learning the ip address via Inverse ARP) 15
![Inverse ARP Limitations Limitation of Inverse ARP only resolves network addresses of remote FrameRelay Inverse ARP Limitations Limitation of Inverse ARP only resolves network addresses of remote Frame-Relay](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-16.jpg)
Inverse ARP Limitations Limitation of Inverse ARP only resolves network addresses of remote Frame-Relay connections that are directly connected. 16
![NBMA Topologies 17 NBMA Topologies 17](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-17.jpg)
NBMA Topologies 17
![A FrameRelay Configuration Supporting Multiple Sites Hub Router This is known as a A Frame-Relay Configuration Supporting Multiple Sites Hub Router • This is known as a](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-18.jpg)
A Frame-Relay Configuration Supporting Multiple Sites Hub Router • This is known as a Hub and Spoke Topology, where the Hub router relays information between the Spoke routers. • Limits the number of PVCs needed as in a fullmesh topology (coming). Spoke Routers 18
![Configuration using Inverse ARP Hub City interface Serial 0 ip address 172 16 1 Configuration using Inverse ARP: Hub. City interface Serial 0 ip address 172. 16. 1.](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-19.jpg)
Configuration using Inverse ARP: Hub. City interface Serial 0 ip address 172. 16. 1. 2 255. 0 encapsulation frame-relay Spokane interface Serial 0 ip address 172. 16. 1. 1 255. 0 encapsulation frame-relay Spokomo interface Serial 0 ip address 172. 16. 1. 3 255. 0 encapsulation frame-relay 19
![Hub City show framerelay map Serial 0 up ip 172 16 1 1 dlci Hub. City# show frame-relay map Serial 0 (up): ip 172. 16. 1. 1 dlci](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-20.jpg)
Hub. City# show frame-relay map Serial 0 (up): ip 172. 16. 1. 1 dlci 101, dynamic, broadcast, status defined, active Serial 0 (up): ip 172. 16. 1. 3 dlci 112, dynamic, broadcast, status defined, active Spokane# show frame-relay map Serial 0 (up): ip 172. 16. 1. 2 dlci 102, dynamic, broadcast, status defined, active Spokomo# show frame-relay map Serial 0 (up): ip 172. 16. 1. 2 dlci 211, dynamic, broadcast, status defined, active 20
![Notice n Inverse ARP resolved the ip addresses for Hub City for both Spokane Notice: n Inverse ARP resolved the ip addresses for Hub. City for both Spokane](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-21.jpg)
Notice: n Inverse ARP resolved the ip addresses for Hub. City for both Spokane and Spokomo n Inverse ARP resolved the ip addresses for Spokane for Hub. City n Inverse ARP resolved the ip addresses for Spokomo for Hub. City 21
![Inverse ARP Limitations n n n Can Hub City ping both Spokane and Spokomo Inverse ARP Limitations n n n Can Hub. City ping both Spokane and Spokomo?](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-22.jpg)
Inverse ARP Limitations n n n Can Hub. City ping both Spokane and Spokomo? Yes! Can Spokane and Spokomo ping Hub. City? Yes! Can Spokane and Spokomo ping each other? No! The router’s serial interface (spoke routers) drops the ICMP packet because there is no DLCI-to-IP address mapping for the destination address. Solutions to the limitations of Inverse ARP 1. Add an additional PVC between Spokane and Spokomo (Full Mesh) 2. Configure Frame-Relay Map Statements 3. Configure Point-to-Point Subinterfaces. 22
![Full Mesh Solution Does Not Scale Well Full Mesh Topology nn1 2 Number Full Mesh Solution Does Not Scale Well Full Mesh Topology (n*(n-1)) / 2 Number](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-23.jpg)
Full Mesh Solution Does Not Scale Well Full Mesh Topology (n*(n-1)) / 2 Number of Connections PVCs ---------------2 1 4 6 6 15 8 28 10 45 23
![Frame Relay Map Statements Instead of using additional PVCs FrameRelay map statements can be Frame Relay Map Statements Instead of using additional PVCs, Frame-Relay map statements can be](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-24.jpg)
Frame Relay Map Statements Instead of using additional PVCs, Frame-Relay map statements can be used to: n Statically map local DLCIs to an unknown remote network layer addresses. n Also used when the remote router does not support Inverse ARP 24
![Routerconfigif framerelay map protocoladdress dlci broadcast ietf cisco payloadcompress packetbypacket n broadcast Router(config-if)# frame-relay map protocol-address dlci [broadcast] [ietf | cisco | payload-compress packet-bypacket] n broadcast](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-25.jpg)
Router(config-if)# frame-relay map protocol-address dlci [broadcast] [ietf | cisco | payload-compress packet-bypacket] n broadcast (Optional) Forwards broadcasts to this address when multicast is not enabled. Use this if you want the router to forward routing updates. If not enabled, you must define static routes, and if using IPX, static SAPs. n ietf | cisco (Optional) Select the Frame Relay encapsulation type for use. Use ietf only if the remote router is a non-Cisco router. Otherwise, use cisco 25
![FrameRelay Map Statements Hub City interface Serial 0 ip address 172 16 1 2 Frame-Relay Map Statements Hub. City interface Serial 0 ip address 172. 16. 1. 2](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-26.jpg)
Frame-Relay Map Statements Hub. City interface Serial 0 ip address 172. 16. 1. 2 255. 0 encapsulation frame-relay (Inverse-ARP still works here) Spokane interface Serial 0 ip address 172. 16. 1. 1 255. 0 encapsulation frame-relay map ip 172. 16. 1. 3 102 frame-relay map ip 172. 16. 1. 2 102 Spokomo interface Serial 0 ip address 172. 16. 1. 3 255. 0 encapsulation frame-relay map ip 172. 16. 1. 1 211 frame-relay map ip 172. 16. 1. 2 211 26
![Mixing Inverse ARP and Frame Relay Map Statements n n What if we were Mixing Inverse ARP and Frame Relay Map Statements n n What if we were](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-27.jpg)
Mixing Inverse ARP and Frame Relay Map Statements n n What if we were to use I-ARP between the spoke routers and the hub, and frame relay map statements between the two spokes? There would be a problem! 27
![Hub City interface Serial 0 ip address 172 16 1 2 255 0 encapsulation Hub. City interface Serial 0 ip address 172. 16. 1. 2 255. 0 encapsulation](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-28.jpg)
Hub. City interface Serial 0 ip address 172. 16. 1. 2 255. 0 encapsulation frame-relay Spokane interface Serial 0 ip address 172. 16. 1. 1 255. 0 encapsulation frame-relay map ip 172. 16. 1. 3 102 Spokomo interface Serial 0 ip address 172. 16. 1. 3 255. 0 encapsulation frame-relay map ip 172. 16. 1. 1 211 28
![Hub City show framerelay map Serial 0 up ip 172 16 1 1 dlci Hub. City# show frame-relay map Serial 0 (up): ip 172. 16. 1. 1 dlci](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-29.jpg)
Hub. City# show frame-relay map Serial 0 (up): ip 172. 16. 1. 1 dlci 101, dynamic, broadcast, status defined, active Serial 0 (up): ip 172. 16. 1. 3 dlci 112, dynamic, broadcast, status defined, active Spokane# show frame-relay map Serial 0 (up): ip 172. 16. 1. 2 dlci 102, dynamic, broadcast, status defined, active Serial 0 (up): ip 172. 16. 1. 3 dlci 102, static, CISCO, status defined, active (static = learned via fr map statement) Spokomo# show frame-relay map Serial 0 (up): ip 172. 16. 1. 2 dlci 211, dynamic, broadcast, status defined, active Serial 0 (up): ip 172. 16. 1. 1 dlci 211, static, CISCO, status defined, active (static = learned via fr map 29 statement)
![Good News n Everything looks fine n Now all routers can ping each other Good News: n Everything looks fine! n Now all routers can ping each other!](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-30.jpg)
Good News: n Everything looks fine! n Now all routers can ping each other! Bad News: n Problem when using Frame-Relay map statements AND Inverse ARP. n This will only work until the router is reloaded, here is why. . . 30
![FrameRelay Map Statement Rule When a FrameRelay map statement is configured for a particular Frame-Relay Map Statement Rule: When a Frame-Relay map statement is configured for a particular](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-31.jpg)
Frame-Relay Map Statement Rule: When a Frame-Relay map statement is configured for a particular protocol (IP, IPX, …) Inverse-ARP will be disabled for that specific protocol, only for the DLCI referenced in the Frame-Relay map statement. 31
![n n The previous solution worked only because the Inverse ARP had taken place n n The previous solution worked only because the Inverse ARP had taken place](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-32.jpg)
n n The previous solution worked only because the Inverse ARP had taken place between Spokane and Hub. City, and between Spokomo and Hub. City, before the Frame-Relay map statements were added. (The Frame-Relay map statement was added after the Inverse ARP took place. ) Both the Inverse-ARP and Frame-Relay map statements are in effect. Once the router is reloaded (rebooted) the Inverse. ARP will never occur because of the configured Frame-Relay map statement. (assuming the runningconfig is copied to the startup-config) Rule: Inverse-ARP will be disabled for that specific protocol, for the DLCI referenced in the Frame-Relay map statement. 32
![Hub City show framerelay map after reload Serial 0 up ip 172 16 1 Hub. City# show frame-relay map (after reload) Serial 0 (up): ip 172. 16. 1.](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-33.jpg)
Hub. City# show frame-relay map (after reload) Serial 0 (up): ip 172. 16. 1. 1 dlci 101, dynamic, broadcast, status defined, active Serial 0 (up): ip 172. 16. 1. 3 dlci 112, dynamic, broadcast, status defined, active Spokane# show frame-relay map NOW MISSING: Serial 0 (up): ip 172. 16. 1. 2 dlci 102, dynamic, broadcast, status defined, active Serial 0 (up): ip 172. 16. 1. 3 dlci 102, static, CISCO, status defined, active Spokomo# show frame-relay map NOW MISSING: Serial 0 (up): ip 172. 16. 1. 2 dlci 211, dynamic, broadcast, status defined, active Serial 0 (up): ip 172. 16. 1. 1 dlci 211, static, CISCO, status defined, active 33
![Hub City show framerelay map after reload Serial 0 up ip 172 16 1 Hub. City# show frame-relay map (after reload) Serial 0 (up): ip 172. 16. 1.](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-34.jpg)
Hub. City# show frame-relay map (after reload) Serial 0 (up): ip 172. 16. 1. 1 dlci 101, dynamic, broadcast, status defined, active Serial 0 (up): ip 172. 16. 1. 3 dlci 112, dynamic, broadcast, status defined, active Spokane# show frame-relay map Serial 0 (up): ip 172. 16. 1. 3 dlci 102, static, CISCO, status defined, active Spokomo# show frame-relay map Serial 0 (up): ip 172. 16. 1. 1 dlci 211, static, CISCO, status defined, active Spokane and Spokomo can no longer ping Hub. City! 34
![Solution Wherever there are InverseARP statements replace them with FrameRelay map statements 35 Solution: Wherever there are Inverse-ARP statements, replace them with Frame-Relay map statements. 35](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-35.jpg)
Solution: Wherever there are Inverse-ARP statements, replace them with Frame-Relay map statements. 35
![FrameRelay Map Statements Solution Hub City interface Serial 0 ip address 172 16 Frame-Relay Map Statements - Solution Hub. City interface Serial 0 ip address 172. 16.](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-36.jpg)
Frame-Relay Map Statements - Solution Hub. City interface Serial 0 ip address 172. 16. 1. 2 255. 0 encapsulation frame-relay (Inverse-ARP still works here) Spokane interface Serial 0 ip address 172. 16. 1. 1 255. 0 encapsulation frame-relay map ip 172. 16. 1. 3 102 frame-relay map ip 172. 16. 1. 2 102 Spokomo interface Serial 0 ip address 172. 16. 1. 3 255. 0 encapsulation frame-relay map ip 172. 16. 1. 1 211 frame-relay map ip 172. 16. 1. 2 211 36

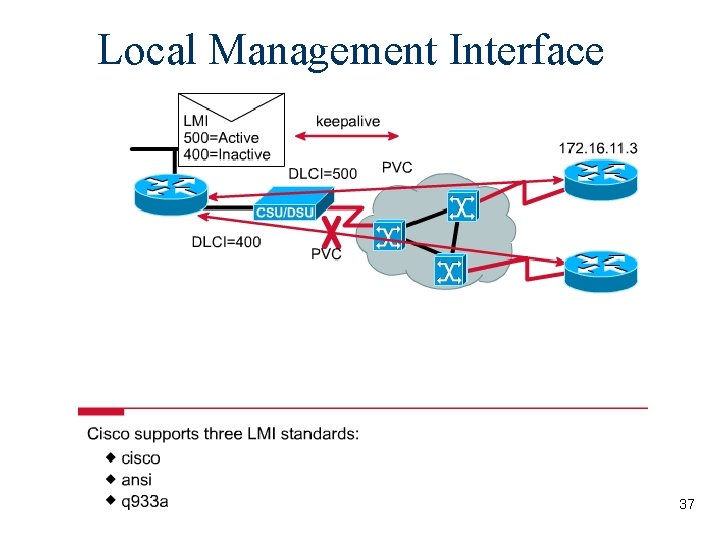

![Local Management Interface 37 Local Management Interface 37](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-37.jpg)
Local Management Interface 37
![LMI n LMI is a signaling standard between the CPE device and the Frame LMI n LMI is a signaling standard between the CPE device and the Frame](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-38.jpg)
LMI n LMI is a signaling standard between the CPE device and the Frame Relay switch that is responsible for managing the connection and maintaining status between the devices. LMI includes: – A keepalive mechanism, which verifies that data is flowing – A multicast mechanism, which provides the network server (router) with its local DLCI – A status mechanism, which provides an ongoing status on the DLCIs known to the switch 38
![The router must be programmed to choose which LMI type encapsulation will be used The router must be programmed to choose which LMI type encapsulation will be used.](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-39.jpg)
The router must be programmed to choose which LMI type encapsulation will be used. If using Cisco IOS Release 11. 1 or earlier, specify the LMI-type used by the FR switch: Router(config-if)#frame-relay lmi-type {ansi | cisco | q 933 a} n cisco is the default. With IOS Release 11. 2 or later, the LMI-type is autosensed so no configuration is needed. 39
![LMI Autosensing n n n Beginning in Cisco IOS Release 11 2 the router LMI Autosensing n n n Beginning in Cisco IOS Release 11. 2, the router](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-40.jpg)
LMI Autosensing n n n Beginning in Cisco IOS Release 11. 2, the router tries to autosense which LMI type the Frame Relay switch is using by sending one or more full status requests to the Frame Relay switch. The Frame Relay switch responds with the LMI type. The router configures itself with the LMI type received. 40
![FR Configuration Example For routing metric information 41 FR Configuration Example For routing metric information 41](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-41.jpg)
FR Configuration Example For routing metric information 41
![FR Configuration The following example shows a case in which most destinations use Cisco FR Configuration The following example shows a case in which most destinations use Cisco](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-42.jpg)
FR Configuration The following example shows a case in which most destinations use Cisco encapsulation, but one site requires IETF encapsulation: Router(config-if)#encapsulation frame-relay Router(config-if)#frame-relay map ip 131. 108. 123. 2 48 broadcast Router(config-if)#frame-relay map ip 131. 108. 123. 3 49 broadcast ietf Router(config-if)#frame-relay map ip 131. 108. 123. 4 50 broadcast 42
![Early Implementations of Frame Relay Required that a router DTE device must have a Early Implementations of Frame Relay Required that a router (DTE device) must have a](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-43.jpg)
Early Implementations of Frame Relay Required that a router (DTE device) must have a WAN serial interface for every permanent virtual circuit (PVC) 43
![Early Implementations of Frame Relay n Early implementation of Frame Relay Technology required that Early Implementations of Frame Relay n Early implementation of Frame Relay Technology required that](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-44.jpg)
Early Implementations of Frame Relay n Early implementation of Frame Relay Technology required that a router (DTE device) must have a WAN serial interface for every permanent virtual circuit (PVC). n This was effective but increased the cost because of the increased number of interfaces, WAN connections, at the hub router. 44
![Multipoint Physical Interface and multipoint subinterfaces and Split Horizon n A single physical interface Multipoint Physical Interface (and multipoint subinterfaces) and Split Horizon n A single physical interface](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-45.jpg)
Multipoint Physical Interface (and multipoint subinterfaces) and Split Horizon n A single physical interface works, but Split Horizon prohibits distance vector routing updates from propagating out the same physical interface that it received the update. 45
![Solution No Split Horizon with Pointtopoint Subinterfaces 46 Solution: No Split Horizon with Point-to-point Subinterfaces 46](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-46.jpg)
Solution: No Split Horizon with Point-to-point Subinterfaces 46
![FR and Subinterfaces 47 FR and Subinterfaces 47](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-47.jpg)
FR and Subinterfaces 47
![FR and Subinterfaces Two types of subinterfaces are available on Cisco routers 1 pointtopoint FR and Subinterfaces Two types of subinterfaces are available on Cisco routers: 1. point-to-point](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-48.jpg)
FR and Subinterfaces Two types of subinterfaces are available on Cisco routers: 1. point-to-point subinterfaces 2. multipoint subinterfaces n By using point-to-point subinterfaces, Cisco routers can treat each PVC as if it were a separate point-to-point interface on the router. 48
![Hub Router Pointtopoint subinterfaces Each subinterface is on its own subnet Broadcasts and Hub Router: • Point-to-point subinterfaces: Each subinterface is on its own subnet. Broadcasts and](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-49.jpg)
Hub Router: • Point-to-point subinterfaces: Each subinterface is on its own subnet. Broadcasts and Split Horizon not a problem because each point-to-point connection is its own subnet. • Multipoint subinterfaces: All participating subinterfaces would be in the same subnet. Broadcasts and routing updates are also subject to the Split Horizon Rule and may pose a problem. 49
![Frame Relay and Split Horizon n Physical interfaces With a hub and spoke topology Frame Relay and Split Horizon n Physical interfaces: With a hub and spoke topology](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-50.jpg)
Frame Relay and Split Horizon n Physical interfaces: With a hub and spoke topology Split Horizon will prevent the hub router from propagating routes learned from one spoke router to another spoke router. n Point-to-point subinterfaces: Each subinterface is on its own subnet. Broadcasts and Split Horizon not a problem because each point-to-point connection is its own subnet. n Multipoint subinterfaces: All participating subinterfaces would be in the same subnet. Broadcasts and routing updates are also subject to the Split Horizon Rule and may pose a problem. 50
![Pointtopoint Subinterfaces Pointtopoint subinterfaces are like conventional pointtopoint interfaces PPP and have no Point-to-point Subinterfaces Point-to-point subinterfaces are like conventional point-to-point interfaces (PPP, …) and have no](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-51.jpg)
Point-to-point Subinterfaces Point-to-point subinterfaces are like conventional point-to-point interfaces (PPP, …) and have no concept of (do not need): n Inverse-ARP n mapping of local DLCI address to remote network address (frame-relay map statements) Frame-Relay service supplies multiple PVCs over a single physical interface and point-to-point subinterfaces subdivide each PVC as if it were a physical point-to-point interface. Point-to-point subinterfaces completely bypass the local DLCI to remote network address mapping issue. 51
![Pointtopoint Subinterfaces With physical and multipoint subinterface you n can have multiple DLCIs assigned Point-to-point Subinterfaces With physical and multipoint subinterface you: n can have multiple DLCIs assigned](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-52.jpg)
Point-to-point Subinterfaces With physical and multipoint subinterface you: n can have multiple DLCIs assigned to it. n can use frame-relay map & interface dlci statements n can use Inverse-ARP With point-to-point subinterfaces you: n cannot have multiple DLCIs associated with a single point-to-point subinterface n cannot use frame-relay map statements n cannot use Inverse-ARP n (can use the frame-relay interface dlci statement for both point-to-point and multipoint) 52
![Pointtopoint subinterfaces Each subinterface is on a separate network or subnet with a single Point-to-point subinterfaces Each subinterface is on a separate network or subnet with a single](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-53.jpg)
Point-to-point subinterfaces Each subinterface is on a separate network or subnet with a single remote connection (I. e. point-to-point) 172. 30. 1. 0/24 172. 30. 2. 0/24 172. 30. 3. 0/24 53
![n Pointtopoint subinterfaces are equivalent to using multiple physical point to point interfaces 54 n Point-to-point subinterfaces are equivalent to using multiple physical “point to point” interfaces 54](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-54.jpg)
n Point-to-point subinterfaces are equivalent to using multiple physical “point to point” interfaces 54
![Pointtopoint subinterface n A single subinterface is used to establish one PVC connection to Point-to-point subinterface n A single subinterface is used to establish one PVC connection to](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-55.jpg)
Point-to-point subinterface n A single subinterface is used to establish one PVC connection to another physical or subinterface on a remote router. n In this case, the interfaces would be: – in the same subnet and – each interface would have a single DLCI n Each point-to-point connection is its own subnet. n In this environment, broadcasts are not a problem because the routers are point-topoint and act like a leased line. 55
![Pointtopoint subinterface configuration minimum of two commands config interface Serial 0 1 pointtopoint configsubif Point-to-point subinterface configuration, minimum of two commands: (config)# interface Serial 0. 1 point-to-point (config-subif)#](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-56.jpg)
Point-to-point subinterface configuration, minimum of two commands: (config)# interface Serial 0. 1 point-to-point (config-subif)# frame-relay interface-dlci-number Rules: 1. No Frame-Relay map statements can be used with point-to-point subinterfaces. 2. One and only one DLCI can be associated with a single point-to-point subinterface By the way, encapsulation is done only at the physical interface: interface Serial 0 no ip address encapsulation frame-relay 56
![framerelay interfacedlci Routerconfigifframerelay interfacedlcinumber n n n Used to assign specific DLCIs to specific frame-relay interface-dlci Router(config-if)#frame-relay interfacedlci-number n n n Used to assign specific DLCIs to specific](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-57.jpg)
frame-relay interface-dlci Router(config-if)#frame-relay interfacedlci-number n n n Used to assign specific DLCIs to specific subinterfaces. This command is required for all point-to-point subinterfaces. It is also required for multipoint subinterfaces for which inverse ARP is enabled. It is not required for multipoint subinterfaces that are configured with static route maps. Do not use this command on physical interfaces. 57
![framerelay interfacedlci and the show frame map n pointtopoint subinterfaces listed as a pointtopoint frame-relay interface-dlci and the show frame map n point-to-point subinterfaces: listed as a “point-to-point](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-58.jpg)
frame-relay interface-dlci and the show frame map n point-to-point subinterfaces: listed as a “point-to-point dlci” Serial 0. 1 (up): point-to-point dlci, dlci 301 (0 x. CB, 0 x 30 B 0), broadcast status defined, active n With multipoint subinterfaces, the it lists it an inverse ARP entry, “dynamic” Serial 0 (up): ip 172. 30. 2. 1 dlci, 301 (0 x 12 D, 0 x 48 D 0), dynamic, , broadcast status defined, active 58
![Each subinterface on Hub router requires a PointtoPoint Subinterfaces separate subnet or network Each subinterface on Hub router requires a Point-to-Point Subinterfaces separate subnet (or network) •](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-59.jpg)
Each subinterface on Hub router requires a Point-to-Point Subinterfaces separate subnet (or network) • Each subinterface on Hub router is treated Hub and Spokes like a regular physical point-to-point interface, so split horizon does not need to be disabled. Interface Serial 0 (for all routers) encapsulation frame-relay no ip address Hub. City interface Serial 0. 1 point-to-point ip address 172. 16. 1. 1 255. 0 encapsulation frame-relay interface dlci 301 interface Serial 0. 2 point-to-point ip address 172. 16. 2. 1 255. 0 encapsulation frame-relay interface dlci 302 Spokane interface Serial 0. 1 point-to-point ip address 172. 16. 1. 2 255. 0 frame-relay interface dlci 103 Spokomo interface Serial 0. 1 point-to-point ip address 172. 16. 2. 2 255. 0 frame-relay interface dlci 203 at the 59
![Multipoint Subinterfaces Share many of the same characteristics as a physical FrameRelay interface With Multipoint Subinterfaces Share many of the same characteristics as a physical Frame-Relay interface With](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-60.jpg)
Multipoint Subinterfaces Share many of the same characteristics as a physical Frame-Relay interface With multipoint subinterface you can have: n can have multiple DLCIs assigned to it. n can use frame-relay map & interface dlci statements n can use Inverse-ARP Remember, with point-to-point subinterfaces you: n cannot have multiple DLCIs associated with a single point-to-point subinterface n cannot use frame-relay map statements n cannot use Inverse-ARP n (can use the frame-relay interface dlci statement for 60 both point-to-point and multipoint)
![Multipoint subinterfaces Each subinterface is on a separate network or subnet but may have Multipoint subinterfaces Each subinterface is on a separate network or subnet but may have](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-61.jpg)
Multipoint subinterfaces Each subinterface is on a separate network or subnet but may have multiple connections, with a different DLCI for each connection. 172. 30. 1. 0/24 172. 30. 2. 0/24 172. 30. 3. 0/24 Split horizon still an issue on each Multipoint subinterface. 61
![n Multipoint subinterfaces are equivalent to using multiple physical hub to spoke interfaces 62 n Multipoint subinterfaces are equivalent to using multiple physical “hub to spoke” interfaces. 62](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-62.jpg)
n Multipoint subinterfaces are equivalent to using multiple physical “hub to spoke” interfaces. 62
![Notes Highly scalable solution Disable Split Horizon on Hub router when running Notes • Highly scalable solution • Disable Split Horizon on Hub router when running](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-63.jpg)
Notes • Highly scalable solution • Disable Split Horizon on Hub router when running a distance vector routing protocol Interface Serial 0 (for all routers) encapsulation frame-relay no ip address Hub. City interface Serial 0. 1 mulitpoint ip address 172. 16. 3. 3 255. 0 frame-relay interface-dlci 301 frame-relay interface-dlci 302 no ip split-horizon Spokane interface Serial 0. 1 point-to-point ip address 172. 16. 3. 1 255. 0 frame-relay interface-dlci 103 Spokomo interface Serial 0. 1 point-to-point ip address 172. 16. 3. 2 255. 0 frame-relay interface-dlci 203 Multipoint subinterface at the Hub and Point-to-Point Subinterfaces at the Spokes 63
![BECN and FECN A Frame Relay switch sends FECN and BECN packets to reduce BECN and FECN A Frame Relay switch sends FECN and BECN packets to reduce](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-64.jpg)
BECN and FECN A Frame Relay switch sends FECN and BECN packets to reduce congestion. FECN packets are sent to the destination device, BECN packets are sent to the source device. 64
![Verifying and Troubleshooting Frame Relay n n n The show interface serial Command The Verifying and Troubleshooting Frame Relay n n n The show interface serial Command The](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-65.jpg)
Verifying and Troubleshooting Frame Relay n n n The show interface serial Command The show frame-relay lmi Command The show frame-relay pvc [interface [dlci#]] Command The show frame-relay map Command The debug frame-relay Command 65
![The show interfaces serial Command LabBshow interfaces serial Serial 2 is up line protocol The show interfaces serial Command Lab-B#show interfaces serial Serial 2 is up, line protocol](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-66.jpg)
The show interfaces serial Command Lab-B#show interfaces serial Serial 2 is up, line protocol is up Hardware type is MCI Serial Internet address is 131. 18. 79. 1, subnet mask is 255. 0 MTU 1500 bytes, BW 1544 Kbit, DLY 20000 usec, rely 255/255, load 1/255 Encapsulation FRAME-RELAY, loopback not set, keepalive set (10 sec) multicast DLCI 1022, status defined, active source DLCI 20, status defined, active LMI DLCI 1023, LMI sent 10, LMI stat recvd 10, LMI upd recvd 2 Last input 7: 21: 29, output 0: 00: 37, output hang never 66
![The show framerelay lmi Command Routershow framerelay lmi LMI Statistics for interface Serial 1 The show frame-relay lmi Command Router#show frame-relay lmi LMI Statistics for interface Serial 1](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-67.jpg)
The show frame-relay lmi Command Router#show frame-relay lmi LMI Statistics for interface Serial 1 (Frame Relay DTE) LMI TYPE = ANSI Invalid Unnumbered info 0 Invalid Prot Disc 0 Invalid dummy Call Ref 0 Invalid Msg Type 0 Invalid Status Message 0 Invalid Lock Shift 0 Invalid Information ID 0 Invalid Report IE Len 0 Invalid Report Request 0 Invalid Keep IE Len 0 Num Status Enq. Sent 9 Num Status msgs Rcvd 0 Num Update Status Rcvd 0 Num Status Timeouts 9 67
![The show framerelay pvc Command Routershow framerelay pvc 100 PVC Statistics for interface Serial The show frame-relay pvc Command Router#show frame-relay pvc 100 PVC Statistics for interface Serial](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-68.jpg)
The show frame-relay pvc Command Router#show frame-relay pvc 100 PVC Statistics for interface Serial 5/1 (Frame Relay DTE) DLCI = 100, DLCI USAGE = LOCAL, PVC STATUS = ACTIVE, INTERFACE = Serial 0. 1 input pkts 9 output pkts 16 in bytes 154 out bytes 338 dropped pkts 6 in FECN pkts 0 in BECN pkts 0 out FECN pkts 0 out BECN pkts 0 in DE pkts 0 out bcast bytes 0 pvc create time 00: 35: 11, last time pvc status changed 00: 22 Bound to Virtual-Access 1 (up, cloned from Virtual-Template 5) 68
![The show framerelay map Command Routershow framerelay map Serial 1 up ip 131 108 The show frame-relay map Command Router#show frame-relay map Serial 1 (up): ip 131. 108.](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-69.jpg)
The show frame-relay map Command Router#show frame-relay map Serial 1 (up): ip 131. 108. 177 dlci 177 (0 x. B 1, 0 x 2 C 10), static, broadcast, CISCO 69
![The debug framerelay Command debug framerelay Serial 0i dlci 5000 x 7 C 41 The debug frame-relay Command #debug frame-relay Serial 0(i): dlci 500(0 x 7 C 41),](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-70.jpg)
The debug frame-relay Command #debug frame-relay Serial 0(i): dlci 500(0 x 7 C 41), pkt type 0 x 0800, Serial 0(i): dlci 1023(0 x. FCF 1), pkt type 0 x 309, datagramsize 24 13 70
![Labs n n n Configuring Hub and Spoke Frame Relay Configuring FullMesh Frame Relay Labs n n n Configuring Hub and Spoke Frame Relay Configuring Full-Mesh Frame Relay](https://slidetodoc.com/presentation_image_h/d9d903873ee48d6e55deb7ba75e08b4e/image-71.jpg)
Labs n n n Configuring Hub and Spoke Frame Relay Configuring Full-Mesh Frame Relay With Sub Interfaces 71
Frame relay overview
Frame relay layers
Risanuri hidayat
What is frame relay
Frame relay and atm
Frame relay packet tracer
Frame relay vs vpn
Frame relay caracteristicas
Frame relay caracteristicas
Frame relay osi
Frame relay vs atm vs mpls
Frame relay wan
Steel frame construction advantages and disadvantages
Lmi frame relay
X25 frame relay
Frame relay architecture
Transmission mac
Frame relay packet switching
Frame relay ccna
Pasado de frame
Frame relay and x.25
Frame by frame animation programs
Pengertian animasi frame by frame
State and explain hooke's law
Ohm's law analogy
Triangle d'ohm
Rhythm in hair design
Tragic hero
Process specification in iot
Serial killer bedwetting
What statement defines the dynastic cycle
Which statement best defines a cell
The value of acknowledgement field in a segment defines
The value of acknowledgement field in a segment defines
The broad problem area
Management dilemma meaning
Gothic style literature definition
What thing defines women in gendered verbal communication?
Memorandum of association
Which type of essay explains, informs, defines?
How do you explain the physical transformation of water
Which statement best summarizes chapter 11
Mco 1700
Mcdp1 defines trust as a product of which of the following
Answer
Which of the following describes mannerisms?
"entire lobe defines lobar pneumonia."
Dtd defines
A key concept of quality control is that all work products
Release planning is done in iteration 0
Effective group discussion: theory and practice
What is a island?
Which statement best describes desmond tutu?
The value of acknowledgement field in a segment defines
What defines a raptor
The value of acknowledgement field in a segment defines
Which phrase best describes the soil in a grassland biome
Cup java
Which phrase best defines ecosystem
What is meant by an iteration goal
The distance between successive
Which phrase best describes the process of sampling?
What's the short story
Xml dom defines a standard way for
Modeling
Which statement best defines cold chain management
Which statement best defines cold chain management?
Management dilemma in research
Which statement best defines the term civil liberties?
The value of acknowledgement field in a segment defines
Management acc
What defines a gaming entertainment business
