1 For internal use only © WEINMANN GERÄTE FÜR MEDIZIN GMBH+CO. KG prisma. LINE - prisma. AQUA DIE-FGI_ 28 Jan. 2014

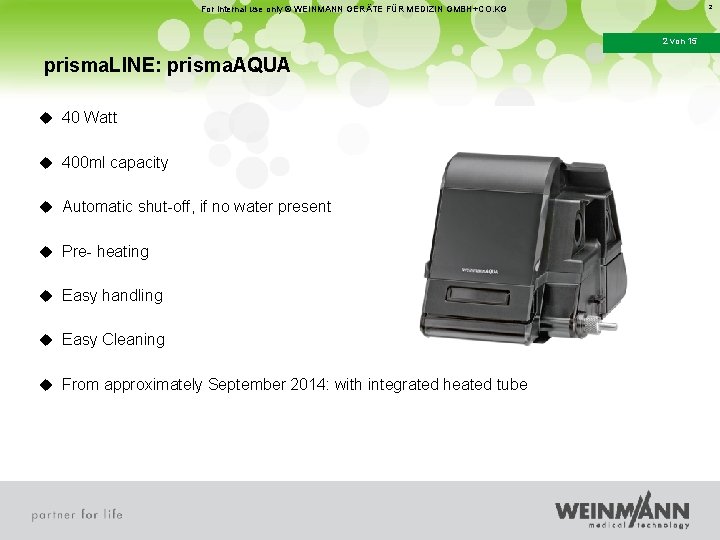

2 For internal use only © WEINMANN GERÄTE FÜR MEDIZIN GMBH+CO. KG 2 von 15 prisma. LINE: prisma. AQUA u 40 Watt u 400 ml capacity u Automatic shut-off, if no water present u Pre- heating u Easy handling u Easy Cleaning u From approximately September 2014: with integrated heated tube

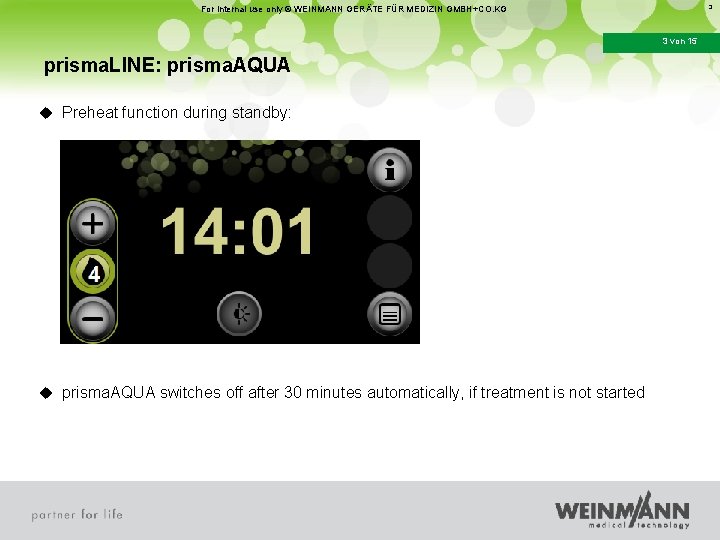

3 For internal use only © WEINMANN GERÄTE FÜR MEDIZIN GMBH+CO. KG 3 von 15 prisma. LINE: prisma. AQUA u Preheat function during standby: u prisma. AQUA switches off after 30 minutes automatically, if treatment is not started

4 For internal use only © WEINMANN GERÄTE FÜR MEDIZIN GMBH+CO. KG 4 von 15 prisma. LINE: prisma. AQUA u prisma. AQUA starts automatically with begin of therapy u Heating settings can be selected from 1 -9

5 For internal use only © WEINMANN GERÄTE FÜR MEDIZIN GMBH+CO. KG 5 von 15 prisma. LINE: prisma. AQUA u prisma. AQUA: deactivated u Activate by pressing the icon.

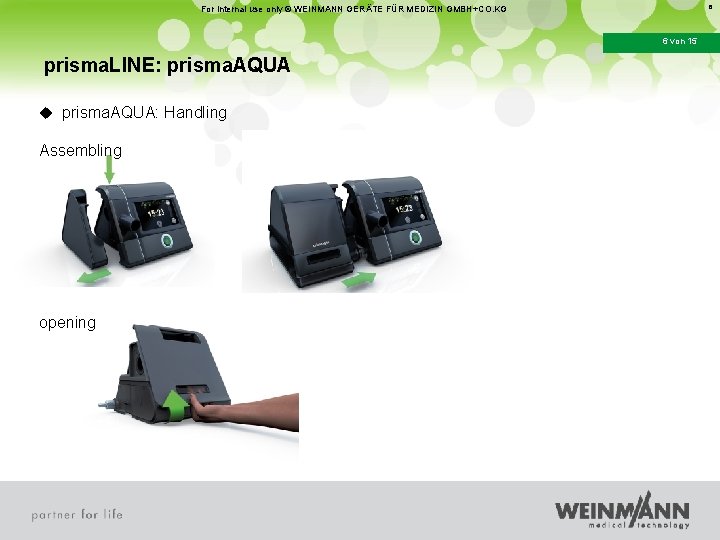

6 For internal use only © WEINMANN GERÄTE FÜR MEDIZIN GMBH+CO. KG 6 von 15 prisma. LINE: prisma. AQUA u prisma. AQUA: Handling Assembling opening

7 For internal use only © WEINMANN GERÄTE FÜR MEDIZIN GMBH+CO. KG 7 von 15 prisma. LINE: prisma. AQUA u prisma. AQUA: Filling u or

8 For internal use only © WEINMANN GERÄTE FÜR MEDIZIN GMBH+CO. KG 8 von 15 prisma. LINE: prisma. AQUA u prisma. AQUA: cleaning disassemble prisma. AQUA (the heating- stick can remain in the housing) u Upper/lower housing and moisture- inlet: clean with washing-up liquid and warm water or clean in the dishwasher
