1 FDTD Method for Electromagnetics with MATLAB Simulation
Sign up to view full document!
SIGN UP
1 FDTD Method for Electromagnetics with MATLAB Simulation. (Chap 6) 2012. 07. 16 김 성환 전자파 연구실

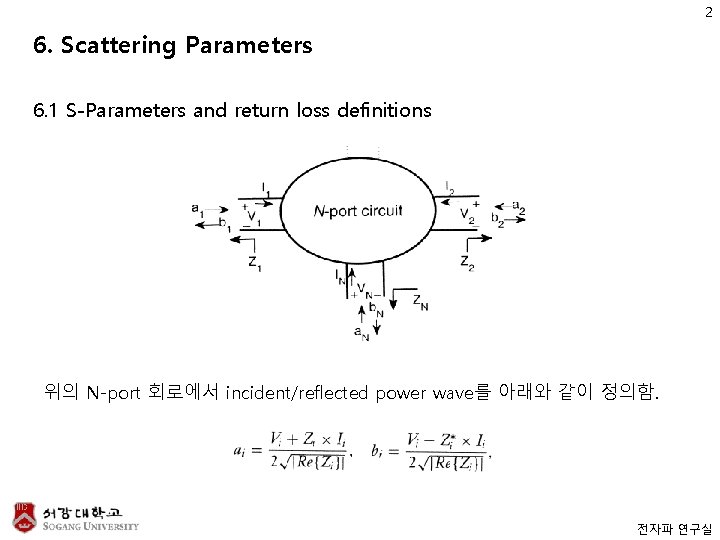

2 6. Scattering Parameters 6. 1 S-Parameters and return loss definitions 위의 N-port 회로에서 incident/reflected power wave를 아래와 같이 정의함. 전자파 연구실

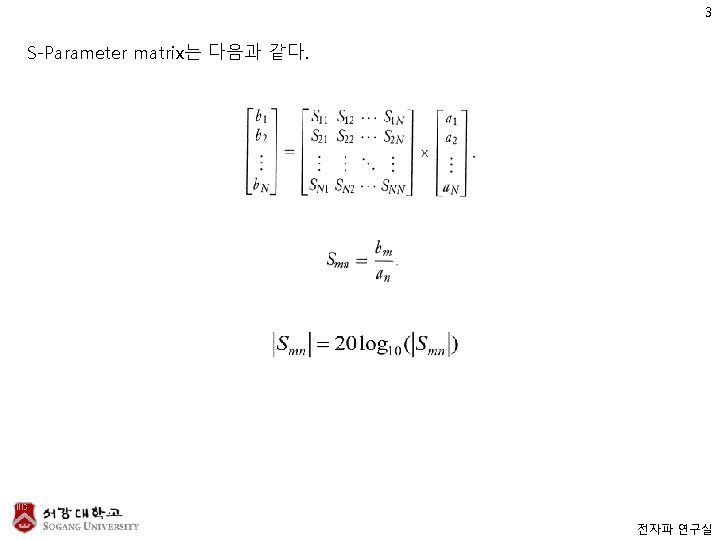

4 6. 2 S-Parameter calculations example 전자파 연구실
5 1) define_geometry. m 전자파 연구실
6 2) define_output_parameter. m 전자파 연구실
8 3) calculate_frequency_domain_outputs. m 전자파 연구실
9 4) display_frequency_domain_output. m 전자파 연구실

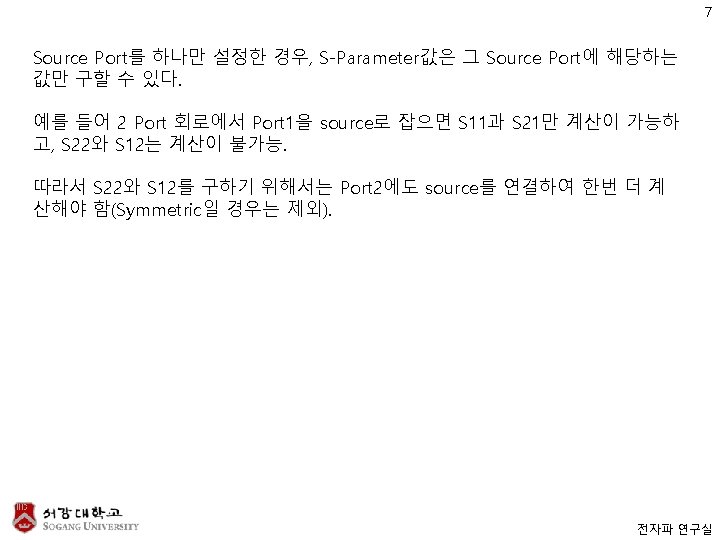

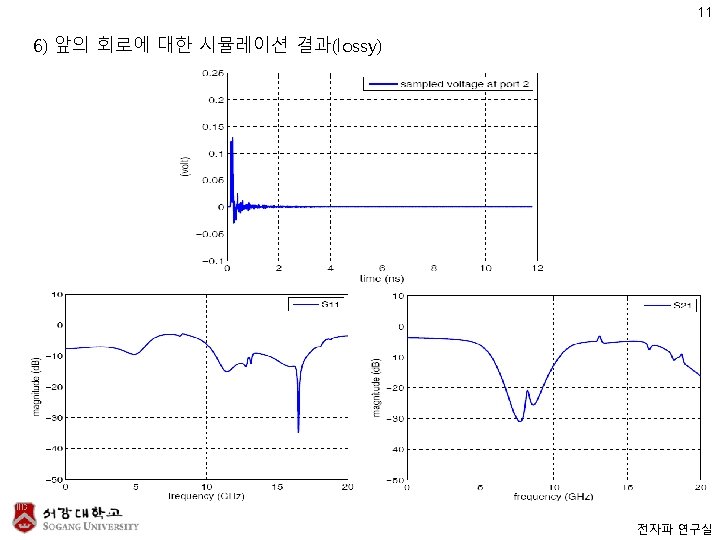

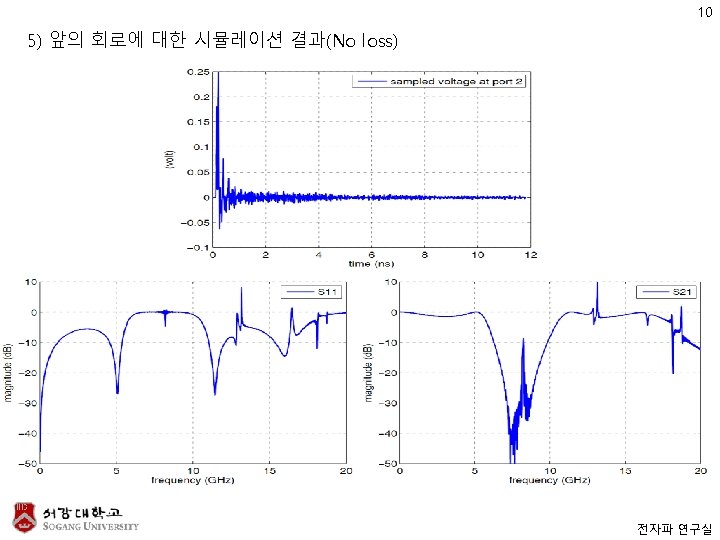

12 6. 3 Simulation example 6. 3. 1 Quarter-Wave Transformer 전자파 연구실
13 1) define_geometry. m 전자파 연구실
14 2) define_sources_and_lumped_elements. m 전자파 연구실
15 3) define_output_parameter. m 전자파 연구실
