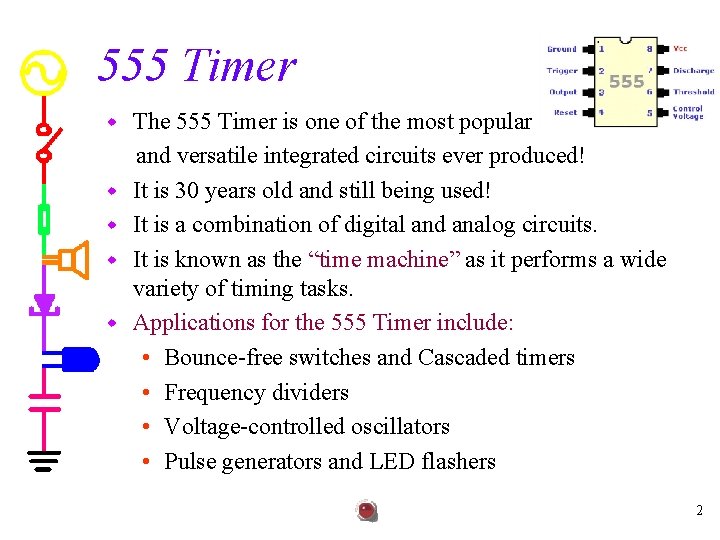

555 Timer w w w The 555 Timer is one of the most popular and versatile integrated circuits ever produced! It is 30 years old and still being used! It is a combination of digital and analog circuits. It is known as the “time machine” as it performs a wide variety of timing tasks. Applications for the 555 Timer include: • Bounce-free switches and Cascaded timers • Frequency dividers • Voltage-controlled oscillators • Pulse generators and LED flashers 2

555 Timer Each pin has a function, the meaning of which will become clearer later. w Note some familiar components inside w 3

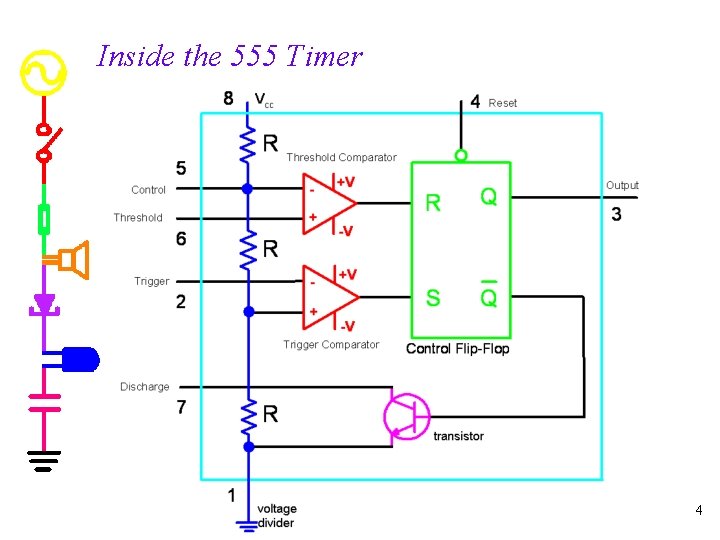

Inside the 555 Timer 4

Inside the 555 Timer w You will learn more about these components later in the course, for now just understand the following: • The voltage divider has three equal 5 K resistors. It divides the input voltage (Vcc) into three equal parts. • The two comparators are op-amps which compare the voltages at their inputs and saturate depending upon which is greater. • The flip-flop is a bi-stable device. It generates two values, a “high” value equal to Vcc and a “low” value equal to 0 V. • The transistor is being used as a switch, it connects pin 7 (discharge) to ground when it is closed. 5

Periodic Pulse Train from a 555 Timer w 555 -Timers, like op-amps can be configured in different ways to create different circuits. We will now look into how this one creates a train of equal pulses, as shown at the output. 6

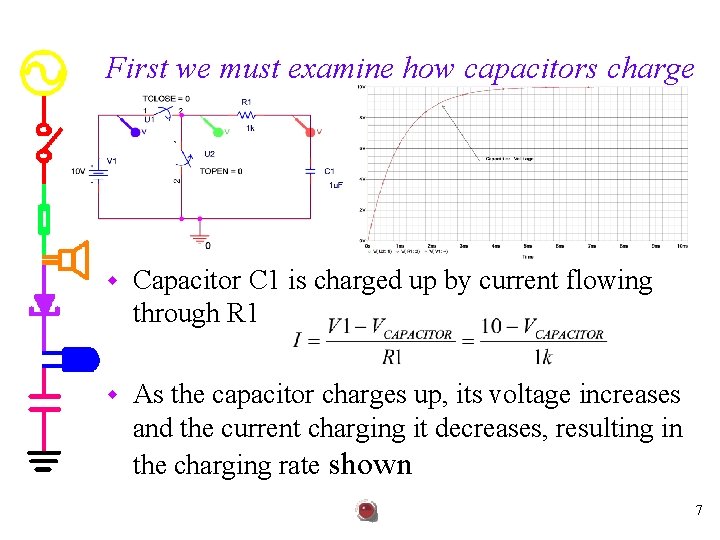

First we must examine how capacitors charge w Capacitor C 1 is charged up by current flowing through R 1 w As the capacitor charges up, its voltage increases and the current charging it decreases, resulting in the charging rate shown 7

Capacitor Charging Equations w Capacitor Current w Capacitor Voltage w Where the time constant 8

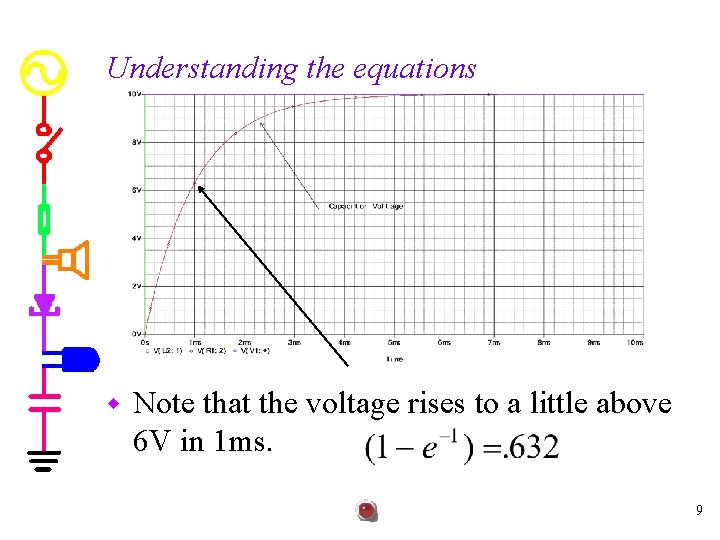

Understanding the equations w Note that the voltage rises to a little above 6 V in 1 ms. 9

Capacitor Charging and Discharging w There is a good description of capacitor charging and its use in 555 timer circuits at http: //www. uoguelph. ca/~antoon/gadgets/555. html 10

555 Timer w At the beginning of the cycle, C 1 is charged through resistors R 1 and R 2. The charging time constant is w The voltage reaches (2/3)Vcc in a time 11

555 Timer w When the voltage on the capacitor reaches (2/3)Vcc, a switch (the transistor) is closed at pin 7 and the capacitor is discharged to (1/3)Vcc, at which time the switch is opened and the cycle starts over 12

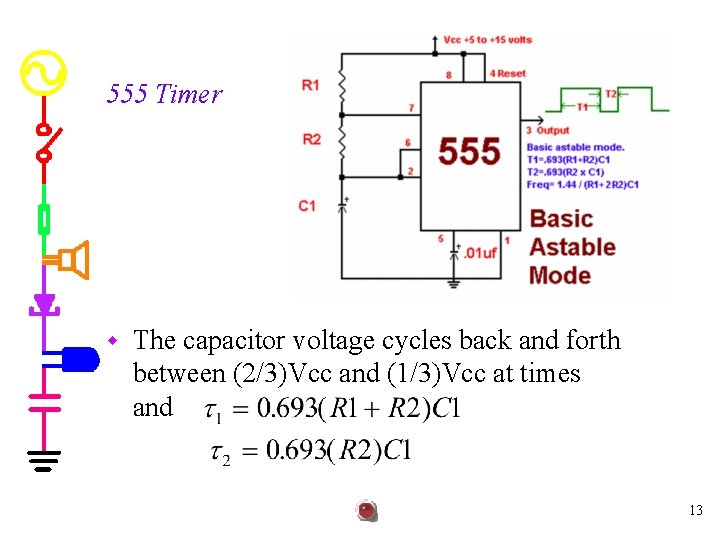

555 Timer w The capacitor voltage cycles back and forth between (2/3)Vcc and (1/3)Vcc at times and 13

555 Timer w The frequency is then given by 14

555 Animation Output is high for 0. 693(Ra+Rb)C Output voltage high turns off upper LED and turns on lower LED Capacitor is charging through Ra and Rb w http: //www. williamson-labs. com/pu-aa-555 timer_slow. htm 15

555 Animation Output is low for 0. 693(Rb)C Output is low so the upper LED is on and the lower LED is off Capacitor is discharging through Rb 16

Types of 555 -Timer Circuits w Astable Multivibrator puts out a continuous sequence of pulses w Monostable Multivibrator (or one-shot) puts out one pulse each time the switch is connected 17

w Monostable Multivibrator (One Shot) 18

Behavior of the Monostable Multivibrator The monostable multivibrator is constructed by adding an external capacitor and resistor to a 555 timer. w The circuit generates a single pulse of desired duration when it receives a trigger signal, hence it is also called a one-shot. w The time constant of the resistor-capacitor combination determines the length of the pulse. w 19

Uses of the Monostable Multivibrator • Used to generate a clean pulse of the correct height and duration for a digital system • Used to turn circuits or external components on or off for a specific length of time. • Used to generate delays. • Can be cascaded to create a variety of sequential timing pulses. These pulses can allow you to time and sequence a number of related operations. 20

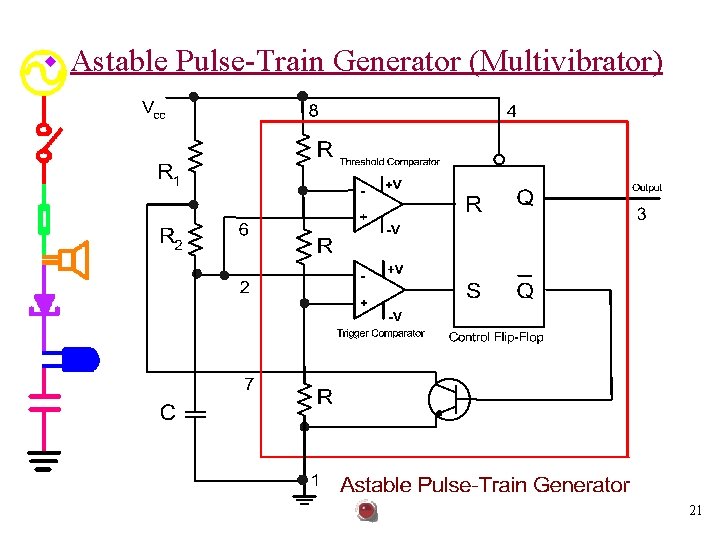

w Astable Pulse-Train Generator (Multivibrator) 21

Behavior of the Astable Multivibrator The astable multivibrator is simply an oscillator. The astable multivibrator generates a continuous stream of rectangular off-on pulses that switch between two voltage levels. w The frequency of the pulses and their duty cycle are dependent upon the RC network values. w The capacitor C charges through the series resistors R 1 and R 2 with a time constant (R 1 + R 2)C. w The capacitor discharges through R 2 with a time constant of R 2 C w 22

Uses of the Astable Multivibrator • • Flashing LED’s Pulse Width Modulation Pulse Position Modulation Periodic Timers (see mushroom timer in the experiment). 23

Flashing LED’s w 40 LED bicycle light with 20 LEDs flashing alternately at 4. 7 Hz 24

PWM: Pulse Width Modulation w Signal is compared to a sawtooth wave producing a pulse width proportional to amplitude 25

What Can Be Done With PWM? Low Duty Cycle Medium Duty Cycle High Duty Cycle w Question: What happens if voltages like the ones above are connected to a light bulb? Answer: The longer the duty cycle, the longer the light bulb is on and the brighter the light. 26

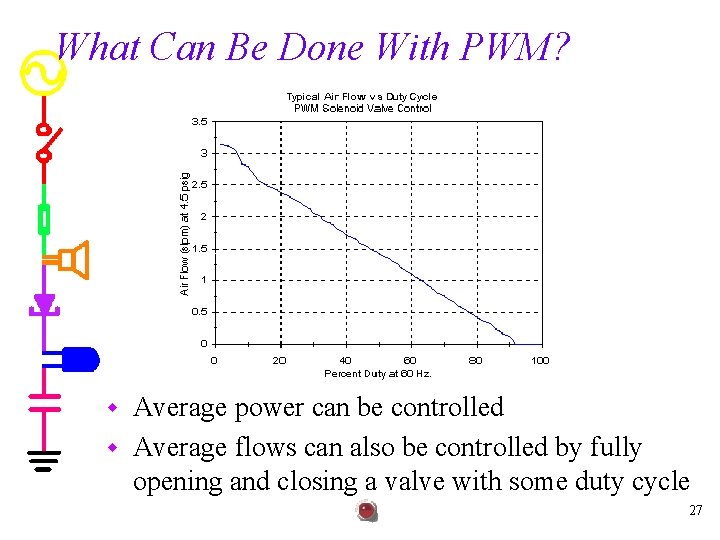

What Can Be Done With PWM? Average power can be controlled w Average flows can also be controlled by fully opening and closing a valve with some duty cycle w 27

Pulse Position Modulation This is an optical transmitter. w Astable is used to produce carrier pulses at a frequency we cannot hear (well above 20 k. Hz) w 28

Behavior of the Pulse Position Modulator This application generates a continuous stream of rectangula w The frequency of the pulses and their duty cycle are depende w When a signal is encoded like this, it can be transmitted and then decoded with a receiver. w 29

Optical Receiver Circuit The receiver takes the optical pulses, reconstructs the signal, amplifies it, and plays it on a speaker. w You will build this circuit in project 2. w 30

Part B: Diodes and Light • The Light-Emitting Diode (LED) is a semiconductor pn jun • Visible LEDs emit relatively narrow bands of green, yellow 31

Facts about LED’s • LEDs switch off and on rapidly, are very rugged and efficient, have a very long lifetime, and are easy to use. • They are current-dependent sources, and their light output intensity is directly proportional to the forward current through the LED. • Always operate an LED within its ratings to prevent irreversible damage. • Use a series resistor (Rs) to limit the current through the LED to a safe value. Usually a 330 Ω resistor is used in series with an LED when used with a 5 V supply. • VLED is the LED voltage drop. It ranges from about 1. 3 volts to about 2. 5 volts. • ILED is the specified forward current. 32

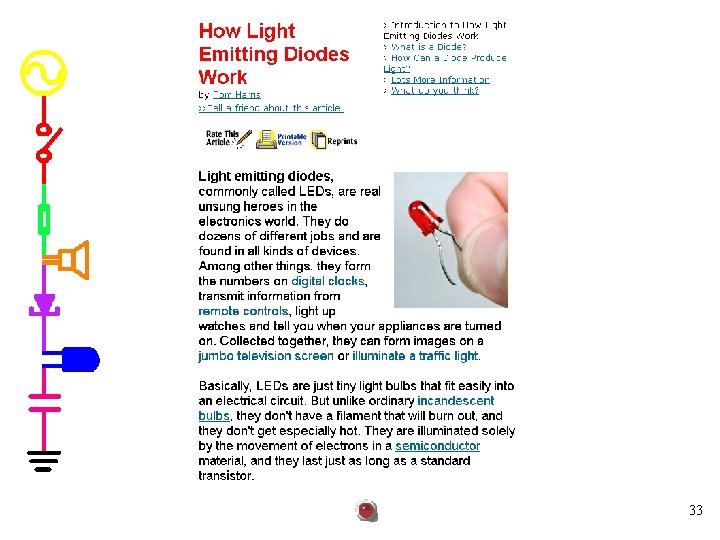

33

34

Photodiodes and Phototransistors • Photodiodes are designed to detect photons and can be used in circuits to sense light. • Phototransistors are photodiodes with some internal amplification. Note: Reverse current flows through the photodiode when it is sensing light. If photons excite carriers in a reversebiased pn junction, a very small current proportional to the light intensity flows. The sensitivity depends on the wavelength of light. 35
