EDUSAT NET’S TECHNOLOGICAL INFRASTRUCTURE INDEX Ø Ø Ø BACKGROUND CURRENT SITUATION DEFINITION OF INMEDIATE ACTIONS Ø EXPANSION, GROWTH & TECHNOLOGICAL MIGRATION Ø CONCLUSIONS 2

BACKGROUND 3

Through the program for educational modernization (1989 -1994), the Ministry of Public Education created Education Via Satellite Net (Edusat) as an answer to the country’s growing demand for educational services, including disperse and rural populations by using television. The pupose of this educational tv system is to address: literacy training, basic education, high school and technical and technological education all of which are the responsability of the Public Education Ministry. 4

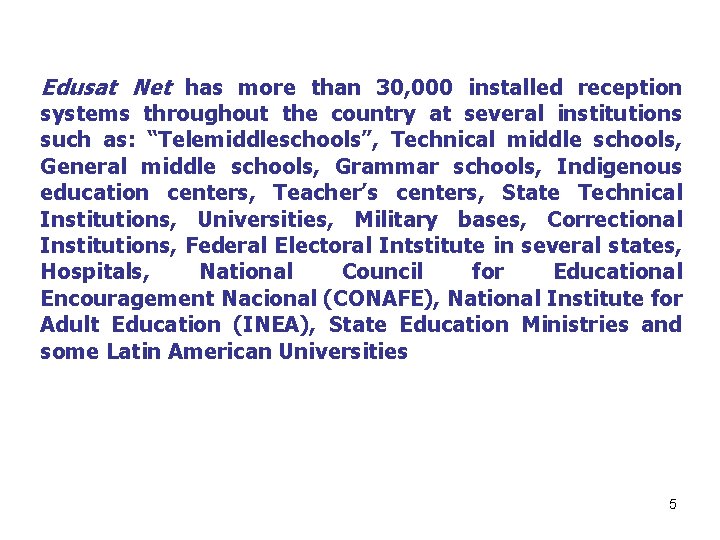

Edusat Net has more than 30, 000 installed reception systems throughout the country at several institutions such as: “Telemiddleschools”, Technical middle schools, General middle schools, Grammar schools, Indigenous education centers, Teacher’s centers, State Technical Institutions, Universities, Military bases, Correctional Institutions, Federal Electoral Intstitute in several states, Hospitals, National Council for Educational Encouragement Nacional (CONAFE), National Institute for Adult Education (INEA), State Education Ministries and some Latin American Universities 5

Current Situation 6

Before commenting on any expansion, growth or technological migration for EDUSAT Net it is important to quickly mention its origin and current characteristics. Edusat Net was born from the need to continue broadcasting “Telemiddleschool” (Telesecundaria) which in 1991 was done through open tv using Imevisión (Government channel) and its national broadcasting net. When the government sold Imevisión, it was forced to consider an alternative that required less time to implement, since the agreements undersigned by SEP, to continue with the service were too expensive. It also needed to have national coverage because “Telemiddleschools” are found in rural areas. 7

The technology that met these requirements was Digicipher 1, an advanced technology and best satellite provider at the time (Audio Digital Compression, Video). This technology evolved by optimizing the use of a satellite transponder bandwidth and Digicipher 2 technology was acquired. Both technologies are currently used side by side and allow quality coverage for Edusat Net. By using the most sophisticated encription technologies Edusat Net was born as a “closed” technology since the transmitters and receptors both have to be of the same brand to work properly, for obvious reasons. 8

Taking the disadvantages of this system into account, some processes for the growth of the net have been facilitated by negotiating delivery times and favorable volume pricing. Also, since few brands exist the logistics for control, administration and following of these programs has been simpler. Almost 17, 600 pieces of equipment are DC 1 (of which 80% are in “Telemiddleschools”) and almost 14, 400 are DC-2. The use of two technologies and two satellites means that these two equipments are not interchangeable without a re-orientation and configuration process that requires skilled technical personnel. 9

In this sense any strategy for massive receptor substitution should consider the demand of technical resources, materials and equipment, this would require as well as the time that such a job would take. Motorola has stopped producing DC-1 and although it claims it can service DC-2 for five more years, it does so under mandatory upgrading conditions and at very high prices. It may be worth mentioning that pulling this equipment from the market has been done purely from a commercial and not technological standpoint, thus the argument for obsolescence is not precise. 10

Edusat Net’s satellite uplink is currently being done by“Telecomunicaciones de México (TELECOMM)” at its “Contel Iztapalapa” facilities, where the signal is digitalized, encoded and multiplexed for: 12 TV channels through DC-2 encoder technology, 8 TV channels vía DC-1 encoder. To transmit these services through two satellites (Sol 2 and Satmex 5), as well as 4 corresponding channels to radio signals. For satellite transmission and reception, General Instruments proprietary technology is used (now Motorola). 11

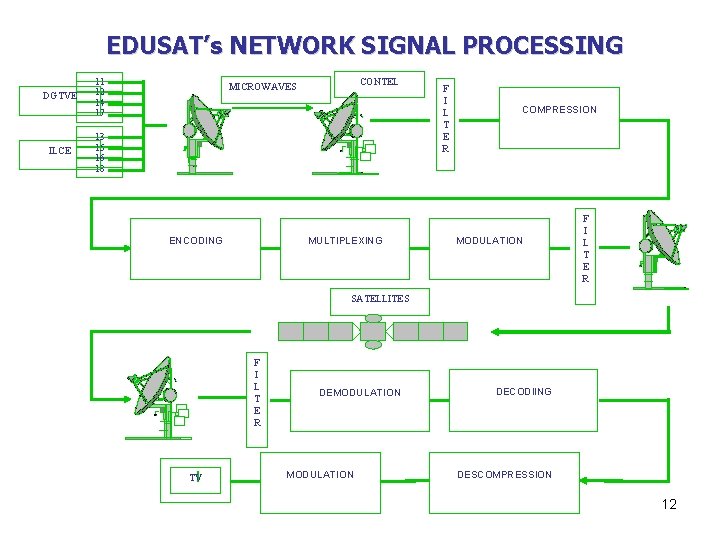

EDUSAT’s NETWORK SIGNAL PROCESSING DGTVE ILCE 11 12 14 17 CONTEL MICROWAVES 13 15 16 18 ENCODING MULTIPLEXING F I L T E R COMPRESSION MODULATION F I L T E R SATELLITES F I L T E R TV DEMODULATION DECODIING DESCOMPRESSION 12

EDUSAT COVERAGE DC-1 SYSTEM (8 TV CHANNELS) SOLIDARIDAD II SATELLITE Edusat Net on Solidaridad II satellite uses Digicipher 1 -1) technology. It (DC currently covers 16, 600 receptors placed mainly in rural areas, as is the case of “Telemiddleschools” and Indigenous grammar schools. 13

EDUSAT COVERAGE SYSTEM DC-2 (16 TV CHANNELS) Edusat Net on Satmex 5 satellite uses Digicipher 2 (DC-2) technology , approximate coverage is of 13, 400 receptors. 14

SOLIDARIDAD 2 SATELLITE SIGNALS TRANSPONDER 3 N d. Bw 34 30 8 TV CHANNELS 4 RADIO CHANNELS DC-1 1 TV CHANNEL WEGENER DVB MHz 6008. 25 6011 2. 5 1. 5 6039 28 6043 4 15 36

SATMEX 5 SATELLITE SIGNALS TRANSPONDER 24 C d. Bw 28 25 12 TV CHANNELS 2 RADIO CHANNELS DC-2 1 IDC DATA CHANNEL MHz 6405 6391 4 6421. 75 6419 28 36 1. 5 6423 3. 15 16

EDUSAT-DGTVE DVB SIGNAL PROCESSING ENCODER 16: 1 MEPG-2 DVB DGTVE STUDIOS UP/HPA MODULATOR MULTIPLEXOR SATELLITES DEMULTIPLEXOR DECODER CONDITIONAL ACCESS RF MODULATOR DEMODULATOR TELEVISION 17

EXPANSION, GROWTH & TECHNOLOGICAL MIGRATION 18

Normal equipment deterioration indicates that the DC-1 equipment is more susceptible to failure, both in transmission and reception equipment, they are however more robust and resistant for “Telemiddleschool” use. Since DC-1 equipment is no longer made, it must be substituted by DVB technology when it fails. Due to the actual state of Edusat Net there are four fundamental axes that must be consolidated in the short and medium term. 19

Controlled expansion and growth of Edusat Net’s infrastructure. Keeping current technology, actively participating in establishing policies and procedures so that each of the country’s states implements investment projects while three remaining axes are met. Edusat Net’s technological migration: Toward standard international open platform with the participation of diverse brands and models that guarantee interoperability. (DVB-RCS) 20

Edusat Net´s Diversification. Using cable TV systems to broadcast at least two Net channels having the universal offer of educational TV, including the National Network of educational and cultural tv broadcasters. Technological converging between TV, computers and Information technology. Edusat Net’s future will depend on its capacity to add its teaching advantages, the possibilities of digital environments, and automated controlled programming by SUN 12000 servers. 21

International DVB Standard DVB-S, DVB-C, DVB-T DVB-S, DVB-C, DSS, ATSC DVB-S: Satellite DVB-C: Cable DVB-T: Land 22 www. dvb. org

IMMEDIATE ACTION DEFINITIONS 23

v Migration Program (Stages) v 1. - Net widening. - Every new system that is installed will be done by pointing the Solidaridad 2 satellite in Ku band, we will take advantage of this point to start training at the national level. v 2. - “Telemiddleschool “ susbstitution. - All equipment will be substituted before the beginning of the next school cycle (August 2993), State structural support will be used for this process. v 3. - Satellite change. - Once the 14, 000 “telesmiddleschools” migration is completed all remaining band C equipment, DC 1 as well as DC 2 will be 24 changed.

Using DVB standard on Edusat Net. - Performance tests have been done on this standard and they have been acceptable, but we only have one tv channel to support the “Telemiddleschool” system. Ku band teleport (DGTVE). - Tests have to be performed on the controlled access system (IRDETO) and also verify the access parameters to the Mexican satellites to be able to use less than 90 centimeter diameter receptor antenna (TVRO). 25

CONCLUSIONS 26

DVB technological standard was created to achieve a uniform environment for digital tv dissemination. Once DVB standards have been published, they will be available to anyone in the world, notwithstanding were they have been developed and are therefore open standards. With the introduction of DVB technology, the net will be able to use different brands of satellite receptors (set top box). This diversity of brands on the market will allow the lowering of costs to acquire said receptors. 27
