1 Digital Cameras Consumer digital cameras have been
1 Digital Cameras • Consumer digital cameras have been around since 1995 • What features make a good camera? • How do we optimize good features with a limited budget?
1 Exposure • How many photons contribute to each pixel? – More is better! • Exposure is a combination of several factors – – – Aperature Size Shutter speed Lens size Sensor Sensitivity Sensor size (bigger is generally better)
1 Lens • The lens gathers light • The lens focuses the image • Sharpess of the image depends on the lens • Larger lenses gather more light • Smaller lenses allow for a smaller camera
1 Lens Focal Length • Focal length – Macro • have short focal lengths • Allow imaging small objects – Normal • have intermediate focal lengths • Most cameras have one – Telephoto • have large focal lengths • Allow imaging far away objects
1 Field of View
1 Vignetting • A gradual fading of the image away from the center • Caused by lens optics
1 Optical Zoom • Changes lens focal length • More lenses can lead to glare and loss of sharpness • Large zoom can benefit from image stabilization
1 Digital Zoom • Digital zoom extracts a region • Similar to cropping • Use optical zoom if possible
1 Shutter Speed • Controls how long the sensor is exposed • Short – Need lots of light – Good for moving objects • Long – Good for stationary objects – Need less light

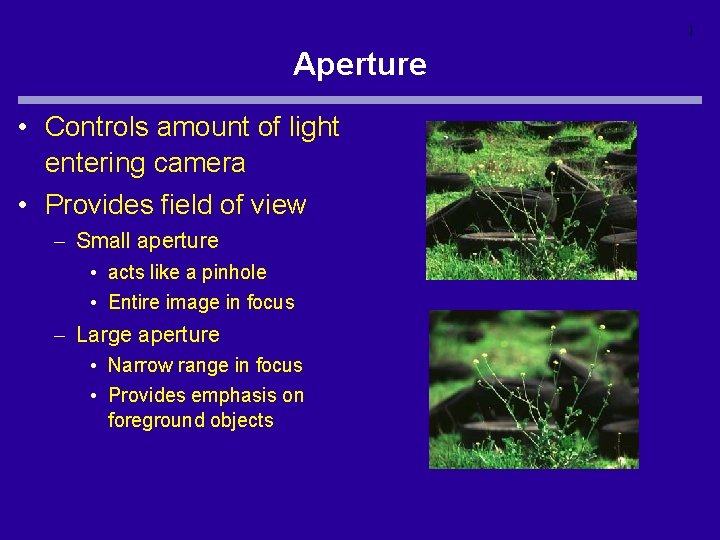

1 Aperture • Controls amount of light entering camera • Provides field of view – Small aperture • acts like a pinhole • Entire image in focus – Large aperture • Narrow range in focus • Provides emphasis on foreground objects
1 Viewfinder • Allows us to identify the content of the image • Optical – Through the lens – Off axis • Electronic – Small – Full-size
1 Camera Display • • Small Screen Review of images Camera control Viewfinder
1 Sensor • Acquires the image • Electronic equivalent of film • CCD – Charge-coupled device • CMOS – Complementary Metal Oxide Semiconductor http: //www. shortcourses. com/how/sensors/ccdwaffer. jpg
1 CCD vs. CMOS
1 Mosaic vs. Foveon

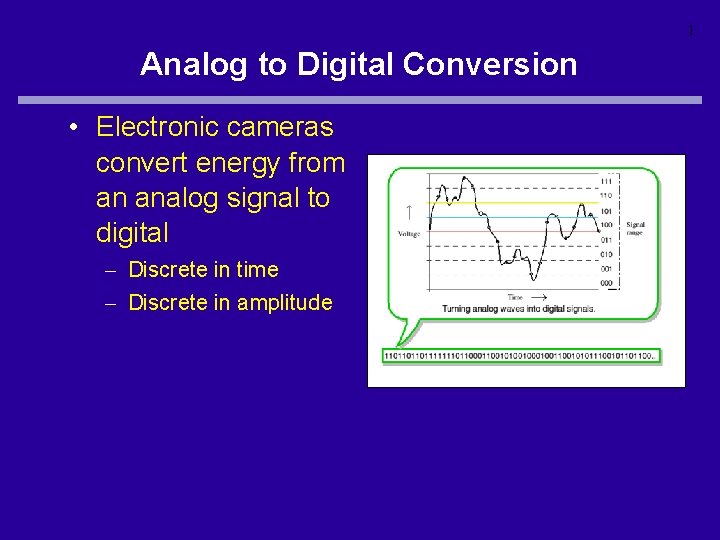

1 Analog to Digital Conversion • Electronic cameras convert energy from an analog signal to digital – Discrete in time – Discrete in amplitude
1 Quantum Noise • Based on the number of photons • Variation is the square root of the number of photons http: //telin. rug. ac. be/~frooms/research/steer/www/
1 Other Noise • Electronic – Heat – Cheap Electronics – Design • Senosor – Bad pixels • Hot • Cold – Bad line http: //www. starizona. com/ccd/software/biasframe. jpg • See http: //www. imatest. com/docs/tour_lightfall. html
1 Camera Speed • Time to read sensor • Time to write image to media • Faster is better
1 Compression • JPEG 2 • Is the image always compressed?
1 Data Storage Media • Physical device where images are stored • Tradeoffs – – – Physical size (smaller is better) Speed (faster is better) Data size (larger is better) Cost per GB (more is better) Reliability • How permanent is the storage? • What is the failure rate? – Availability • What other devices can use the media?
1 Noise • Statisitcal variations in the pixel values • Noise obscures detail
1 Battery Power • Provides camera with power • Disposable – Costly in long run – Low power • Rechargeable – Lithium – Ni. MH • Important question – How many pictures can be taken on one charge?
1 Camera Settings • What special features does the camera provide? – – – Shutter priority Aperture priority Movies Red-eye reduction Delayed shutter
1 Connectivity • How does the camera interface with computers? – – USB Firewire Serial Removable media
1 Flash • Does camera use a flash? – Internal – External
1 Tripod • Holds camera • Useful for – long exposures – Repeated shots
1 Carrying Case • Holds camera and other supplies – – – Tripod Batteries Recharger Manual Extra media
1 Hybrid Cameras • Digital camera that can directly print to polaroid film any desired photos • Preview of film images before processing • Dual film/digital camera where one can easily switch between the two modes • A 35 mm cassette that has the same form factor as a film camera, yet acquires digital images • Direct digital conversion of film during processing
