Using Cloud Computing to operate a Spatial Data Infrastructure efficiently 2 Hans Viehmann Product Manager EMEA Copyright © 2013, Oracle and/or its affiliates. All rights reserved.

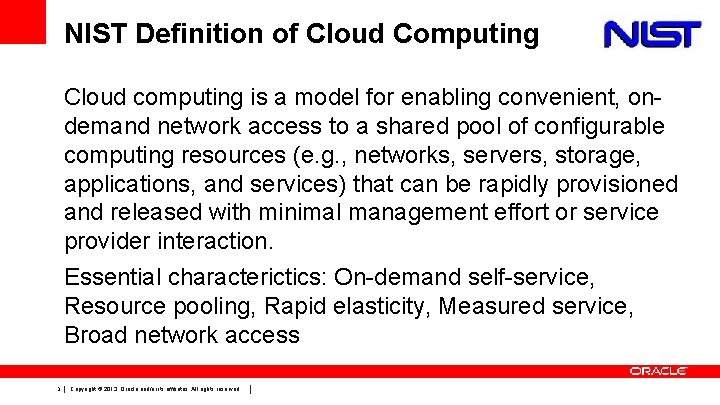

NIST Definition of Cloud Computing Cloud computing is a model for enabling convenient, ondemand network access to a shared pool of configurable computing resources (e. g. , networks, servers, storage, applications, and services) that can be rapidly provisioned and released with minimal management effort or service provider interaction. Essential characterictics: On-demand self-service, Resource pooling, Rapid elasticity, Measured service, Broad network access 3 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.

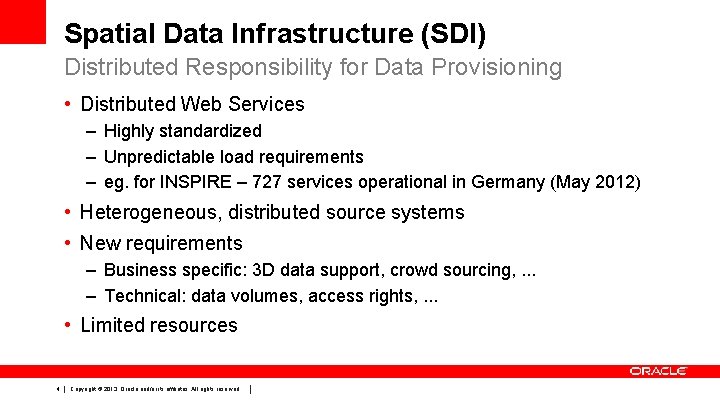

Spatial Data Infrastructure (SDI) Distributed Responsibility for Data Provisioning • Distributed Web Services – Highly standardized – Unpredictable load requirements – eg. for INSPIRE – 727 services operational in Germany (May 2012) • Heterogeneous, distributed source systems • New requirements – Business specific: 3 D data support, crowd sourcing, . . . – Technical: data volumes, access rights, . . . • Limited resources 4 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.

Cloud Computing for SDIs • more efficient management of data and services by using a central hosted platform • Economy of scale • reduce Cap. Ex by using hosted services • achieve elasticity to address variable load • reduce time-to-market through self-service and higher degree of automation 5 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.

Running SDIs on a Cloud Infrastructure Deployment Model Service Model Private Applications Customer Owns Customer Operates Public Platform Customer Owns Provider Operates (Saa. S) (Paa. S) Hybrid 6 Operating Model Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Infrastructure (Iaa. S) Provider Owns Provider Operates

Customers Have a Choice of Clouds Private, Public, Hybrid Exclusive Private Cloud • • 7 Cap. Ex & Op. Ex Lower total costs Control & visibility Multiple apps sharing resources Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Shared by multiple organizations Hybrid Cloud • Cloudbursting – overdraft for peak loads • Dev/Test & production • B 2 B integration Public Cloud • • Op. Ex Fast & inexpensive to start Outsourced services Multiple tenants sharing resources

Customers Have a Choice of Clouds Iaa. S, Paa. S, Saa. S Developer Business End User Customizations Application Service Provider Platform Iaa. S Cloud 8 Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Saa. S Cloud Paa. S Cloud Service Provider Consumer IT Professional Consumer Different Users

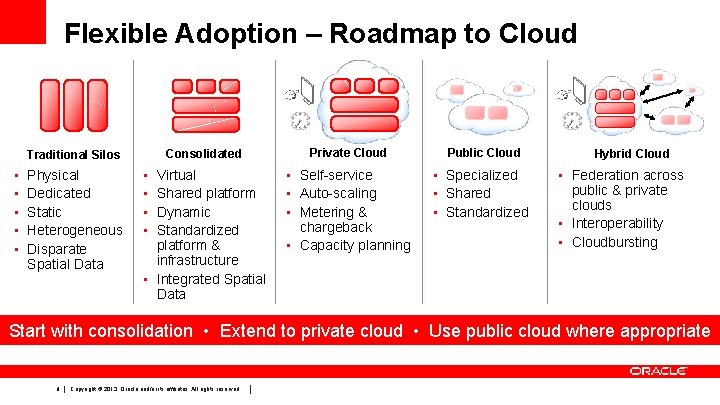

Flexible Adoption – Roadmap to Cloud Consolidated Private Cloud Virtual Shared platform Dynamic Standardized platform & infrastructure • Integrated Spatial Data • Self-service • Auto-scaling • Metering & chargeback • Capacity planning Traditional Silos • • • Physical Dedicated Static Heterogeneous Disparate Spatial Data • • Public Cloud • Specialized • Shared • Standardized Hybrid Cloud • Federation across public & private clouds • Interoperability • Cloudbursting Start with consolidation • Extend to private cloud • Use public cloud where appropriate 9 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.

Consolidation at Paa. S and Iaa. S Layers Consolidate onto standard, shared and elastically scalable Paa. S App App App • Standardized Paa. S for all applications reduces heterogeneity, cost and complexity • Accelerated new application development • Cost savings from less hardware, power and data center space Paa. S App vs. App Consolidate onto shared Iaa. S without standardization 10 Copyright © 2013, Oracle and/or its affiliates. All rights reserved. App Iaa. S App • Software stack heterogeneity, cost and complexity persists • No administration (O&M) cost savings • Cost savings from less hardware, power and data center space

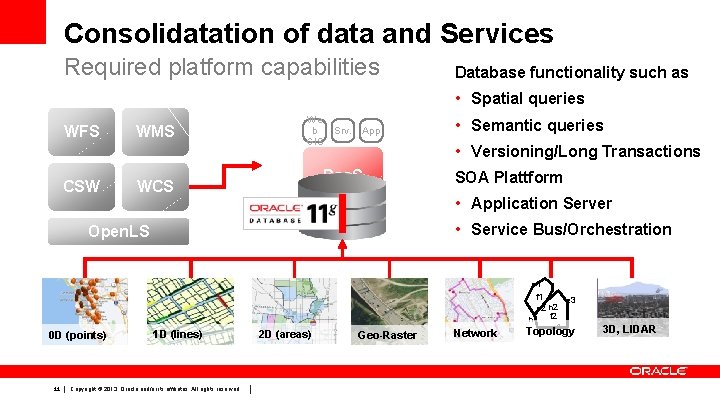

Consolidatation of data and Services Required platform capabilities Database functionality such as • Spatial queries WFS CSW WMS We b GIS Srv. App • Versioning/Long Transactions Paa. S WCS 11 SOA Plattform • Application Server • Service Bus/Orchestration Open. LS 0 D (points) • Semantic queries 1 D (lines) Copyright © 2013, Oracle and/or its affiliates. All rights reserved. 2 D (areas) Geo-Raster Network e 1 f 1 e 3 e 2 n 1 f 2 e 4 Topology 3 D, LIDAR

Exadata, Exalogic, SPARC Super. Cluster Extreme Performance, Engineered Systems • Building blocks for consolidation and cloud computing • Unmatched performance, simplified deployment, lower total cost 12 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.

Complete Cloud Lifecycle Management 4. Meter, Charge, Optimize • Metering resource utilization • Chargeback/Showback • Optimize performance, capacity, Qo. S 3. Manage & Monitor the Cloud • Auto-scaling • Full stack management • End-user, businesslevel, app monitoring 13 Copyright © 2013, Oracle and/or its affiliates. All rights reserved. 1. Plan & Setup the Cloud • • Capacity & consolidation planning Asset discovery Bare-metal provisioning Policy setup 2. Build, Test & Deploy Apps on the Cloud • Packaging apps as assemblies • Testing applications • Self-service provisioning

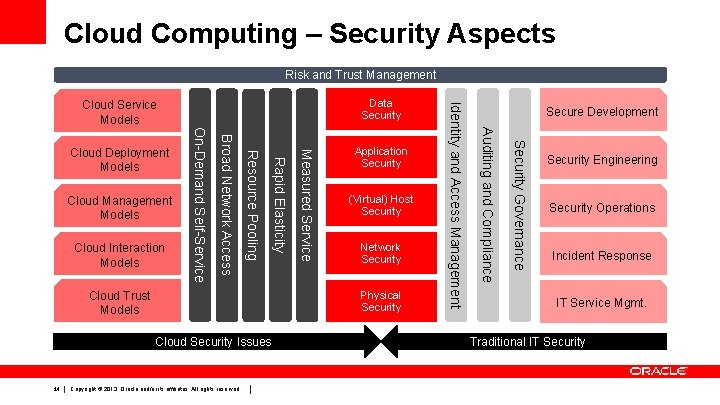

Cloud Computing – Security Aspects Risk and Trust Management Network Security Cloud Security Issues Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Security Governance (Virtual) Host Security Secure Development Auditing and Compliance Measured Service Application Security Physical Security Cloud Trust Models 14 Rapid Elasticity Resource Pooling Cloud Interaction Models Broad Network Access Cloud Management Models On-Demand Self-Service Cloud Deployment Models Identity and Access Management Data Security Cloud Service Models Security Engineering Security Operations Incident Response IT Service Mgmt. Traditional IT Security

Recommendations • develop a vision to move to cloud computing • save operational cost, improve time-to-market • start with file and database consolidation • reduce complexity, improve security & availability • consider engineered systems for consolidation • save operational cost, reduce deployment time, improve scalability • integrate geospatial data in all layers of the stack • simplify SW development, improve security & availability • use standards wherever possible • protect investments, improve interoperability 15 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.

ITSO – IT Strategies from ORACLE More best practices for Cloud Computing 16 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.

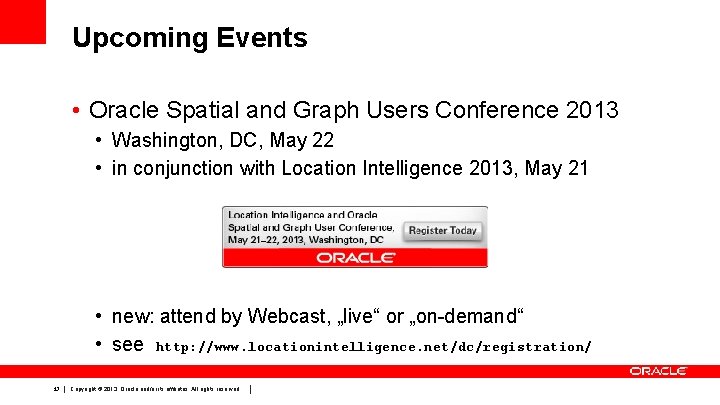

Upcoming Events • Oracle Spatial and Graph Users Conference 2013 • Washington, DC, May 22 • in conjunction with Location Intelligence 2013, May 21 • new: attend by Webcast, „live“ or „on-demand“ • see http: //www. locationintelligence. net/dc/registration/ 17 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.

18 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.

Oracle Strategy Complete Stack Complete Customer Choice • Best-of-breed • On-premise • Open • Private Cloud • Vertical Integration • Public Cloud • Extreme Performance • Hybrid Cloud • Engineered Systems 19 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
