1 Console Connectivity RJ45 Connector Console Port Rollover

1

Console Connectivity RJ-45 Connector Console Port Rollover Cable RJ-45 to DB-9 Converter Computer 2

Console Connectivity • Connect a rollover cable to the router console port (RJ-45 connector). • Connect the other end of the rollover cable to the RJ-45 to DB-9 adapter • Attach the female DB-9 adapter to a PC Serial Port. • Open emulation software on the PC. 3

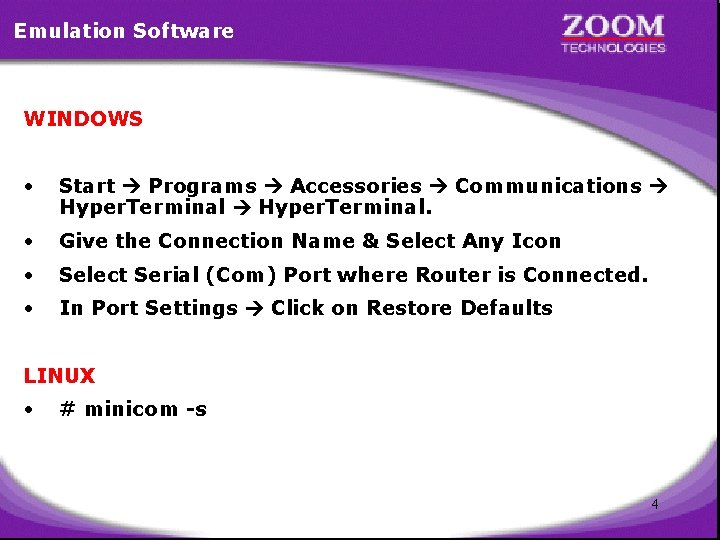

Emulation Software WINDOWS • Start Programs Accessories Communications Hyper. Terminal. • Give the Connection Name & Select Any Icon • Select Serial (Com) Port where Router is Connected. • In Port Settings Click on Restore Defaults LINUX • # minicom -s 4

Console Connectivity Con 0 E 0 LAN - 192. 168. 1. 0/24 5

System Bootstrap, Version 11. 0(10 c), SOFTWARE Copyright (c) 1986 -1996 by cisco Systems 2500 processor with 2048 Kbytes of main memory Notice: NVRAM invalid, possibly due to write erase. F 3: 5575260+78596+410108 at 0 x 3000060 Restricted Rights Legend Use, duplication, or disclosure by the Government is subject to restrictions as set forth in subparagraph (c) of the Commercial Computer Software - Restricted Rights clause at FAR sec. 52. 227 -19 and subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at DFARS sec. 252. 227 -7013. Cisco Systems, Inc. 170 West Tasman Drive San Jose, California 95134 -1706 6

Cisco Internetwork Operating System Software IOS(tm) 2500 Software(C 2500 -P-L), Version 12. 1(24), RELEASE SOFTWARE(fc 1 Copyright (c) 1986 -2002 by cisco Systems, Inc. Compiled Mon 30 -Sep-02 20: 43 by srani Image text-base: 0 x 0302 EA 54, data-base: 0 x 00001000 Cisco 2500(68030)processor(revision N) with 2048 K/2048 K bytes of memory. Processor board ID 11169613, with hardware revision 00000001 X. 25 software, Version 3. 0. 0. Basic Rate ISDN software, Version 1. 1. 1 Ethernet/IEEE 802. 3 interface(s) 2 Serial network interface(s) 1 ISDN Basic Rate interface(s) 32 K bytes of non-volatile configuration memory. 8192 K bytes of processor board System flash (Read ONLY) --- System Configuration Dialog --Would you like to enter the initial configuration dialog? [yes/no]: n 7

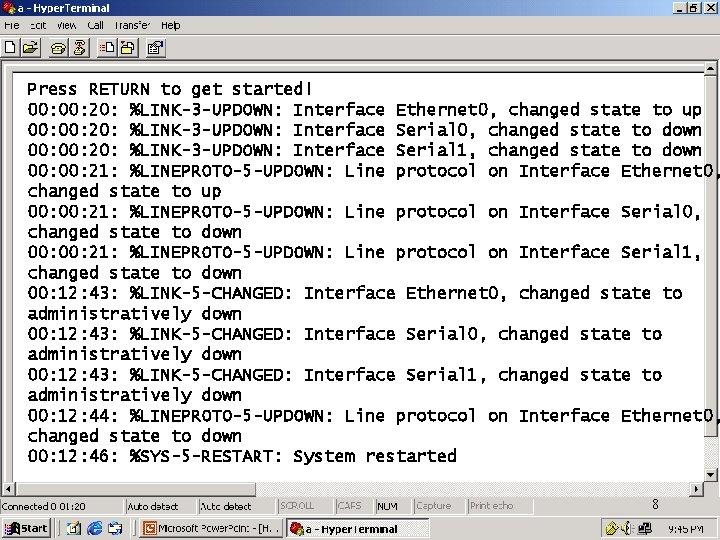

Press RETURN to get started! 00: 20: %LINK-3 -UPDOWN: Interface Ethernet 0, changed state to up 00: 20: %LINK-3 -UPDOWN: Interface Serial 0, changed state to down 00: 20: %LINK-3 -UPDOWN: Interface Serial 1, changed state to down 00: 21: %LINEPROTO-5 -UPDOWN: Line protocol on Interface Ethernet 0, changed state to up 00: 21: %LINEPROTO-5 -UPDOWN: Line protocol on Interface Serial 0, changed state to down 00: 21: %LINEPROTO-5 -UPDOWN: Line protocol on Interface Serial 1, changed state to down 00: 12: 43: %LINK-5 -CHANGED: Interface Ethernet 0, changed state to administratively down 00: 12: 43: %LINK-5 -CHANGED: Interface Serial 1, changed state to administratively down 00: 12: 44: %LINEPROTO-5 -UPDOWN: Line protocol on Interface Ethernet 0, changed state to down 00: 12: 46: %SYS-5 -RESTART: System restarted 8

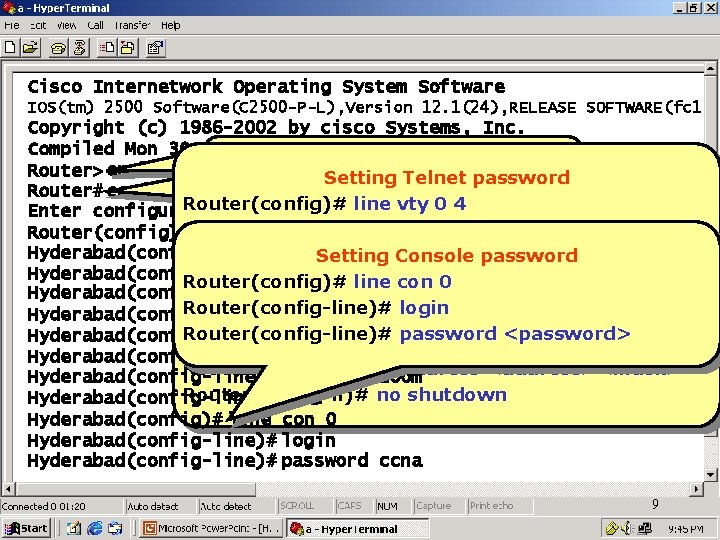

Cisco Internetwork Operating System Software IOS(tm) 2500 Software(C 2500 -P-L), Version 12. 1(24), RELEASE SOFTWARE(fc 1 Copyright (c) 1986 -2002 by cisco Systems, Inc. Compiled Mon 30 -Sep-02 20: 43 User by srani Mode enable Router> Privileged Mode : Setting Commands : password Telnet Router# configure terminal : Commands : 4 enable ping, telnet, trace route, Router(config)# line vty 0 line. Enter configuration commands, one per End with CNTL/Z. Globalreload, Configuration show, copy, write, erase Mode hostname Hyderabad login Router(config)#Router(config-line)# : Commands : configure terminal Hyderabad(config)# interface Ethernet 0 Router(config-line)# password <password> Settinghostname, Console password interface, Interface ip address 192. 168. 1. 150 Mode 255. 0 Hyderabad(config-if)# Router(config)# line con 0 enable password, enable : Commands : secret Hyderabad(config-if)# no shut Router(config-line)# login ip address, encapsulation, no exit Hyderabad(config-if)# Configuring Ethernet interface shut clock rate Router(config-line)# password <password> line vty 0 4 interface Hyderabad(config)# Router(config)# Ethernet <number> Hyderabad(config-line)# login Router(config-if)# address <address><mask> password ip zoom Hyderabad(config-line)# Router(config-if)# no shutdown exit Hyderabad(config-line)# Hyderabad(config)# line con 0 Hyderabad(config-line)# login Hyderabad(config-line)# password ccna 9

Hyderabad(config-line)# exit Hyderabad(config)# enable password cisco Hyderabad(config)# enable secret zoom Hyderabad# show startup-config Setting the Enable password %% Non-volatile configuration memory is not present Router(config)#enable password <password> Hyderabad# copy running-config startup-config Router(config)#enable secret <password> Building configuration. . . [OK] Hyderabad# show running-config Building configuration. . . Current configuration: ! version 12. 1 no service password-encryption no service udp-small-servers no service tcp-small-servers ! hostname Hyderabad --More-10

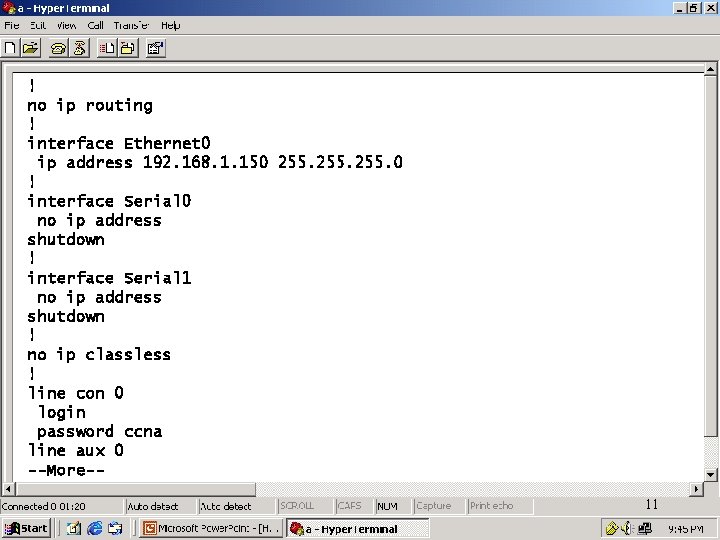

! hostname Hyderabad ! ! ! no ip routing ! interface Ethernet 0 ip address 192. 168. 1. 150 255. 0 ! interface Serial 0 no ip address shutdown ! interface Serial 1 no ip address shutdown ! no ip classless ! line con 0 login password ccna line aux 0 --More-11

! line vty 0 login interface Serial 0 password zoom no ip address ! shutdown end interface Serial 1 show version Hyderabad# no ip. Internetwork address Cisco Operating System Software shutdown IOS (tm) 2500 Software (C 2500 -JS-L), Version 12. 1(17), RELEASE SOFTWARE ! Copyright (c) 1986 -1999 by cisco Systems, Inc. no ip classless Compiled Mon 04 -Jan-99 17: 27 by ashah ! Image text-base: 0 x 03040148, data-base: 0 x 00001000 line con 0 ROM: System Bootstrap, Version 11. 0(10 c), SOFTWARE login BOOTFLASH: 3000 Bootstrap Software (IGS-BOOT-R), Version 11. 0(10 c), password ccna RELEASE (fc 1) line aux. SOFTWARE 0 ! Hyderabad line vty 0 uptime is 1 hour, 28 minutes System login restarted by power-on System image file is "flash: /c 2500 -ipx-ip. bin", booted via flash password zoom --More-end 12

ROM: System Bootstrap, Version 11. 0(10 c), SOFTWARE BOOTFLASH: 3000 Bootstrap Software (IGS-BOOT-R), Version 11. 0(10 c), RELEASE SOFTWARE (fc 1) Hyderabad uptime is 1 hour, 28 minutes System restarted by power-on System image file is "flash: /c 2500 -ipx-ip. bin", booted via flash Cisco 2500(68030)processor(revision N) with 2048 K/2048 K bytes of memo Processor board ID 11169613, with hardware revision 00000001 X. 25 software, Version 3. 0. 0. Basic Rate ISDN software, Version 1. 1. 1 Ethernet/IEEE 802. 3 interface(s) 2 Serial network interface(s) 1 ISDN Basic Rate interface(s) 32 K bytes of non-volatile configuration memory. 8192 K bytes of processor board System flash (Read ONLY) Configuration register is 0 x 2102 Hyderabad# 13

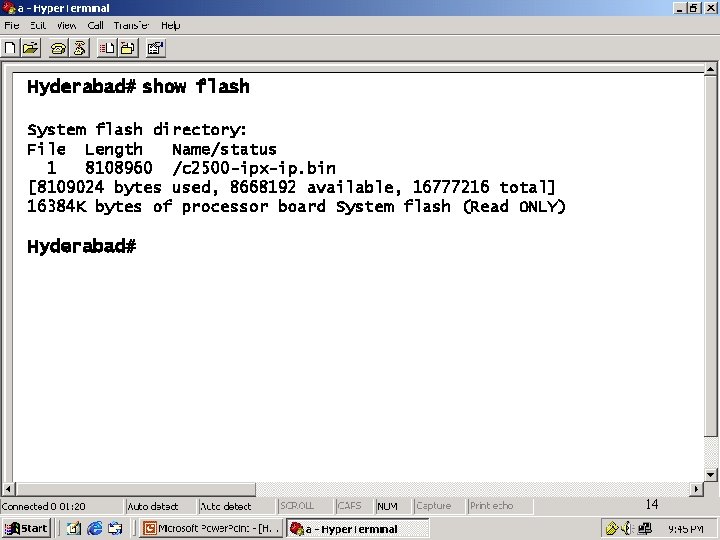

Hyderabad# show flash System flash directory: File Length Name/status 1 8108960 /c 2500 -ipx-ip. bin [8109024 bytes used, 8668192 available, 16777216 total] 16384 K bytes of processor board System flash (Read ONLY) Hyderabad# 14
