1 Concurrent Bug Patterns and How to Test

1 Concurrent Bug Patterns and How to Test Them by Eitan Farchi, Yarden Nir, Shmuel Ur Myeong-Sin, Kang Dept. of Informatics, GNU. 2013. 1.

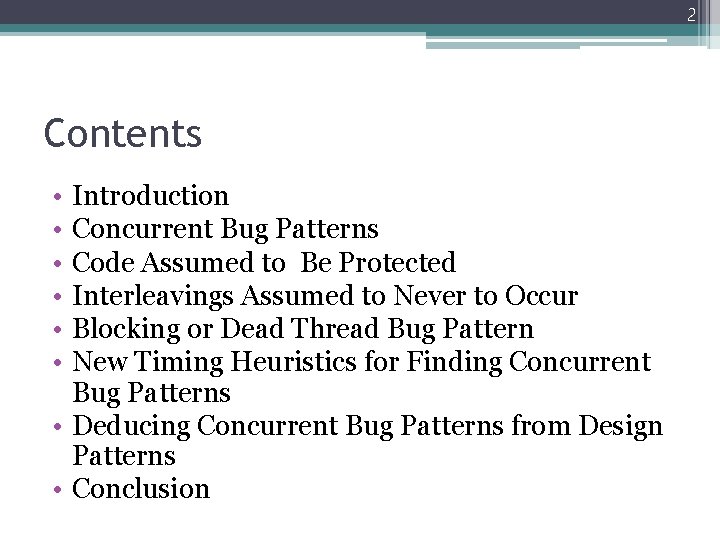

2 Contents • • • Introduction Concurrent Bug Patterns Code Assumed to Be Protected Interleavings Assumed to Never to Occur Blocking or Dead Thread Bug Pattern New Timing Heuristics for Finding Concurrent Bug Patterns • Deducing Concurrent Bug Patterns from Design Patterns • Conclusion

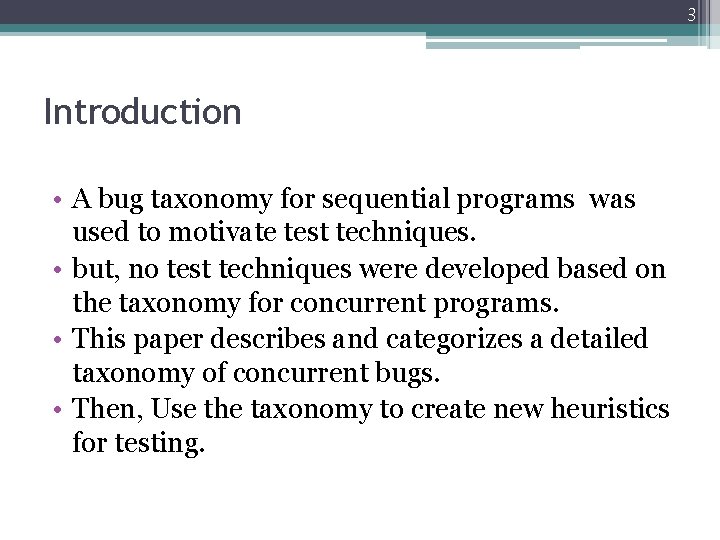

3 Introduction • A bug taxonomy for sequential programs was used to motivate test techniques. • but, no test techniques were developed based on the taxonomy for concurrent programs. • This paper describes and categorizes a detailed taxonomy of concurrent bugs. • Then, Use the taxonomy to create new heuristics for testing.

4 Concurrent Bug Patterns (1) • For a concurrent program P… ▫ I(P): the set of interleavings that can occur in P ▫ C(P): the set of interleavings under which the program is correct. C(P) = the “programmerview” of P ▫ Concurrent Bug Pattern: a interleavings in I(P)-C(P) = the “bugpatterngap”

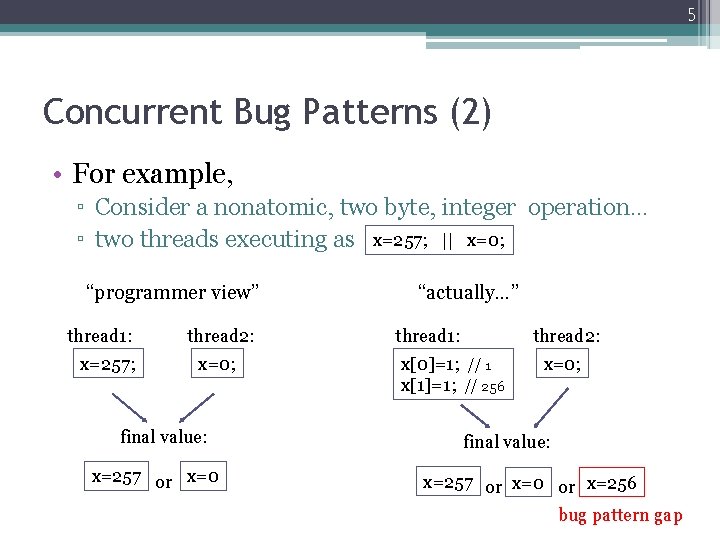

5 Concurrent Bug Patterns (2) • For example, ▫ Consider a nonatomic, two byte, integer operation… ▫ two threads executing as x=257; || x=0; “programmer view” thread 1: x=257; “actually…” thread 2: thread 1: x=0; x[0]=1; x[1]=1; final value: x=257 or x=0 thread 2: // 1 x=0; // 256 final value: x=257 or x=0 or x=256 bug pattern gap

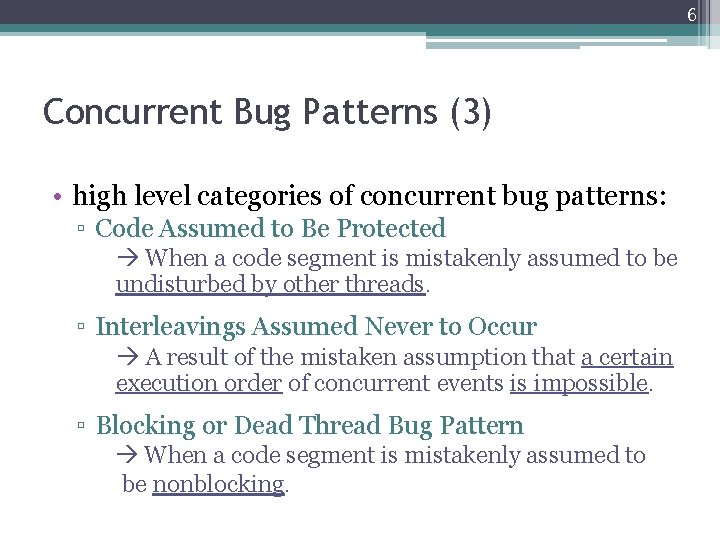

6 Concurrent Bug Patterns (3) • high level categories of concurrent bug patterns: ▫ Code Assumed to Be Protected When a code segment is mistakenly assumed to be undisturbed by other threads. ▫ Interleavings Assumed Never to Occur A result of the mistaken assumption that a certain execution order of concurrent events is impossible. ▫ Blocking or Dead Thread Bug Pattern When a code segment is mistakenly assumed to be nonblocking.

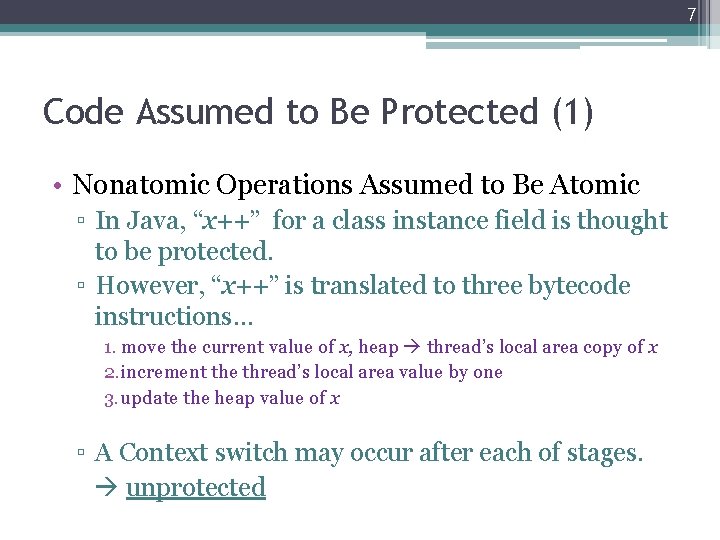

7 Code Assumed to Be Protected (1) • Nonatomic Operations Assumed to Be Atomic ▫ In Java, “x++” for a class instance field is thought to be protected. ▫ However, “x++” is translated to three bytecode instructions… 1. move the current value of x, heap thread’s local area copy of x 2. increment the thread’s local area value by one 3. update the heap value of x ▫ A Context switch may occur after each of stages. unprotected

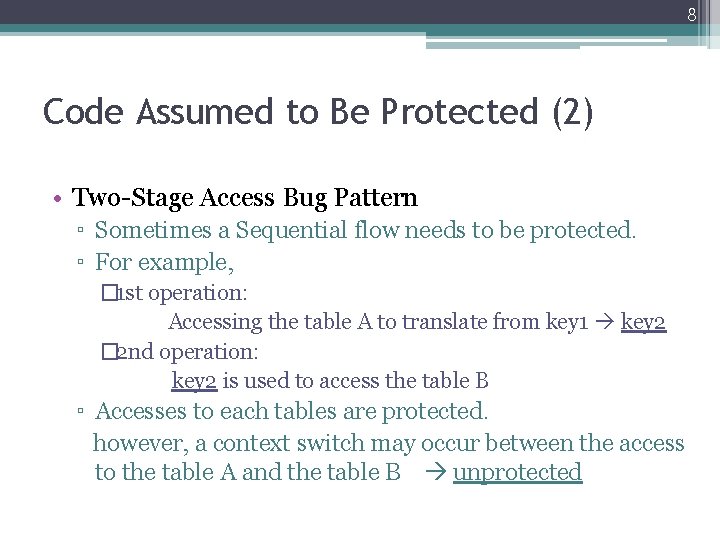

8 Code Assumed to Be Protected (2) • Two-Stage Access Bug Pattern ▫ Sometimes a Sequential flow needs to be protected. ▫ For example, � 1 st operation: Accessing the table A to translate from key 1 key 2 � 2 nd operation: key 2 is used to access the table B ▫ Accesses to each tables are protected. however, a context switch may occur between the access to the table A and the table B unprotected

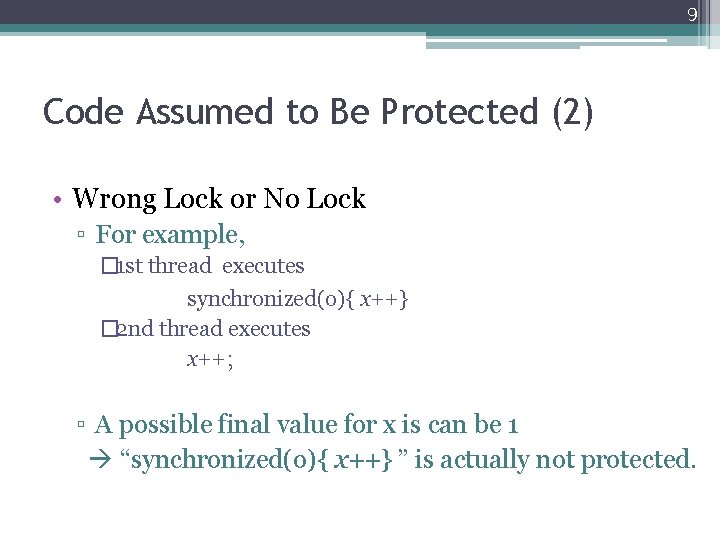

9 Code Assumed to Be Protected (2) • Wrong Lock or No Lock ▫ For example, � 1 st thread executes synchronized(o){ x++} � 2 nd thread executes x++; ▫ A possible final value for x is can be 1 “synchronized(o){ x++} ” is actually not protected.

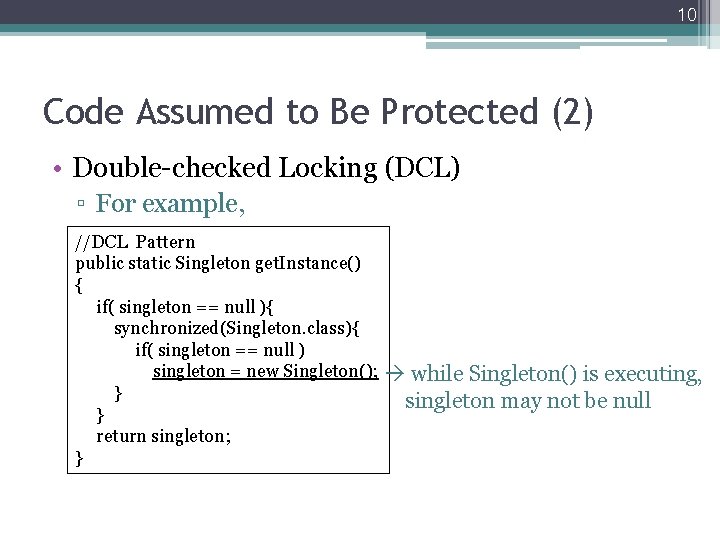

10 Code Assumed to Be Protected (2) • Double-checked Locking (DCL) ▫ For example, //DCL Pattern public static Singleton get. Instance() { if( singleton == null ){ synchronized(Singleton. class){ if( singleton == null ) singleton = new Singleton(); } } return singleton; } while Singleton() is executing, singleton may not be null

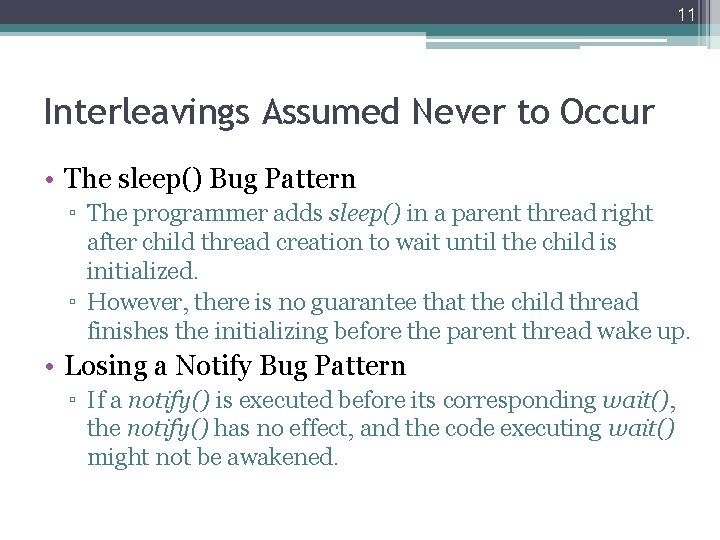

11 Interleavings Assumed Never to Occur • The sleep() Bug Pattern ▫ The programmer adds sleep() in a parent thread right after child thread creation to wait until the child is initialized. ▫ However, there is no guarantee that the child thread finishes the initializing before the parent thread wake up. • Losing a Notify Bug Pattern ▫ If a notify() is executed before its corresponding wait(), the notify() has no effect, and the code executing wait() might not be awakened.

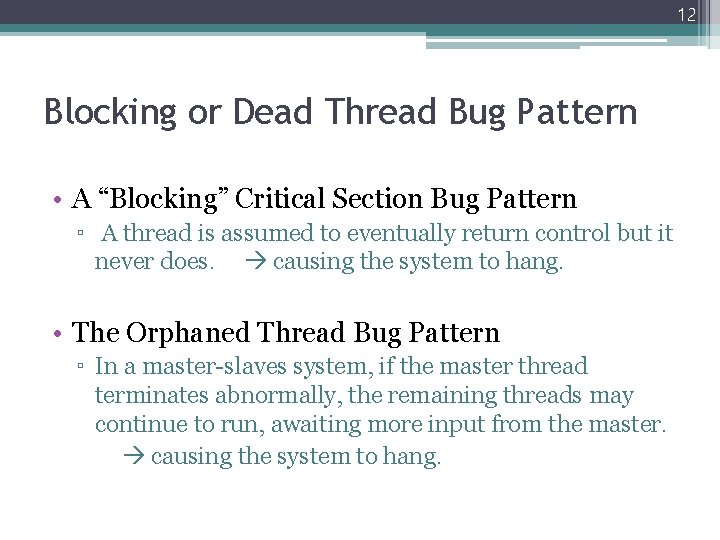

12 Blocking or Dead Thread Bug Pattern • A “Blocking” Critical Section Bug Pattern ▫ A thread is assumed to eventually return control but it never does. causing the system to hang. • The Orphaned Thread Bug Pattern ▫ In a master-slaves system, if the master thread terminates abnormally, the remaining threads may continue to run, awaiting more input from the master. causing the system to hang.

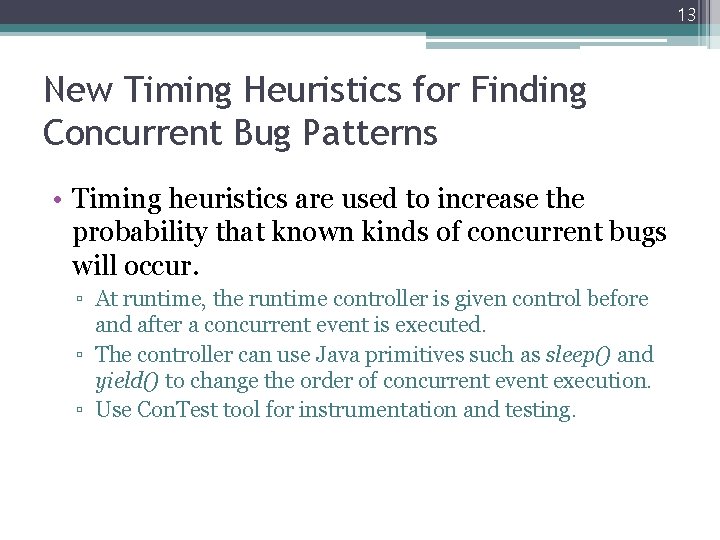

13 New Timing Heuristics for Finding Concurrent Bug Patterns • Timing heuristics are used to increase the probability that known kinds of concurrent bugs will occur. ▫ At runtime, the runtime controller is given control before and after a concurrent event is executed. ▫ The controller can use Java primitives such as sleep() and yield() to change the order of concurrent event execution. ▫ Use Con. Test tool for instrumentation and testing.

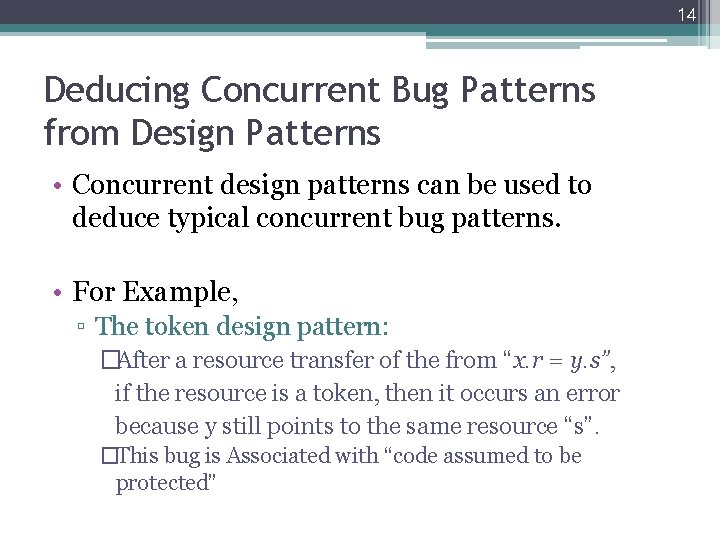

14 Deducing Concurrent Bug Patterns from Design Patterns • Concurrent design patterns can be used to deduce typical concurrent bug patterns. • For Example, ▫ The token design pattern: �After a resource transfer of the from “x. r = y. s”, if the resource is a token, then it occurs an error because y still points to the same resource “s”. �This bug is Associated with “code assumed to be protected”

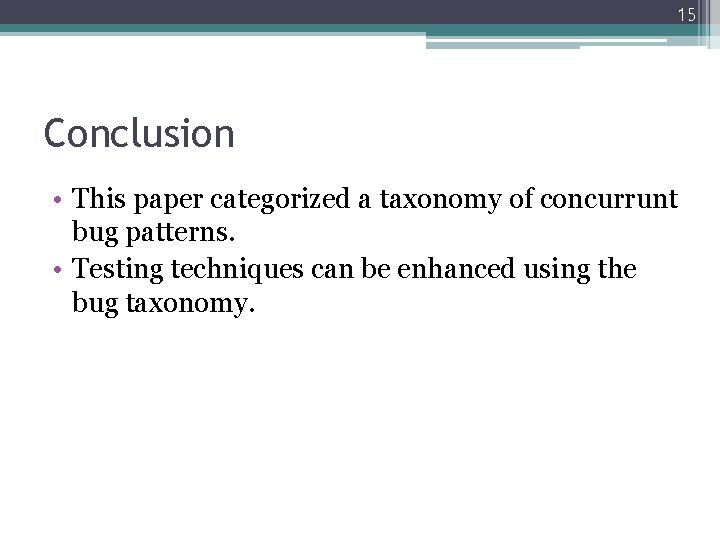

15 Conclusion • This paper categorized a taxonomy of concurrunt bug patterns. • Testing techniques can be enhanced using the bug taxonomy.
