1 Chapter 6 Equivalence theorem EMLAB Aperture type

1 Chapter 6. Equivalence theorem EMLAB

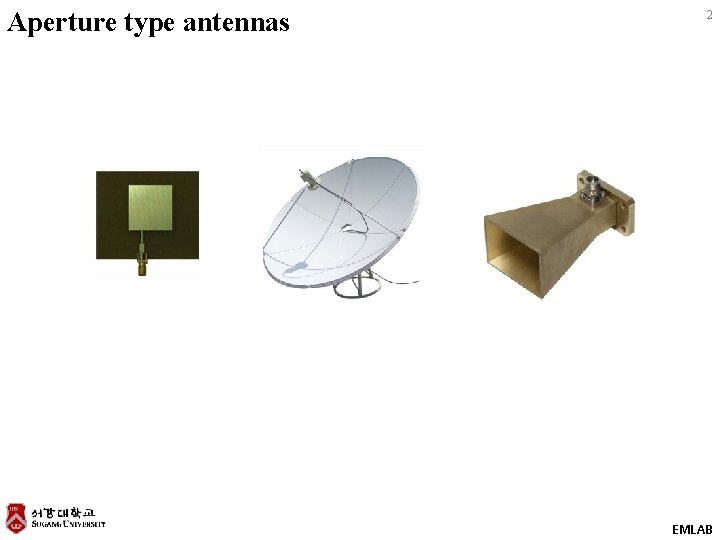

Aperture type antennas 2 EMLAB

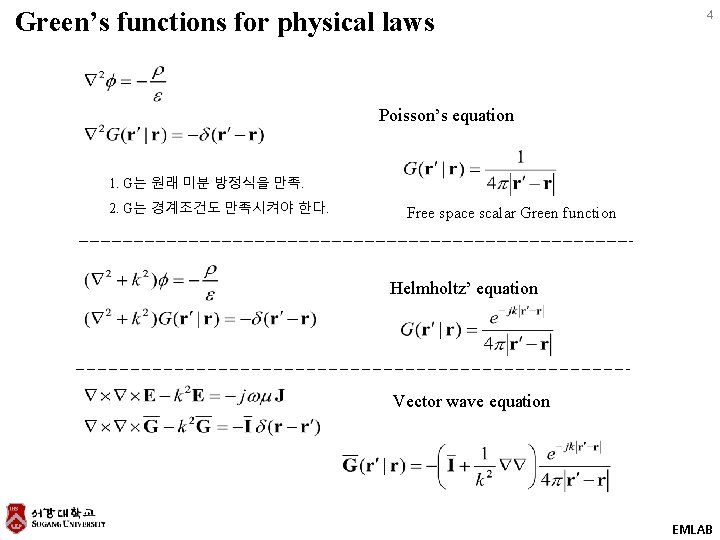

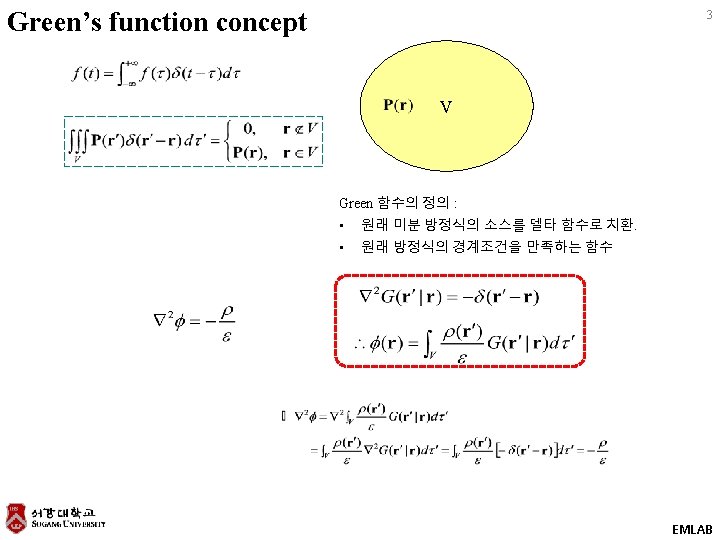

Green’s functions for physical laws 4 Poisson’s equation 1. G는 원래 미분 방정식을 만족. 2. G는 경계조건도 만족시켜야 한다. Free space scalar Green function Helmholtz’ equation Vector wave equation EMLAB

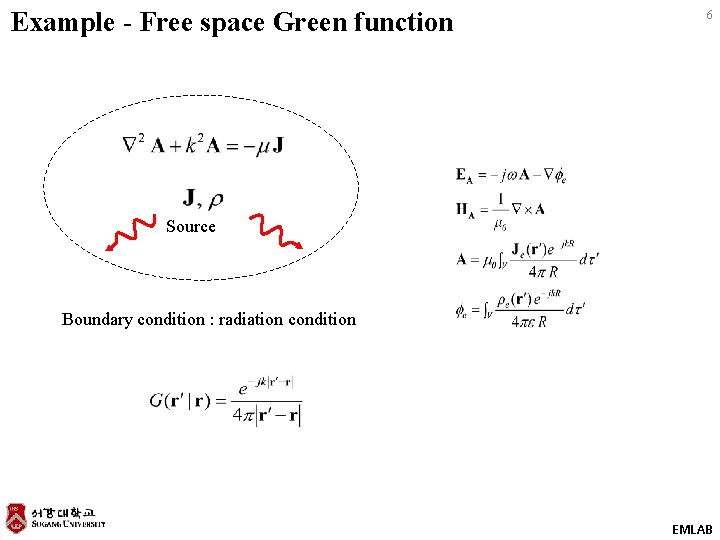

Example - Free space Green function 6 Source Boundary condition : radiation condition EMLAB

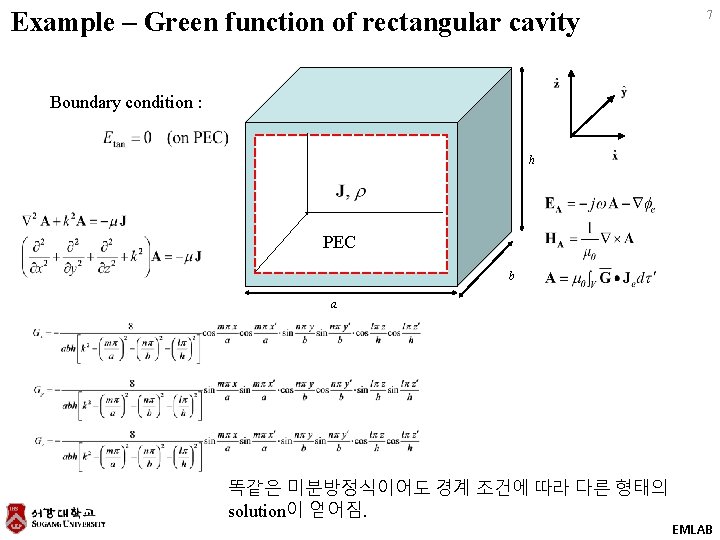

Example – Green function of rectangular cavity 7 Boundary condition : h PEC b a 똑같은 미분방정식이어도 경계 조건에 따라 다른 형태의 solution이 얻어짐. EMLAB

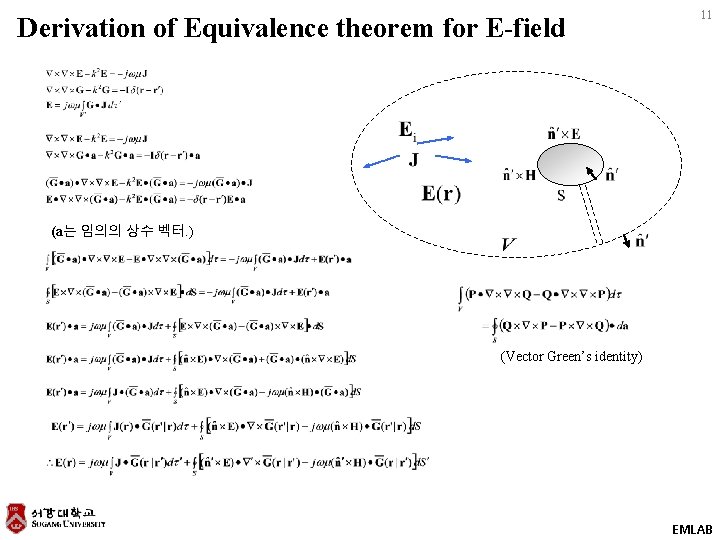

Derivation of Equivalence theorem for E-field 11 (a는 임의의 상수 벡터. ) (Vector Green’s identity) EMLAB

Equivalence theorem with free space kernel : G 0 13 ; for free space Free space Green function을 이용하여 만든 Green’s theorem식. EMLAB

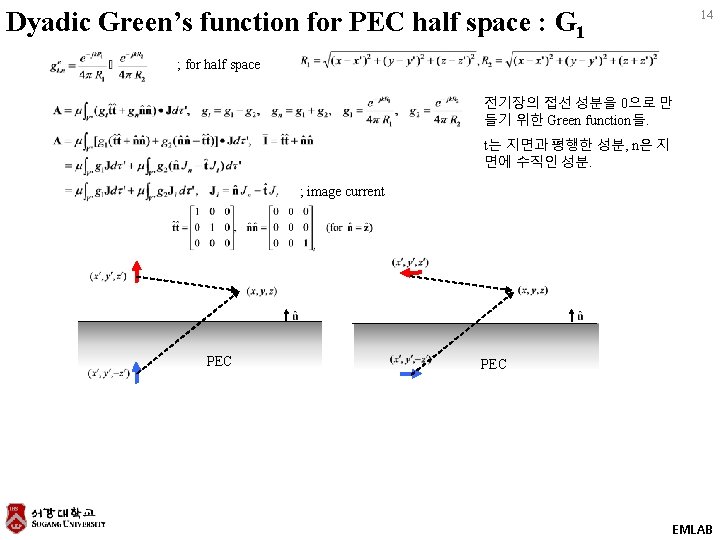

Dyadic Green’s function for PEC half space : G 1 14 ; for half space 전기장의 접선 성분을 0으로 만 들기 위한 Green function들. t는 지면과 평행한 성분, n은 지 면에 수직인 성분. ; image current PEC EMLAB

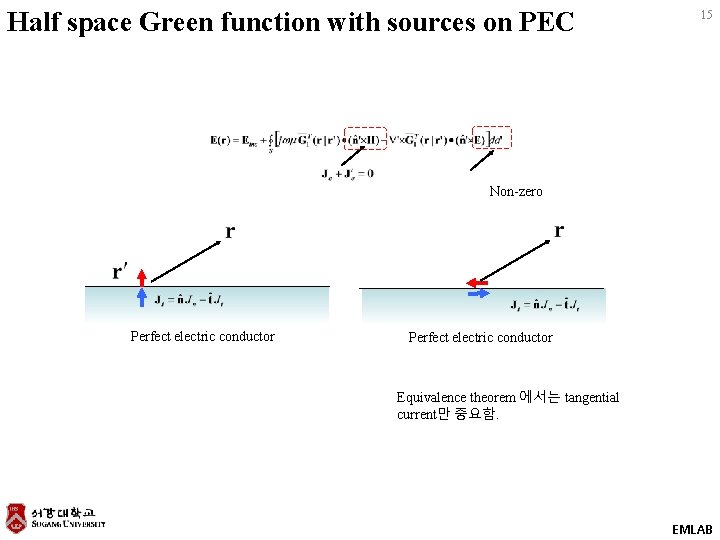

Half space Green function with sources on PEC 15 Non-zero Perfect electric conductor Equivalence theorem 에서는 tangential current만 중요함. EMLAB

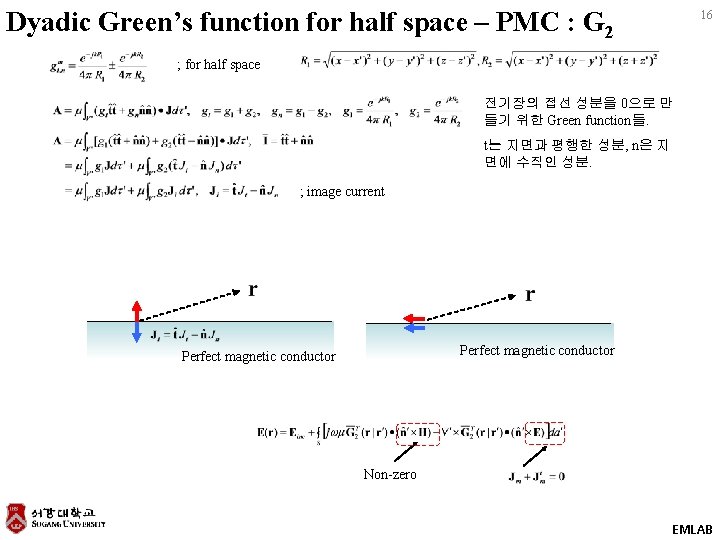

Dyadic Green’s function for half space – PMC : G 2 16 ; for half space 전기장의 접선 성분을 0으로 만 들기 위한 Green function들. t는 지면과 평행한 성분, n은 지 면에 수직인 성분. ; image current Perfect magnetic conductor Non-zero EMLAB

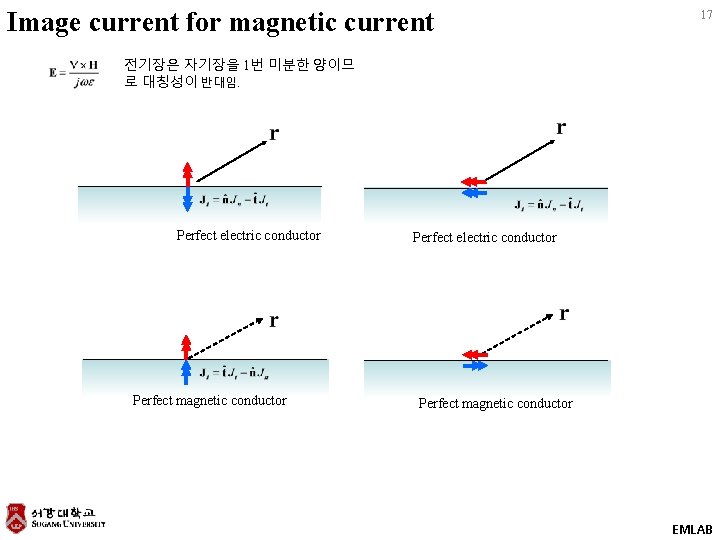

Image current for magnetic current 17 전기장은 자기장을 1번 미분한 양이므 로 대칭성이 반대임. Perfect electric conductor Perfect magnetic conductor EMLAB

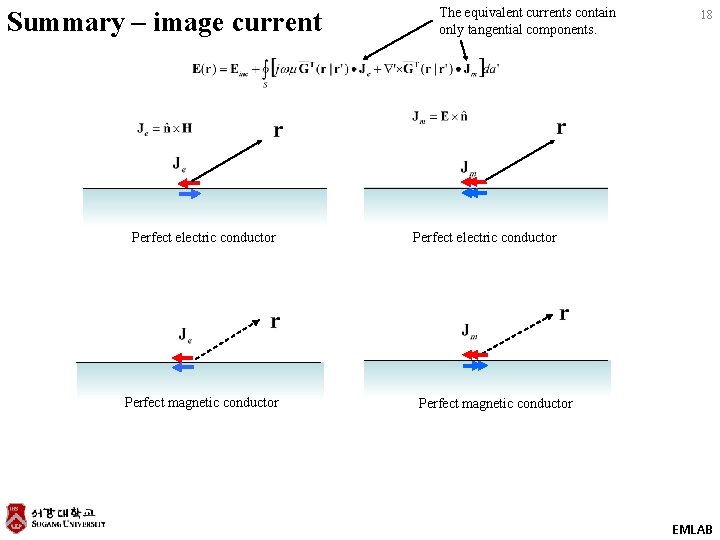

Summary – image current Perfect electric conductor Perfect magnetic conductor The equivalent currents contain only tangential components. 18 Perfect electric conductor Perfect magnetic conductor EMLAB

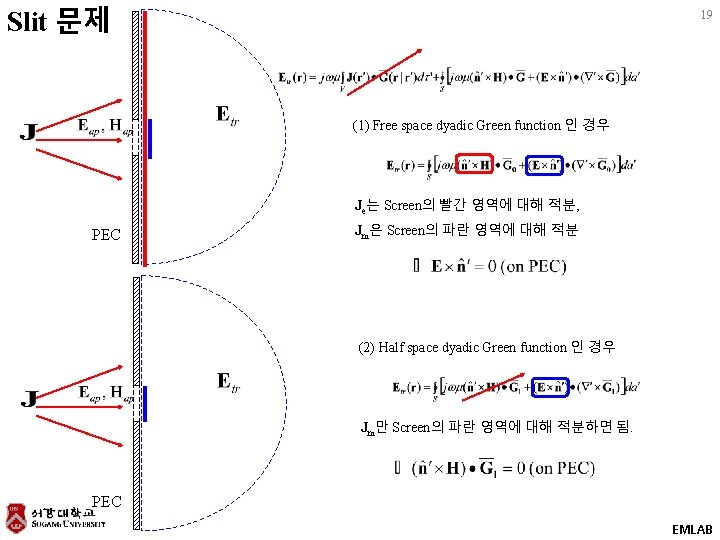

Slit 문제 19 (1) Free space dyadic Green function 인 경우 Je는 Screen의 빨간 영역에 대해 적분, PEC Jm은 Screen의 파란 영역에 대해 적분 (2) Half space dyadic Green function 인 경우 Jm만 Screen의 파란 영역에 대해 적분하면 됨. PEC EMLAB

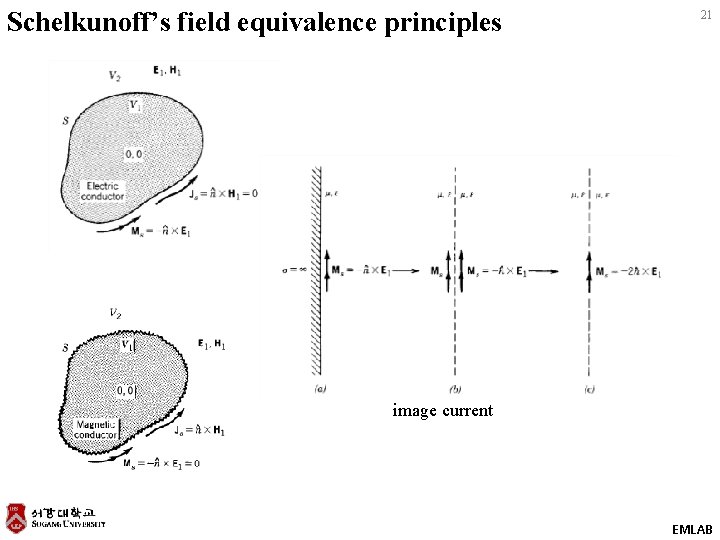

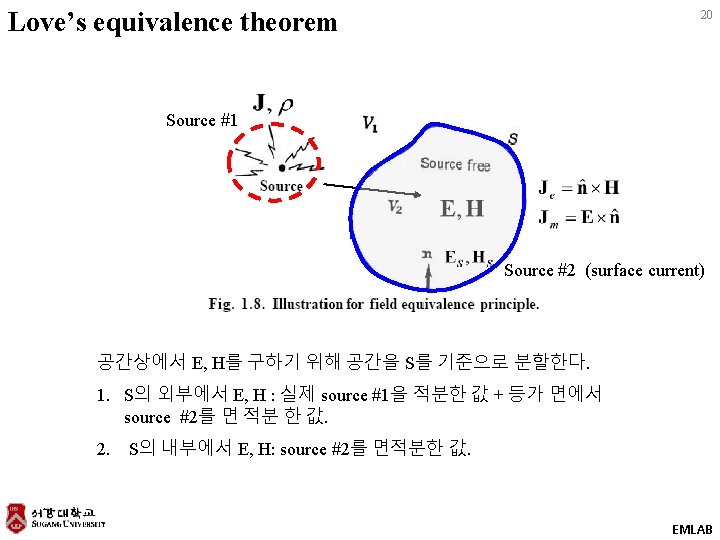

Schelkunoff’s field equivalence principles 21 image current EMLAB

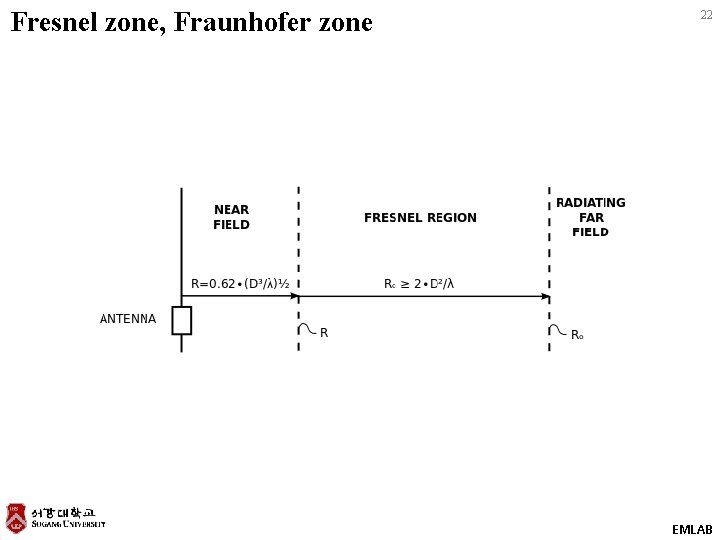

Fresnel zone, Fraunhofer zone 22 EMLAB

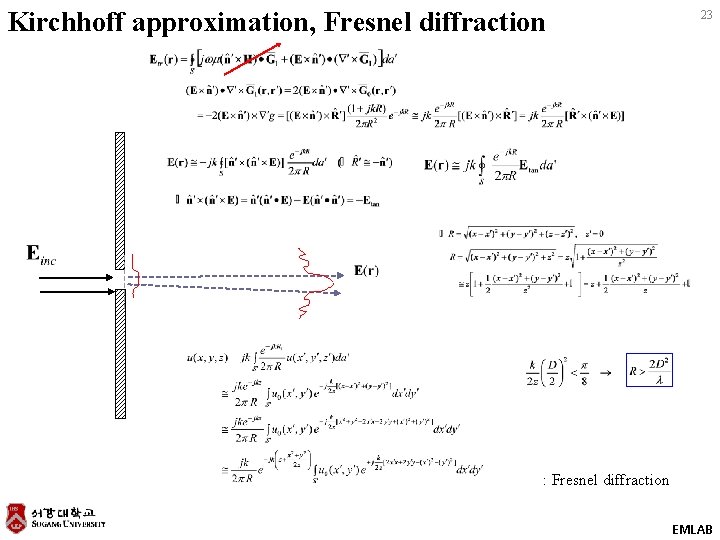

Kirchhoff approximation, Fresnel diffraction 23 : Fresnel diffraction EMLAB

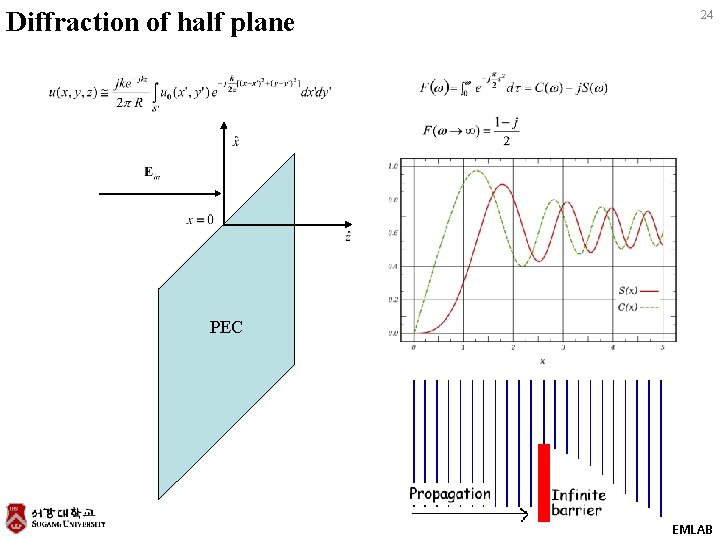

Diffraction of half plane 24 PEC EMLAB

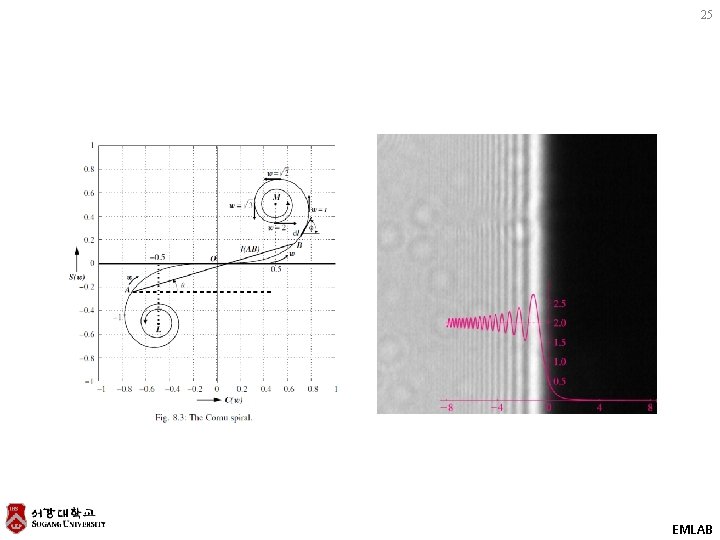

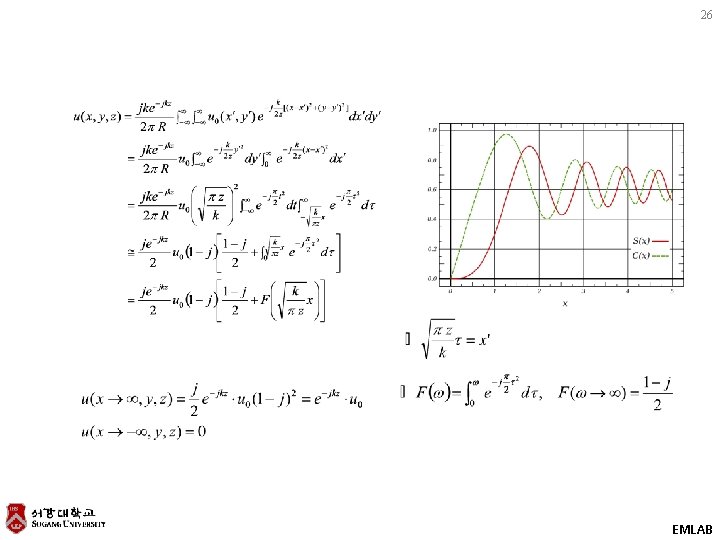

25 EMLAB

26 EMLAB

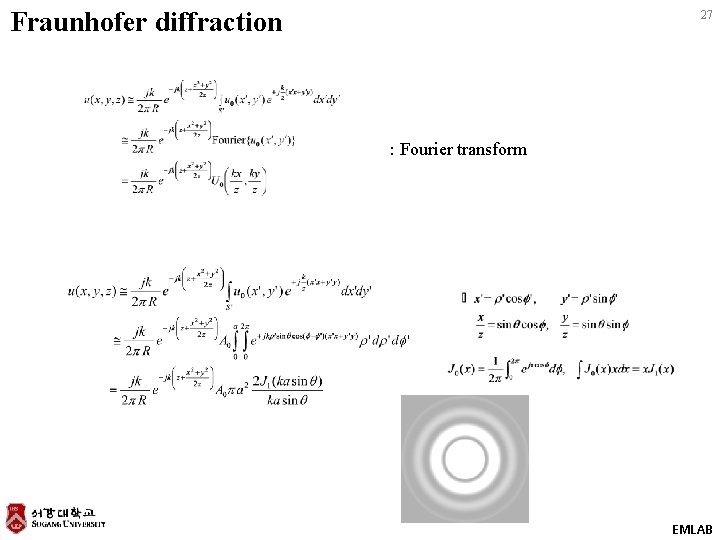

Fraunhofer diffraction 27 : Fourier transform EMLAB

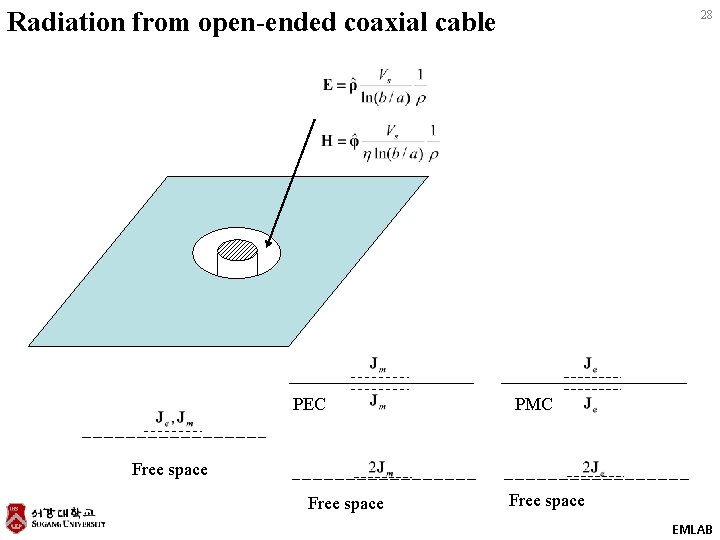

Radiation from open-ended coaxial cable PEC 28 PMC Free space EMLAB

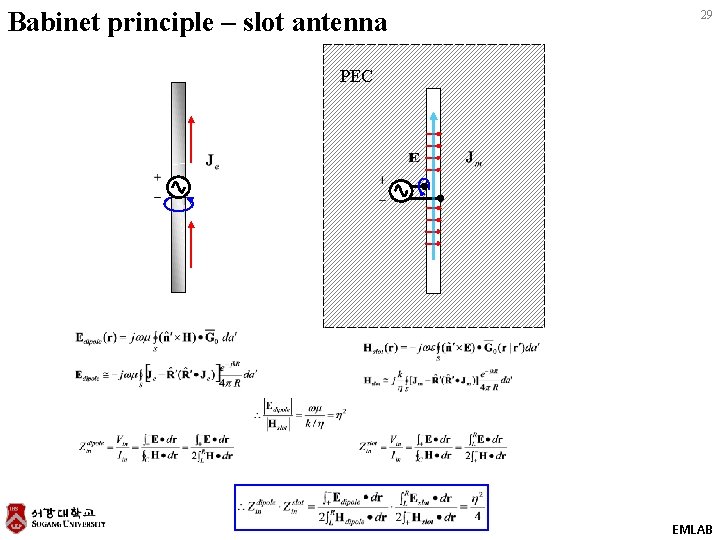

Babinet principle – slot antenna 29 PEC EMLAB

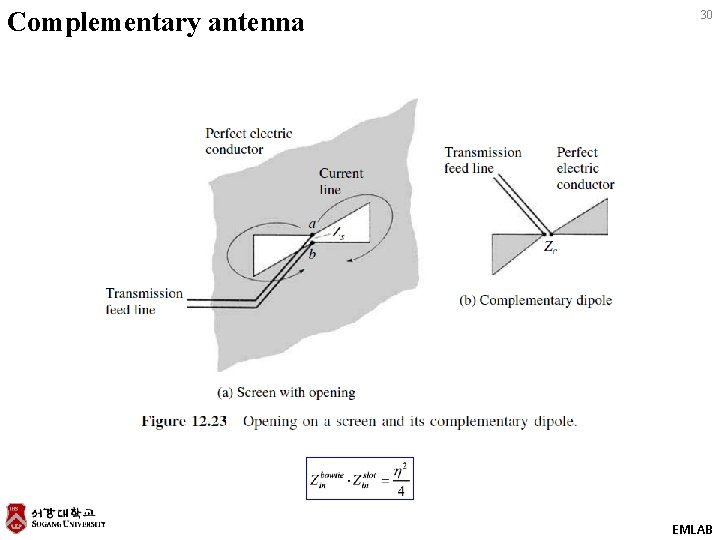

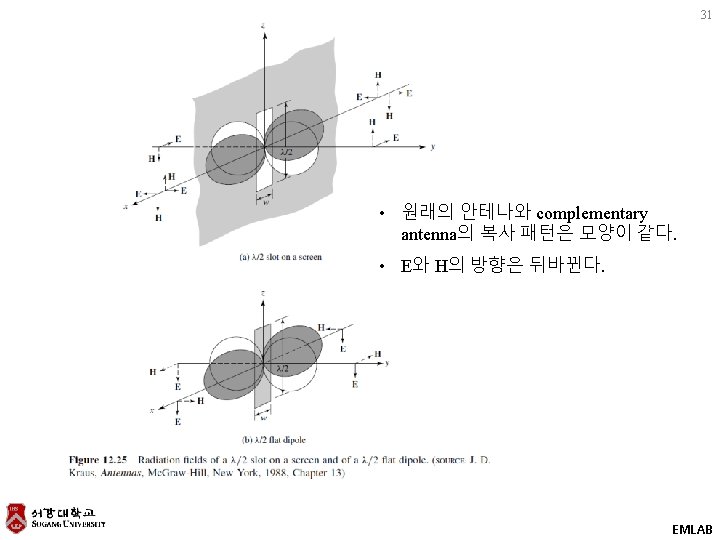

Complementary antenna 30 EMLAB

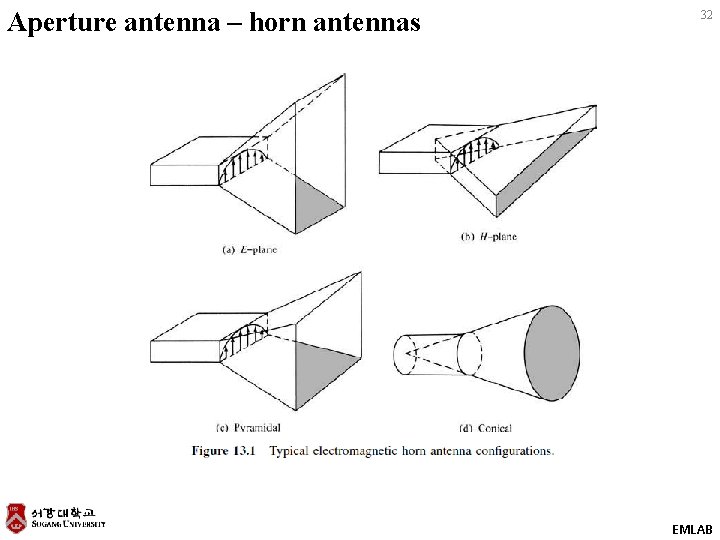

Aperture antenna – horn antennas 32 EMLAB

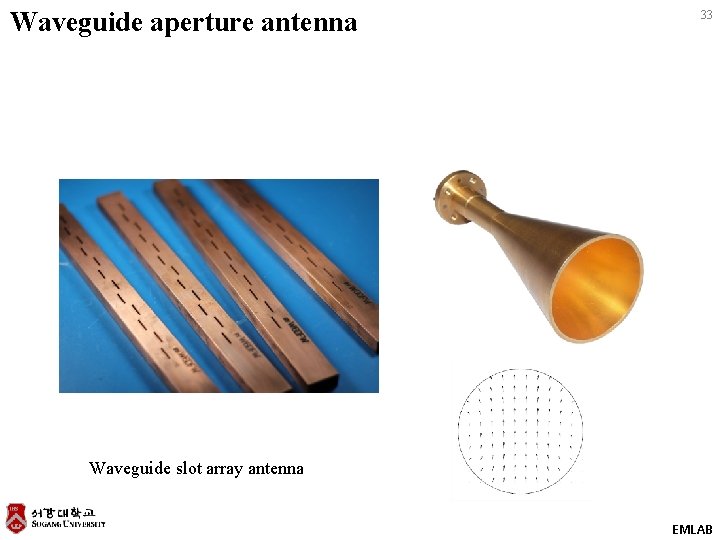

Waveguide aperture antenna 33 Waveguide slot array antenna EMLAB

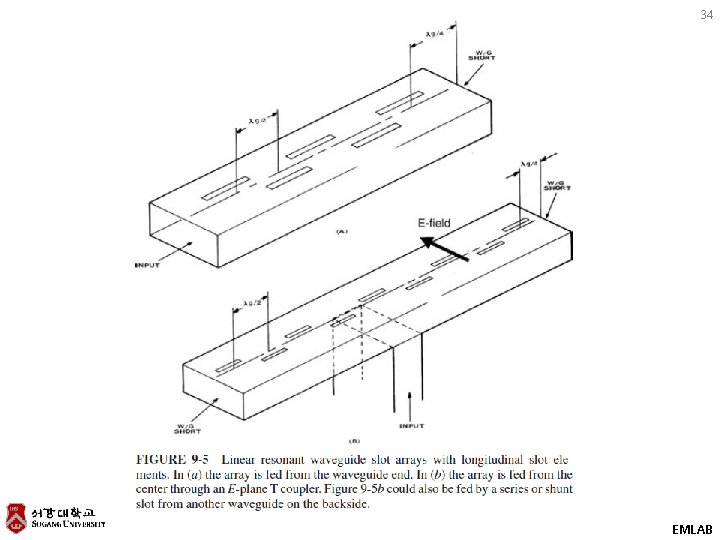

34 EMLAB

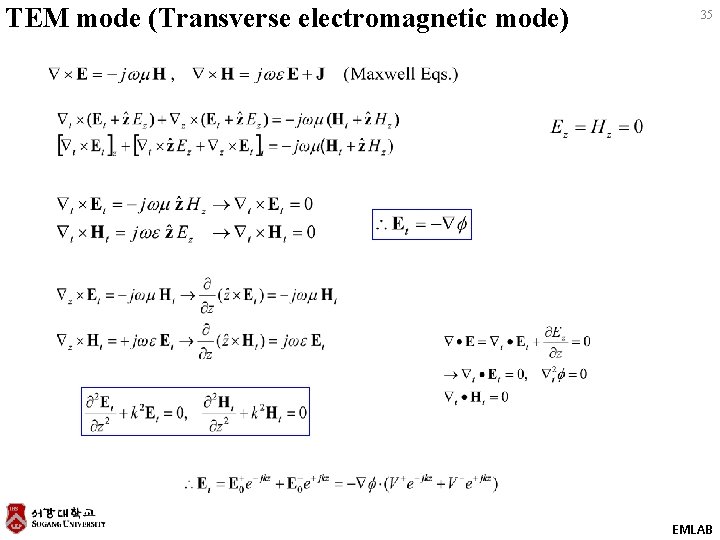

TEM mode (Transverse electromagnetic mode) 35 EMLAB

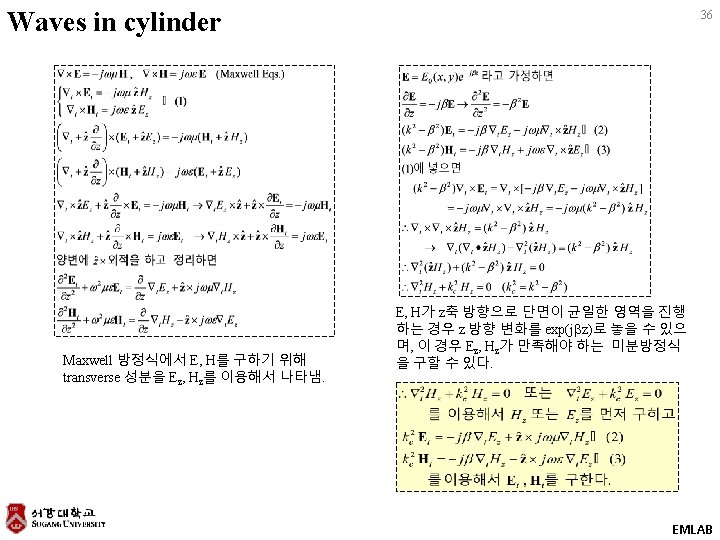

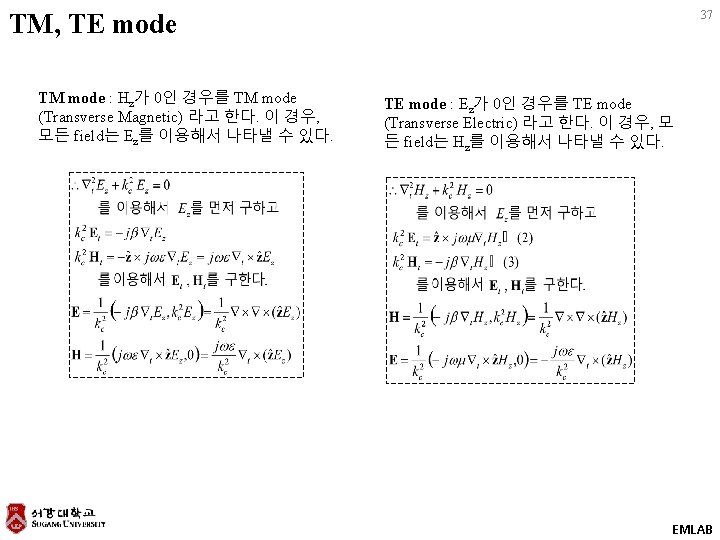

Eigen-function expansions in waveguides TM modes 38 TE modes TEM modes EMLAB

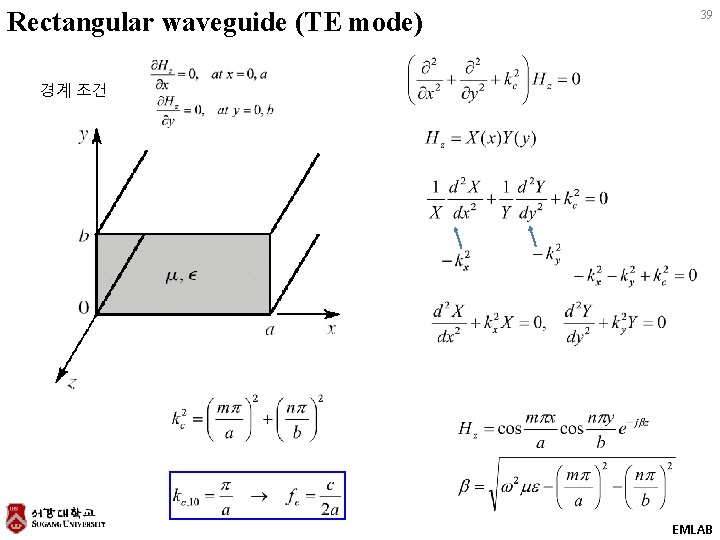

Rectangular waveguide (TE mode) 39 경계 조건 EMLAB

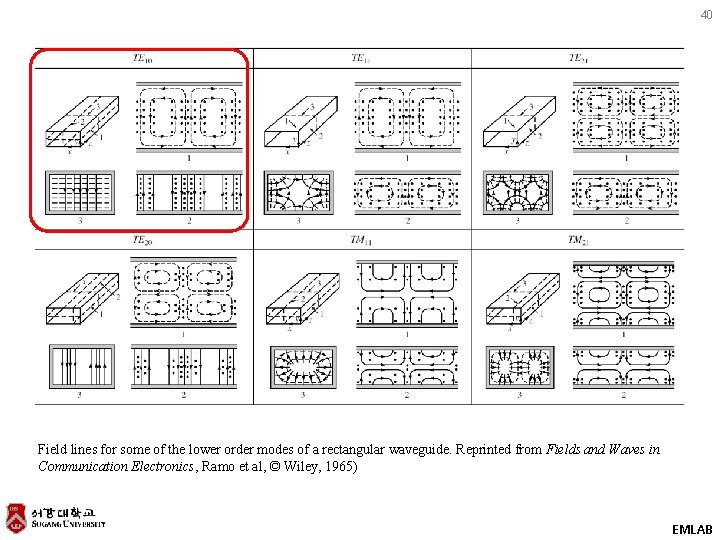

40 Field lines for some of the lower order modes of a rectangular waveguide. Reprinted from Fields and Waves in Communication Electronics, Ramo et al, © Wiley, 1965) EMLAB

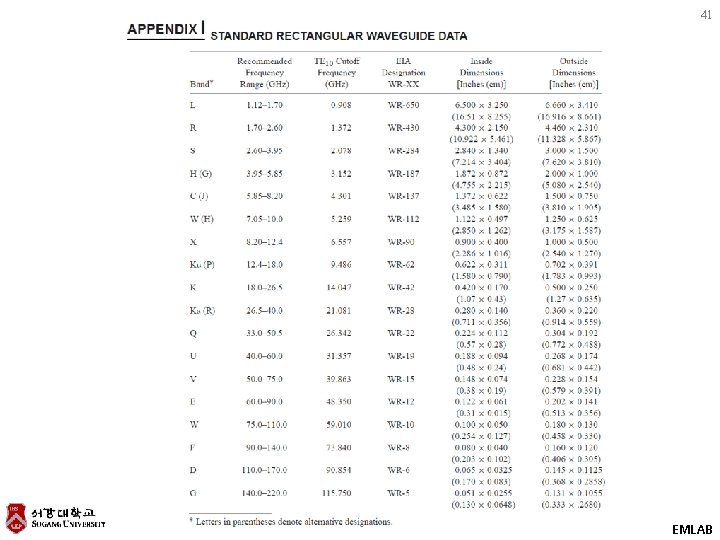

41 EMLAB

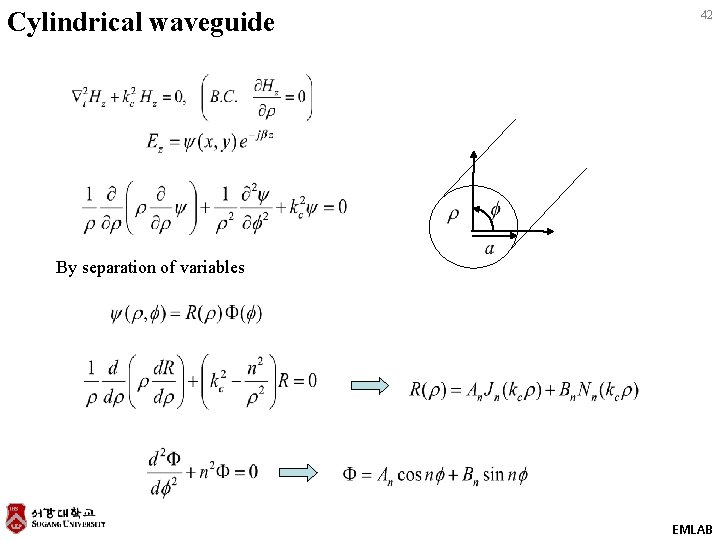

Cylindrical waveguide 42 By separation of variables EMLAB

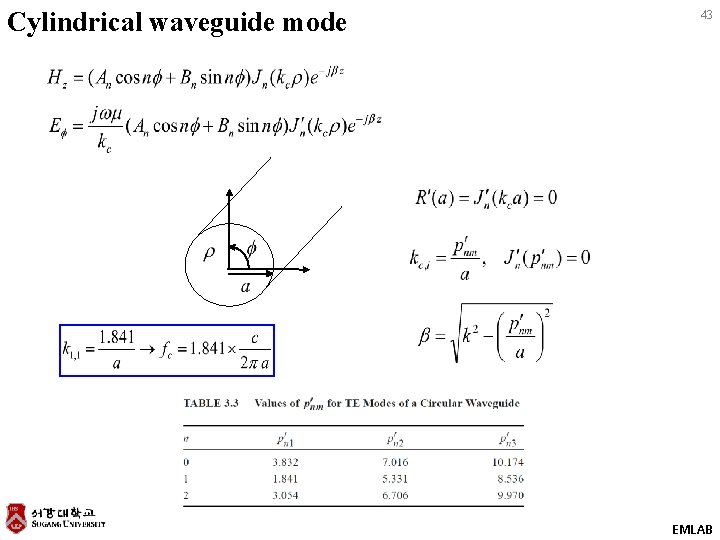

Cylindrical waveguide mode 43 EMLAB

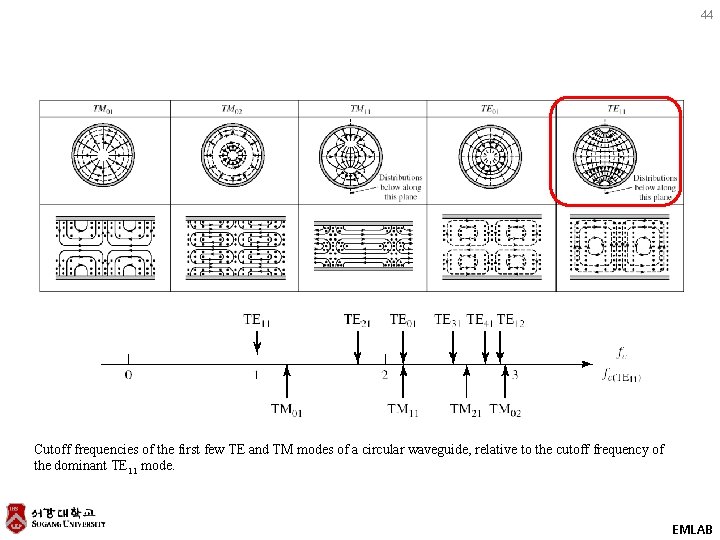

44 Cutoff frequencies of the first few TE and TM modes of a circular waveguide, relative to the cutoff frequency of the dominant TE 11 mode. EMLAB

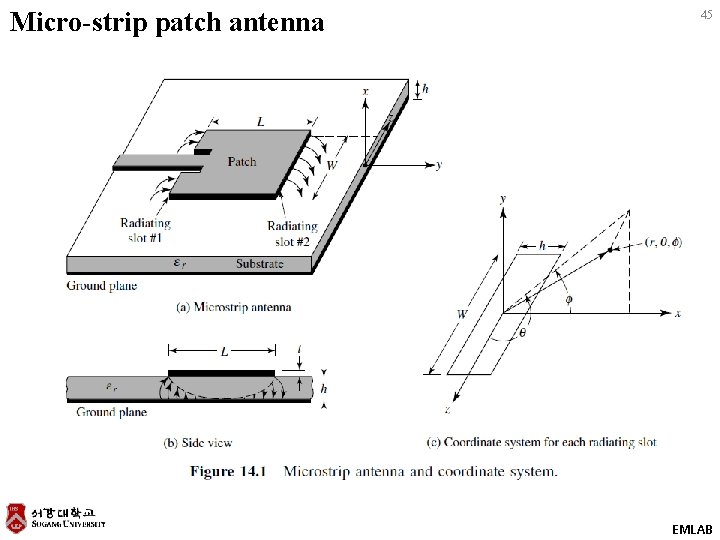

Micro-strip patch antenna 45 EMLAB

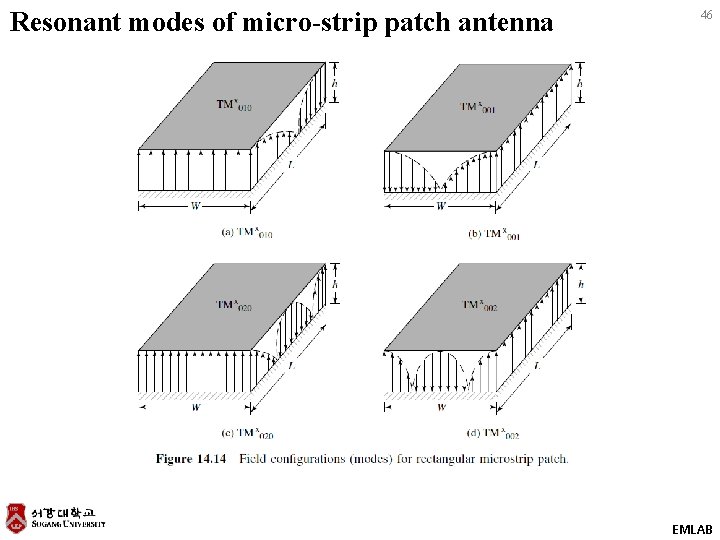

Resonant modes of micro-strip patch antenna 46 EMLAB

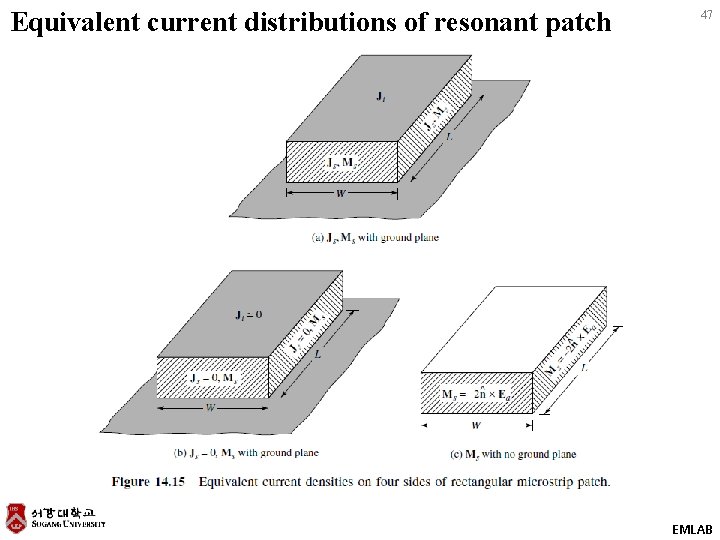

Equivalent current distributions of resonant patch 47 EMLAB
