1 Cardiovascular System vessels Chapter 19 C Arteries
- Slides: 42
1 Cardiovascular System – vessels -Chapter 19 C Arteries – Head & Neck 1. Brachiocephalic trunk – right only – comes directly off the aortic arch A. Gives rise to: . 2. common carotid. 3. subclavian. B. Left only - common carotid & subclavian. come directly off aortic arch Table: 19. 5 a&b pg. 726 & 727
2 Table: 19. 5 a pg. 726
3 Table: 19. 5 b pg. 727
4 C. Both common carotids give rise to: . 4. Internal carotids. 5. External carotids D. Both R & L subclavians give rise to: . 6. L & R vertebral arteries table 19. 5 a & b pg. 726 & 727
5 Table: 19. 5 a pg. 726
6 Table: 19. 5 b pg. 727
7 E. Both internal carotids & vertebral arteries. Continue to join and make. 7. Circle of Willis (cerebral arterial circle) Table 19. 5 a & c pg 726 & 727

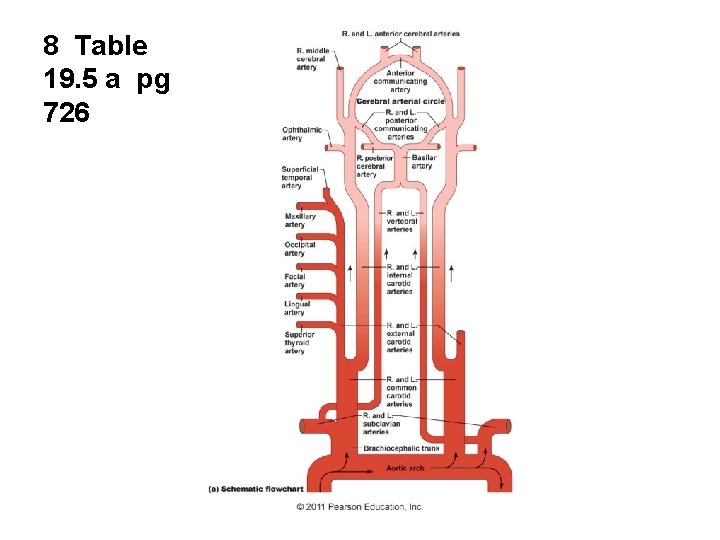

8 Table 19. 5 a pg 726

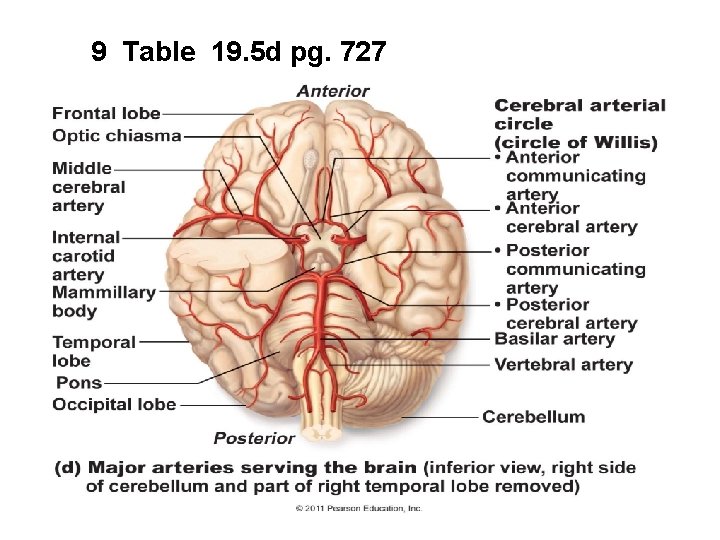

9 Table 19. 5 d pg. 727
10 Shoulder & Arm - arteries 8. Sub clavians 9. Axiliary 10. Brachial 11. Radial 12. Ulnar Table 19. 6 a & b pg. 728 & 729
11 Table 19. 6 a pg. 728
12 Table 19. 6 b pg 729
13 Arteries of the abdomen • Visceral organs of the abdominopelvic cavity • At rest these arteries contain half of all the blood in the body • Branch off the Abdominal aorta 13. Celiac trunk – blood to the stomach, . liver, pancreas, spleen table 19. 24 a& b pg. 730 & 731
14 table 19. 24 a pg. 730 Stomach Liver Pancreas spleen
15 Figure 19. 24 b pg. 731
16 14. Superior mesenteric – pancreas, all of the small intestine, most of the large intestine 15. Renal arteries - KIdneys 16. Inferior mesenteric – lower intestine Table 19. 7 a, c & d pg. 730 & 733
17 Figure 19. 24 a, pg. 730 Pancreas All Sm Intestine Most large Lower Intestines
18 Table 19. 7 c pg. 733
19 Table 19. 7 d pg. 733
20 Arteries of the pelvis & legs 17. Common iliacs – bifurcation of distal abdominal aorta Common iliacs split to form. 18. Internal iliacs – pelvic viscera & gluteal. Muscles. 19. External iliacs leave abdominal cavity and become: 20. femoral arteries, serving the muscles of the thigh: hamstrings, quadraceps & adductors
21. Popiteal: creates an anastomosis in the knee region Popliteal artery bifurcates and forms two branches in the lower leg 22. & 23 anterior & posterior tibial arteries Table 19. 8 a & b pgs. 734 & 735
22 Table 19. 8 a pgs. 734 Commmon iliacs Internal iliacs External iliacs Femoral Popliteal Anterior tibial Posterior tibial
23 Table 19. 8 b pgs. 735
24 Veins – 1. Superior Vena Cava – drains blood from regions superior to the diaphragm 2. L & R brachiocephalics merge to form the superior vena cava Veins draining head and neck Two veins bring blood from the head to the brachiocephalics: 3. Internal jugular 4. Vertebral vein
25 5. Subclavian vein merges w/ brachiocephalic 6. External jugular brings blood from head to the subclavian vein Table: 19. 27 a, b, & c pg. 738 & 739
26 Table: 19. 10 a pg. 738
27 Table: 19. 10 b pg. 739
28 Table: 19. 10 c pg. 739
29 Veins that drain blood from hand, wrist & lower arm: 7. Radial 8. Ulnar and radial merge and drain blood into: 9. brachial vein which turns into the axillary then subclavian vein 10. Median cuboidal – the vein Dr. takes blood from Table 19. 11 a & b pgs: 740 & 741
30 Table 19. 11 a pgs: 740
31 Table 19. 11 b pgs: 741
32 Veins of the abdomen – • Blood drained from the abdominopelvic region enters the inferior vena cava • Veins often follow the paths and share names w/ their arterial counter parts • Veins draining blood from the digestive tract (digested food) all empty into a (12) common hepatic portal vein that goes to the liver to “process” the blood 13 & 14 Superior and inferior mesenteric veins empty into the hepatic portal vein Figure 19. 29 pg. 742 & table 19. 12 c; pg. 743
33 Figure 19. 29 a pg. 742
34 table 19. 12 c; pg. 743
35 15. Renal Vein drains the blood from the kidneys taking it to the inferior vena cava Fig. 19. 29; pg. 742 Table: 19. 12 b page. 743
36 Fig. 19. 29 a; pg. 742
37 Table: 19. 12 b page. 743
38 Veins of the pelvis & lower limb Great and small saphenous veins drain the calf & foot • They are superficial and a common site for varicose veins • Used in coronary artery bi-pass surgery The (16. ) anterior tibial and (17) posterior tibial also drain the calf and foot. They join, at the knee and form the (18. ) popliteal vein. The popliteal continues past the knee and forms the (19. ) femoral vein, which drains the thigh, and becomes the (20. ) external iliac vein
39 The external and (21) internal iliacs join and form the (22) common iliac which drains into the inferior vena cava figure 19. 30 a, b & c; page 744
40 figure 19. 30 a; page 744
41 Figure 19. 30 b; page 744
42 figure 19. 30 c; page 744
