1 C TEMPLATES Function Templates Class Templates 2

1 C++ TEMPLATES Function Templates Class Templates

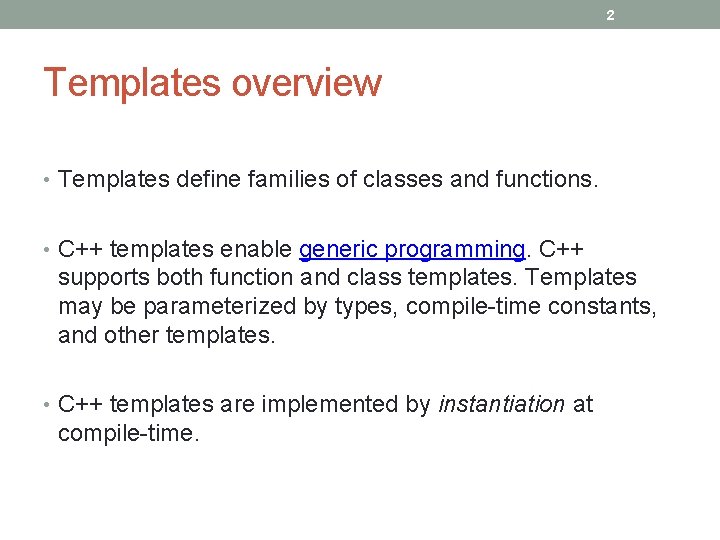

2 Templates overview • Templates define families of classes and functions. • C++ templates enable generic programming. C++ supports both function and class templates. Templates may be parameterized by types, compile-time constants, and other templates. • C++ templates are implemented by instantiation at compile-time.

3 Consider this situation Suppose you wanted to define 2 functions called min that returns the minimum of 2 arguments passed into it for both integers and doubles. You can provide both functions as: int min( int a, int b) { return a < b ? a : b } double min( double a, double b) { return a < b ? a : b } …and so on if you wanted to do this for more types

4 Using of a “function” Template The above (plus a lot more) could also be accomplished using a template function like: template <class T> T min( T a, T b ) { return a < b ? a : b; } The symbol T is called a type parameter. It is simply a place holder that is replaced by an actual type or class when the function is invoked. Note: This function is now defined for all type where “<“ makes sense, not just the intended int and double.

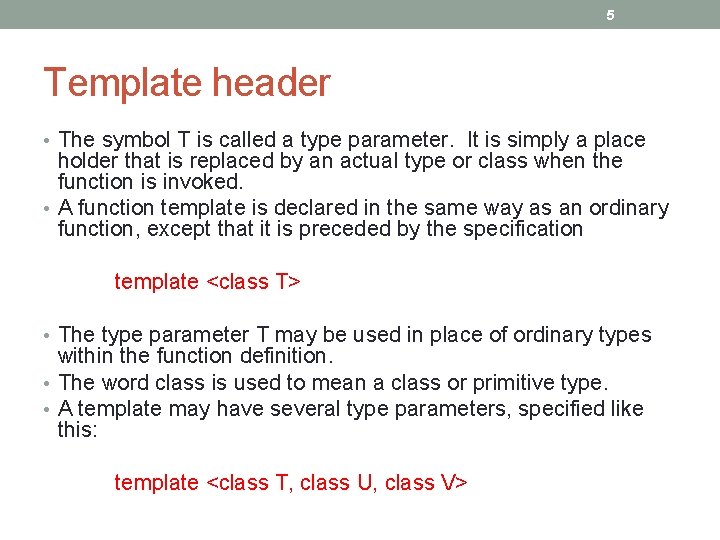

5 Template header • The symbol T is called a type parameter. It is simply a place holder that is replaced by an actual type or class when the function is invoked. • A function template is declared in the same way as an ordinary function, except that it is preceded by the specification template <class T> • The type parameter T may be used in place of ordinary types within the function definition. • The word class is used to mean a class or primitive type. • A template may have several type parameters, specified like this: template <class T, class U, class V>

6 Calling a templated function Templated functions are called the same way ordinary functions are called. int m = 22; int n = 66; int min_value; min_value = min(m, n);

7 Interesting question Happens if we do this: long m = 2; // an int but with twice the bits double n = 1. 8; // a float but with twice the bits. float min_value; min_value = min(m, n); Would this compile? What is min_value? Which templated function ran? int, long or float version

8 Another Interesting question Suppose you created a class ratio which has a protected/private int num and int den field ratio r(2, 3); // a ratio initialized to 2/3 float n = 0. 8; int min_value = min(r, n); Would this compile? What is min_value? Why?

9 Bubble. Sort anything in C++ template <class T> void swap(T& x, T& y) { T temp = x; x = y; y = temp; } template<class T> void sort(T* v, int n) { for (int i = 1; i < n; i++) for (int j = 0; j=0, j < n-i; j++) if (v[j] > v[j+1]) swap(v[j], v[j+1] ); }

10 Class Templates Class templates work the same way as a function template except that it generates classes instead of functions. The general syntax is template<class T, …> class X { … } As with function templates, a class template may have several template parameters. Moreover, some of them can be primitive types parameters: template<class T, int n, class U> class X { … }

11 Primitive types must be constant Of course, since templates are instantiated at compile time, values passed to primitive types must be constant: template<class T, int n> class X {}; int main() { X<float, 22> x 1; const int n = 44; X<char, n> x 2; int m = 66; X<short, m> x 3 } // OK //ERROR: m must be constant Note: Class templates are sometimes called parameterized types.

12 Member functions of Class Templates The member functions of a class template are themselves function templates with the same template header as their class. For example: template<class T> class math. Functions { static T square(T t) {return t*t ; } // more static math functions }; is handled in the same way that the following template function would be handled: template<class T> T square(T t) {return t*t ; }

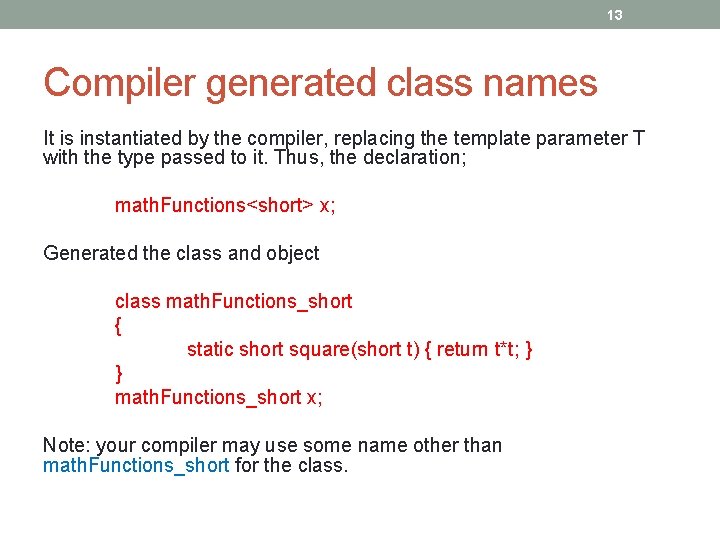

13 Compiler generated class names It is instantiated by the compiler, replacing the template parameter T with the type passed to it. Thus, the declaration; math. Functions<short> x; Generated the class and object class math. Functions_short { static short square(short t) { return t*t; } } math. Functions_short x; Note: your compiler may use some name other than math. Functions_short for the class.

14 Example) Stack class template<class T> class Stack { public: Stack (int s = 100) : size(s), top(-1), {data = new T[size] ; } ~Stack() {delete [] data; } void push(const T& x) { data[++top] = x; } T pop() {return data[top--]; } int is. Empty() const { return top == -1; } int is. Full() const {return top == size – 1; } private: int size; int top; T* data; }

15 Use of the Stack Template class int main() { Stack<int> int. Stack 1(5) ; Stack<int> int. Stack 2(10); Stack<char> char. Stack(8); int. Stack 1. push(11) ; int. Stack 2. push(22); char. Stack. push(‘A’); int. Stack 2. push(int. Stack 1. pop()); cout << int. Stack 2. pop() << endl; if (int. Stack 2. is. Empty() ) cout << “int. Stack 2 is empty. n” ; } Output: 11 22 int. Stack 2 is empty.

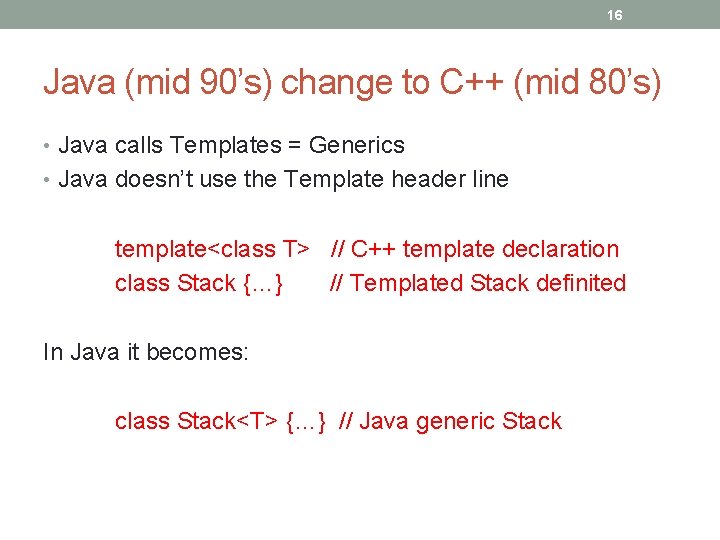

16 Java (mid 90’s) change to C++ (mid 80’s) • Java calls Templates = Generics • Java doesn’t use the Template header line template<class T> // C++ template declaration class Stack {…} // Templated Stack definited In Java it becomes: class Stack<T> {…} // Java generic Stack
