1 Broadband business Telindus Access Solutions 11232020 broadband

1 Broadband business Telindus Access Solutions 11/23/2020 broadband solutions

Telindus Access Solutions Broadband solutions & services > Positioning > TDM Access > CPE > CO equipment > Multiplexers > Multiservice Broadband Access > The Telindus TDRE > Access Routers > CPE > Access Concentrators > Maintenance and Management > Conclusion 11/23/2020 2

Telindus Access Solutions Broadband solutions & services > Positioning > TDM Access > CPE > CO equipment > Multiplexers > Multiservice Broadband Access > The Telindus TDRE > Access Routers > CPE > Access Concentrators > Maintenance and Management > Conclusion 11/23/2020 3

Positioning 2 Mbps leased Lines (G 703) Base Station connections ISDN PRI connections Data Services Nx 64 k leased lines Frame-Relay, X. 25, PPP, HDLC Lan interconnect Broadband Internet Access Residential Internet Data Services Lan to LAN services VPN services Leased Line over ATM (CES) Frame-Relay over ATM Broadband solutions & services TDM Infrastructure 11/23/2020 4

Positioning CO Telindus 2300 Crocus SHDSL QUAD CPE Data Services CN 4 (Including DXC, E 3 Mux) Broadband Internet Access Data Services Telindus 2400 Telindus 11 xx Telindus 1221 Telindus 2300 Crocus SHDSL TT G. 703 Crocus SHDSL with modular interface Crocus DXC Crocus ADM 2 P, CNV Telindus Routers Telindus 1421/1422 Telindus 1431 Telindus 1030 Telindus – TMA Network Maintenance and Management Tools Broadband solutions & services TDM Infrastructure 11/23/2020 5

Telindus Access Solutions Broadband solutions & services > Positioning > TDM Access > CPE > CO equipment > Multiplexers > Multiservice Broadband Access > The Telindus TDRE > Access Routers > CPE > Access Concentrators > Maintenance and Management > Conclusion 11/23/2020 6

TDM Access > What is? > OSI Layer 1 transmission > Typically used for delivering services like 11/23/2020 7 > Leased Lines > Frame-Relay > X. 25 > Technologies used > Voice-band up to 33, 6 kbps > DSL 2 Mbps, 4 Mbps > Fibre Optic 2, 8, 10, 34, 45 Mbps ( E 1. . . T 3 ) Broadband solutions & services > IP

Evolution of DSL for TDM access speed SHDSL 64 kbps. . 4. 608 kbps 11/23/2020 8 Broadband solutions & services HDSL 2. 048 kbps IDSL 64, 128, 144 kbps 1990 1995 2001

SHDSL Versus HDSL Number of Pairs 1 (2) 2 (3) Modulation TCPAM 2 B 1 Q (CAP) line speed per pair 192. . 2304 kbps 1024 fixed (2 P) Ideal Maximum range (0. 5 mm) 5. 5. . 12 km 5 km (2 P) 5. 5 km (3 P) Conclusion: > SHDSL consumes less resources to achieve higher line speed or distance > Has a better spectral compatibility with ADSL and VDSL > More flexible (Variable line rate) Broadband solutions & services SHDSL 11/23/2020 9

Telindus Access Solutions Broadband solutions & services > Positioning > TDM Access > CPE > CO equipment > Multiplexers > Multiservice Broadband Access > The Telindus TDRE > Access Routers > CPE > Access Concentrators > Maintenance and Management > Conclusion 11/23/2020 10

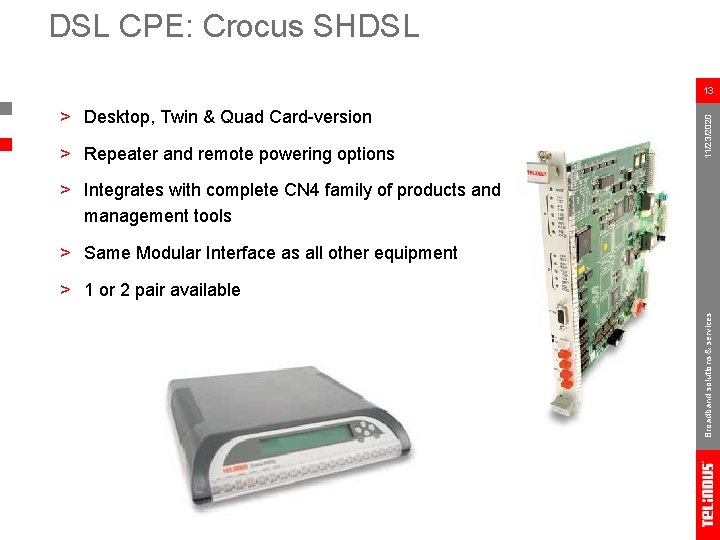

DSL CPE: Crocus SHDSL > Desktop, Twin & Quad Card-version > Repeater and remote powering options 11/23/2020 13 > Integrates with complete CN 4 family of products and management tools > Same Modular Interface as all other equipment Broadband solutions & services > 1 or 2 pair available

Application interfaces G 703 Router / Bridge V. 35 G 703 2 M IP Router 2 M V. 36 G 703 2 M + RS 530 IP Router 10 M X. 21 RS-530/V. 24 Broadband solutions & services Serial 11/23/2020 14

DSL CPE: Applications G. 703 15 11/23/2020 G. 703 pabx ? ? Copper pair Save costs on PSTN calls Broadband solutions & services pabx

DSL CPE: Applications V. 35 16 Copper pair Cost-effective Leased Line alternative Broadband solutions & services 11/23/2020 V. 35

DSL CPE: Applications Dual Port 17 11/23/2020 Dual Port pabx Copper pair Bundled services over a single copper pair Broadband solutions & services pabx

DSL CPE: Applications V. 35 18 Copper pair No extra external router required Broadband solutions & services 11/23/2020 Router Interface

DSL CPE: Telindus 1421 11/23/2020 > SHDSL Modem with built-in fixed IP router 21 Broadband solutions & services > What it is:

Fibre-Optic Solutions > What is? > Fiber-Optic modems > Makes use of dark fibre (1 or 2 fibres for a connection) 11/23/2020 22 > Multi-Mode & Single Mode > Up to 80 km reach > depending on the fibre transmission module selected Broadband solutions & services > For connection speeds between 64 kbps and 45 Mbps When copper is not an option

Fibre-Optic Solutions Modular Application Interface 11/23/2020 23 Broadband solutions & services Card version for rack-mount (2 modems/card) Desktop units Modular Fibre Line Interface (1 or 2 modules)

Application interfaces G 703 Router / Bridge V. 35 G 703 2 M IP Router 2 M V. 36 Quad E 1 IP Router 10 M X. 21 G. 703 (E 3/T 3) RS-530/V. 24 HSSI Broadband solutions & services Serial 11/23/2020 24

Fibre-Optic: Applications Quad E 1 Interface 27 11/23/2020 Quad E 1 Interface pabx Fibre Optic 4 x G. 703 (E 1) interfaces Broadband solutions & services pabx

Telindus Access Solutions Broadband solutions & services > Positioning > TDM Access > CPE > CO equipment > Multiplexers > Multiservice Broadband Access > The Telindus TDRE > Access Routers > CPE > Access Concentrators > Maintenance and Management > Conclusion 11/23/2020 28

CO Equipment > Cardnest CN 4 for flexible data access services (copper, fibre, multiplexing, etc. . ) > Telindus 2300 for SHDSL infrastructure networks 11/23/2020 Two product lines: 29 Broadband solutions & services What is?

Telindus Access Solutions Broadband solutions & services > Positioning > TDM Access > CPE > CO equipment > Multiplexers > Multiservice Broadband Access > The Telindus TDRE > Access Routers > CPE > Access Concentrators > Maintenance and Management > Conclusion 11/23/2020 39

Multiplexers > Multiplexes different applications onto a E 1 or E 3 circuit > Includes also cross-connect, interface converters & ISDN multiplexers 40 11/23/2020 > What is? > Products > Crocus ADM: E 1 Add & Drop Multiplexer > Crocus E 3 MUX: E 1 to E 3 multiplexer > Crocus CNV: Interface converters > Crocus Inverse Multiplexer > ID-MUX, PRI-MUX, E 141, E 800: ISDN Multiplexers Broadband solutions & services > Crocus DXC: Cross-connect

Telindus Access Solutions Broadband solutions & services > Positioning > TDM Access > CPE > CO equipment > Multiplexers > Multiservice Broadband Access > The Telindus TDRE > Access Routers > CPE > Access Concentrators > Maintenance and Management > Conclusion 11/23/2020 49

Multiservice Broadband Access 11/23/2020 50 Broadband Access: Legacy Access: Frame-relay TDM Broadband solutions & services IP

Multiservice Broadband Access 11/23/2020 51 Broadband Access: Legacy Access: Frame-relay TDM Broadband solutions & services IP

Multiservice Broadband Access > IP Routers 11/23/2020 52 > DSL Routers Broadband Access: Broadband Access: Broadband solutions & services IP IP IP DSLAMs IP IP > Mini

Multiservice Broadband Access > IP > Routers IP > Routers IP > Routers IP IP > Routers IP Routers 11/23/2020 53 > DSL > Routers DSL > Routers DSL > Routers DSL Routers > Routers DSL Routers Broadband solutions & services > Mini > DSLAMs Mini > DSLAMs Mini > DSLAMs Mini DSLAMs > DSLAMs Mini DSLAMs

Telindus Access Solutions Broadband solutions & services > Positioning > TDM Access > CPE > CO equipment > Multiplexers > Multiservice Broadband Access > The Telindus TDRE > Access Routers > CPE > Access Concentrators > Maintenance and Management > Conclusion 11/23/2020 54

Telindus Dynamic Routing Engine > Same feature set for complete product range: 55 11/23/2020 > Common Routing core for all Telindus products with built-in IP protocol stack (except 11 xx ADSL equipment) > Telindus 1030 Router Series > Telindus 1061 Router > Telindus 1221 ADSL Router > Telindus 1423 SHDSL Routers > Telindus 1431 SHDSL CPE > Telindus 2400 Series > Common maintenance and management tools Broadband solutions & services > Telindus 1421 and 1422 SHDSL Routers

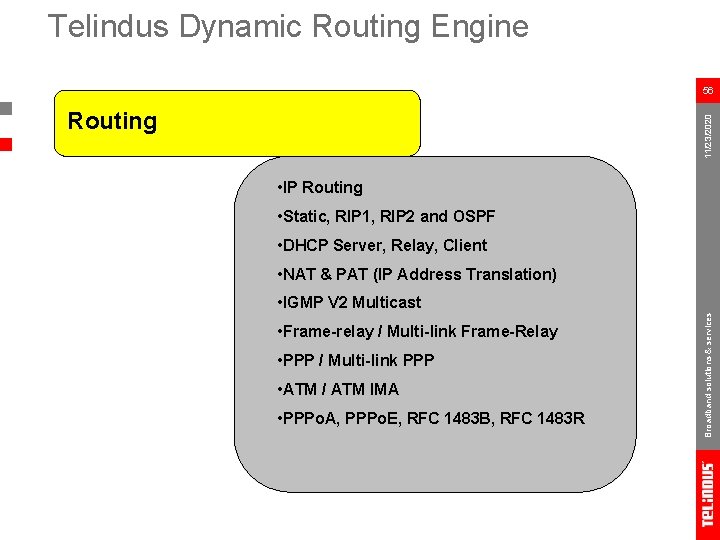

Telindus Dynamic Routing Engine 56 11/23/2020 Routing • IP Routing • Static, RIP 1, RIP 2 and OSPF • DHCP Server, Relay, Client • NAT & PAT (IP Address Translation) • Frame-relay / Multi-link Frame-Relay • PPP / Multi-link PPP • ATM / ATM IMA • PPPo. A, PPPo. E, RFC 1483 B, RFC 1483 R Broadband solutions & services • IGMP V 2 Multicast

Telindus Dynamic Routing Engine Bridge and VLAN Support 11/23/2020 57 • Bridging with spanning tree • Multiple bridge groups • VLAN interconnect (802. 1 Q) • VLAN priority (802. 1 P) • VLAN tagging/ untagging • VLAN Switching Broadband solutions & services • VLAN Q in Q (double tagging)

Telindus Dynamic Routing Engine Quality Of Service (Qo. S) 11/23/2020 58 • Class of Service routing (Diff. Serv) • Policy based Routing • Priority Queuing • Fragmentation (PPP or Frame-Relay) • Multiclass PPP • CIR/EIR (Frame Relay) Broadband solutions & services • Routing based on higher layer protocols or TOS bits

Telindus Dynamic Routing Engine 11/23/2020 59 VPN Support • L 2 TP tunneling • IPSec encryption and tunneling (IP VPN) • DES/3 DES Encryption Broadband solutions & services • Optional hardware encryption accelerator

Telindus Dynamic Routing Engine 11/23/2020 60 Access & Security • Extended access lists • PPP PAP & CHAP authentication • authentication for management (TMA, telnet, SNMP, HTTP…) • PPP AAA (Authentication, Authorisation, Accounting) • CHAP / PAP password verification • IP address assignment • Send statistics to RADIUS server Broadband solutions & services • RADIUS

Telindus Dynamic Routing Engine Maintenance & Management 11/23/2020 61 • Windows interface TMA • Telnet (Command Line or Menu) • HTTP web interface • SNMP (MIB 2 & private MIB) • HP Open. View integration • TMA Element. View • TMA CLI • Inventory management • Syslog on IP devices • Simple Network Time Protocol (SNTP) Broadband solutions & services • TFTP, FTP

Telindus Access Solutions Broadband solutions & services > Positioning > TDM Access > CPE > CO equipment > Multiplexers > Multiservice Broadband Access > The Telindus TDRE > Access Routers > CPE > Access Concentrators > Maintenance and Management > Conclusion 11/23/2020 63

Telindus 1030 Router Series 66 11/23/2020 >10/100 auto-sense Ethernet interface >10 Mbps IP routing capacity >Frame Relay, PPP, ATM, HDLC encapsulation >3 DES hardware accelerator optional >AUX port 1031 1032 1033 1034 1035 Serial - - 1 1 1 Channelised E 1* 1 2 - - 1+1 # Time Slots on E 1 s 31 62 - - 31 ISDN BRI - - - 2** - * Channelised E 1 for PPP and Frame Relay encapsulations. Supports also ATM over E 1. ** Both Dial-up and leased line mode is supported on the ISDN interfaces Broadband solutions & services >Versions:

Example: Frame Relay service (meshed) 1033 11/23/2020 67 V. 35 1033 DLCI 1033 Broadband solutions & services Frame-relay

Example: Principle of ISDN backup Frame-relay DTU (x. DSL) 11/23/2020 68 V. 35 1034 NT ISDN BRI (S 0) NT* *A second NT only for backup speeds up to 256 kbps Broadband solutions & services BRI (S 0)

Example: Frame Relay service with ISDN BU 1034 69 11/23/2020 BRI (S 0) V. 35 Frame-relay V. 35 BRI (S 0) V. 35 1034 BRI (S 0) Broadband solutions & services ISDN

Ethernet interconnect over PDH/SDH network 11/23/2020 70 E 1 1031 Broadband solutions & services SDH/TDM network

Ethernet interconnect over DXC network 11/23/2020 72 E 1 (channelised) 1031 FE 1 1031 V. 35 Nx 64 k 1033 Broadband solutions & services TDM/DXC network

Example: Frame Relay service (star topology) 11/23/2020 73 V. 35 1033 V. 35 Frame-relay/ATM V. 35 1033 DLCI/PVC V. 35 1033 1061 Broadband solutions & services 1033 STM 1 Communication Centre

Broadband solutions & services 11/23/2020 Routers: Telindus 1061 Router 74

Telindus 1061 Router 10/100 Base-T Hardware • 19”/ETSI • Local alarm contacts • AC / DC powered 1061 TIM module: • 6 x G. 703/E 1 • E 3 • STM 1 • 4 x 10/100 Base-T WAN interfaces • 6 E 1: ATM IMA, MLPPP, MLFR • E 3: ATM • STM 1: ATM Broadband solutions & services 11/23/2020 75

Routers: Telindus 1061 Router 11/23/2020 76 Corporate Network Nx E 1 E 3 STM 1 Ethernet Service Provider 1061 100 Base-T DMZ Internet Broadband solutions & services 100 Base-T

Routers: Telindus 1061 Router 11/23/2020 77 100 Base-T STM 1 FO 1061 100 Base-T DMZ Broadband solutions & services Service Provider

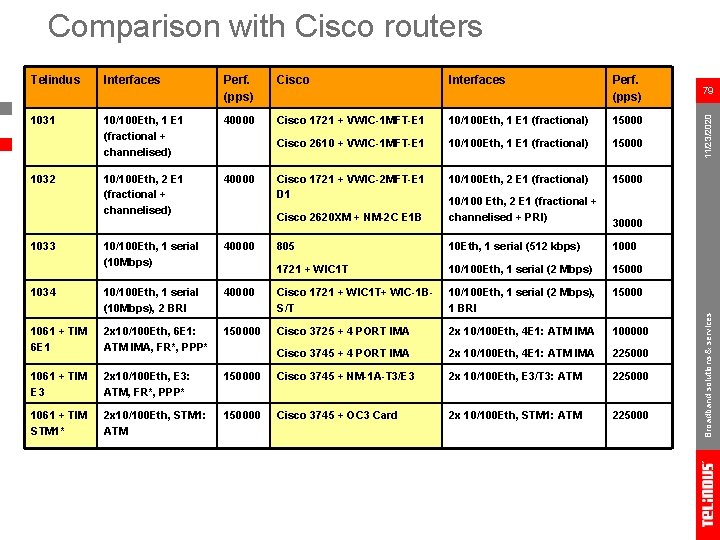

Comparison with Cisco routers Interfaces Perf. (pps) Cisco Interfaces Perf. (pps) 1031 10/100 Eth, 1 E 1 (fractional + channelised) 40000 Cisco 1721 + VWIC-1 MFT-E 1 10/100 Eth, 1 E 1 (fractional) 15000 Cisco 2610 + VWIC-1 MFT-E 1 10/100 Eth, 1 E 1 (fractional) 15000 10/100 Eth, 2 E 1 (fractional + channelised) 40000 Cisco 1721 + VWIC-2 MFT-E 1 D 1 10/100 Eth, 2 E 1 (fractional) 15000 1033 Cisco 2620 XM + NM-2 C E 1 B 10/100 Eth, 2 E 1 (fractional + channelised + PRI) 805 10 Eth, 1 serial (512 kbps) 1000 1721 + WIC 1 T 10/100 Eth, 1 serial (2 Mbps) 15000 30000 10/100 Eth, 1 serial (10 Mbps) 40000 1034 10/100 Eth, 1 serial (10 Mbps), 2 BRI 40000 Cisco 1721 + WIC 1 T+ WIC-1 BS/T 10/100 Eth, 1 serial (2 Mbps), 1 BRI 15000 1061 + TIM 6 E 1 2 x 10/100 Eth, 6 E 1: ATM IMA, FR*, PPP* 150000 Cisco 3725 + 4 PORT IMA 2 x 10/100 Eth, 4 E 1: ATM IMA 100000 Cisco 3745 + 4 PORT IMA 2 x 10/100 Eth, 4 E 1: ATM IMA 225000 1061 + TIM E 3 2 x 10/100 Eth, E 3: ATM, FR*, PPP* 150000 Cisco 3745 + NM-1 A-T 3/E 3 2 x 10/100 Eth, E 3/T 3: ATM 225000 1061 + TIM STM 1* 2 x 10/100 Eth, STM 1: ATM 150000 Cisco 3745 + OC 3 Card 2 x 10/100 Eth, STM 1: ATM 225000 Broadband solutions & services 1032 79 11/23/2020 Telindus

Telindus Access Solutions Broadband solutions & services > Positioning > TDM Access > CPE > CO equipment > Multiplexers > Multiservice Broadband Access > The Telindus TDRE > Access Routers > CPE > Access Concentrators > Maintenance and Management > Conclusion 11/23/2020 81

Positioning Broadband Access CPEs Advanced services > ADSL and SHDSL > Large volume > Lower Volume > Basic Internet service > Advanced services > Telindus 113 X series > VLAN Support > VPN Support > SLA > Vo. IP(QOS) > Video broadcast > Delivery of Fr-R and LL over Broadband > Products: > Telindus 1221 ADSL Router > Telindus 1421 / 1422 SHDSL Router > Telindus 1431 SHDSL CPE Broadband solutions & services > Products: 82 11/23/2020 Basic service

Broadband CPE: 1221 > ADSL Modem with built-in IP router > Different versions 85 11/23/2020 > What it is: > Eth / 4 P Eth switch > Optional second Eth port > 3 DES hardware accelerator > ADSL 2, ADSL 2+ Broadband solutions & services > Backup: 1 port ISDN BRI

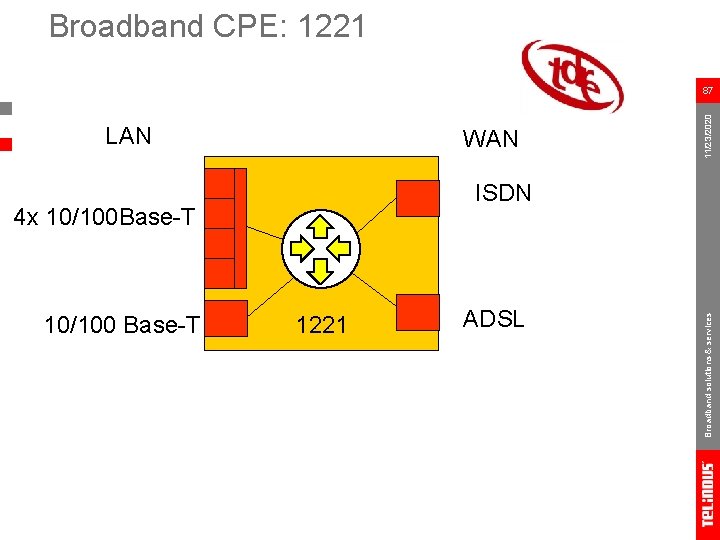

Broadband CPE: 1221 WAN 10/100 Base-T ADSL 1221 Broadband solutions & services LAN 11/23/2020 86

Broadband CPE: 1221 LAN WAN 1221 ADSL Broadband solutions & services ISDN 4 x 10/100 Base-T 10/100 Base-T 11/23/2020 87

Broadband CPE: 1221 11/23/2020 88 1221 DSLAM 1221 ATM ISDN 1221 Broadband solutions & services DSLAM

Telindus 1421 & 1422 > What it is: > SHDSL Modem with built-in IP router 11/23/2020 89 > 1421: WAN encapsulations ATM, PPP, Frame Relay & HDLC > Point-to-point + TDM applications > 1422: WAN encapsulation ATM > DSLAM interconnect Broadband solutions & services > DSLAM interconnect

Broadband CPE: 1421/1422 basic unit WAN 10/100 Base-T SHDSL 1421 Broadband solutions & services LAN 11/23/2020 90

Broadband CPE: 1421/1422 Application Copper pair Broadband solutions & services SHDSL line interface Up to 4. 6 Mbps 11/23/2020 91

Broadband CPE: 1421 Application Copper pair IP 92 11/23/2020 Classical TDM access PPP/Frame-Relay encapsulation Broadband solutions & services Frame-Relay TDM (SDH, DXC)

Broadband CPE: 1421/1422 Application Copper pair 11/23/2020 93 ATM encapsulation Broadband solutions & services Public SHDSL IP Service • Internet • VPN • . .

Telindus 1431 > SHDSL Modem with built-in IP router, an Ethernet port and modular interface slot 11/23/2020 > What it is: 97 > SHDSL, 1 pair or 2 pair > Ethernet 10/100 M interface > Services over an ATM DSLAM: > Leased line replacement over ATM (CES) > Frame Relay service over ATM (FRF 5 & FRF 8) > ATM over E 1 > Each of the above applications can be combined with LAN service Broadband solutions & services > Modular interface: E 1 or serial (V 35, V 36, X 21, RS 530)

Telindus 1431 application: CES L 2 CES IP + mgt AAL 1 AAL 5 98 LAN mgt ATM IP / MAC Line 11/23/2020 L 3 CES DSLAM Serial or G. 703 > channelised E 1 in future release > Clock synchronous with the network clock Broadband solutions & services > CES based on Nx 64 & 2 M serial, E 1 & FE 1

Telindus 1431: Application 11/23/2020 99 pabx G. 703 Eth. Copper pair Bundled services over a single copper pair Broadband solutions & services G. 703

Telindus 1431: Application Combined Leased-Line And IP service 11/23/2020 pabx 100 Copper pair >ATM Forum af-vtoa-0078. 000 >Nx 64 service (serial and fractional E 1) >2 Mbps service (serial and E 1) >Channelised E 1 (multiple TDM streams over a single E 1 interface) pabx Broadband solutions & services Public IP/ATM Service

Telindus 1431 application: Frame over ATM L 2 IP + mgt 101 LAN AAL 5 mgt ATM Line ATM IP / MAC 11/23/2020 L 3 FRF. 5/FRF. 8 FRF DSLAM Serial or G 703 > Data terminated at remote side in Frame Relay > FRF. 8 encapsulation > Data terminated at remote side in ATM Broadband solutions & services > FRF. 5 encapsulation

Frame Relay over ATM: example F. R. router 102 11/23/2020 F. R. router ATM network Frame Relay service >FRF. 5 encapsulation: ATM network is only transport network for a Frame Relay network >FRF. 8 encapsulation: Data terminated at remote side in ATM >Nx 64 K and 2 Mbps transparent service >Up to 40 DLCIs over E 1/serial interface Broadband solutions & services F. R. router

Telindus Access Solutions Broadband solutions & services > Positioning > TDM Access > CPE > CO equipment > Multiplexers > Multiservice Broadband Access > The Telindus TDRE > Access Routers > CPE > Access Concentrators > Maintenance and Management > Conclusion 11/23/2020 105

DSL concentration with integrated router 10/100 Base. T Up to 24 SHDSL or ADSL lines Copper pairs Telindus CPE or 3 rd party Broadband solutions & services ? 11/23/2020 106

Telindus 2400 Series > DSL multi-port router 11/23/2020 107 > = IP DSLAM > Has unique features vs ATM & Ethernet DSLAMs > 8 / 24 ADSL or SHDSL ports > Fixed 10/100 Ethernet interface > As uplink > Cascading multiple units Broadband solutions & services > 19”/ETSI, 1 U high

Telindus 2400 Series > Modular interface for maximum flexibility for backbone connectivity 11/23/2020 108 > 4 P 10/100 Ethernet switch > 6 E 1: ATM IMA, MLPPP, MLFR > STM 1: ATM Broadband solutions & services > E 3: ATM

24 xx Multiport DSL Router 11/23/2020 109 IP/ETHERNET 1 IP x. DSL 100 B-T Nx E 1 E 3 STM 1 Bridge x. DSL. . ATM x. DSL 2401/2421 8. . 24 ATM PPP FR-R Modular Uplink Interface Broadband solutions & services IP ATM PPP FR-R CPE (e. g. 1421)

Example: combined Internet, voice and VPN access Voice gateway 2421 Vo. IP gateway PSTN Cisco 7 xxx IP backbone Internet PPPo. A Termination Vo. IP gateway Broadband solutions & services 1421 VPN (IPSec, 3 DES) Internet Access NAT Vo. IP (TOS) 11/23/2020 113

Telindus Access Solutions Broadband solutions & services > Positioning > TDM Access > CPE > CO equipment > Multiplexers > Multiservice Broadband Access > The Telindus TDRE > Access Routers > CPE > Access Concentrators > Maintenance and Management > Conclusion 11/23/2020 114

Maintenance and management > DB 9 local interface > User interfaces: Windows interface (TMA), command line interface (CLI), interactive terminal interface (ATWIN), LCD hand terminal interface 115 11/23/2020 > Local installation & maintenance > Management over IP > Windows interface TMA > Telnet (CLI & ATWIN) > TFTP > SNMP (MIB 2 & private MIB) > TMA for HP Open. View (element management application) > TMA Element management > TMA CLI > Inventory management > Path management Broadband solutions & services > HTTP web interface

Telindus Access Solutions Broadband solutions & services > Positioning > TDM Access > CPE > CO equipment > Multiplexers > Multiservice Broadband Access > The Telindus TDRE > Access Routers > CPE > Access Concentrators > Maintenance and Management > Conclusion 11/23/2020 123

Conclusion > Different transmission media > Central Office and CPE 124 11/23/2020 > Telindus offers a complete integrated access solution > TDM and Broadband topologies > Uniform high-performance Telindus Dynamic Routing Engine with support of VPN and Qo. S > More performant and more cost effective than other solutions > Integrated Maintenance and Management Suite for maximum uptime and service level Broadband solutions & services > Maximum flexibility through modular application interfaces

125 Thank you for your attention 11/23/2020 broadband solutions
