1 Agglutination It is an AgAb reaction in

1

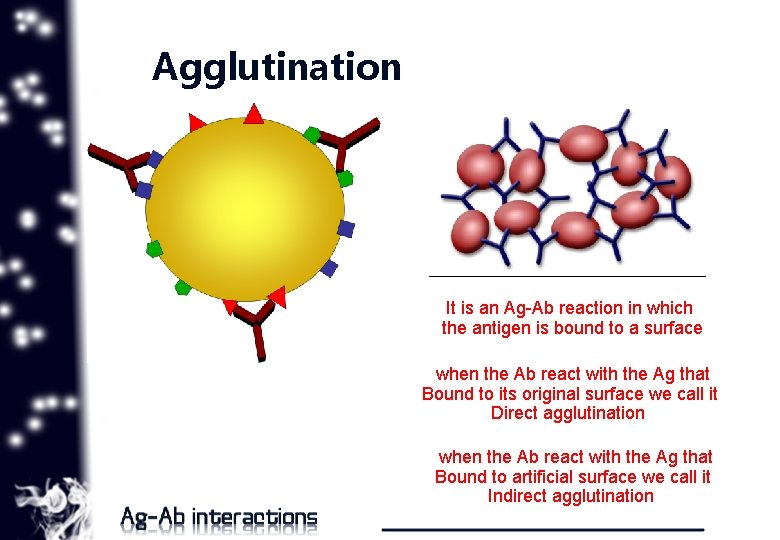

Agglutination It is an Ag-Ab reaction in which the antigen is bound to a surface when the Ab react with the Ag that Bound to its original surface we call it Direct agglutination when the Ab react with the Ag that Bound to artificial surface we call it Indirect agglutination

Agglutination

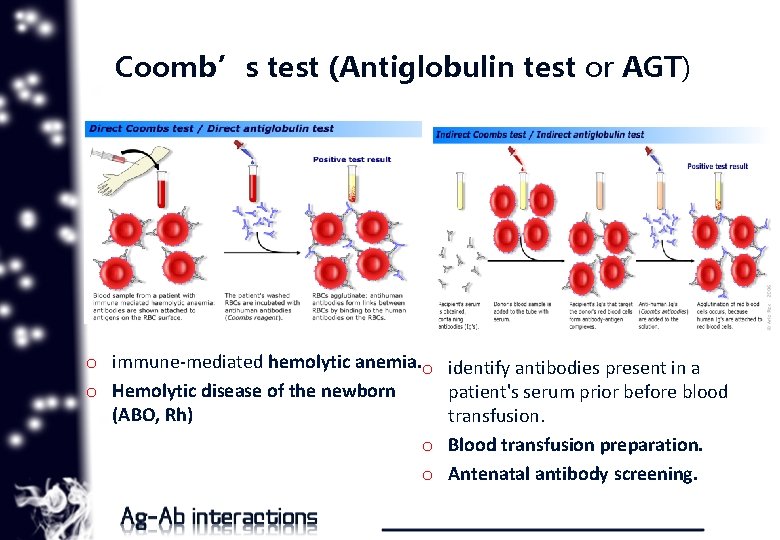

Coomb’s test (Antiglobulin test or AGT) o immune-mediated hemolytic anemia. o o Hemolytic disease of the newborn (ABO, Rh) o o identify antibodies present in a patient's serum prior before blood transfusion. Blood transfusion preparation. Antenatal antibody screening. 4

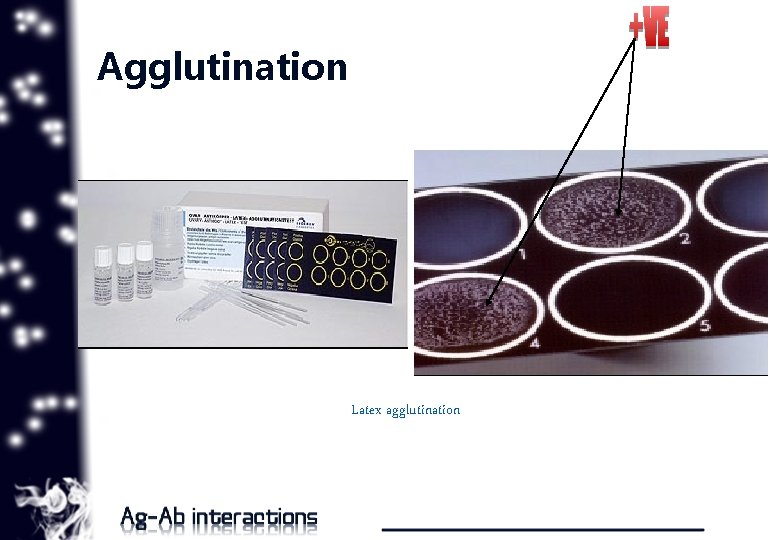

Agglutination Latex agglutination

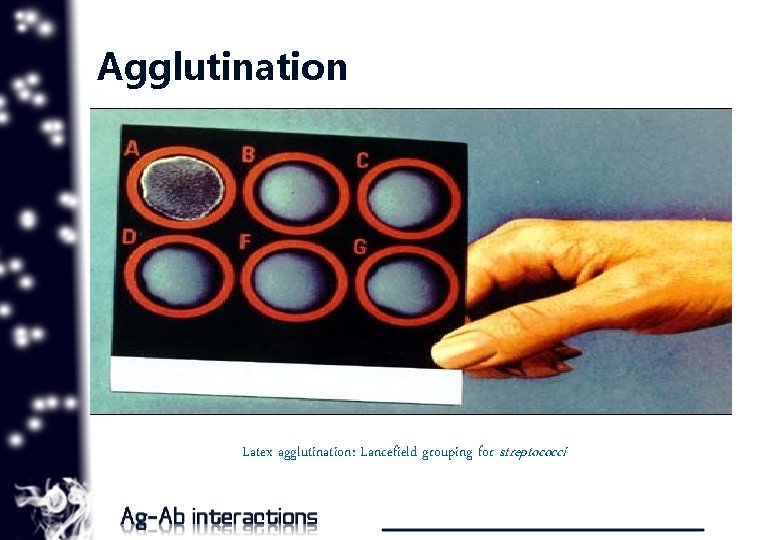

Agglutination Latex agglutination: Lancefield grouping for streptococci

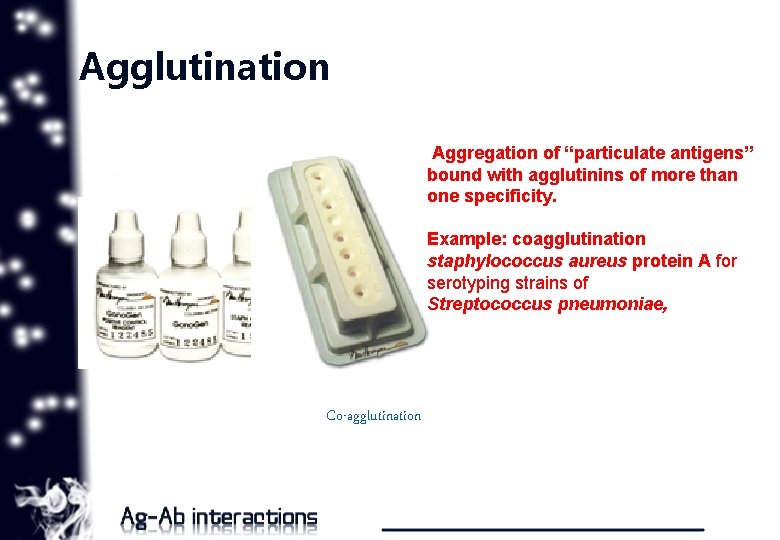

Agglutination Aggregation of “particulate antigens” bound with agglutinins of more than one specificity. Example: coagglutination staphylococcus aureus protein A for serotyping strains of Streptococcus pneumoniae, Co-agglutination

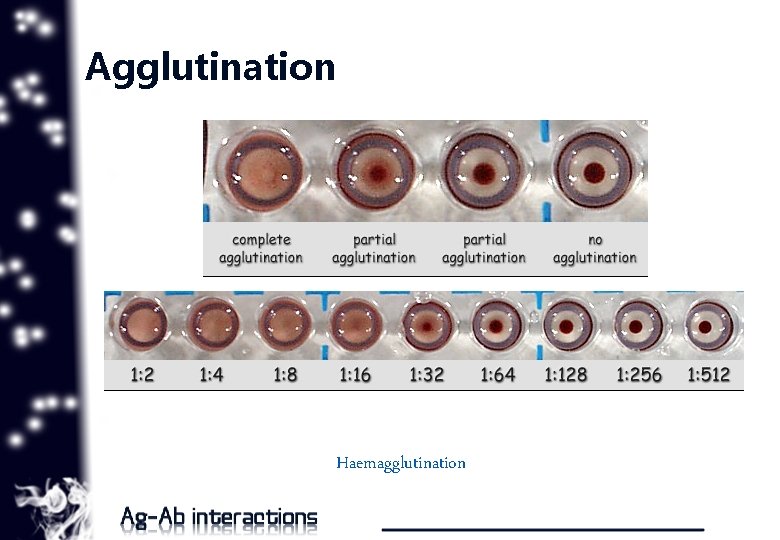

Agglutination Haemagglutination

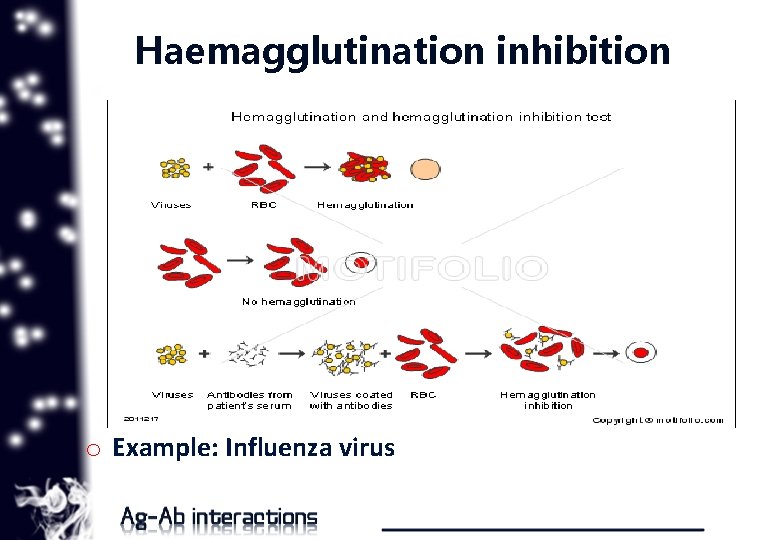

Haemagglutination inhibition o Example: Influenza virus 9

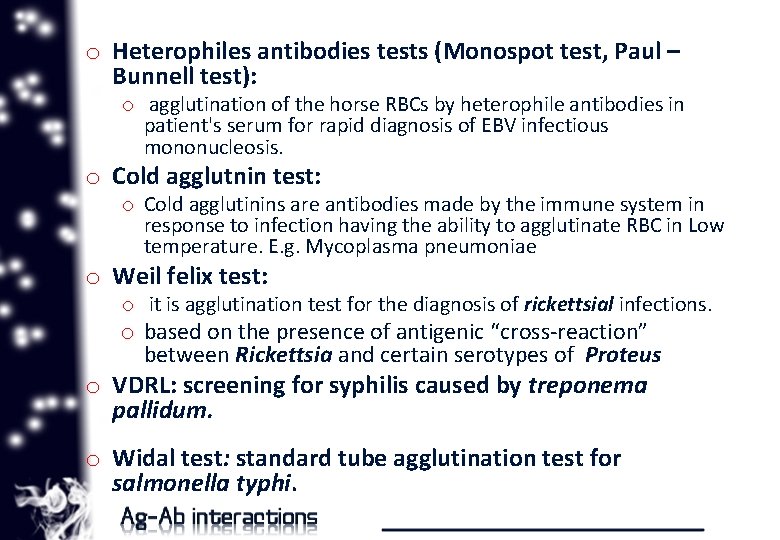

o Heterophiles antibodies tests (Monospot test, Paul – Bunnell test): o agglutination of the horse RBCs by heterophile antibodies in patient's serum for rapid diagnosis of EBV infectious mononucleosis. o Cold agglutnin test: o Cold agglutinins are antibodies made by the immune system in response to infection having the ability to agglutinate RBC in Low temperature. E. g. Mycoplasma pneumoniae o Weil felix test: o it is agglutination test for the diagnosis of rickettsial infections. o based on the presence of antigenic “cross-reaction” between Rickettsia and certain serotypes of Proteus o VDRL: screening for syphilis caused by treponema pallidum. o Widal test: standard tube agglutination test for salmonella typhi. 10

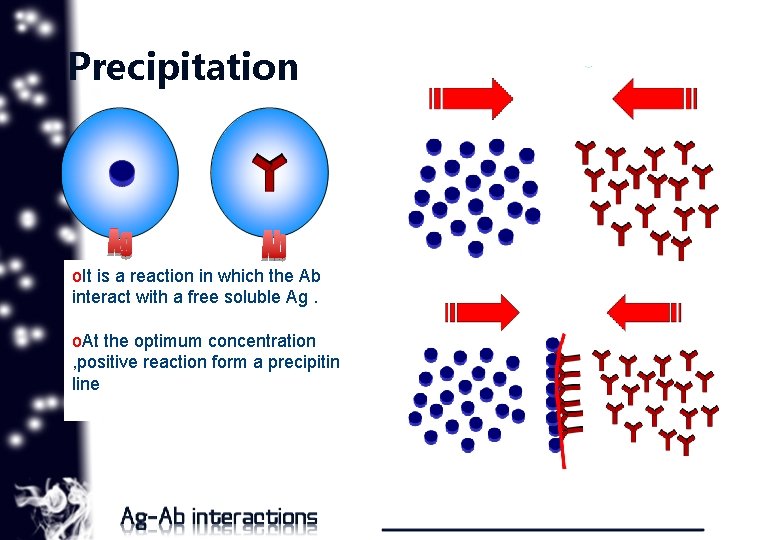

Precipitation o. It is a reaction in which the Ab interact with a free soluble Ag. o. At the optimum concentration , positive reaction form a precipitin line

Precipitation: test Ouchterlony, agar diffusion Complete identity Double immunodiffusion o. This is precipitation reaction to test identity between two antigens or between two antibodies Non identity Partial identity

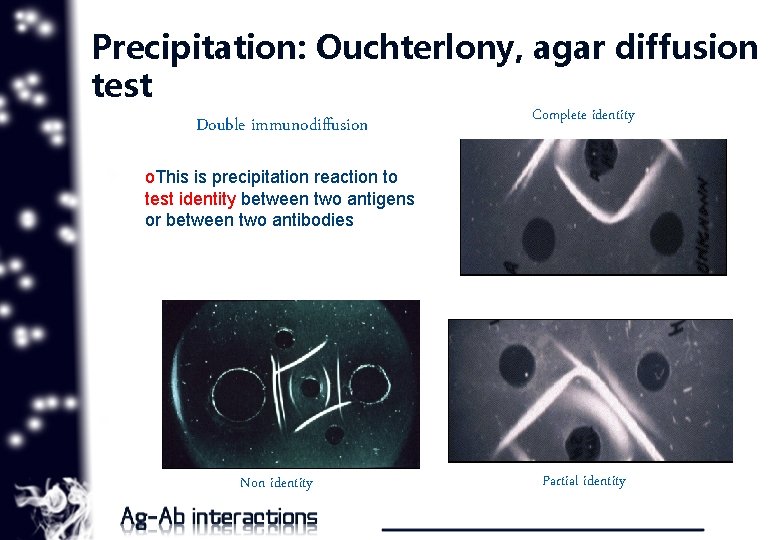

Precipitation: Ouchterlony, agar diffusion test Double immunodiffusion Complete identity o. This is precipitation reaction to test identity between two antigens or between two antibodies Non identity Partial identity

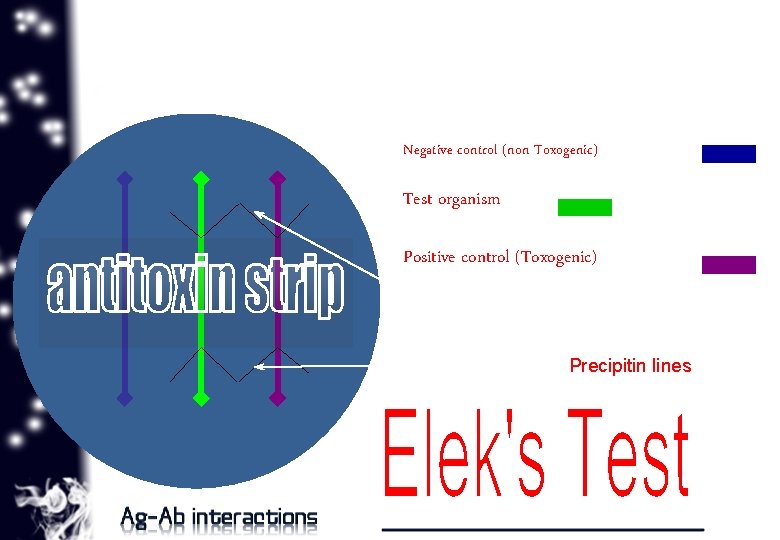

Negative control (non Toxogenic) Test organism Positive control (Toxogenic) Precipitin lines 14

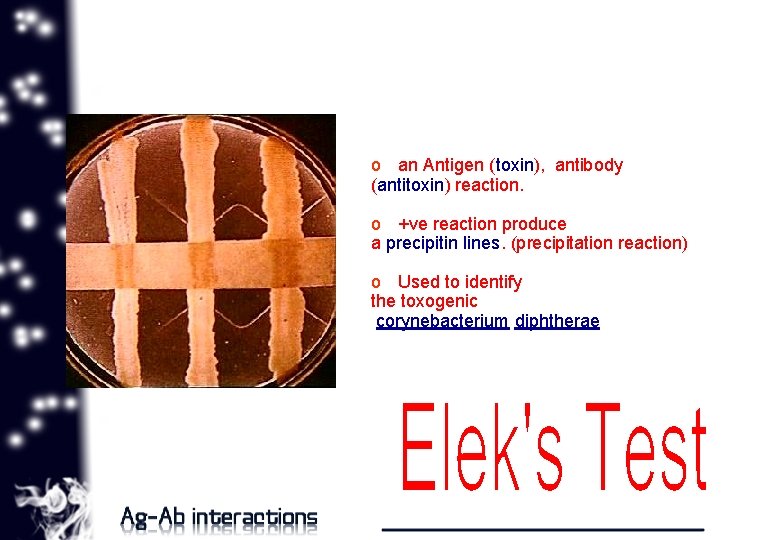

o an Antigen (toxin), antibody (antitoxin) reaction. o +ve reaction produce a precipitin lines. (precipitation reaction) o Used to identify the toxogenic corynebacterium diphtherae

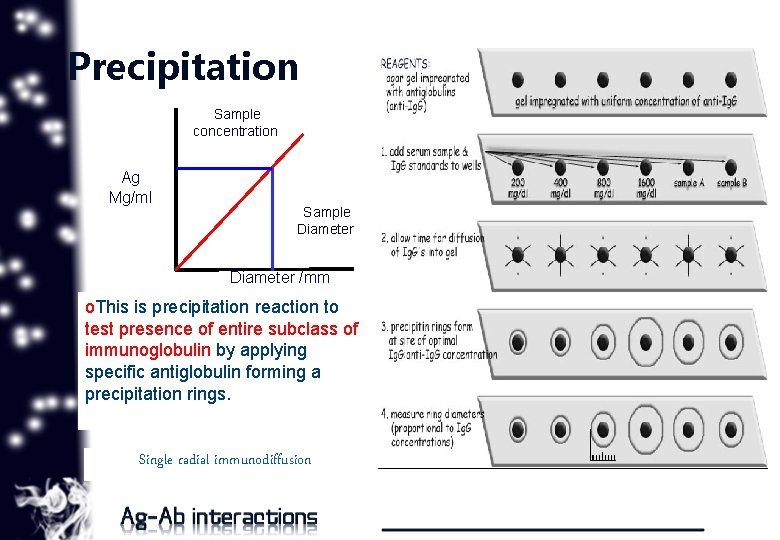

Precipitation Sample concentration Ag Mg/ml Sample Diameter /mm o. This is precipitation reaction to test presence of entire subclass of immunoglobulin by applying specific antiglobulin forming a precipitation rings. Single radial immunodiffusion

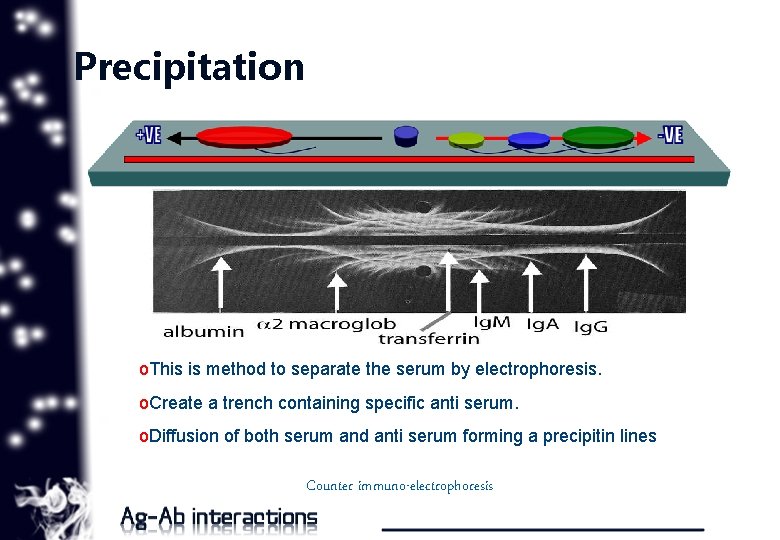

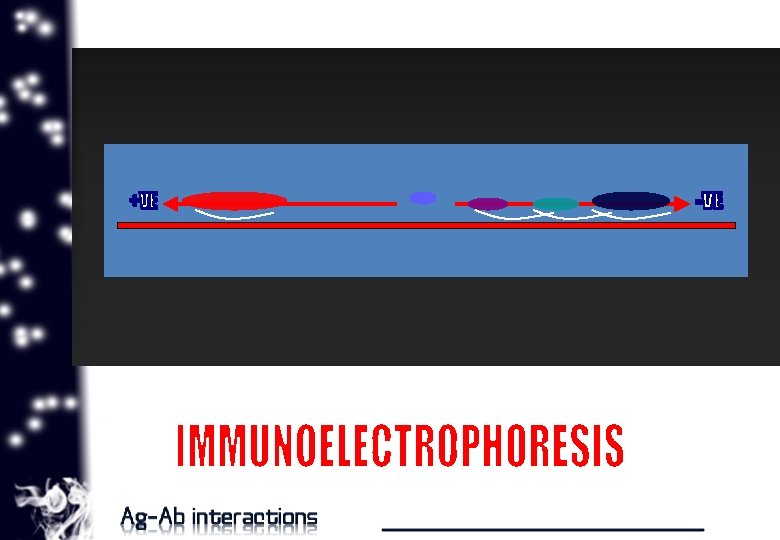

Precipitation o. This is method to separate the serum by electrophoresis. o. Create a trench containing specific anti serum. o. Diffusion of both serum and anti serum forming a precipitin lines Counter immuno-electrophoresis

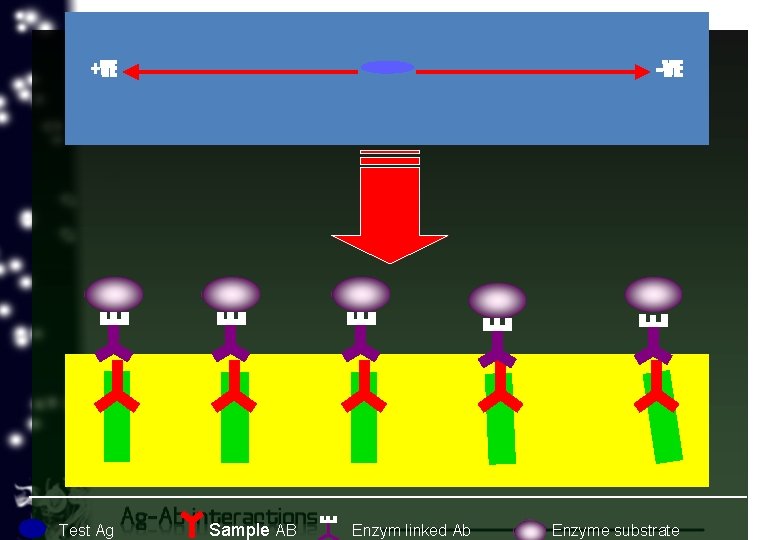

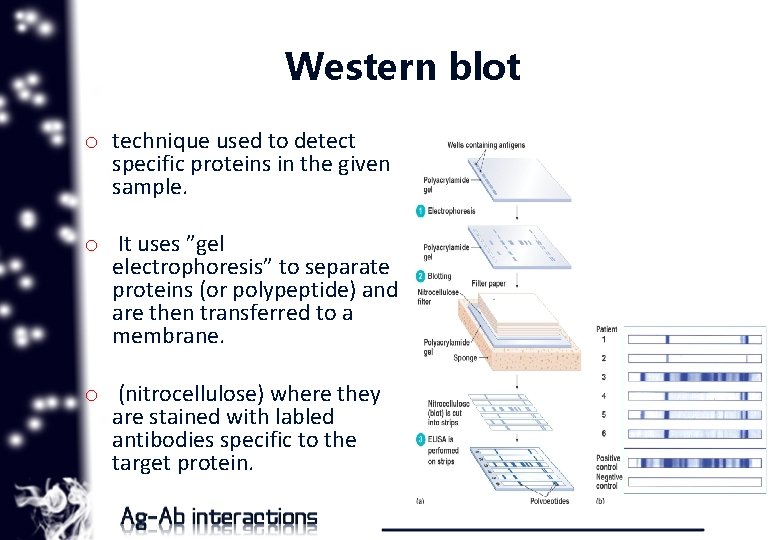

Western blot o technique used to detect specific proteins in the given sample. o It uses ”gel electrophoresis” to separate proteins (or polypeptide) and are then transferred to a membrane. o (nitrocellulose) where they are stained with labled antibodies specific to the target protein.

Test Ag Sample AB Enzym linked Ab Enzyme substrate

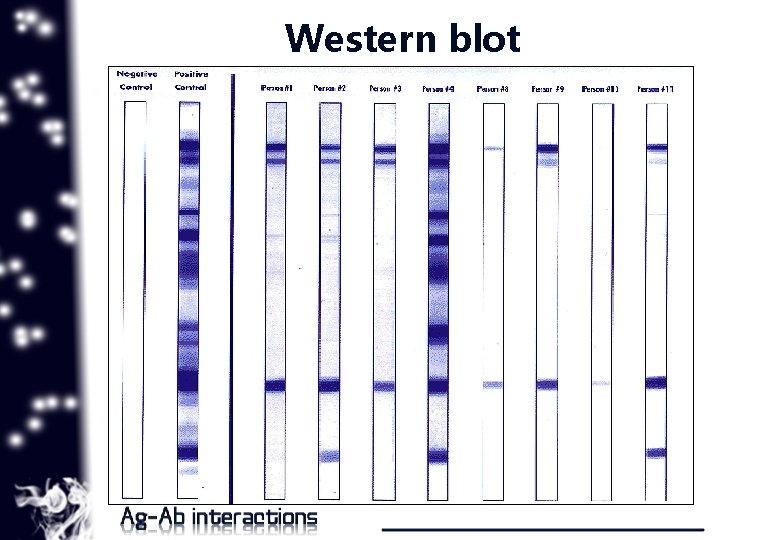

Western blot

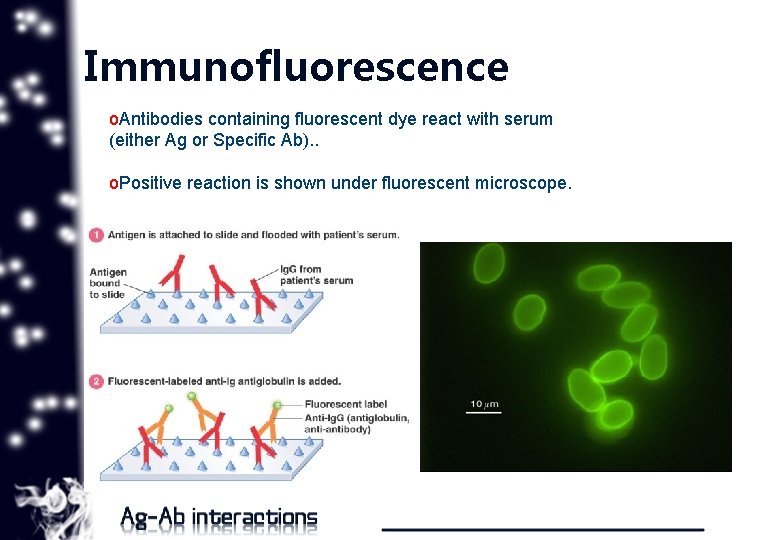

Immunofluorescence o. Antibodies containing fluorescent dye react with serum (either Ag or Specific Ab). . o. Positive reaction is shown under fluorescent microscope.

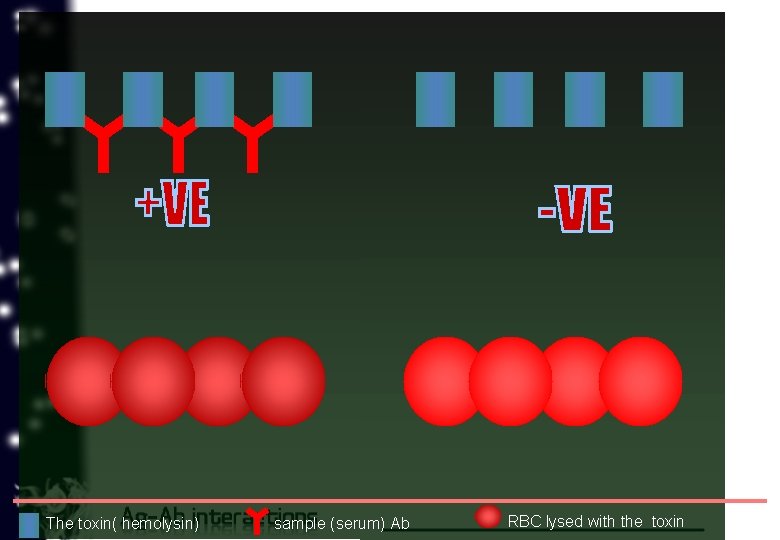

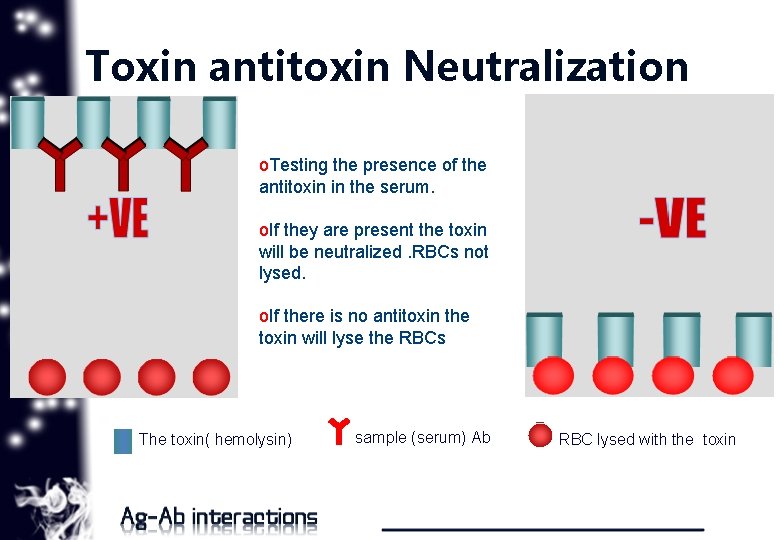

Toxin antitoxin Neutralization o. Testing the presence of the antitoxin in the serum. o. If they are present the toxin will be neutralized. RBCs not lysed. o. If there is no antitoxin the toxin will lyse the RBCs The toxin( hemolysin) sample (serum) Ab RBC lysed with the toxin

The toxin( hemolysin) sample (serum) Ab RBC lysed with the toxin

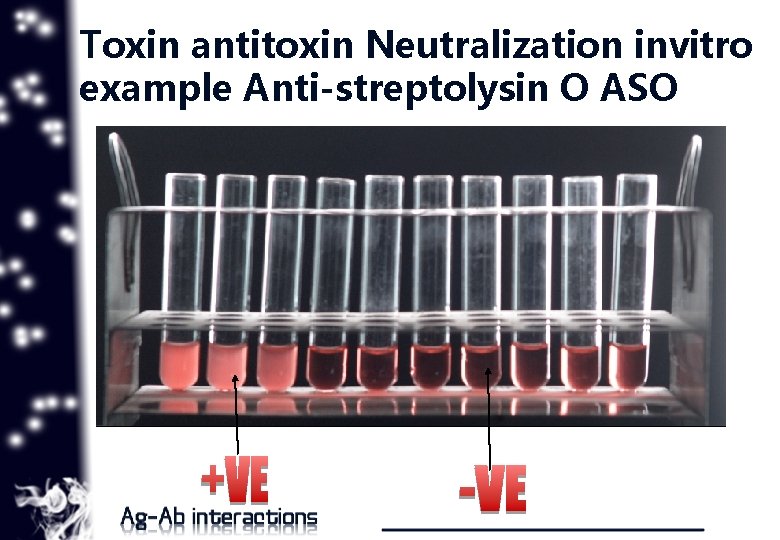

Toxin antitoxin Neutralization invitro example Anti-streptolysin O ASO

Schick’s test: o Testing immunity of the patient against diphtheria. o 0. 2 ml of the diphtheria toxin in the test forearm and 0. 2 ml of inactivated diphtheria toxin (by heat ) in the control forearm.

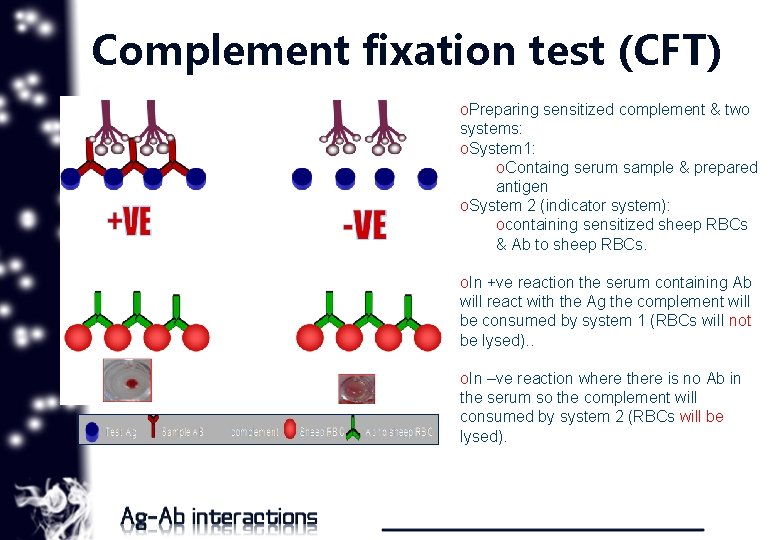

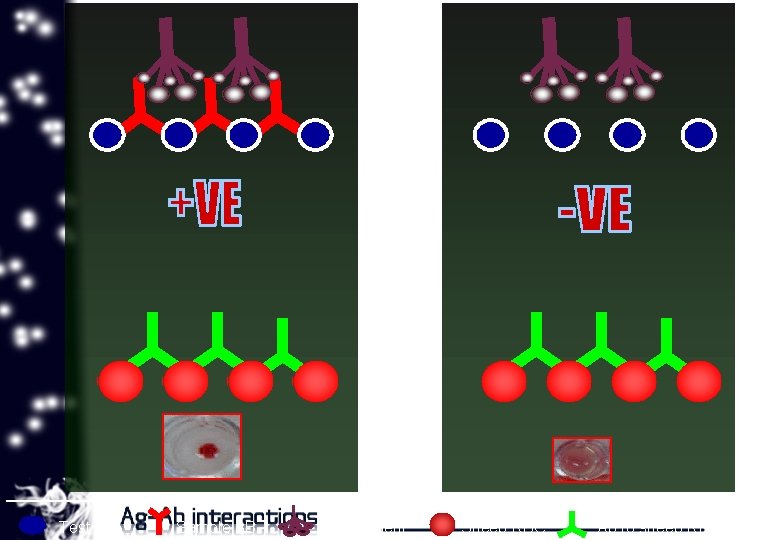

Complement fixation test (CFT) o. Preparing sensitized complement & two systems: o. System 1: o. Containg serum sample & prepared antigen o. System 2 (indicator system): ocontaining sensitized sheep RBCs & Ab to sheep RBCs. o. In +ve reaction the serum containing Ab will react with the Ag the complement will be consumed by system 1 (RBCs will not be lysed). . o. In –ve reaction where there is no Ab in the serum so the complement will consumed by system 2 (RBCs will be lysed).

Test Ag Sample AB complement Sheep RBC Ab to sheep RBC

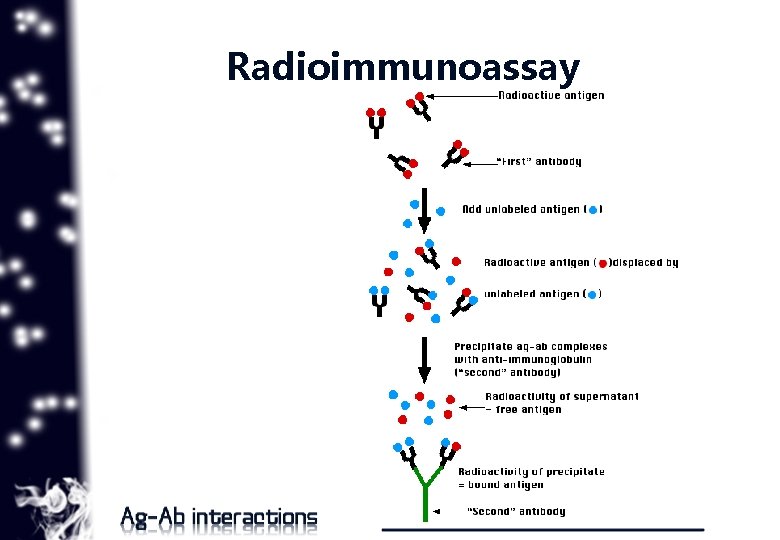

Radioimmunoassay 29

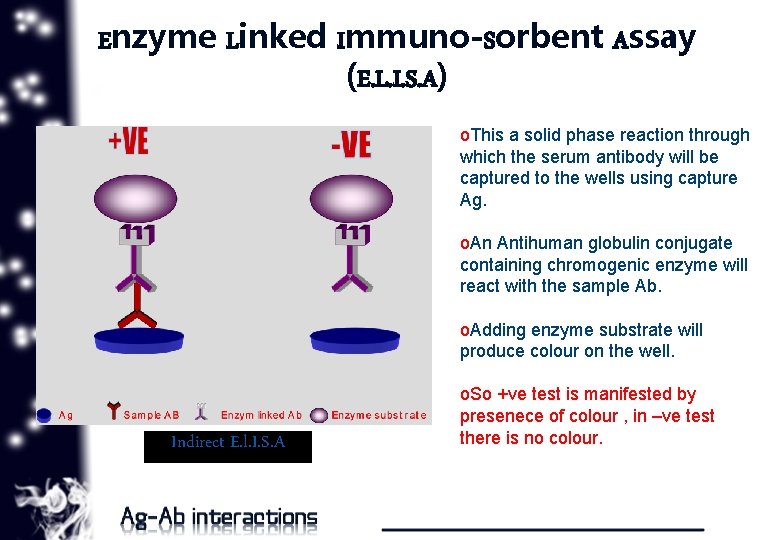

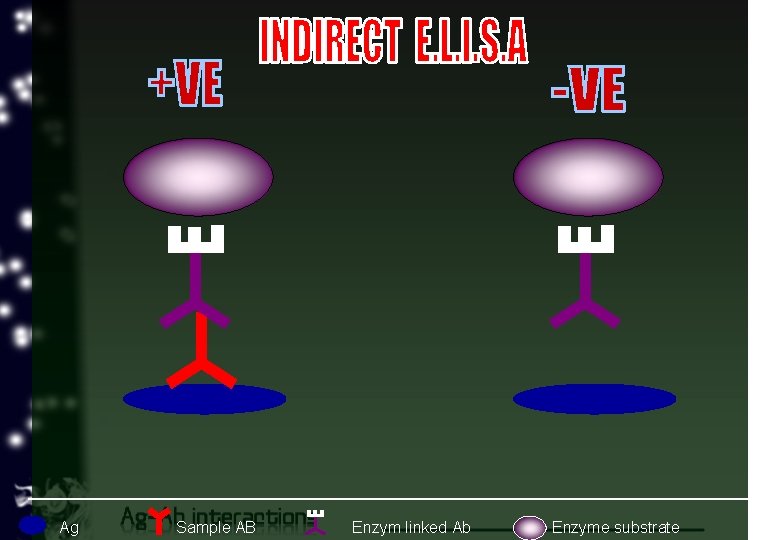

Enzyme Linked Immuno-Sorbent Assay (E. L. I. S. A) o. This a solid phase reaction through which the serum antibody will be captured to the wells using capture Ag. o. An Antihuman globulin conjugate containing chromogenic enzyme will react with the sample Ab. o. Adding enzyme substrate will produce colour on the well. Indirect E. l. I. S. A o. So +ve test is manifested by presenece of colour , in –ve test there is no colour.

Ag Sample AB Enzym linked Ab Enzyme substrate

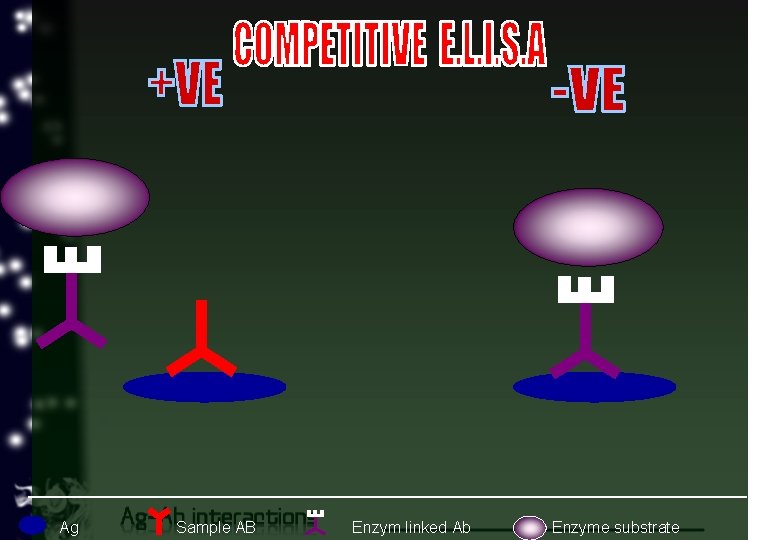

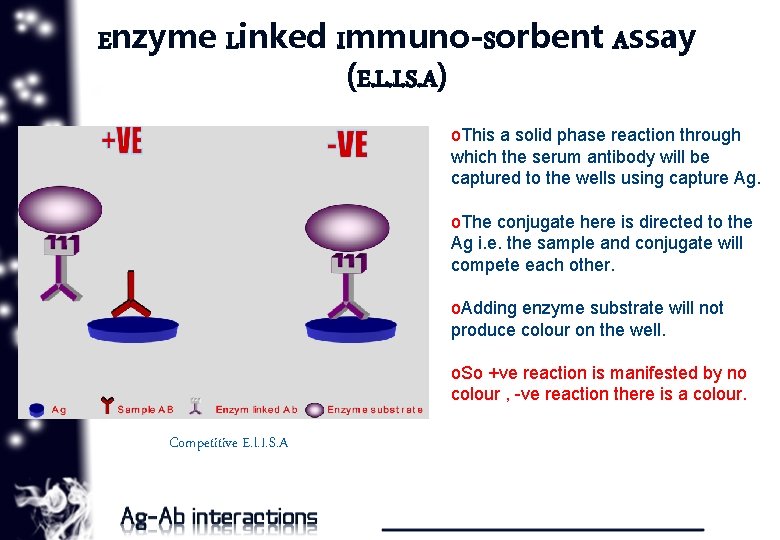

Enzyme Linked Immuno-Sorbent Assay (E. L. I. S. A) o. This a solid phase reaction through which the serum antibody will be captured to the wells using capture Ag. o. The conjugate here is directed to the Ag i. e. the sample and conjugate will compete each other. o. Adding enzyme substrate will not produce colour on the well. o. So +ve reaction is manifested by no colour , -ve reaction there is a colour. Competitive E. l. I. S. A

Ag Sample AB Enzym linked Ab Enzyme substrate

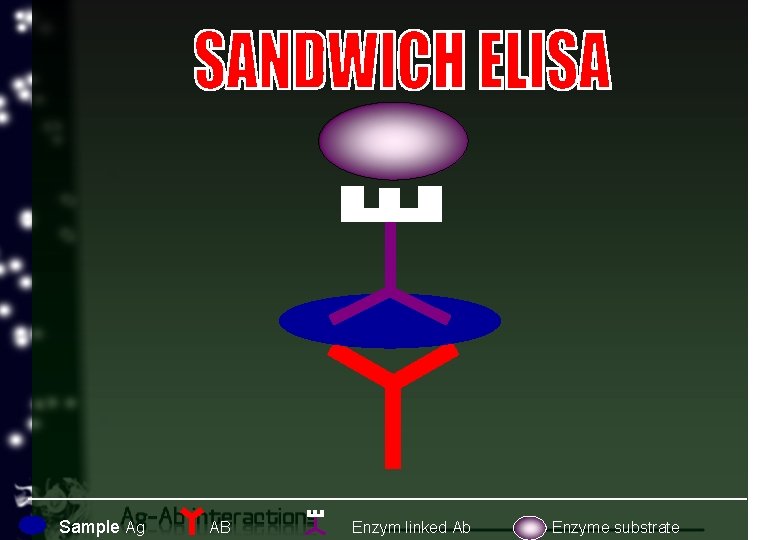

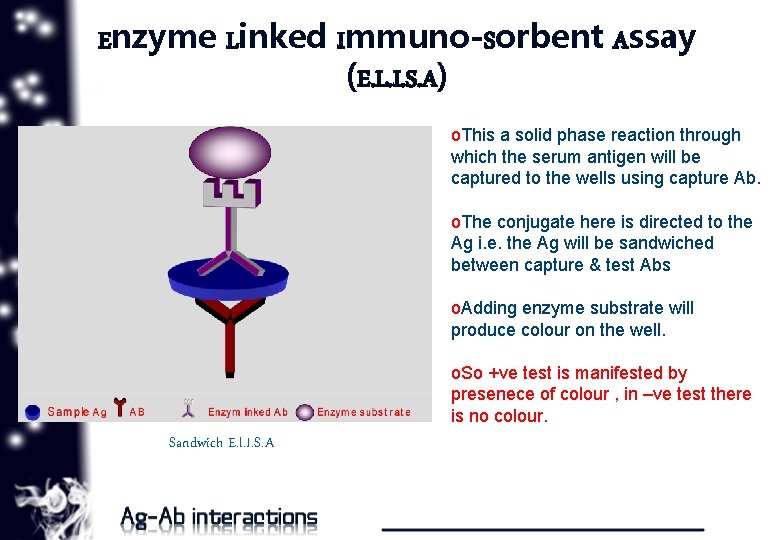

Enzyme Linked Immuno-Sorbent Assay (E. L. I. S. A) o. This a solid phase reaction through which the serum antigen will be captured to the wells using capture Ab. o. The conjugate here is directed to the Ag i. e. the Ag will be sandwiched between capture & test Abs o. Adding enzyme substrate will produce colour on the well. o. So +ve test is manifested by presenece of colour , in –ve test there is no colour. Sandwich E. l. I. S. A

Sample Ag AB Enzym linked Ab Enzyme substrate

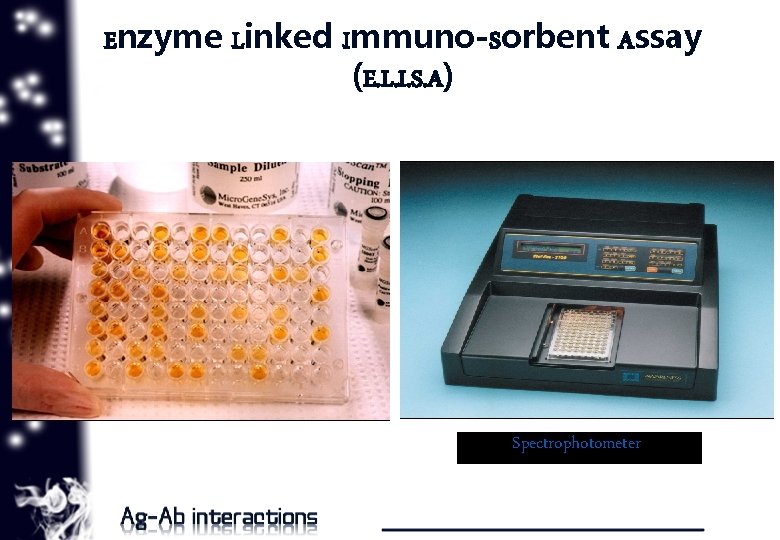

Enzyme Linked Immuno-Sorbent Assay (E. L. I. S. A) Spectrophotometer

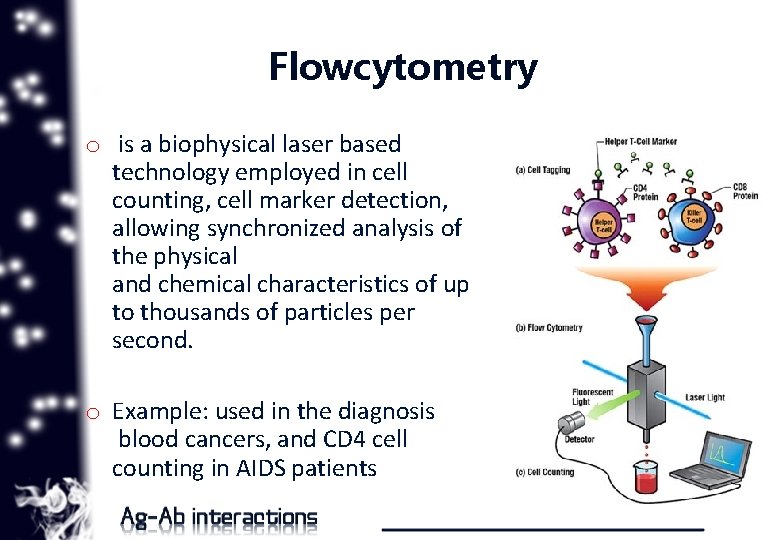

Flowcytometry o is a biophysical laser based technology employed in cell counting, cell marker detection, allowing synchronized analysis of the physical and chemical characteristics of up to thousands of particles per second. o Example: used in the diagnosis blood cancers, and CD 4 cell counting in AIDS patients 37

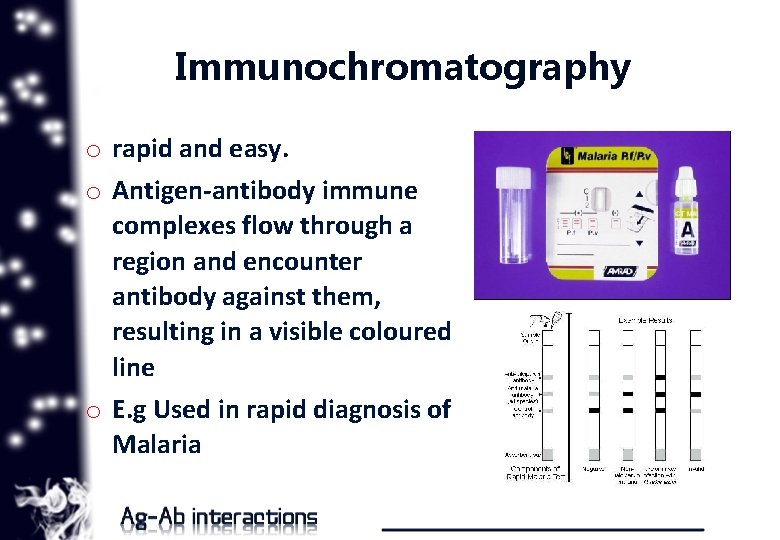

Immunochromatography o rapid and easy. o Antigen-antibody immune complexes flow through a region and encounter antibody against them, resulting in a visible coloured line o E. g Used in rapid diagnosis of Malaria 38
