1 A Turbidity Model For Ashokan Reservoir Rakesh
1 A Turbidity Model For Ashokan Reservoir Rakesh K. Gelda, Steven W. Effler Feng Peng, Emmet M. Owens Upstate Freshwater Institute, Syracuse, NY Donald C. Pierson New York City Department of Environmental Protection 2009 Watershed Science & Technical Conference September 14 th-15 th, Thayer Hotel, West Point, New York
2 * • network of 19 reservoirs • three controlled lakes • Croton, Catskill, Delaware systems • watershed: 1930 mi 2 • storage: 550 BG • unfiltered supply • 1. 2 BG/day Ashokan Reservoir • watershed: 257 mi 2 • storage: 130 BG • Catskill Aq. : 600 MGD • Turbidity < 8 NTU (90 th percentile; 1987 -2008)
3 Ashokan Reservoir West Basin East Basin
4 West Basin Bridge and Dividing Weir Upper Gate Chamber East Basin
5 Gates (4)

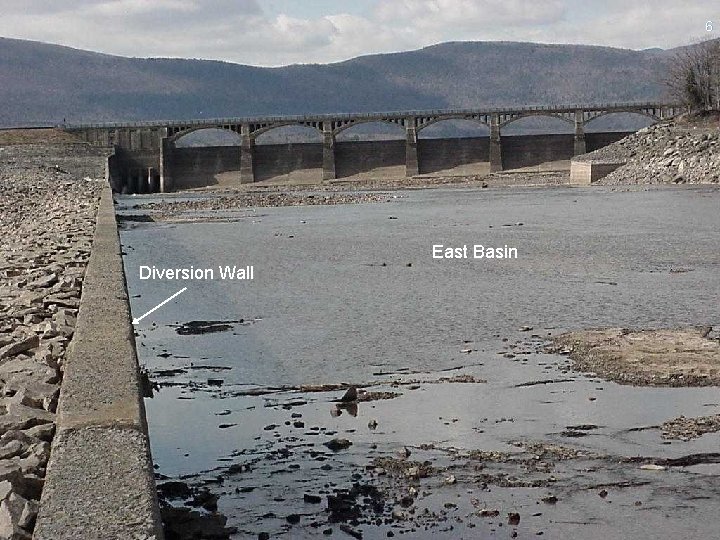

6 East Basin Diversion Wall
7 Upper Gate Chamber
8 Intake Structure
9 Turbidity Problem Ø Ø stream channel and banks erosion – glacial and fluvial sediment; Esopus Creek 85% of the inflow turbidity in waters leaving Ashokan Reservoir can be high following major runoff events alum treatment before it enters Kensico – Nine alum events, 524 days during 1987 -2007 turbidity model to evaluate management alternatives
10 Features of Turbidity Model Two-dimensional (longitudinal-vertical), laterally averaged transport framework (CE-QUAL-W 2) Ø State variables: Temperature (T) and turbidity (Tn) Ø Three size classes of Tn Ø Source of Tn: external loading Ø Sinks: settling, export (via withdrawal, spill, waste channel diversion) Ø Two basins simulated separately Ø
11 Model Grid – West Basin Esopus Creek 27 segments (~330 m avg) 47 layers (1 m) 1 branch dividing weir
12 Model Grid – East Basin dividing weir 37 segments (~ 300 m avg) 26 layers (1 m) 1 branch spill
13 dividing weir Model Grid – Vertical Layers west basin east basin

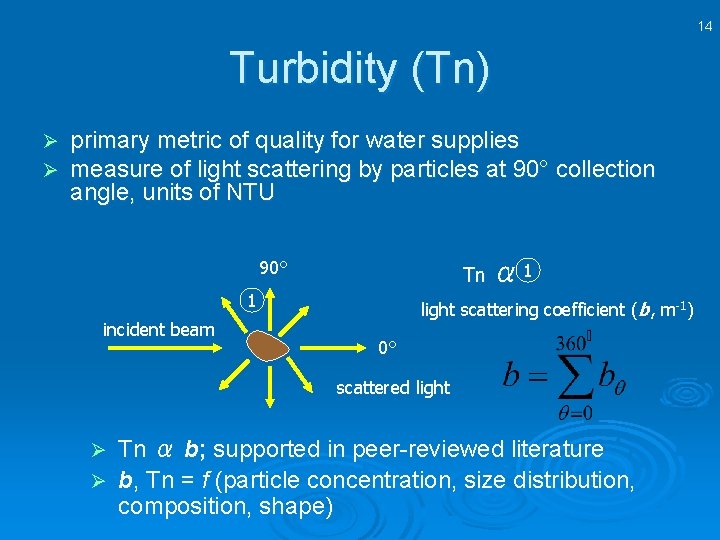

14 Turbidity (Tn) Ø Ø primary metric of quality for water supplies measure of light scattering by particles at 90° collection angle, units of NTU 90° Tn α 1 1 incident beam light scattering coefficient (b, m-1) 0° scattered light Tn α b; supported in peer-reviewed literature Ø b, Tn = f (particle concentration, size distribution, composition, shape) Ø
15 Scattering (b) and Turbidity (Tn): Behaves Like Intensive Properties Ø mass balance calculations can be done l well-established in optical literature (Davies-Colley et al. 1993) Q 1, b 1, Tn 1 example Q, b, Tn Q = Q 1 + Q 2, b 2, Tn 2
16 Turbidity: As the Model State Variable Ø Tn is the regulated parameter Ø disadvantages of TSS (a gravimetric measurement) as an alternative (would have to rely on Tn = k · TSS) l l l Ø differences in particle size and composition dependencies of Tn and TSS Tn, b (scattering) and c (beam attenuation) measurements more precise limitations in temporal and spatial resolution; e. g. , robotic and rapid profiling capabilities for Tn and c pore size for TSS measurements too large (1. 7 µm) variation in relationship between Tn and TSS in time and space (i. e. , k is not really a constant) Tn, [and c] supported in peer-reviewed literature, without published critical comments
17 Model Inputs Ø Model testing period: 2003 -2007 l l supported by UFI’s intensive (Robohut on Esopus Creek, inreservoir robots) and DEP’s routine monitoring data constrained by the availability of operations data Ø Additional (secondary) validation period: 1995 -2002 Ø Operations data Hydrologic inputs/outputs Loading of turbidity Creek temperature Meteorological data Ø Ø
18 In-Reservoir Robots: Example, 2007 April – November (June in 2007) depth-profiles every 6 hours depth interval 1 m
In-Reservoir Rapid Profiling Example, 11/30/2006 after major runoff events depth interval 0. 25 m 19
Example of Driving Conditions and Reservoir Response: June 2006 20
21 Turbidity-Causing Particles Four Features: 1. number concentration 2. size distribution 3. composition 4. shape April 2005 Individual Particle Analysis (IPA) Technology • 75 -80% clay • Tn associated with 1 -10 µ • sub-µ particles unimportant • TSS filter pore size 1. 7 µm; misses some turbidity causing particles bm(660) – minerogenic particle scattering coefficient, m-1
22 “Turbidity” Size-Classes for Model Esopus Creek Class size (µm) Size range vel (m/d) 1 1 < 1. 75 0. 075 2 3. 14 1. 755. 75 0. 75 3 8. 11 > 5. 75 5. 0 Fractions in Esopus Creek Stokes Law: coefficient specification constrained by reality of particle characteristics as obtained from IPA Class Q ≤ 40 m 3/s Q > 40 m 3/s 1 10% 2 65% 45% 3 25% 45%

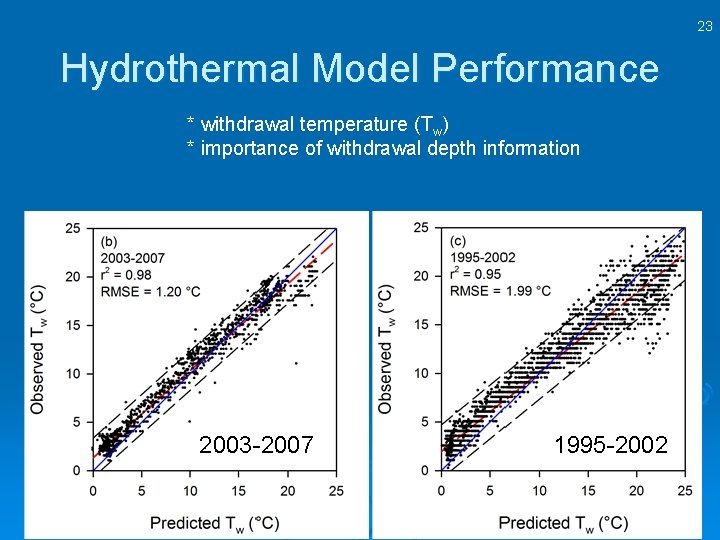

23 Hydrothermal Model Performance * withdrawal temperature (Tw) * importance of withdrawal depth information 2003 -2007 1995 -2002
24 Turbidity Model Performance * withdrawal turbidity (Tn, w) * importance of detailed monitoring of forcing conditions
25 Turbidity Model Performance

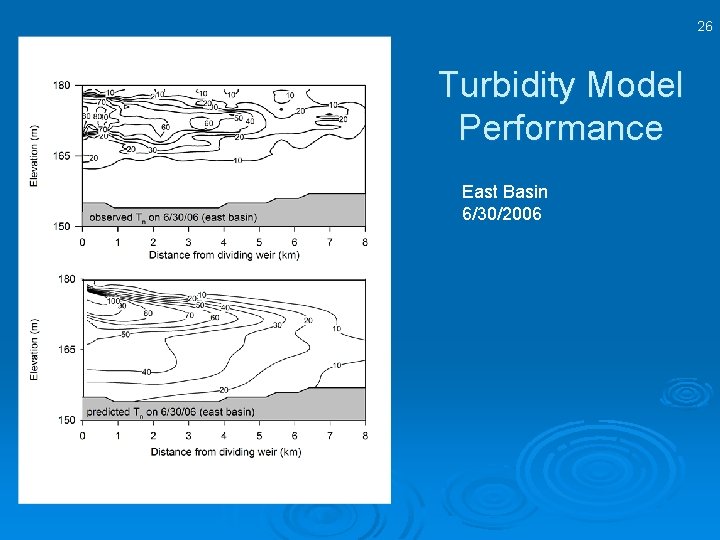

26 Turbidity Model Performance East Basin 6/30/2006
27 Performance Summary Alum treatment events Alum Start Alum End RMSE (NTU) Event Peak RMSEN Tn (NTU) (%) * 1/22/1996 6/21/1996 58. 1 158 37 1/14/1997 1/29/1997 1. 4 9 17 1/10/2001 2/2/2001 10. 0 12 83 4/5/2005 6/20/2005 28. 5 150 19 10/13/2005 11/23/2005 5. 5 29 19 12/1/2005 4/10/2006 6. 5 45 14 5/15/2006 5/23/2006 2. 5 10 25 6/28/2006 8/2/2006 20. 4 140 15 * Normalized RMSE (Gelda and Effler, 2007) n performance for well monitored years consistent with that reported for Schoharie Reservoir (Gelda and Effler, 2007)
28 Summary Ø Ø Ø Ø 2 -D model CE-QUAL-W 2 as transport framework Turbidity as a state variable Characterization of turbidity-causing particles Three size classes Model performed well in simulating in-reservoir and withdrawal temperature and turbidity Model is suitable for evaluating management alternatives Future research: resuspension, particle-based modeling including aggregation Gelda, R. K. , S. W. Effler, F. Peng, E. M. Owens and D. C. Pierson, 2009. Turbidity model for Ashokan Reservoir, New York: Case Study. J. Environ. Eng. 135: 885 -895. e-mail: RKGelda@Upstate. Freshwater. Org
29 Ashokan Reservoir East Basin Spillway 4/2005
