1 9 Interpreting Graphs and Tables Learn to

1 -9 Interpreting Graphs and Tables Learn to interpret information given in a graph or a table and make a graph to help solve problems. Pre-Algebra

1 -9 Interpreting Graphs and Tables Additional Example 1 A: Matching Situations to Tables 1: 00 1: 05 1: 10 1: 15 1: 20 Car 1 50 50 30 30 0 Car 2 55 50 50 55 50 Car 3 55 10 0 0 55 Time A. Mr. Lee is traveling on the highway, and he pulls over to make a call on his cell phone. Then he gets back onto the highway. Car 3 - Mr. Lee starts to slow down after 1: 00. After making his phone call, he gets back onto the highway and resumes his speed of 55 mi/h. Pre-Algebra

1 -9 Interpreting Graphs and Tables Additional Example 1 C: Matching Situations to Tables 1: 00 1: 05 1: 10 1: 15 1: 20 Car 1 50 50 30 30 0 Car 2 55 50 50 55 50 Car 3 55 10 0 0 55 Time C. At 1: 00 Mr. Johns estimates that he will arrive at his destination in approximately 20 minutes. Car 1 - Mr. Johns speed begins to decrease to 0 sometime between 1: 15 and 1: 20. Pre-Algebra

1 -9 Interpreting Graphs and Tables Additional Example 1 B: Matching Situations to Tables 1: 00 1: 05 1: 10 1: 15 1: 20 Car 1 50 50 30 30 0 Car 2 55 50 50 55 50 Car 3 55 10 0 0 55 Time B. Mrs. Healy is driving on the freeway between 1: 00 and 1: 20 and encounters no traffic. Car 2 - Mrs. Healy car maintains a speed between 50 mi/h and 55 mi/h. Pre-Algebra

1 -9 Interpreting Graphs and Tables Additional Example 2 A: Matching Situations to Graphs Speed Tell which car in Example 1 corresponds to each graph. Car 1 Time Pre-Algebra

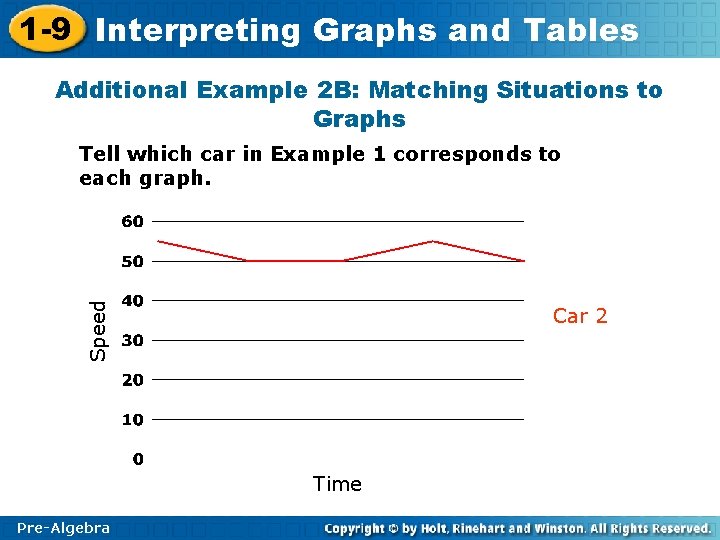

1 -9 Interpreting Graphs and Tables Additional Example 2 B: Matching Situations to Graphs Speed Tell which car in Example 1 corresponds to each graph. Car 2 Time Pre-Algebra

1 -9 Interpreting Graphs and Tables Additional Example 2 C: Matching Situations to Graphs Speed Tell which graph corresponds to the situation described in Example 1. Car 3 Time Pre-Algebra

1 -9 Interpreting Graphs and Tables Try This: Example 1 A The table gives the distance from home of three runners at the given times. Tell which runner corresponds to the situation. Time 8: 00 8: 15 Runner 1 0 5 Runner 2 0 Runner 3 0 8: 30 8: 45 9: 00 10 5 0 3 5 3 1 4 8 10 10 A. Jamie runs a loop of 20 mi at a constant rate. Runner 1—Jamie runs at a constant speed and is 5 miles away from home after 15 minutes. She continues at her current speed and is 10 mi from home after 30 min. 15 min later she is running back home and has only 5 mi to go. After an hour she finally makes it back home. Pre-Algebra

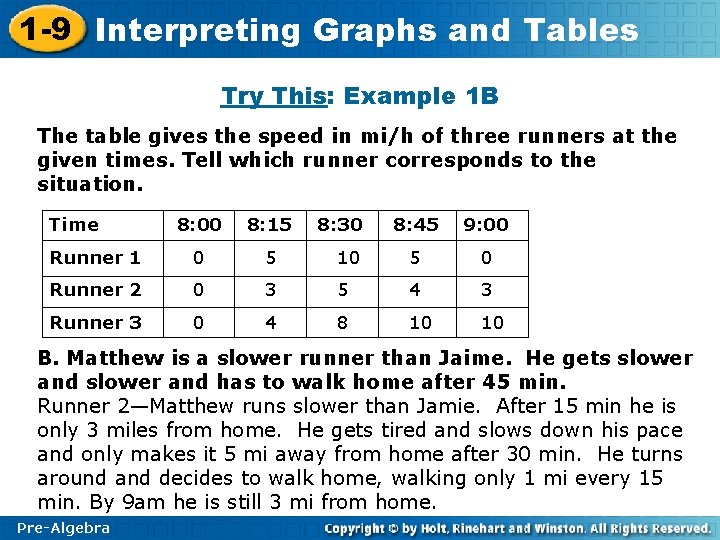

1 -9 Interpreting Graphs and Tables Try This: Example 1 B The table gives the speed in mi/h of three runners at the given times. Tell which runner corresponds to the situation. Time 8: 00 8: 15 Runner 1 0 5 Runner 2 0 Runner 3 0 8: 30 8: 45 9: 00 10 5 0 3 5 4 3 4 8 10 10 B. Matthew is a slower runner than Jaime. He gets slower and has to walk home after 45 min. Runner 2—Matthew runs slower than Jamie. After 15 min he is only 3 miles from home. He gets tired and slows down his pace and only makes it 5 mi away from home after 30 min. He turns around and decides to walk home, walking only 1 mi every 15 min. By 9 am he is still 3 mi from home. Pre-Algebra

1 -9 Interpreting Graphs and Tables Try This: Example 1 C The table gives the speed in mi/h of three runners at the given times. Tell which runner corresponds to the situation. Time 8: 00 8: 15 Runner 1 0 5 Runner 2 0 Runner 3 0 8: 30 8: 45 9: 00 10 5 0 3 5 3 1 4 8 10 10 C. Ronni goes on a run at a constant speed and stops at a coffee shop before going home. Runner 3—Ronni runs at a constant rate, 4 mi away after 15 min, 8 mi away after 30 min, until she makes it to the coffee shop at 8: 45, which is 10 mi from her house. She is still at the coffee shop at 9 am, which is why she is still 10 mi from home. Pre-Algebra

1 -9 Interpreting Graphs and Tables Try This: Example 2 B Time Graph 2 Time Runner’s Distance Graph 1 Runner’s Distance Draw graphs of each of the runners’ distances from home. Graph 3 Time The steeper lines mean that the runners are going further in a short amount of time. The flatter lines mean that the runners are going a shorter distance in a longer amount of time. Pre-Algebra

1 -9 Interpreting Graphs and Tables Try This: Example 3 Create a graph that illustrates the information in the table about the distance traveled during a family vacation. Time Distance (mi) 8: 00 280 10: 00 320 12: 00 500 Distance (mi) Distance Traveled Time Pre-Algebra 2: 00 580

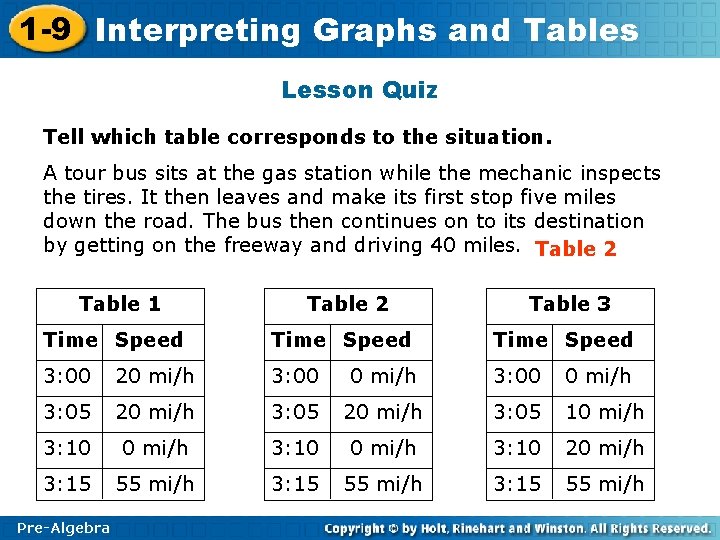

1 -9 Interpreting Graphs and Tables Lesson Quiz Tell which table corresponds to the situation. A tour bus sits at the gas station while the mechanic inspects the tires. It then leaves and make its first stop five miles down the road. The bus then continues on to its destination by getting on the freeway and driving 40 miles. Table 2 Table 1 Table 2 Table 3 Time Speed 3: 00 20 mi/h 3: 00 0 mi/h 3: 05 20 mi/h 3: 05 10 mi/h 3: 10 20 mi/h 3: 15 55 mi/h Pre-Algebra
