1 6 SERIES PRESSURESWITCH TYPE XP 600 GP
- Slides: 13
1 6 SERIES PRESSURESWITCH TYPE XP 600 GP 600 MA-TER S. r. l.

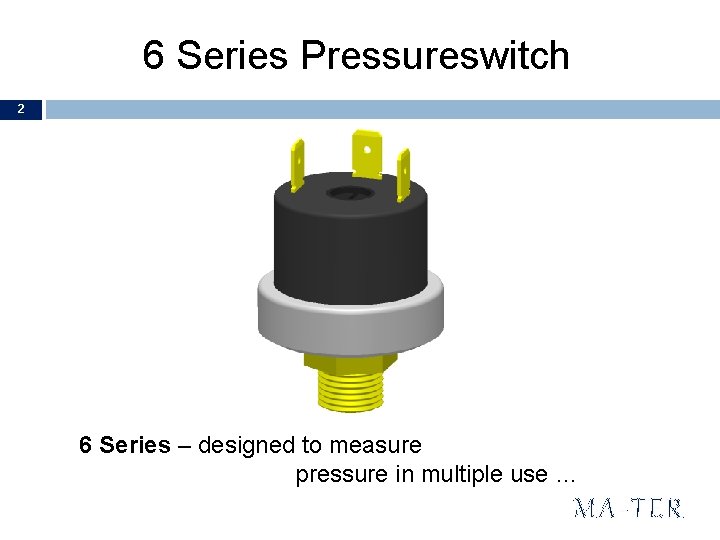

6 Series Pressureswitch 2 6 Series – designed to measure pressure in multiple use … MA-TER
Connections 3 XP 600 model • • 1 pressure inlet 2 output signal SPDT 2 Electrical contacts GP 600 model • • 1 pressure inlet 2 output signal SPDT Compa ct design More Type connectio ns 1 pressure inlet MA-TER
Working characteristics 4 Pressure range 0 – 9 bar Optional execution up to 15 bar Environment temperature 0° /+ 125°C Fluid temperature 0° /+ 150°C Media to control Air, Water, Steam, not aggressive fluids MA-TER
Physical characteristics 5 Body PET Diaphragm AISI 316 or Various rubber Connection Brass CW 617 N EN 12165 IP 00 IP 45 with EPDM cover and terminals inserted MA-TER
Working connections 6 Hydraulic Inlet pressure (standard) 1/8” ISO 228 M 1/8” ISO 7 M 1/4” ISO 228 M/F Electrical Tab terminal male 6, 3 x 0, 8 mm (SPDT – SPST-NO/NC) MA-TER
Electrical rating and Homologations 7 Voltage Current Homologation 250 Vac 10 A(2) or 10 A(4) ENEC 125 Vac 5 A (XP) or 8 A (GP) UL MA-TER

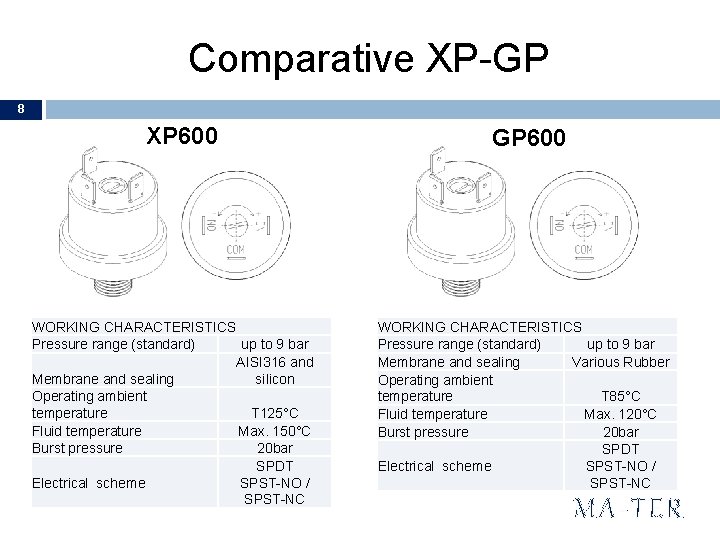

Comparative XP-GP 8 XP 600 WORKING CHARACTERISTICS Pressure range (standard) up to 9 bar AISI 316 and Membrane and sealing silicon Operating ambient temperature T 125°C Fluid temperature Max. 150°C 20 bar Burst pressure SPDT SPST-NO / Electrical scheme SPST-NC GP 600 WORKING CHARACTERISTICS Pressure range (standard) up to 9 bar Membrane and sealing Various Rubber Operating ambient temperature T 85°C Fluid temperature Max. 120°C 20 bar Burst pressure SPDT SPST-NO / Electrical scheme SPST-NC MA-TER
Applications 9 • House heating System • Cooling Systems • Oleodynamic and Pneumatic • … wherever pressure control is needed MA-TER
Dimensions 10 6 Series MA-TER
Executions 11 SPDT with blind cap on NC SPST - NO SPST - NC MA-TER

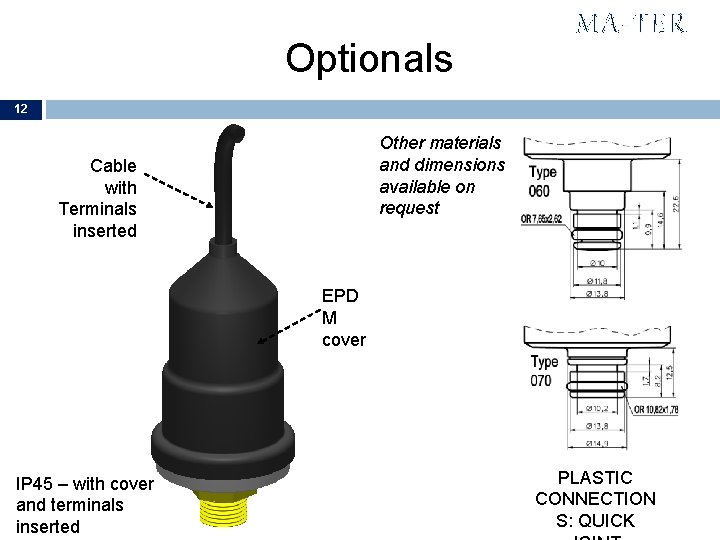

Optionals MA-TER 12 Other materials and dimensions available on request Cable with Terminals inserted EPD M cover IP 45 – with cover and terminals inserted PLASTIC CONNECTION S: QUICK
New Solution 13 PLASTIC “UP” CONNECTIONS: available : Type 060 quick joint (see pict. ) or In case of presence of the pressure, the system detects it through a lifting of the pressureswitch G 3/8” MA-TER
