5. 1 Current and current density 5 Current density • Current is electric charges in motion, and is defined as the rate of movement of charges passing a given reference plane. • In the above figure, current can be measured by counting charges passing through surface S in a unit time. • In field theory, the interest is usually in event occurring at a point rather than within some large region. • For this purpose, current density measured at a point is used, which is current divided by the area. EMLAB
Current density from velocity and charge density 6 With known charge density and velocity, current density can be calculated. Charges with density ρ EMLAB
Continuity equation : Kirchhoff ’s current law 7 Kirchhoff ’s current law For steady state, charges do not accumulate at any nodes, thus ρ become constant. Charges going out through d. S. differential form integral form EMLAB
Electrons in an isolated atom 8 Electron energy level 1 atom - + - Tightly bound electron - - - - More freely moving electron Energy levels and the radii of the electron orbit are quantized and have discrete values. For each energy level, two electrons are accommodated at most. EMLAB
Electrons in a solid 9 Atoms in a solid are arranged in a lattice structure. The electrons are attracted by the nuclei. The amount of attractions differs for various material. Freely moving electron + External E-field Tightly bound electron + + - + - - - + + - Electron energy level - - - To accommodate lots of electrons, the discrete energy levels are broadened. EMLAB
Insulator and conductor 10 Insulator atoms + + Conductor atoms + - + - + - External E-field + - + - - - External E-field + + - - + + - - Empty energy level - Energy level of insulator atoms Occupied energy level - Energy level of conductor atom EMLAB

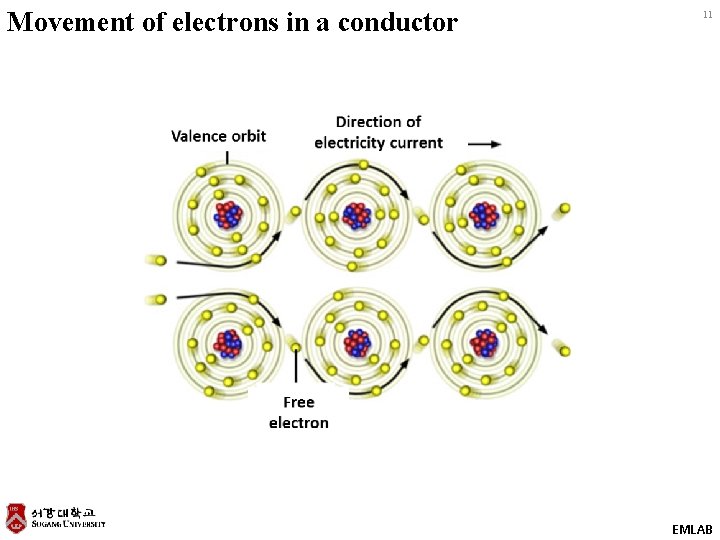

Movement of electrons in a conductor 11 EMLAB
12 EMLAB
Electron flow in metal : Ohm’s law + + - + • μ : mobility - - + - • n: Electron density (number of electrons per unit volume. + - - + - + - + + - 13 + - - ; Ohm’s law : Electric conductivity EMLAB
Example : calculation of resistance 14 EMLAB
Conductivities of materials 15 EMLAB
Electric field on a conductor due to external field 16 tangential component normal component +q 1 Conductor -q 1 Conductor 1. Tangential component of an external E-field causes a positive charge (+q) to move in the direction of the field. A negative charge (-q) moves in the opposite direction. 2. The movement of the surface charge compensates the tangential electric field of the external field on the surface, thus there is no tangential electric field on the surface of a conductor. 3. The uncompensated field component is a normal electric field whose value is proportional to the surface charge density. 4. With zero tangential electric field, the conductor surface can be assumed to be equi-potential. EMLAB
Charges on a conductor 17 1. In equilibrium, there is no charge in the interior of a conductor due to repulsive forces between like charges. 2. The charges are bound on the surface of a conductor. 3. The electric field in the interior of a conductor is zero. 4. The electric field emerges on the positive charges and sinks on negative charges. 5. On the surface, tangential component of electric field becomes zero. If non-zero component exist, it induces electric current flow which generates heats on it. EMLAB
Image method 18 +q 1 • If a conductor is placed near the charge q 1, the shape of electric field lines changes due to the induced charges on the conductor. • The charges on the conductor redistribute themselves until the tangential electric field on the surface becomes zero. - - Perfect electric conductor • If we use simple Coulomb’s law to solve the problem, charges on the conductors as well as the charge q 1 should be taken into account. As the surface charges are unknown, this approach is difficult. • Instead, if we place an imaginary charge whose value is the negative of the original charge at the opposite position of the q 1, the tangential electric field simply becomes zero, which solves the problem. +q 1 -q 1 Image charge EMLAB
Example : a point charge above a PEC plane • The electric field due to a point charge is influenced by a nearby PEC whose charge distribution is changed. In this case, an image charge method is useful in that the charges on the PEC need not be taken into account. • As shown in the figure on the right side, the presence of an image charge satisfies the boundary condition imposed on the PEC surface, on which tangential electric field becomes zero. • This method is validated by the uniqueness theorem which states that the solution that satisfy a given boundary condition and differential equation is unique. 19 +q 1 도체 +q 1 -q 1 Image charge EMLAB
Dielectric material 20 molecule The charges in the molecules force the molecules aligned so that externally applied electric field be decreased. EMLAB

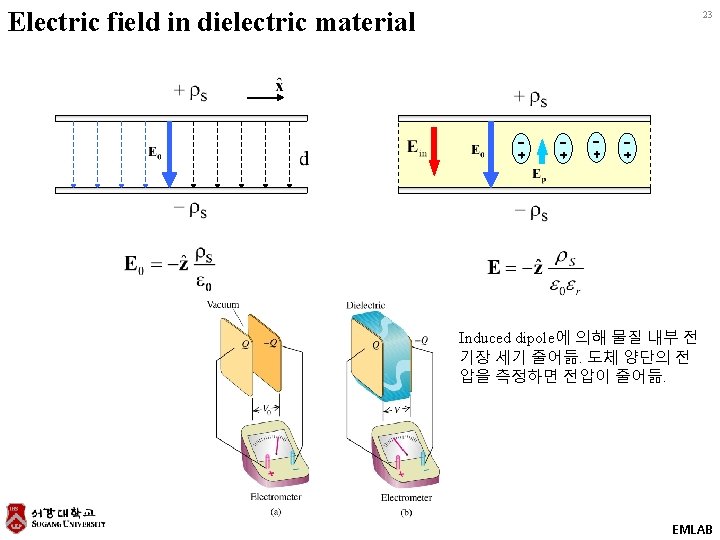

Dielectric material (1) No material 21 (2) With dielectric material + + • D (electric flux density) is related with free charges, so D is the same despite of the dielectric material. • But the strength of electric field is changed by the induced dipoles inside. EMLAB
Electric dipole 22 +q -q EMLAB
Gauss’ law in Dielectric material + + Length : d + + + + - + - - + + + Dipole - - + + + + + - - + + +q 1 + 24 + + + Induced dipole EMLAB
Relative permittivity 25 EMLAB
Boundary conditions 26 (1) Boundary condition on tangential electric field component Tangential boundary condition can be derived from the result of line integrals on a closed path. unit vector tangential to the surface Medium #2 Medium #1 Unit vector normal to the surface (2) Boundary condition on normal component of electric field Boundary condition on normal component can be obtained from the result of surface integrals on a closed surface. Medium #2 Medium #1 EMLAB
Example – conductor surface 27 tangential component normal component +q 1 Conductor -q 1 Conductor 1. Tangential component of an external E-field causes a positive charge (+q) to move in the direction of the field. A negative charge (-q) moves in the opposite direction. 2. The movement of the surface charge compensates the tangential electric field of the external field on the surface, thus there is no tangential electric field on the surface of a conductor. 3. The uncompensated field component is a normal electric field whose value is proportional to the surface charge density. 4. With zero tangential electric field, the conductor surface can be assumed to be equi-potential. EMLAB
Example – dielectric interface 28 Surface charge density of dielectric interface can not be infinite. EMLAB
Example – dielectric interface 29 The normal component of D is equal to the surface charge density. Capacitance : EMLAB
Static electric field : Conservative property 30 정전기장에 의한 potential difference VAB는 시작점과 끝점이 고정된 경우, 적분 경로와 상관없이 동일한 값을 갖는다. EMLAB

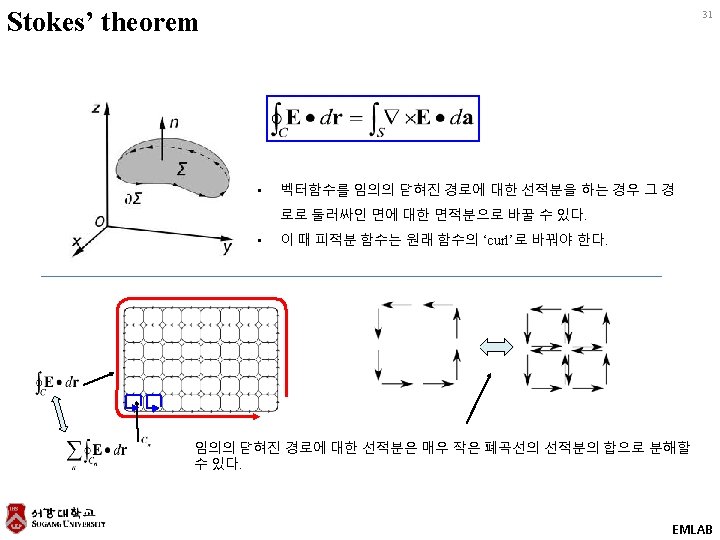

Line integral over an infinitesimally small closed path 32 EMLAB
