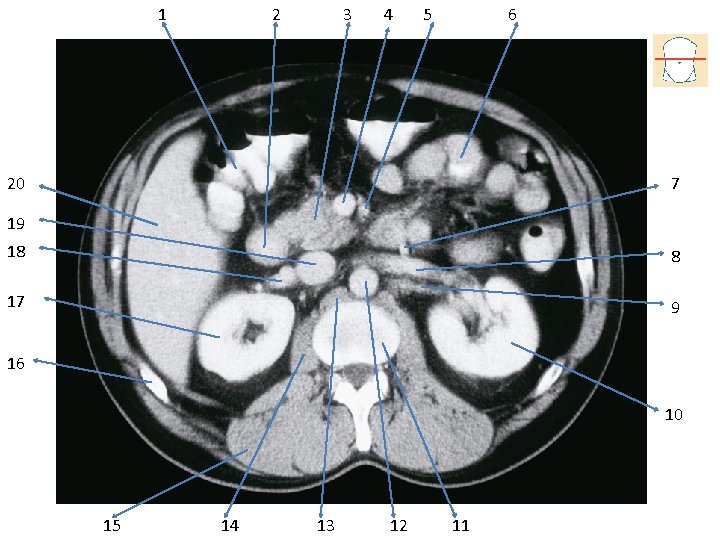

1 2 3 4 5 6 20 7

1 2 3 4 5 6 20 7 19 18 8 17 9 16 10 15 14 13 12 11

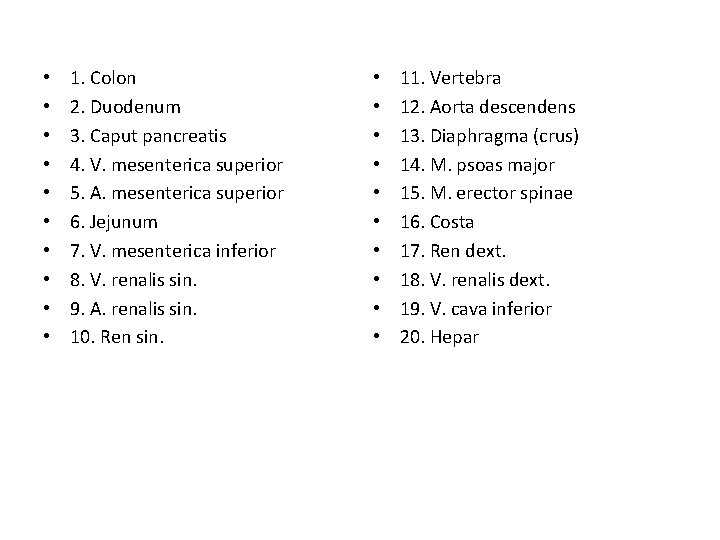

• • • 1. Colon 2. Duodenum 3. Caput pancreatis 4. V. mesenterica superior 5. A. mesenterica superior 6. Jejunum 7. V. mesenterica inferior 8. V. renalis sin. 9. A. renalis sin. 10. Ren sin. • • • 11. Vertebra 12. Aorta descendens 13. Diaphragma (crus) 14. M. psoas major 15. M. erector spinae 16. Costa 17. Ren dext. 18. V. renalis dext. 19. V. cava inferior 20. Hepar

Truncus celiacus Aorta A. lienalis V. cava inf. Pancreas Gaster Ren dexter Diaphragma (Pars lumbalis) Vertebra thoracica M. erector spinae Lien Magasság: Truncus celiacus

1 2 3 4 5 16 15 6 14 7 13 12 11 10 9 8

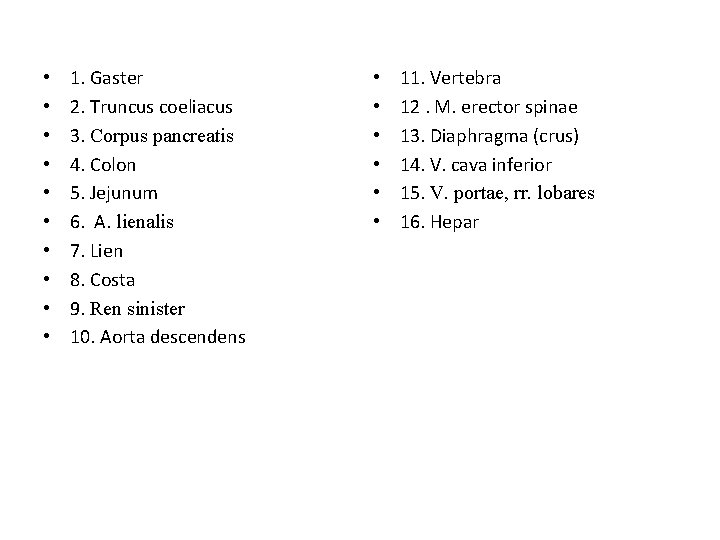

• • • 1. Gaster 2. Truncus coeliacus 3. Corpus pancreatis 4. Colon 5. Jejunum 6. A. lienalis 7. Lien 8. Costa 9. Ren sinister 10. Aorta descendens • • • 11. Vertebra 12. M. erector spinae 13. Diaphragma (crus) 14. V. cava inferior 15. V. portae, rr. lobares 16. Hepar

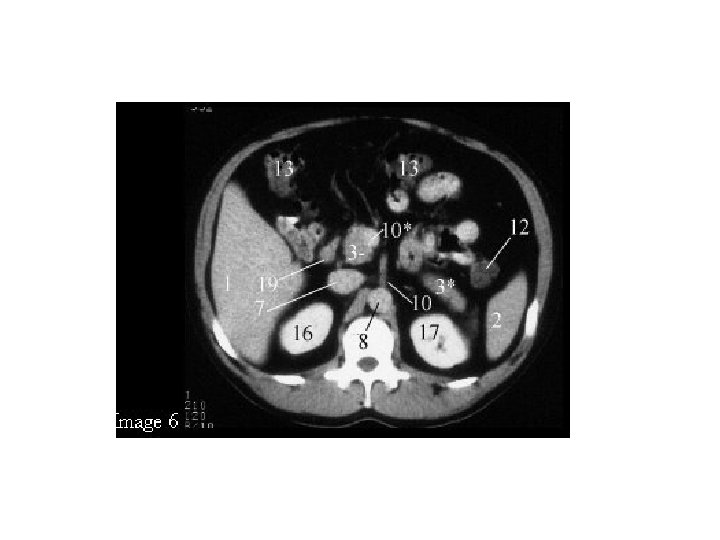

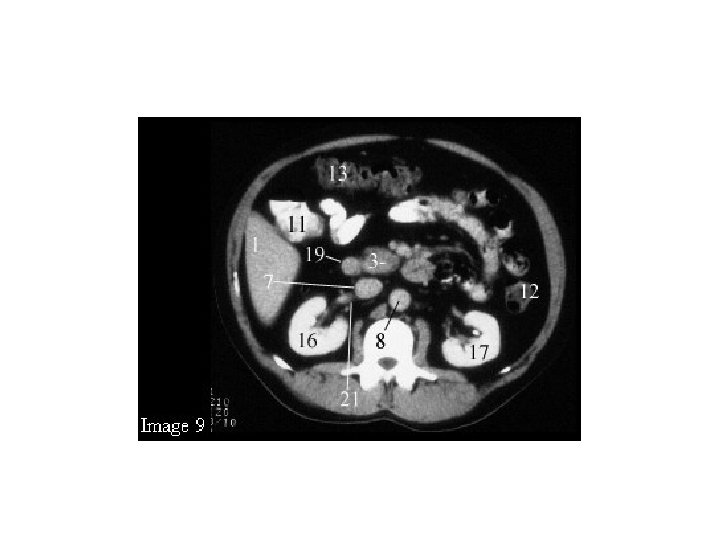

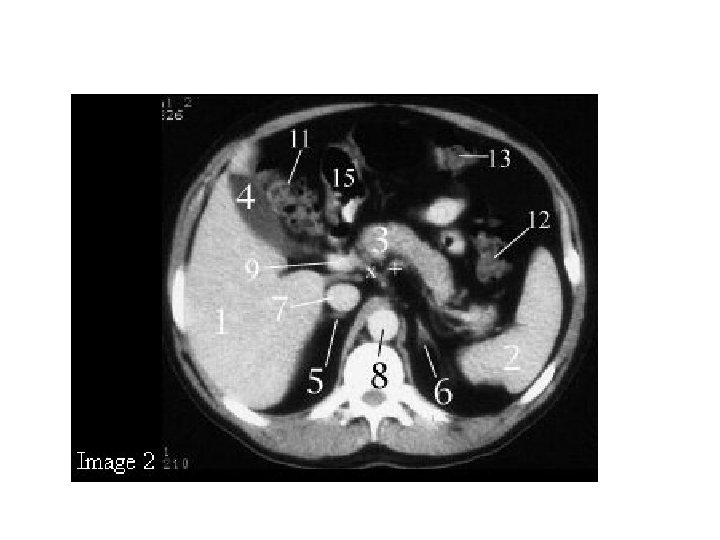

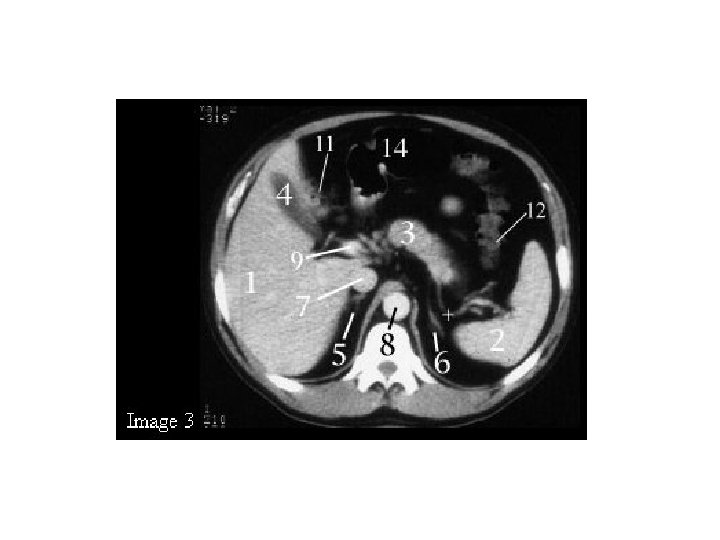

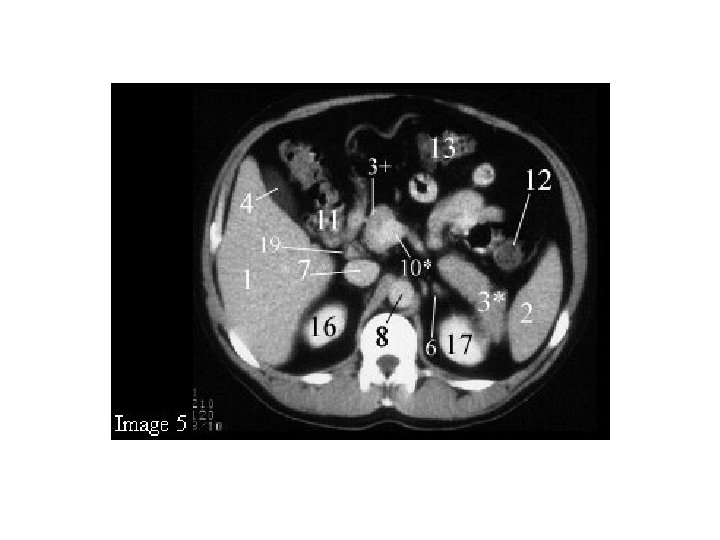

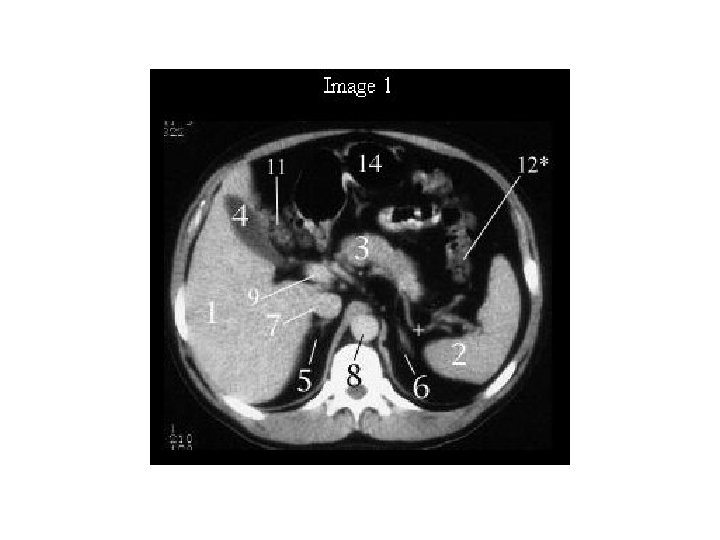

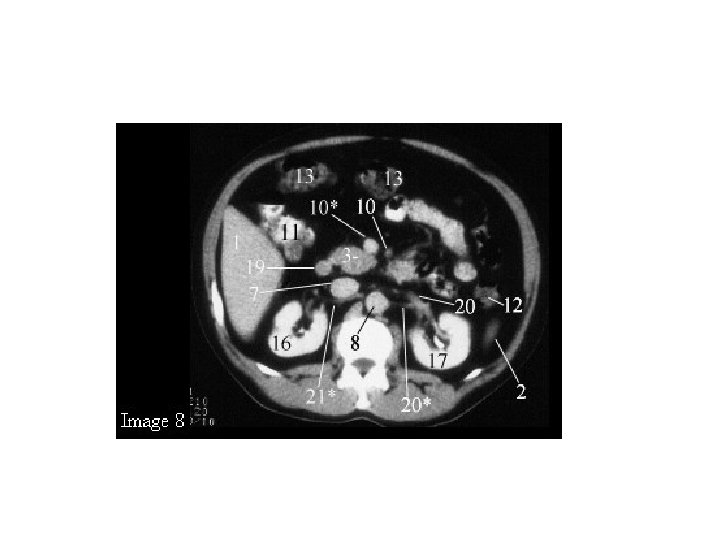

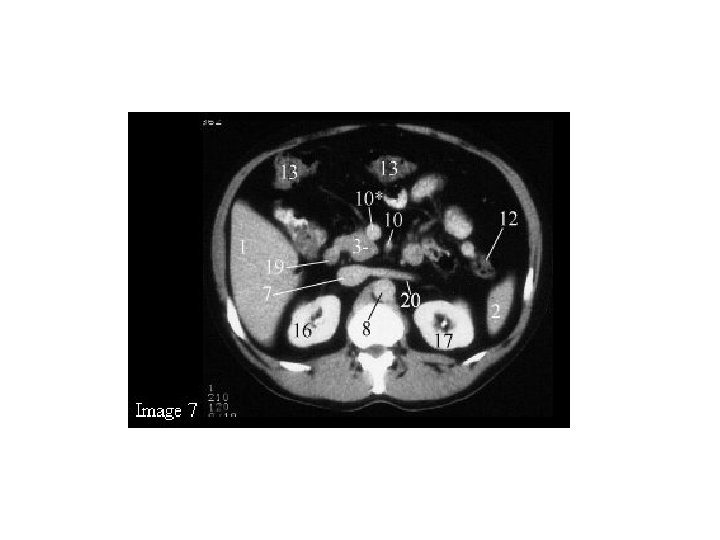

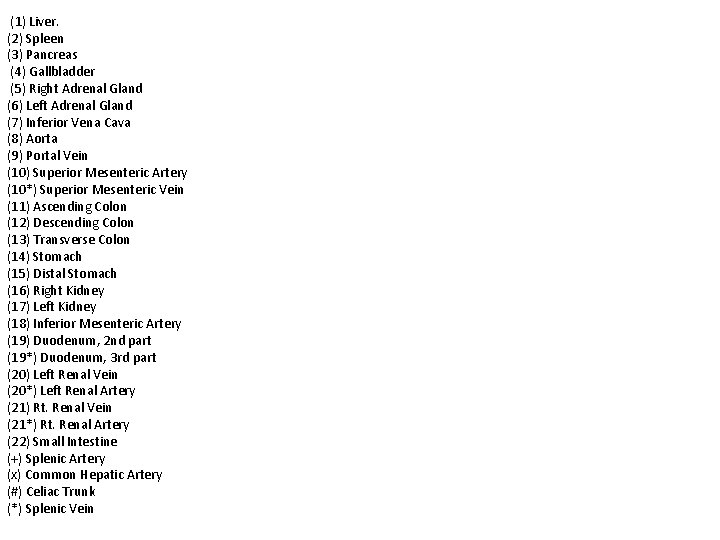

(1) Liver. (2) Spleen (3) Pancreas (4) Gallbladder (5) Right Adrenal Gland (6) Left Adrenal Gland (7) Inferior Vena Cava (8) Aorta (9) Portal Vein (10) Superior Mesenteric Artery (10*) Superior Mesenteric Vein (11) Ascending Colon (12) Descending Colon (13) Transverse Colon (14) Stomach (15) Distal Stomach (16) Right Kidney (17) Left Kidney (18) Inferior Mesenteric Artery (19) Duodenum, 2 nd part (19*) Duodenum, 3 rd part (20) Left Renal Vein (20*) Left Renal Artery (21) Rt. Renal Vein (21*) Rt. Renal Artery (22) Small Intestine (+) Splenic Artery (x) Common Hepatic Artery (#) Celiac Trunk (*) Splenic Vein

Pelvis (male)

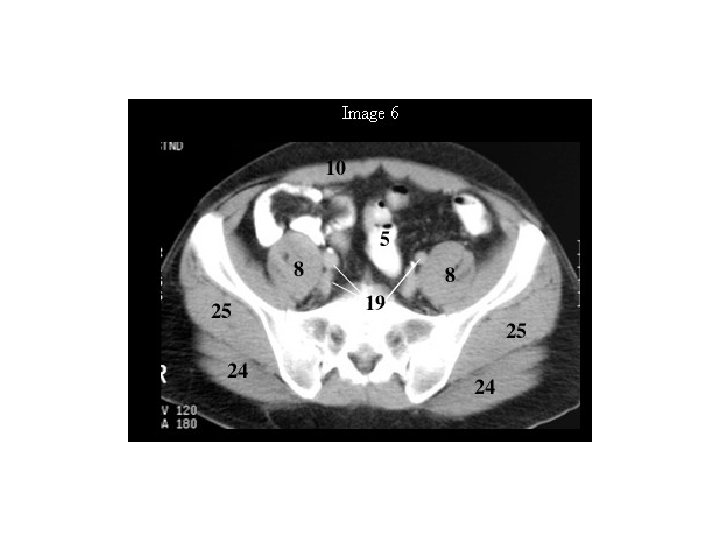

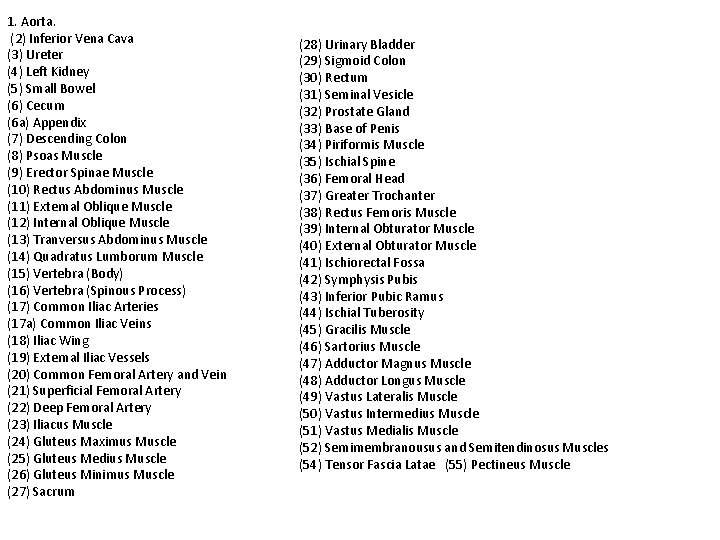

1. Aorta. (2) Inferior Vena Cava (3) Ureter (4) Left Kidney (5) Small Bowel (6) Cecum (6 a) Appendix (7) Descending Colon (8) Psoas Muscle (9) Erector Spinae Muscle (10) Rectus Abdominus Muscle (11) External Oblique Muscle (12) Internal Oblique Muscle (13) Tranversus Abdominus Muscle (14) Quadratus Lumborum Muscle (15) Vertebra (Body) (16) Vertebra (Spinous Process) (17) Common Iliac Arteries (17 a) Common Iliac Veins (18) Iliac Wing (19) External Iliac Vessels (20) Common Femoral Artery and Vein (21) Superficial Femoral Artery (22) Deep Femoral Artery (23) Iliacus Muscle (24) Gluteus Maximus Muscle (25) Gluteus Medius Muscle (26) Gluteus Minimus Muscle (27) Sacrum (28) Urinary Bladder (29) Sigmoid Colon (30) Rectum (31) Seminal Vesicle (32) Prostate Gland (33) Base of Penis (34) Piriformis Muscle (35) Ischial Spine (36) Femoral Head (37) Greater Trochanter (38) Rectus Femoris Muscle (39) Internal Obturator Muscle (40) External Obturator Muscle (41) Ischiorectal Fossa (42) Symphysis Pubis (43) Inferior Pubic Ramus (44) Ischial Tuberosity (45) Gracilis Muscle (46) Sartorius Muscle (47) Adductor Magnus Muscle (48) Adductor Longus Muscle (49) Vastus Lateralis Muscle (50) Vastus Intermedius Muscle (51) Vastus Medialis Muscle (52) Semimembranousus and Semitendinosus Muscles (54) Tensor Fascia Latae (55) Pectineus Muscle

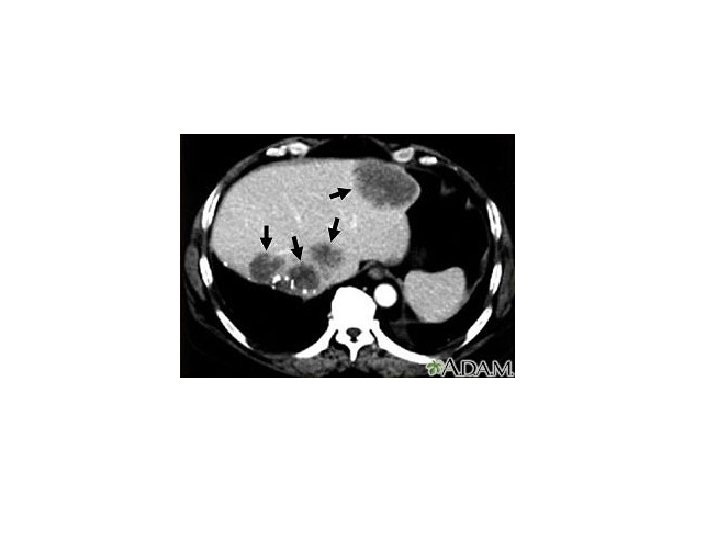

What’s wrong?
