1 1Distinction between Trolley Lorry motor Trolley Periods
1. 1_Distinction between Trolley, Lorry & motor Trolley Periods 1

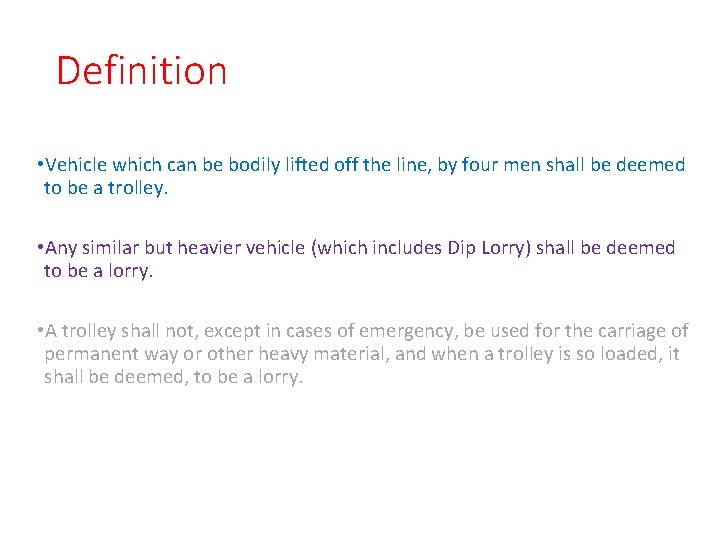

Definition • Vehicle which can be bodily lifted off the line, by four men shall be deemed to be a trolley. • Any similar but heavier vehicle (which includes Dip Lorry) shall be deemed to be a lorry. • A trolley shall not, except in cases of emergency, be used for the carriage of permanent way or other heavy material, and when a trolley is so loaded, it shall be deemed, to be a lorry.

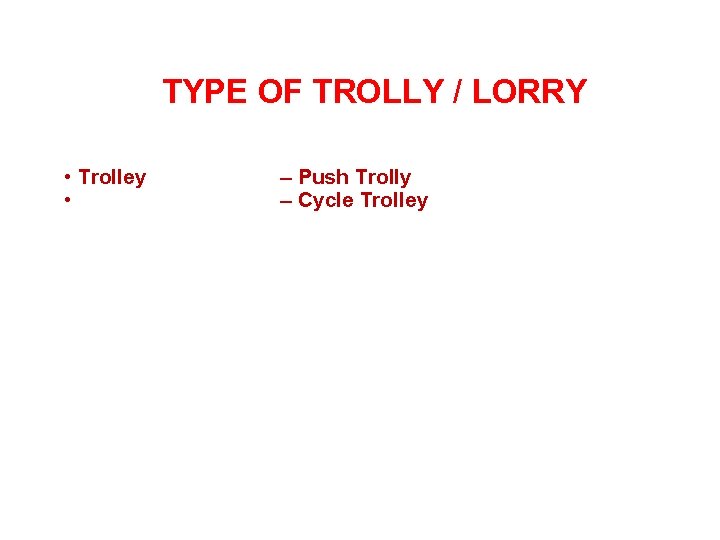

TYPE OF TROLLY / LORRY • Trolley • – Push Trolly – Cycle Trolley
Push Trolley
Cycle Trolley

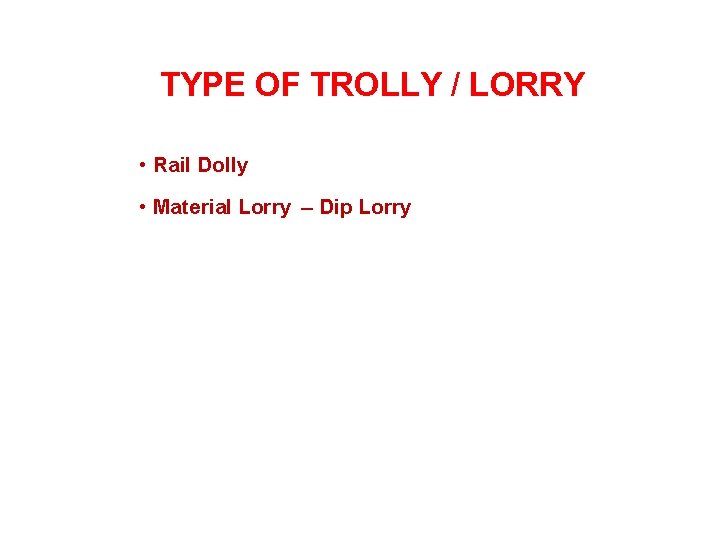

TYPE OF TROLLY / LORRY • Rail Dolly • Material Lorry – Dip Lorry
Rail Dolly
Dip Lorry
Motor Trolley – Definition: • Any trolley which is self propelled by means of a motor is a motor trolley.
TYPE OF Motor Trolley • Motor Trolley – • 1. Moped Trolley or Light Weight Motor Trolley which can be lifted and removed from track easily by four men. • 2. Motor Trolley ; which is heavier and can not be lifted easily.
Light Weight Motor Trolley
Motor Trolley

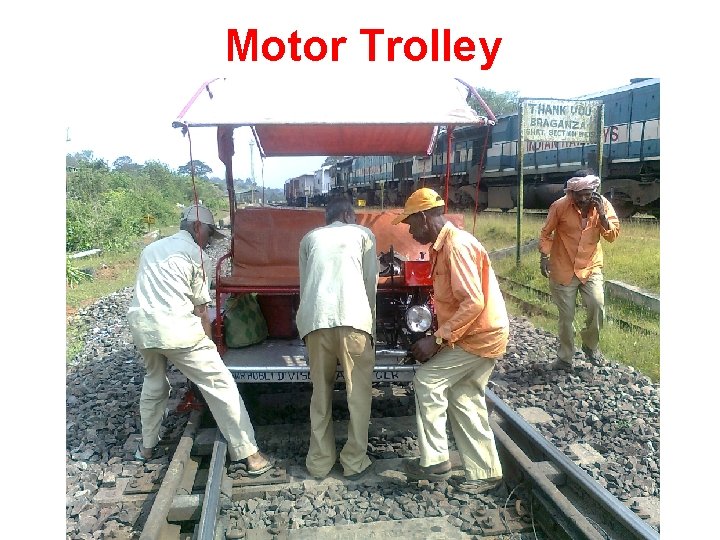

Motor Trolley

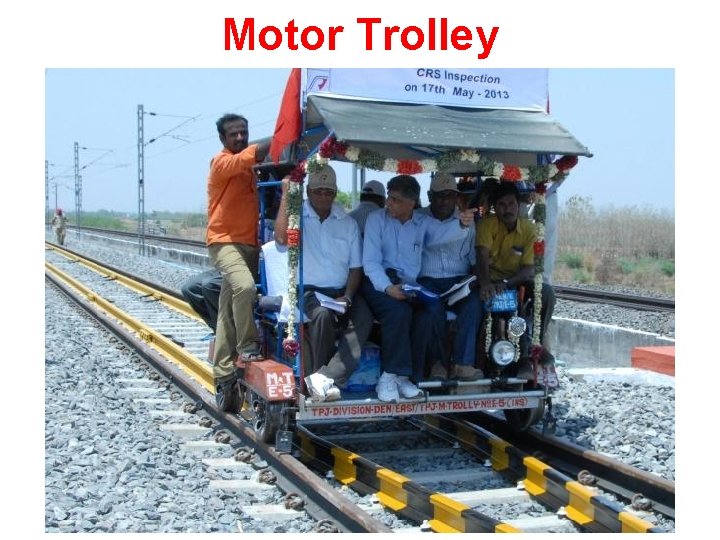

Motor Trolley
Comparison between Push trolley, Light weight motor trolley & Motor Trolley Sr. Items No. Push trolley light weight motor trolley motor Trolley 1. Seating arrangements For 3 persons For 2+2 persons For 3+3 persons 2. Self weight 125 kg 95 kg 350 kg 3. Pay load capacity 700 kg 400 kg 1000 kg 4. Frame Seamless steel or Aluminium Extrusion Tubular Aluminium Alloy Steel/ Aluminium Alloy 5. No. of gears Pushing 2 3(for 10, 20, 30 kmph) & 1 reverse gear(for 5 kmph) 6. Speed (in kmph) Pushing 20 30 7. Others Head& tail lamp Head & tail lamps to both front & rear side of trolley. HS Flag
