1 1 minirimTHGEM vs THGEM rim100m THGEM MinirimTHGEM

  • Slides: 17
Download presentation

1. 1 mini-rim型THGEM vs 传统型THGEM rim~100μm 传统型THGEM Mini-rim型THGEM 20 cm 2021/9/9 mini-rim THGEM &

1. 1 mini-rim型THGEM vs 传统型THGEM rim~100μm 传统型THGEM Mini-rim型THGEM 20 cm 2021/9/9 mini-rim THGEM & LM 3

1. 2 10 cm*10 cm、20 cm*20 cm. THGEM实验结果 稳定性 20 cm. THGEM 增益 >104

1. 2 10 cm*10 cm、20 cm*20 cm. THGEM实验结果 稳定性 20 cm. THGEM 增益 >104 单层增益对比 Ar/ISO(95/5) 12% 20 cm均匀性 2021/9/9 mini-rim THGEM & LM 4

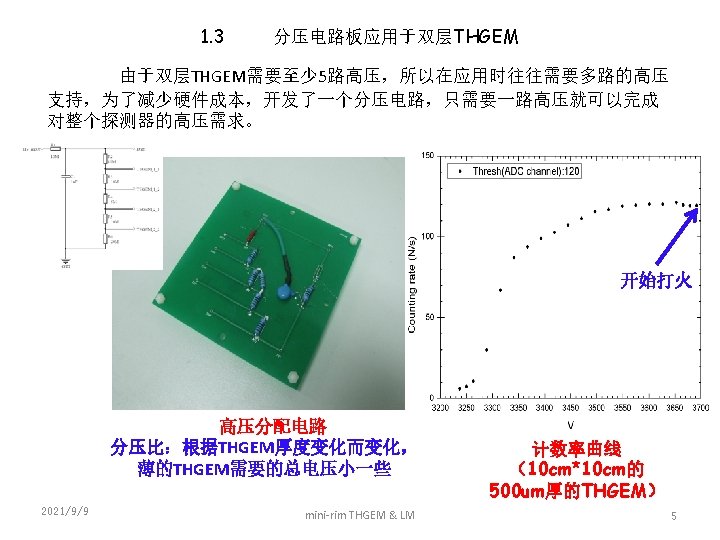

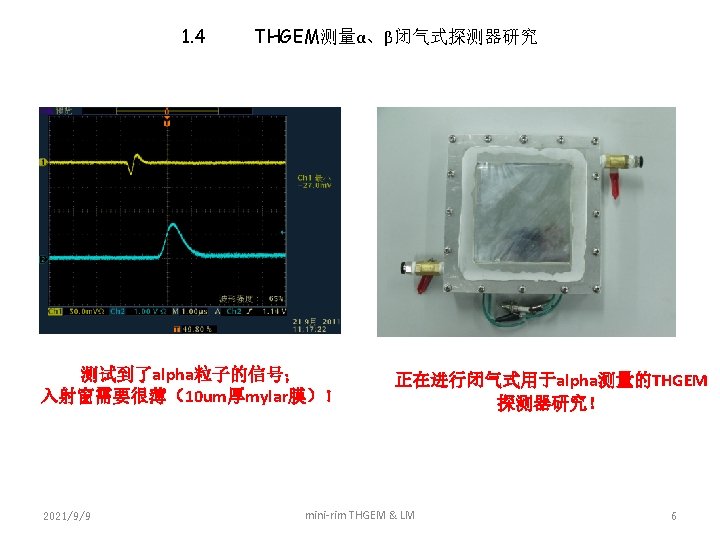

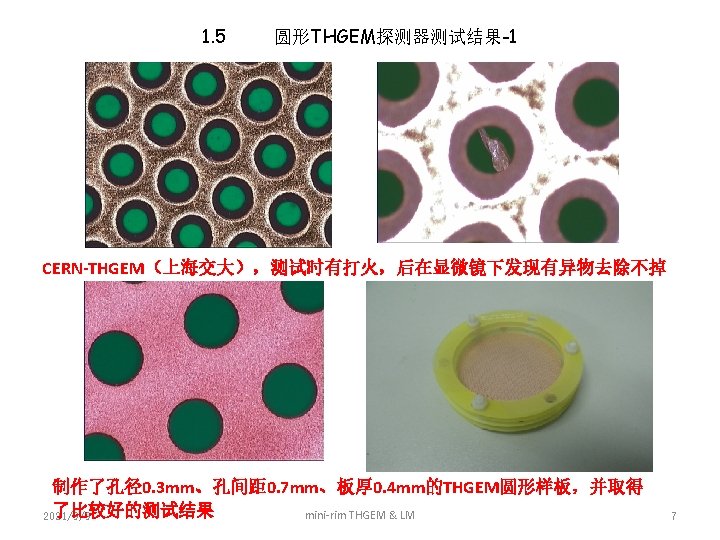

1. 5 圆形THGEM探测器测试结果-2 增益曲线（Ne/CH 4_95/5）， 增益达 10^5 2021/9/9 mini-rim THGEM & LM 8

1. 5 圆形THGEM探测器测试结果-2 增益曲线（Ne/CH 4_95/5）， 增益达 10^5 2021/9/9 mini-rim THGEM & LM 8

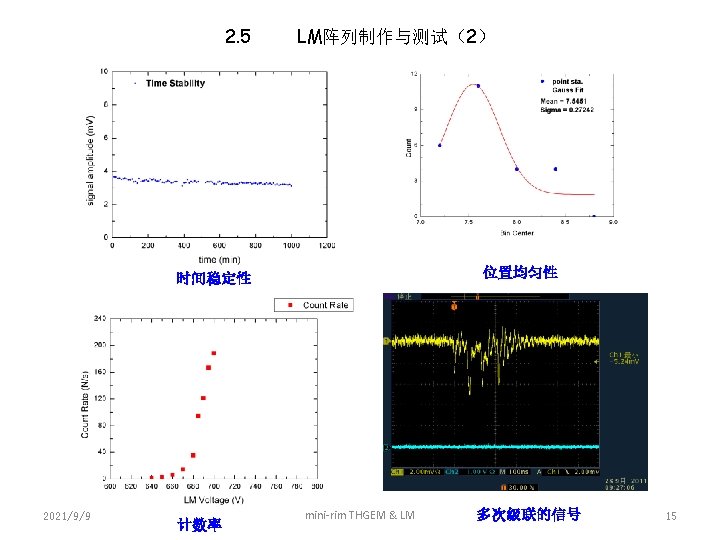

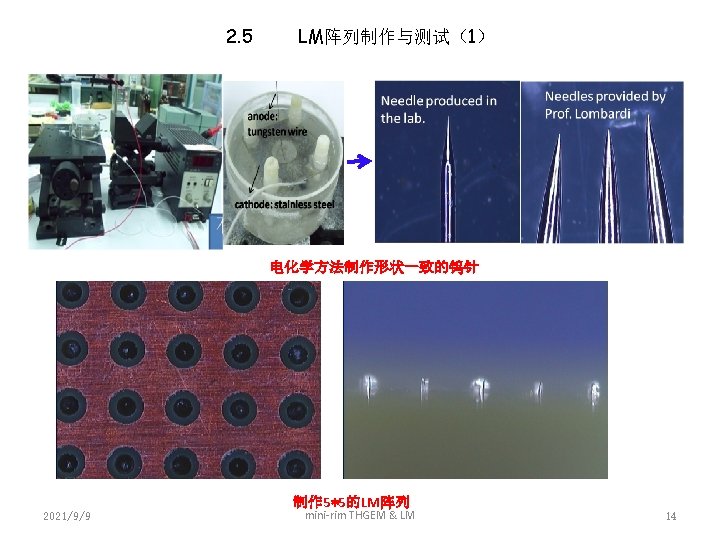

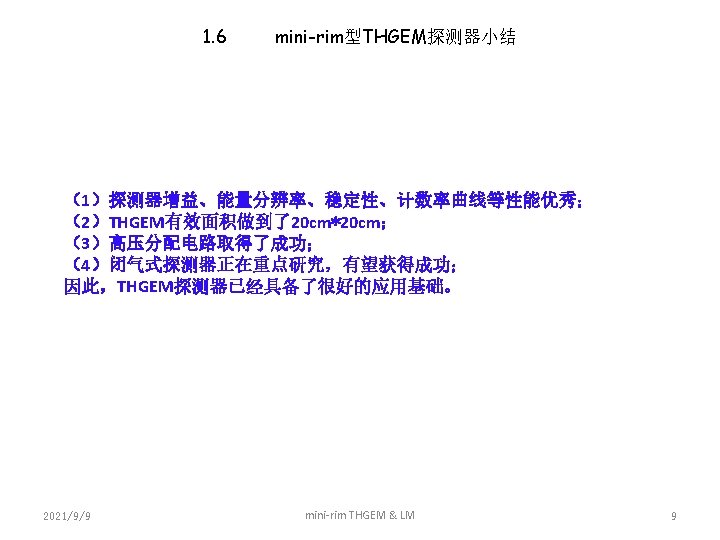

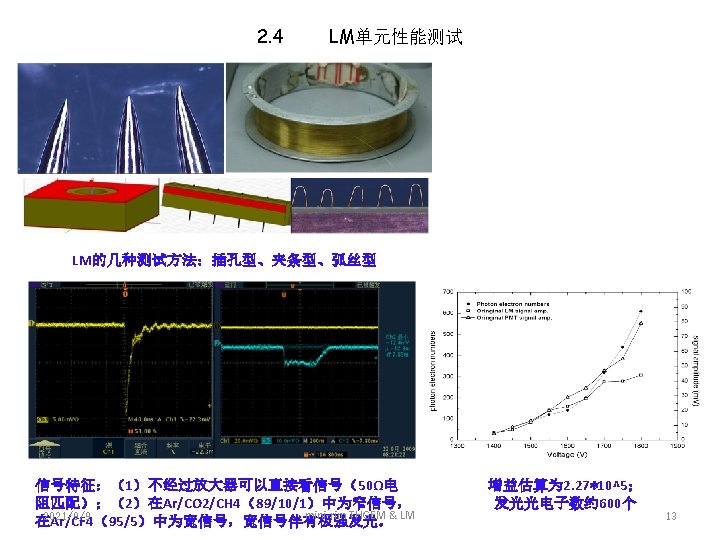

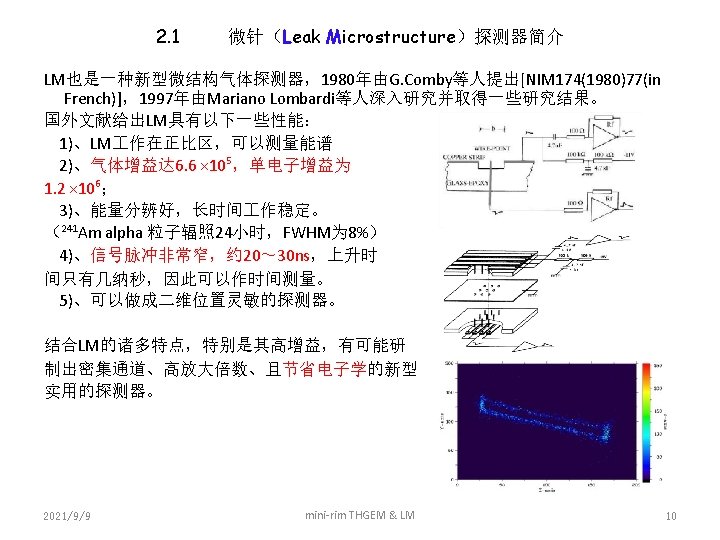

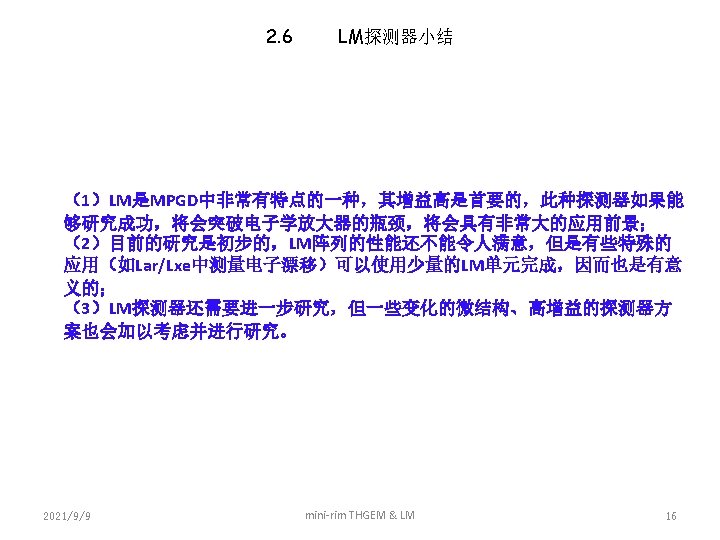

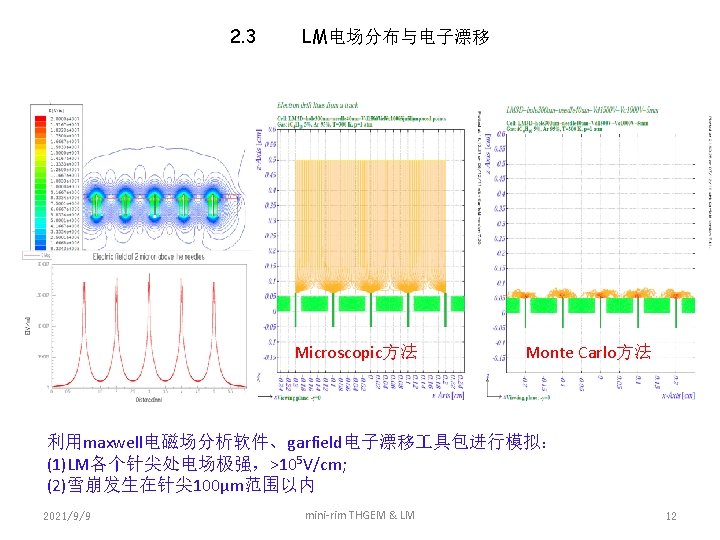

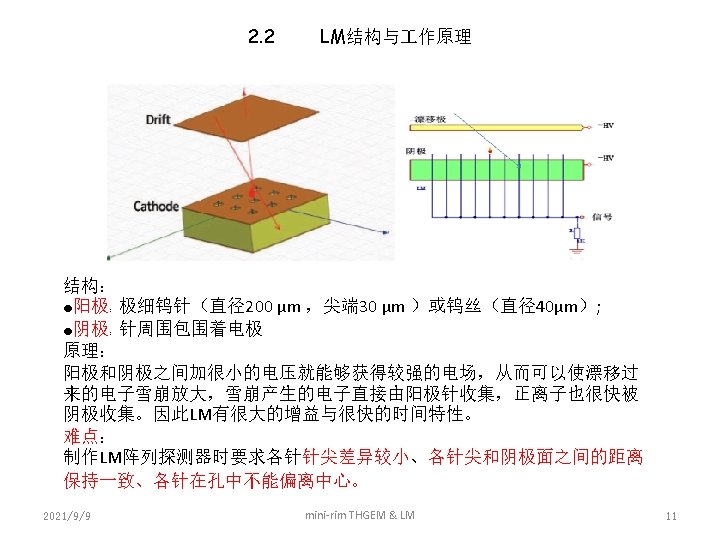

T HANKS!

T HANKS!
