08/27/15 Pixels and Image Filtering Computational Photography Derek Hoiem Graphic: http: //www. notcot. org/post/4068/
Administrative stuff • Any questions? • Office hours: times will be set Friday, so be sure to fill out poll http: //doodle. com/8 cqbis 4 qx 52 wm 5 fs • Tutorial: • Looks like Sept 2 at 5 pm, but will finalize later today --- vote soon http: //doodle. com/6 drhrg 3 kdedu 892 x
Today’s Class: Pixels and Linear Filters • What is a pixel? How is an image represented? • What is image filtering and how do we do it? • Introduce Project 1: Hybrid Images
Next three classes • Image filters in spatial domain – Smoothing, sharpening, measuring texture • Image filters in the frequency domain – Denoising, sampling, image compression • Templates and Image Pyramids – Detection, coarse-to-fine registration
Image Formation
Digital camera A digital camera replaces film with a sensor array • • Each cell in the array is light-sensitive diode that converts photons to electrons Two common types: – Charge Coupled Device (CCD): larger yet slower, better quality – Complementary Metal Oxide Semiconductor (CMOS): high bandwidth, lower quality • http: //electronics. howstuffworks. com/digital-camera. htm Slide by Steve Seitz
Sensor Array CMOS sensor CCD sensor
The raster image (pixel matrix)
The raster image (pixel matrix) 0. 92 0. 95 0. 89 0. 96 0. 71 0. 49 0. 86 0. 96 0. 69 0. 79 0. 91 0. 93 0. 89 0. 72 0. 95 0. 81 0. 62 0. 84 0. 67 0. 49 0. 73 0. 94 0. 82 0. 51 0. 88 0. 81 0. 60 0. 74 0. 56 0. 90 0. 89 0. 97 0. 89 0. 55 0. 94 0. 87 0. 58 0. 85 0. 66 0. 67 0. 49 0. 62 0. 56 0. 51 0. 56 0. 57 0. 50 0. 51 0. 48 0. 43 0. 33 0. 41 0. 37 0. 31 0. 42 0. 46 0. 37 0. 60 0. 39 0. 37 0. 42 0. 61 0. 78 0. 85 0. 75 0. 57 0. 91 0. 80 0. 58 0. 73 0. 88 0. 77 0. 69 0. 78 0. 97 0. 92 0. 41 0. 87 0. 88 0. 50 0. 92 0. 90 0. 73 0. 79 0. 77 0. 93 0. 81 0. 49 0. 90 0. 89 0. 61 0. 94 0. 71 0. 73 0. 89 0. 92 0. 95 0. 91 0. 97 0. 79 0. 45 0. 49 0. 82 0. 90 0. 93 0. 99 0. 91 0. 92 0. 95 0. 85 0. 33 0. 74 0. 93 0. 99 0. 97 0. 93
Perception of Intensity from Ted Adelson
Perception of Intensity from Ted Adelson
Digital Color Images

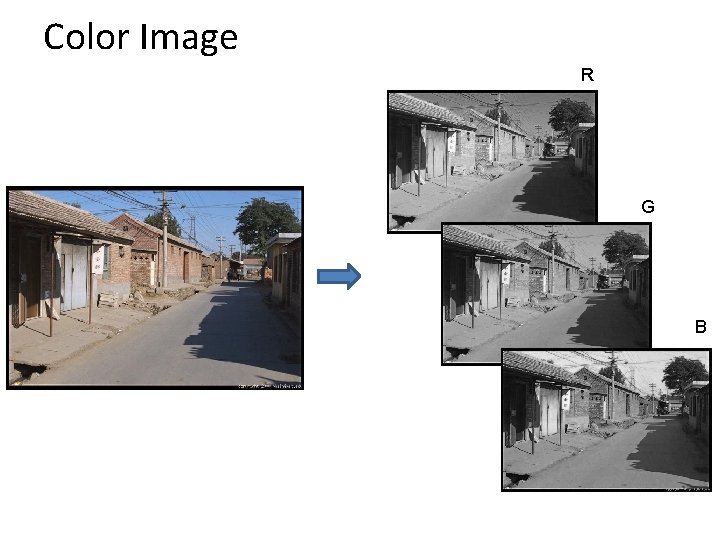

Color Image R G B
Images in Matlab • Images represented as a matrix • Suppose we have a Nx. M RGB image called “im” – im(1, 1, 1) = top-left pixel value in R-channel – im(y, x, b) = y pixels down, x pixels to right in the bth channel – im(N, M, 3) = bottom-right pixel in B-channel • imread(filename) returns a uint 8 image (values 0 to 255) – Convert to double format (values 0 to 1) with im 2 double row column 0. 92 0. 95 0. 89 0. 96 0. 71 0. 49 0. 86 0. 96 0. 69 0. 79 0. 91 0. 93 0. 89 0. 72 0. 95 0. 81 0. 62 0. 84 0. 67 0. 49 0. 73 0. 94 0. 82 0. 51 0. 92 0. 88 0. 95 0. 81 0. 89 0. 60 0. 96 0. 74 0. 71 0. 54 0. 49 0. 56 0. 86 0. 90 0. 96 0. 89 0. 69 0. 79 0. 91 0. 97 0. 89 0. 55 0. 93 0. 94 0. 89 0. 87 0. 72 0. 58 0. 95 0. 58 0. 81 0. 85 0. 62 0. 66 0. 84 0. 67 0. 49 0. 73 0. 94 0. 62 0. 56 0. 51 0. 94 0. 56 0. 82 0. 57 0. 51 0. 92 0. 50 0. 88 0. 95 0. 51 0. 89 0. 48 0. 60 0. 96 0. 43 0. 74 0. 71 0. 33 0. 54 0. 49 0. 41 0. 56 0. 86 0. 90 0. 96 0. 89 0. 69 0. 79 0. 91 0. 37 0. 31 0. 42 0. 97 0. 46 0. 89 0. 37 0. 55 0. 93 0. 60 0. 94 0. 89 0. 39 0. 87 0. 72 0. 37 0. 58 0. 95 0. 42 0. 58 0. 81 0. 61 0. 85 0. 62 0. 78 0. 66 0. 84 0. 67 0. 49 0. 73 0. 94 0. 85 0. 75 0. 57 0. 62 0. 91 0. 56 0. 80 0. 51 0. 94 0. 58 0. 56 0. 82 0. 73 0. 57 0. 51 0. 88 0. 50 0. 88 0. 77 0. 51 0. 81 0. 69 0. 48 0. 60 0. 78 0. 43 0. 74 0. 33 0. 54 0. 41 0. 56 0. 90 0. 89 0. 97 0. 92 0. 41 0. 37 0. 87 0. 31 0. 88 0. 42 0. 97 0. 50 0. 46 0. 89 0. 92 0. 37 0. 55 0. 90 0. 60 0. 94 0. 73 0. 39 0. 87 0. 79 0. 37 0. 58 0. 77 0. 42 0. 58 0. 61 0. 85 0. 78 0. 66 0. 67 0. 49 0. 93 0. 81 0. 49 0. 85 0. 90 0. 75 0. 89 0. 57 0. 62 0. 61 0. 91 0. 56 0. 91 0. 80 0. 51 0. 94 0. 58 0. 56 0. 71 0. 73 0. 57 0. 73 0. 88 0. 50 0. 89 0. 77 0. 51 0. 69 0. 48 0. 78 0. 43 0. 33 0. 41 0. 92 0. 95 0. 91 0. 97 0. 92 0. 79 0. 41 0. 37 0. 45 0. 87 0. 31 0. 49 0. 88 0. 42 0. 82 0. 50 0. 46 0. 90 0. 92 0. 37 0. 93 0. 90 0. 60 0. 99 0. 73 0. 39 0. 79 0. 37 0. 77 0. 42 0. 61 0. 78 0. 99 0. 91 0. 92 0. 93 0. 95 0. 81 0. 85 0. 49 0. 85 0. 33 0. 90 0. 75 0. 74 0. 89 0. 57 0. 93 0. 61 0. 99 0. 91 0. 80 0. 97 0. 94 0. 58 0. 93 0. 71 0. 73 0. 88 0. 89 0. 77 0. 69 0. 78 R 0. 92 0. 95 0. 91 0. 97 0. 92 0. 79 0. 41 0. 45 0. 87 0. 49 0. 88 0. 82 0. 50 0. 92 0. 93 0. 90 0. 99 0. 73 0. 79 0. 77 0. 99 0. 91 0. 92 0. 93 0. 95 0. 81 0. 85 0. 49 0. 33 0. 90 0. 74 0. 89 0. 93 0. 61 0. 99 0. 91 0. 97 0. 94 0. 93 0. 71 0. 73 0. 89 G B 0. 92 0. 95 0. 91 0. 97 0. 79 0. 45 0. 49 0. 82 0. 90 0. 93 0. 99 0. 91 0. 92 0. 95 0. 85 0. 33 0. 74 0. 93 0. 99 0. 97 0. 93
Image filtering • Image filtering: compute function of local neighborhood at each position • Really important! – Enhance images • Denoise, resize, increase contrast, etc. – Extract information from images • Texture, edges, distinctive points, etc. – Detect patterns • Template matching
Example: box filter 1 1 1 1 1 Slide credit: David Lowe (UBC)
Image filtering 0 0 0 0 0 0 90 90 90 0 0 90 90 90 0 0 0 0 90 90 90 0 0 90 90 90 0 0 0 0 0 0 0 90 90 0 0 0 0 0 0 0 0 1 1 1 1 1 0 Credit: S. Seitz
Image filtering 0 0 0 0 0 0 90 90 90 0 0 90 90 90 0 90 90 90 0 0 0 0 0 0 0 0 0 1 1 10 Credit: S. Seitz
Image filtering 0 0 0 0 0 0 90 90 90 0 0 90 90 90 0 90 90 90 0 0 0 0 0 0 0 0 0 10 1 1 1 1 1 20 Credit: S. Seitz
Image filtering 0 0 0 0 0 0 90 90 90 0 0 90 90 90 0 90 90 90 0 0 0 0 0 0 0 0 0 10 20 1 1 1 1 1 30 Credit: S. Seitz
Image filtering 0 0 0 0 0 0 90 90 90 0 0 90 90 90 0 90 90 90 0 0 0 0 0 0 0 0 0 10 20 30 1 1 1 1 1 30 Credit: S. Seitz
Image filtering 0 0 0 0 0 0 90 90 90 0 0 90 90 90 0 90 90 90 0 0 0 0 0 0 0 0 0 10 20 30 1 1 1 1 1 30 ? Credit: S. Seitz
Image filtering 0 0 0 0 0 0 90 90 90 0 0 90 90 90 0 90 90 90 0 0 0 0 0 0 0 0 0 10 20 30 1 1 1 1 1 30 ? 50 Credit: S. Seitz
Image filtering 1 1 1 1 1 0 0 0 0 0 0 10 20 30 30 30 20 10 0 90 90 90 0 20 40 60 60 60 40 20 0 90 90 90 0 30 60 90 90 90 60 30 0 90 90 90 0 30 50 80 80 90 60 30 0 90 90 90 0 20 30 50 50 60 40 20 0 0 10 20 30 30 20 10 0 0 90 0 0 0 10 10 10 0 0 0 Credit: S. Seitz
Image filtering 1 1 1 1 1 0 0 0 0 0 0 10 20 30 30 30 20 10 0 90 90 90 0 20 40 60 60 60 40 20 0 Informally, what does the filter do? 0 0 90 90 90 0 30 60 90 90 90 60 30 0 0 90 90 90 0 30 50 80 80 90 60 30 0 90 90 90 0 20 30 50 50 60 40 20 0 0 10 20 30 30 20 10 0 0 90 0 0 0 10 10 10 0 0 0 0 Credit: S. Seitz

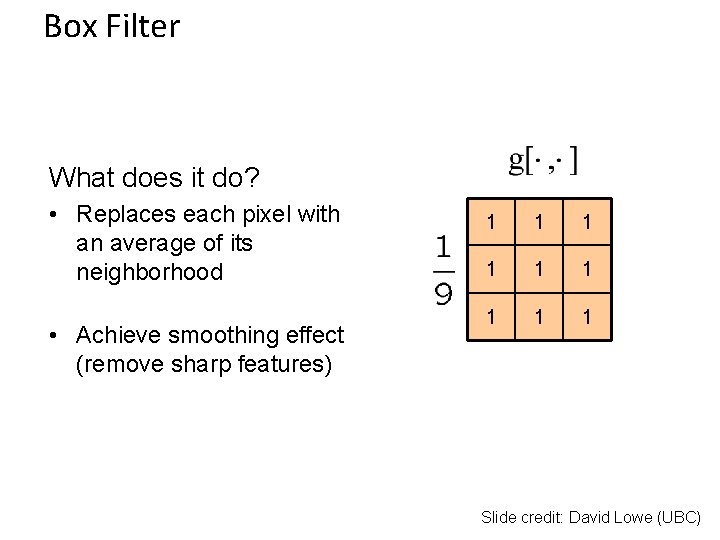

Box Filter What does it do? • Replaces each pixel with an average of its neighborhood • Achieve smoothing effect (remove sharp features) 1 1 1 1 1 Slide credit: David Lowe (UBC)
Smoothing with box filter
One more on board…
Practice with linear filters 0 0 1 0 0 ? Original Source: D. Lowe
Practice with linear filters Original 0 0 1 0 0 Filtered (no change) Source: D. Lowe
Practice with linear filters 0 0 0 1 0 0 0 ? Original Source: D. Lowe

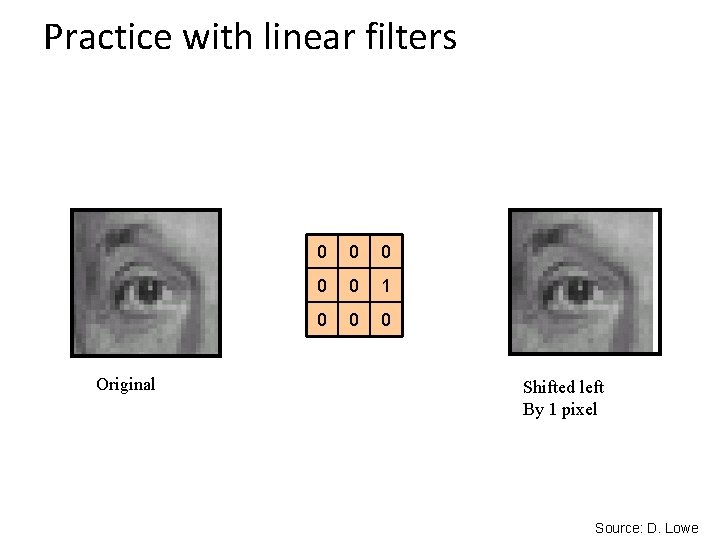

Practice with linear filters Original 0 0 0 1 0 0 0 Shifted left By 1 pixel Source: D. Lowe
Practice with linear filters 0 0 2 0 0 - 1 1 1 1 1 ? (Note that filter sums to 1) Original Source: D. Lowe
Practice with linear filters Original 0 0 2 0 0 - 1 1 1 1 1 Sharpening filter - Accentuates differences with local average Source: D. Lowe
Sharpening Source: D. Lowe

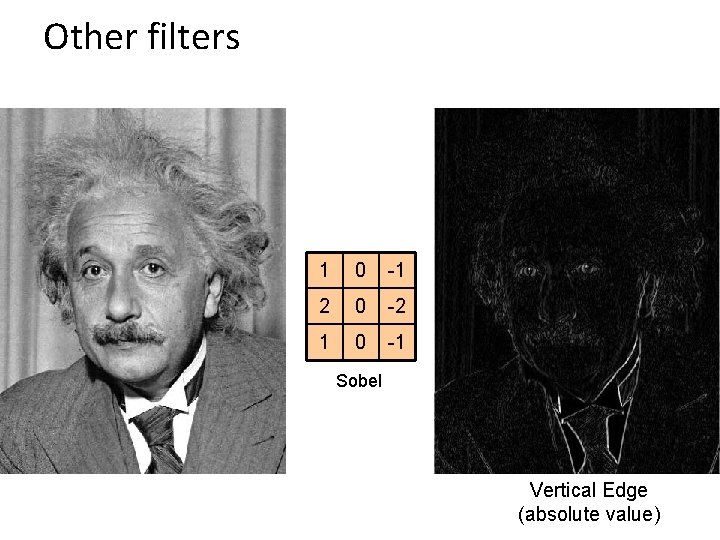

Other filters 1 0 -1 2 0 -2 1 0 -1 Sobel Vertical Edge (absolute value)
Q? Other filters 1 2 1 0 0 0 -1 -2 -1 Sobel Horizontal Edge (absolute value)
How could we synthesize motion blur? theta = 30; len = 20; fil = imrotate(ones(1, len), theta, 'bilinear'); fil = fil / sum(fil(: )); figure(2), imshow(imfilter(im, fil));
Filtering vs. Convolution • 2 d filtering g=filter f=image – h=filter 2(g, f); or h=imfilter(f, g); • 2 d convolution – h=conv 2(g, f);
Key properties of linear filters Linearity: filter(f 1 + f 2) = filter(f 1) + filter(f 2) Shift invariance: same behavior regardless of pixel location filter(shift(f)) = shift(filter(f)) Any linear, shift-invariant operator can be represented as a convolution Source: S. Lazebnik
More properties • Commutative: a * b = b * a – Conceptually no difference between filter and signal (image) • Associative: a * (b * c) = (a * b) * c – Often apply several filters one after another: (((a * b 1) * b 2) * b 3) – This is equivalent to applying one filter: a * (b 1 * b 2 * b 3) • Distributes over addition: a * (b + c) = (a * b) + (a * c) • Scalars factor out: ka * b = a * kb = k (a * b) • Identity: unit impulse e = [0, 0, 1, 0, 0], a * e = a Source: S. Lazebnik
Important filter: Gaussian • Weight contributions of neighboring pixels by nearness 0. 003 0. 013 0. 022 0. 013 0. 003 0. 013 0. 059 0. 097 0. 059 0. 013 0. 022 0. 097 0. 159 0. 097 0. 022 0. 013 0. 059 0. 097 0. 059 0. 013 0. 003 0. 013 0. 022 0. 013 0. 003 5 x 5, = 1 Slide credit: Christopher Rasmussen
Smoothing with Gaussian filter
Smoothing with box filter
Gaussian filters • Source: K. Grauman

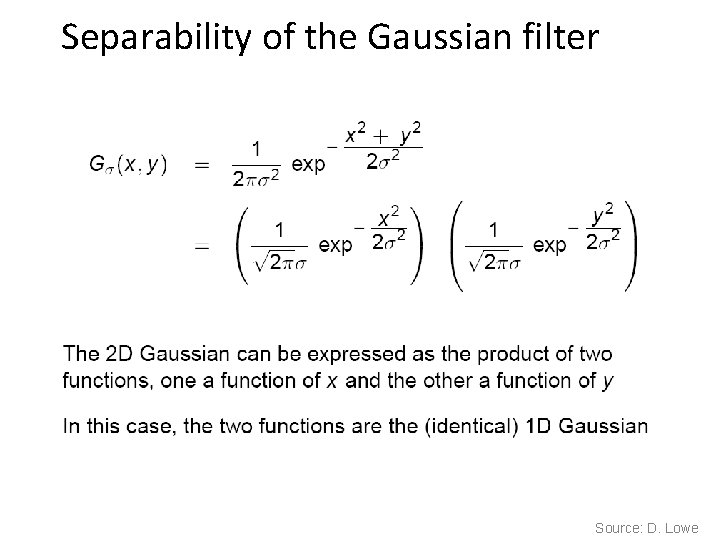

Separability of the Gaussian filter Source: D. Lowe
Separability example 2 D filtering (center location only) The filter factors into a product of 1 D filters: Perform filtering along rows: Followed by filtering along the remaining column: * = Source: K. Grauman
Separability • Why is separability useful in practice?
Some practical matters
Practical matters How big should the filter be? • Values at edges should be near zero • Rule of thumb for Gaussian: set filter half-width to about 3 σ
Practical matters • What about near the edge? – the filter window falls off the edge of the image – need to extrapolate – methods: • • clip filter (black) wrap around copy edge reflect across edge Source: S. Marschner
Practical matters – methods (MATLAB): • • clip filter (black): imfilter(f, g, 0) wrap around: imfilter(f, g, ‘circular’) copy edge: imfilter(f, g, ‘replicate’) reflect across edge: imfilter(f, g, ‘symmetric’) Source: S. Marschner

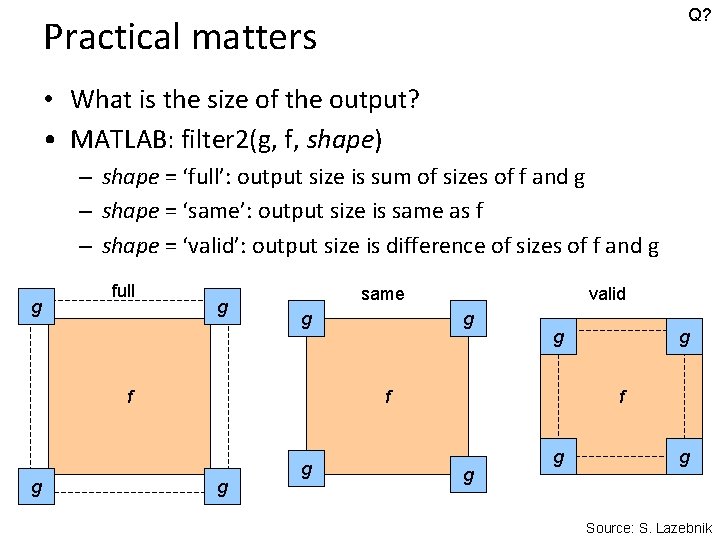

Q? Practical matters • What is the size of the output? • MATLAB: filter 2(g, f, shape) – shape = ‘full’: output size is sum of sizes of f and g – shape = ‘same’: output size is same as f – shape = ‘valid’: output size is difference of sizes of f and g g full g same g f g valid g g f g g g Source: S. Lazebnik
Application: Representing Texture Source: Forsyth
Texture and Material http: //www-cvr. ai. uiuc. edu/ponce_grp/data/texture_database/samples/
Texture and Orientation http: //www-cvr. ai. uiuc. edu/ponce_grp/data/texture_database/samples/
Texture and Scale http: //www-cvr. ai. uiuc. edu/ponce_grp/data/texture_database/samples/
What is texture? Regular or stochastic patterns caused by bumps, grooves, and/or markings
How can we represent texture? • Compute responses of blobs and edges at various orientations and scales
Overcomplete representation: filter banks LM Filter Bank Code for filter banks: www. robots. ox. ac. uk/~vgg/research/texclass/filters. html
Filter banks • Process image with each filter and keep responses (or squared/abs responses)
How can we represent texture? • Measure responses of blobs and edges at various orientations and scales • Record simple statistics (e. g. , mean, std. ) of absolute filter responses
Can you match the texture to the response? Filters A B 1 2 C 3 Mean abs responses

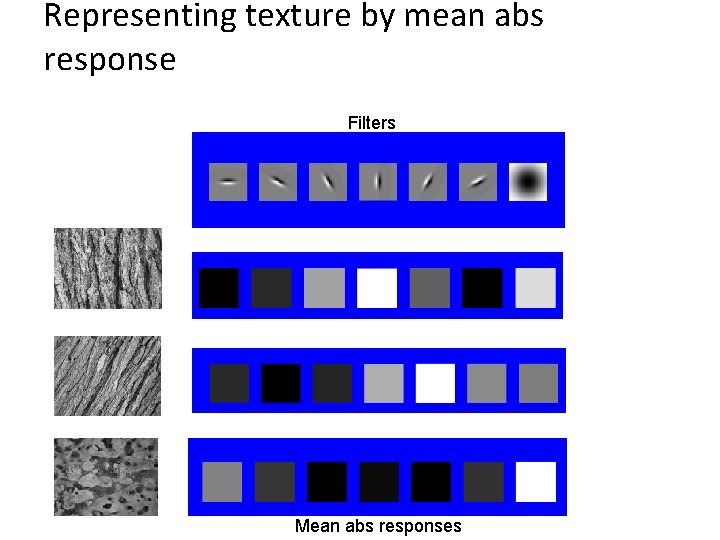

Representing texture by mean abs response Filters Mean abs responses
Project 1: Hybrid Images Gaussian Filter! A. Oliva, A. Torralba, P. G. Schyns, “Hybrid Images, ” SIGGRAPH 2006 Laplacian Filter! Project Instructions: unit impulse Gaussian Laplacian of Gaussian http: //courses. engr. illinois. edu/cs 498 dh 3/projects/hybrid/Computational. Photography_Project. Hybrid. html
Take-home messages • Image is a matrix of numbers • Linear filtering is a dot product at each position – Can smooth, sharpen, translate (among many other uses) • Be aware of details for filter size, extrapolation, cropping • Start thinking about project (read the paper, create a test project page) = 0. 92 0. 93 0. 94 0. 97 0. 62 0. 37 0. 85 0. 97 0. 93 0. 92 0. 99 0. 95 0. 89 0. 82 0. 89 0. 56 0. 31 0. 75 0. 92 0. 81 0. 95 0. 91 0. 89 0. 72 0. 51 0. 55 0. 51 0. 42 0. 57 0. 41 0. 49 0. 91 0. 92 0. 96 0. 95 0. 88 0. 94 0. 56 0. 46 0. 91 0. 87 0. 90 0. 97 0. 95 0. 71 0. 81 0. 87 0. 57 0. 37 0. 80 0. 88 0. 89 0. 79 0. 85 0. 49 0. 62 0. 60 0. 58 0. 50 0. 61 0. 45 0. 33 0. 86 0. 84 0. 74 0. 58 0. 51 0. 39 0. 73 0. 92 0. 91 0. 49 0. 74 0. 96 0. 67 0. 54 0. 85 0. 48 0. 37 0. 88 0. 90 0. 94 0. 82 0. 93 0. 69 0. 49 0. 56 0. 66 0. 43 0. 42 0. 77 0. 73 0. 71 0. 90 0. 99 0. 73 0. 90 0. 67 0. 33 0. 61 0. 69 0. 73 0. 97 0. 91 0. 94 0. 89 0. 41 0. 78 0. 77 0. 89 0. 93 1 1 1 1 1
Take-home questions 1. Write down a 3 x 3 filter that returns a positive value if the average value of the 4 -adjacent neighbors is less than the center and a negative value otherwise 2. Write down a filter that will compute the gradient in the x-direction: gradx(y, x) = im(y, x+1)-im(y, x) for each x, y
Take-home questions 3. Fill in the blanks: a) b) c) d) _ A F _ Filtering Operator = = D _ D D * * B _ _ D A B E G C F H I D
Next class: Thinking in Frequency
