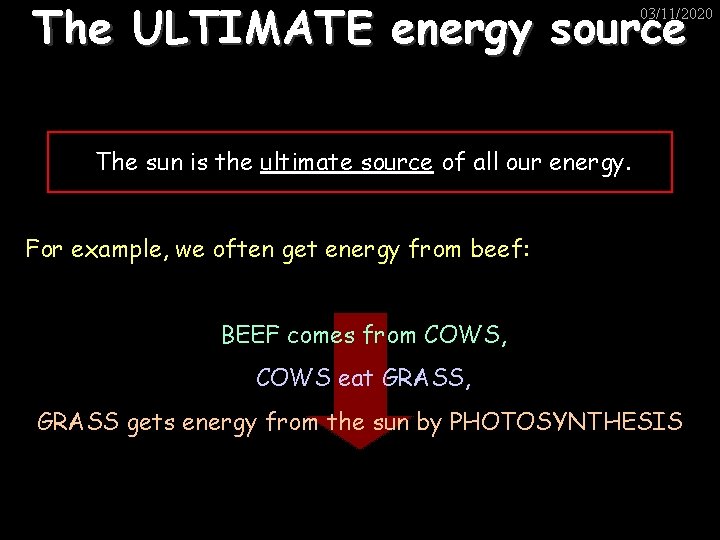

The ULTIMATE energy source 03/11/2020 The sun is the ultimate source of all our energy. For example, we often get energy from beef: BEEF comes from COWS, COWS eat GRASS, GRASS gets energy from the sun by PHOTOSYNTHESIS

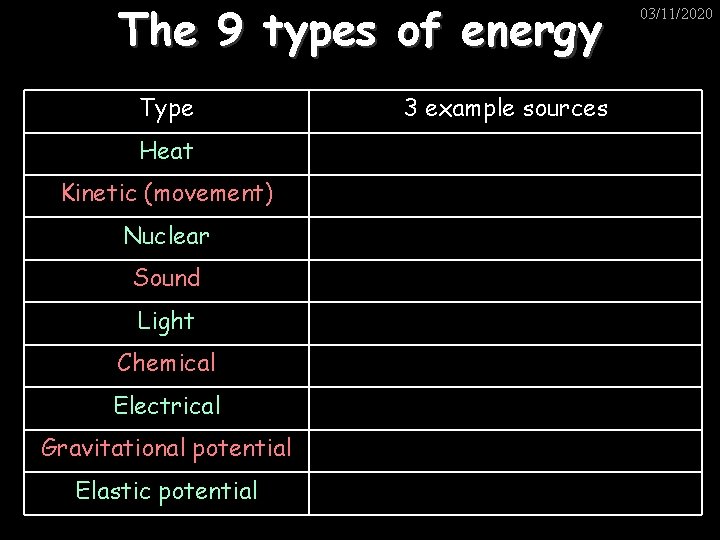

The 9 types of energy Type Heat Kinetic (movement) Nuclear Sound Light Chemical Electrical Gravitational potential Elastic potential 3 example sources 03/11/2020

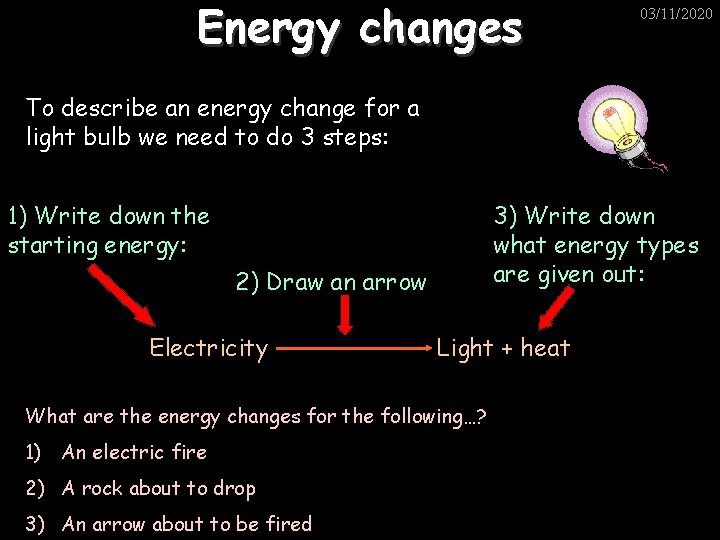

Energy changes 03/11/2020 To describe an energy change for a light bulb we need to do 3 steps: 1) Write down the starting energy: 3) Write down what energy types are given out: 2) Draw an arrow Electricity Light + heat What are the energy changes for the following…? 1) An electric fire 2) A rock about to drop 3) An arrow about to be fired

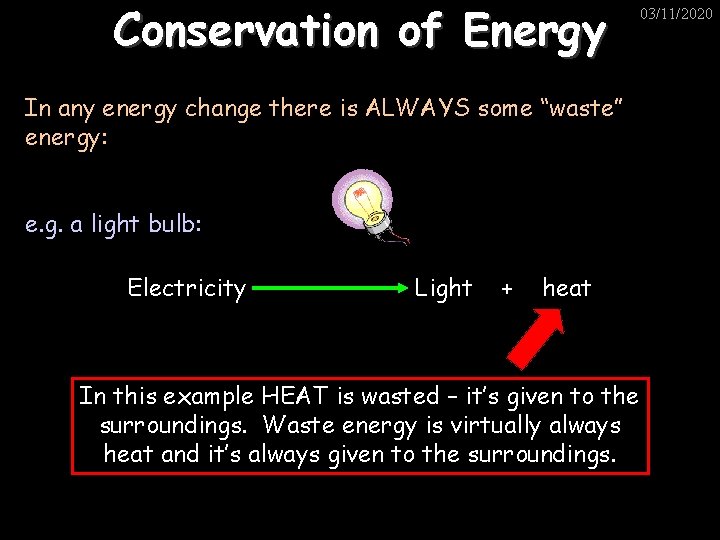

Conservation of Energy In any energy change there is ALWAYS some “waste” energy: e. g. a light bulb: Electricity Light + heat In this example HEAT is wasted – it’s given to the surroundings. Waste energy is virtually always heat and it’s always given to the surroundings. 03/11/2020

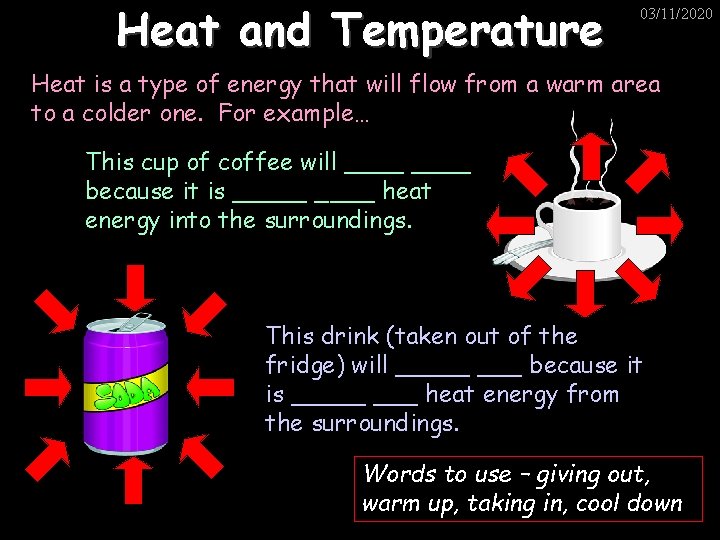

Heat and Temperature 03/11/2020 Heat is a type of energy that will flow from a warm area to a colder one. For example… This cup of coffee will ____ because it is _____ heat energy into the surroundings. This drink (taken out of the fridge) will _____ because it is _____ heat energy from the surroundings. Words to use – giving out, warm up, taking in, cool down

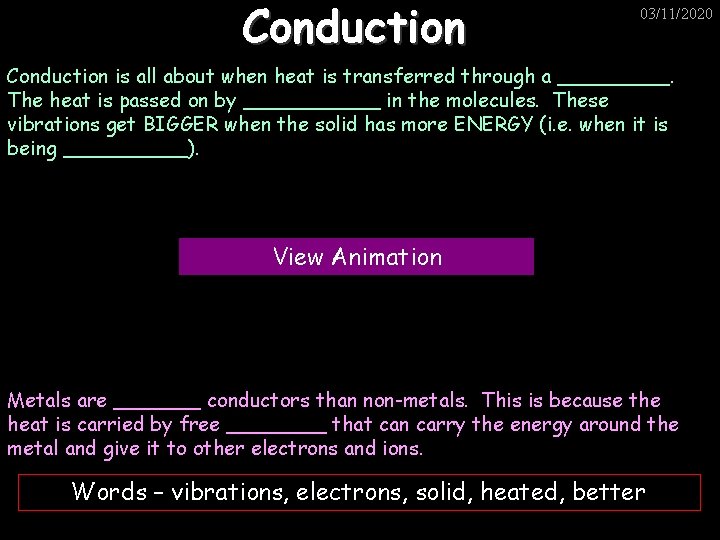

Conduction 03/11/2020 Conduction is all about when heat is transferred through a _____. The heat is passed on by ______ in the molecules. These vibrations get BIGGER when the solid has more ENERGY (i. e. when it is being _____). View Animation Metals are _______ conductors than non-metals. This is because the heat is carried by free ____ that can carry the energy around the metal and give it to other electrons and ions. Words – vibrations, electrons, solid, heated, better

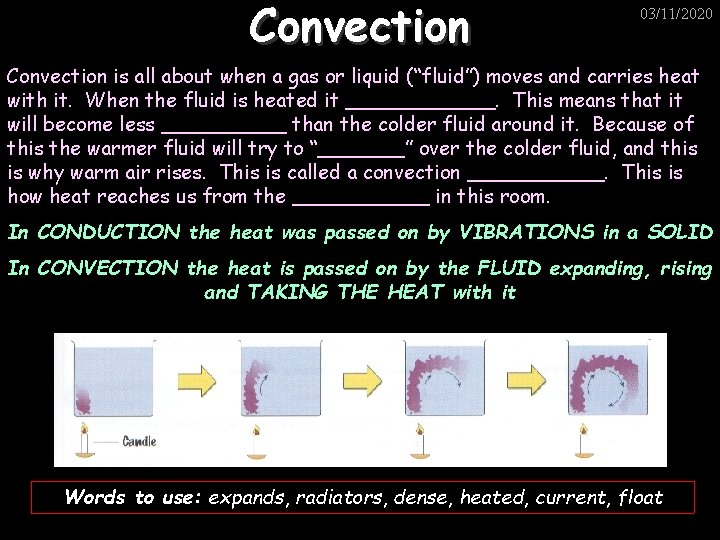

Convection 03/11/2020 Convection is all about when a gas or liquid (“fluid”) moves and carries heat with it. When the fluid is heated it ______. This means that it will become less _____ than the colder fluid around it. Because of this the warmer fluid will try to “_______” over the colder fluid, and this is why warm air rises. This is called a convection ______. This is how heat reaches us from the ______ in this room. In CONDUCTION the heat was passed on by VIBRATIONS in a SOLID In CONVECTION the heat is passed on by the FLUID expanding, rising and TAKING THE HEAT with it Words to use: expands, radiators, dense, heated, current, float

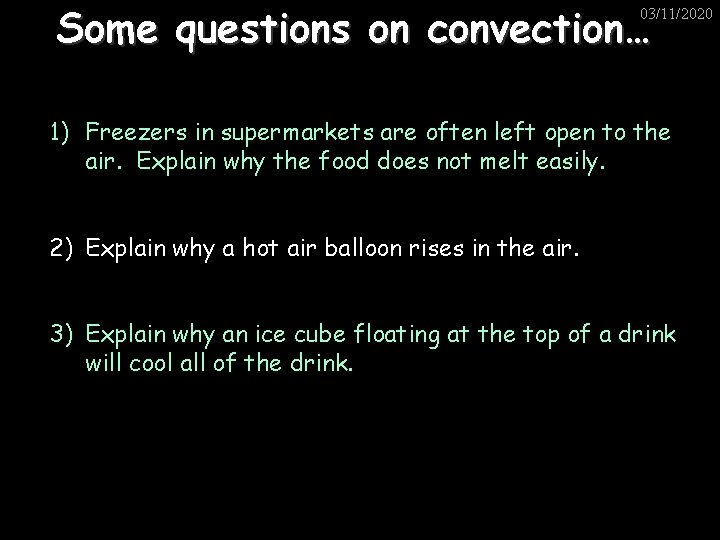

Some questions on convection… 03/11/2020 1) Freezers in supermarkets are often left open to the air. Explain why the food does not melt easily. 2) Explain why a hot air balloon rises in the air. 3) Explain why an ice cube floating at the top of a drink will cool all of the drink.

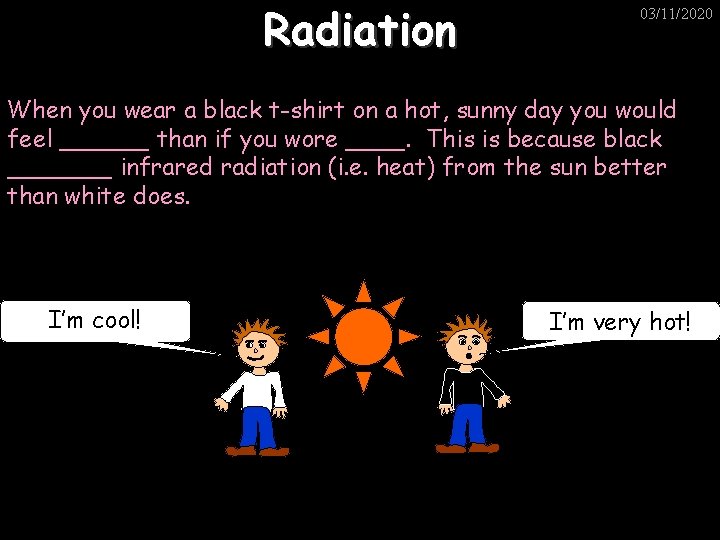

Radiation 03/11/2020 When you wear a black t-shirt on a hot, sunny day you would feel ______ than if you wore ____. This is because black _______ infrared radiation (i. e. heat) from the sun better than white does. I’m cool! I’m very hot!

Some examples of radiation 03/11/2020

Some examples of radiation 03/11/2020

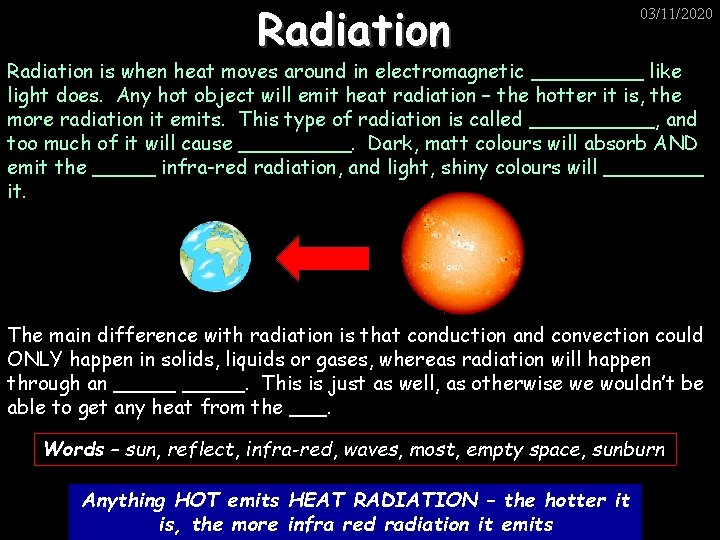

Radiation 03/11/2020 Radiation is when heat moves around in electromagnetic _____ like light does. Any hot object will emit heat radiation – the hotter it is, the more radiation it emits. This type of radiation is called _____, and too much of it will cause _____. Dark, matt colours will absorb AND emit the _____ infra-red radiation, and light, shiny colours will ____ it. The main difference with radiation is that conduction and convection could ONLY happen in solids, liquids or gases, whereas radiation will happen through an _____. This is just as well, as otherwise we wouldn’t be able to get any heat from the ___. Words – sun, reflect, infra-red, waves, most, empty space, sunburn Anything HOT emits HEAT RADIATION – the hotter it is, the more infra red radiation it emits

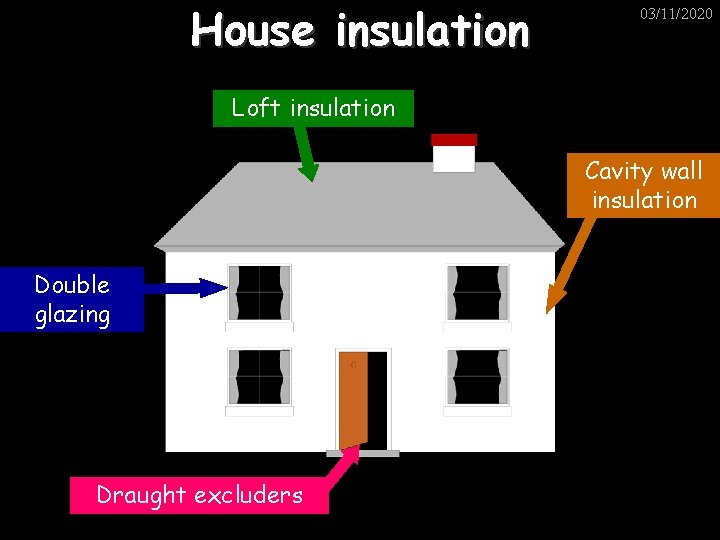

House insulation 03/11/2020 Loft insulation Cavity wall insulation Double glazing Draught excluders

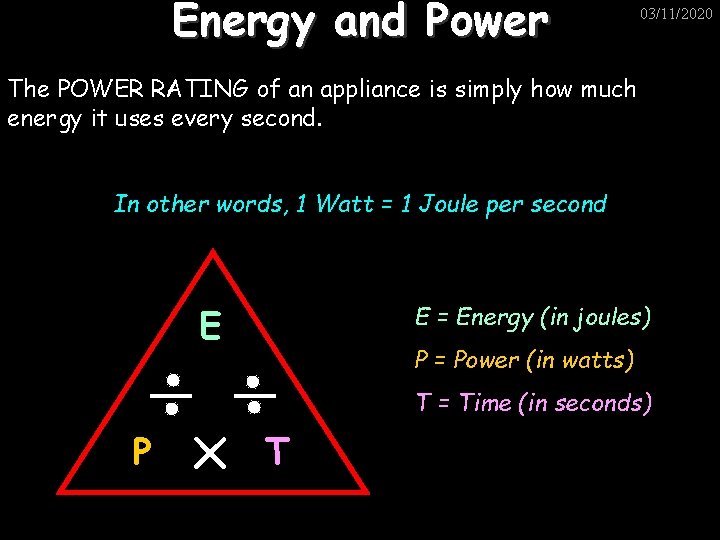

Energy and Power 03/11/2020 The POWER RATING of an appliance is simply how much energy it uses every second. In other words, 1 Watt = 1 Joule per second E E = Energy (in joules) P = Power (in watts) T = Time (in seconds) P T

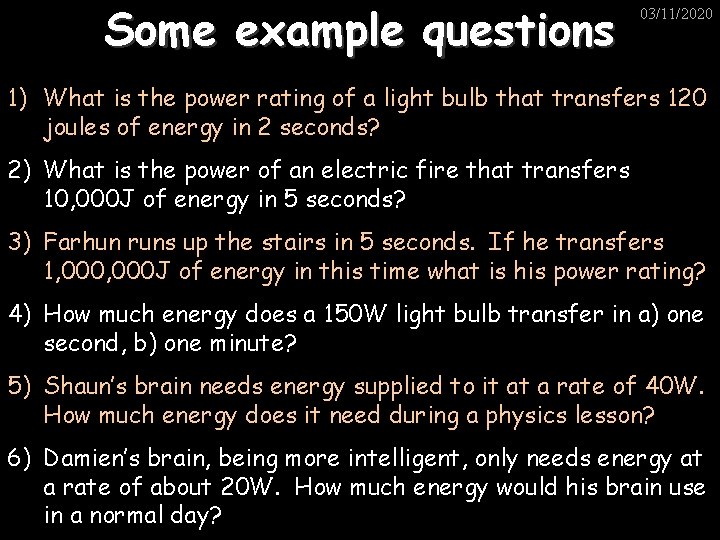

Some example questions 03/11/2020 1) What is the power rating of a light bulb that transfers 120 joules of energy in 2 seconds? 2) What is the power of an electric fire that transfers 10, 000 J of energy in 5 seconds? 3) Farhun runs up the stairs in 5 seconds. If he transfers 1, 000 J of energy in this time what is his power rating? 4) How much energy does a 150 W light bulb transfer in a) one second, b) one minute? 5) Shaun’s brain needs energy supplied to it at a rate of 40 W. How much energy does it need during a physics lesson? 6) Damien’s brain, being more intelligent, only needs energy at a rate of about 20 W. How much energy would his brain use in a normal day?

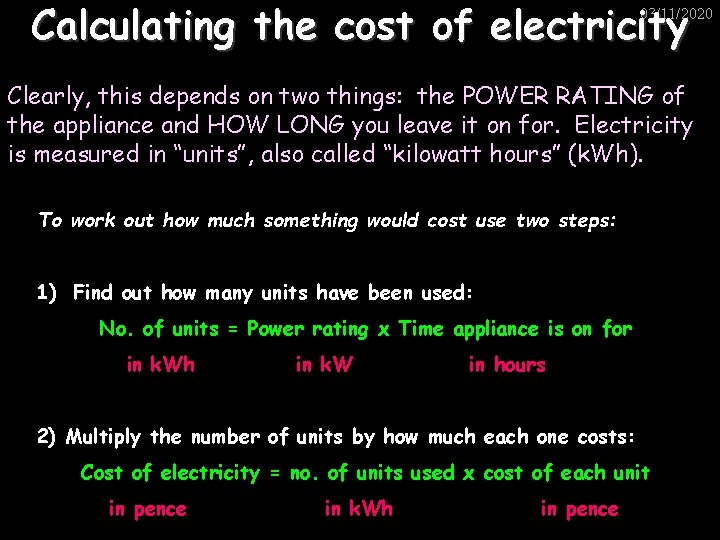

Calculating the cost of electricity 03/11/2020 Clearly, this depends on two things: the POWER RATING of the appliance and HOW LONG you leave it on for. Electricity is measured in “units”, also called “kilowatt hours” (k. Wh). To work out how much something would cost use two steps: 1) Find out how many units have been used: No. of units = Power rating x Time appliance is on for in k. Wh in k. W in hours 2) Multiply the number of units by how much each one costs: Cost of electricity = no. of units used x cost of each unit in pence in k. Wh in pence

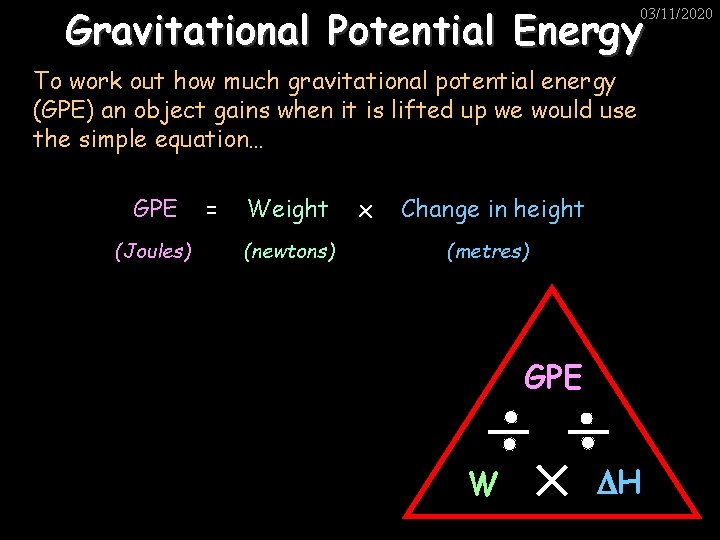

Gravitational Potential Energy 03/11/2020 To work out how much gravitational potential energy (GPE) an object gains when it is lifted up we would use the simple equation… GPE (Joules) = Weight (newtons) x Change in height (metres) GPE W H

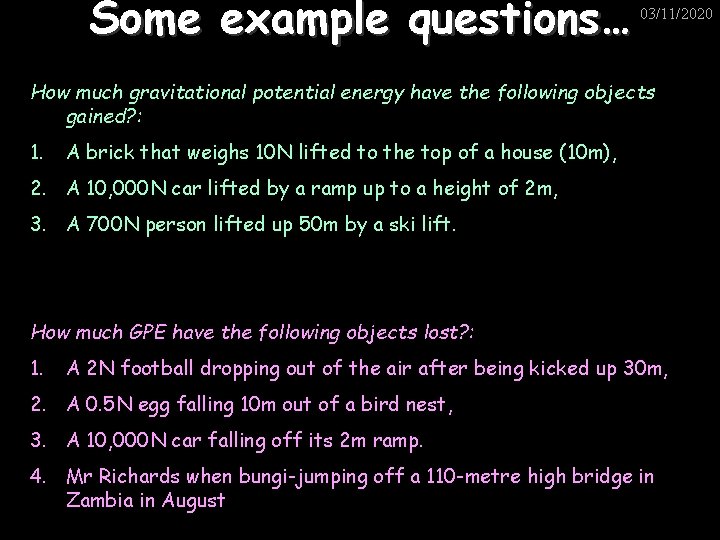

Some example questions… 03/11/2020 How much gravitational potential energy have the following objects gained? : 1. A brick that weighs 10 N lifted to the top of a house (10 m), 2. A 10, 000 N car lifted by a ramp up to a height of 2 m, 3. A 700 N person lifted up 50 m by a ski lift. How much GPE have the following objects lost? : 1. A 2 N football dropping out of the air after being kicked up 30 m, 2. A 0. 5 N egg falling 10 m out of a bird nest, 3. A 10, 000 N car falling off its 2 m ramp. 4. Mr Richards when bungi-jumping off a 110 -metre high bridge in Zambia in August

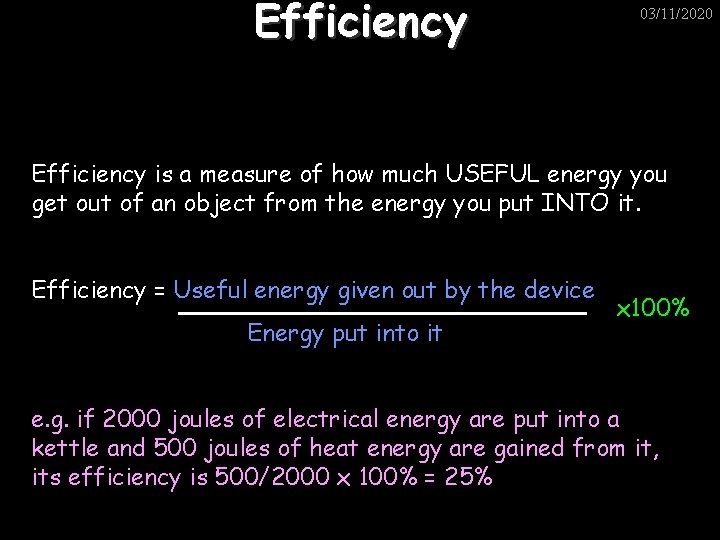

Efficiency 03/11/2020 Efficiency is a measure of how much USEFUL energy you get out of an object from the energy you put INTO it. Efficiency = Useful energy given out by the device Energy put into it x 100% e. g. if 2000 joules of electrical energy are put into a kettle and 500 joules of heat energy are gained from it, its efficiency is 500/2000 x 100% = 25%

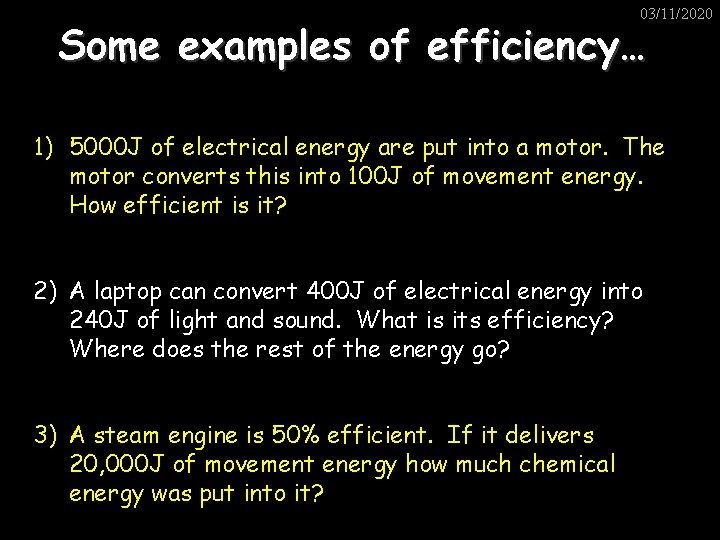

03/11/2020 Some examples of efficiency… 1) 5000 J of electrical energy are put into a motor. The motor converts this into 100 J of movement energy. How efficient is it? 2) A laptop can convert 400 J of electrical energy into 240 J of light and sound. What is its efficiency? Where does the rest of the energy go? 3) A steam engine is 50% efficient. If it delivers 20, 000 J of movement energy how much chemical energy was put into it?

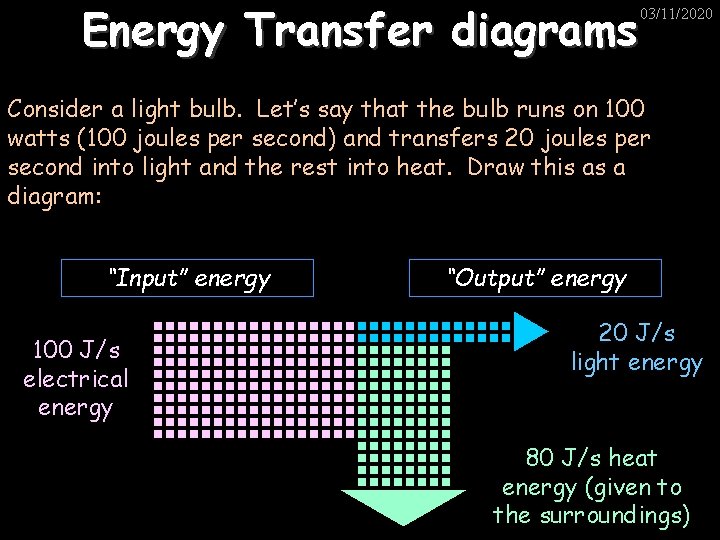

Energy Transfer diagrams 03/11/2020 Consider a light bulb. Let’s say that the bulb runs on 100 watts (100 joules per second) and transfers 20 joules per second into light and the rest into heat. Draw this as a diagram: “Input” energy 100 J/s electrical energy “Output” energy 20 J/s light energy 80 J/s heat energy (given to the surroundings)

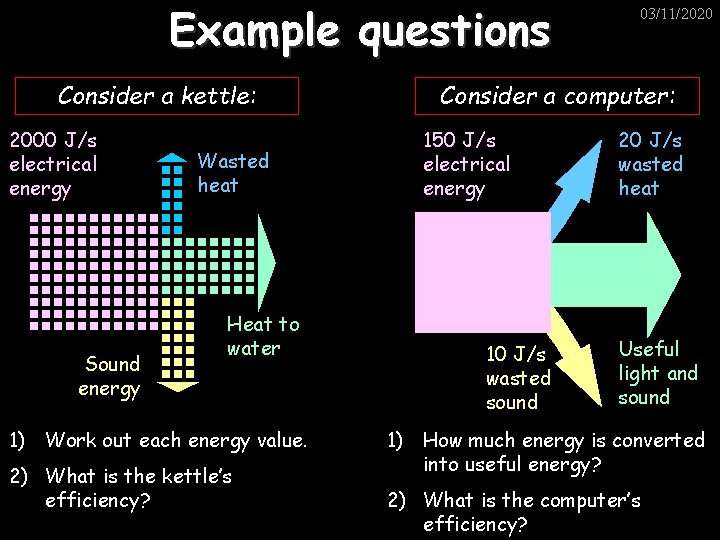

Example questions Consider a kettle: 2000 J/s electrical energy Sound energy Wasted heat Heat to water 1) Work out each energy value. 2) What is the kettle’s efficiency? 03/11/2020 Consider a computer: 150 J/s electrical energy 10 J/s wasted sound 20 J/s wasted heat Useful light and sound 1) How much energy is converted into useful energy? 2) What is the computer’s efficiency?

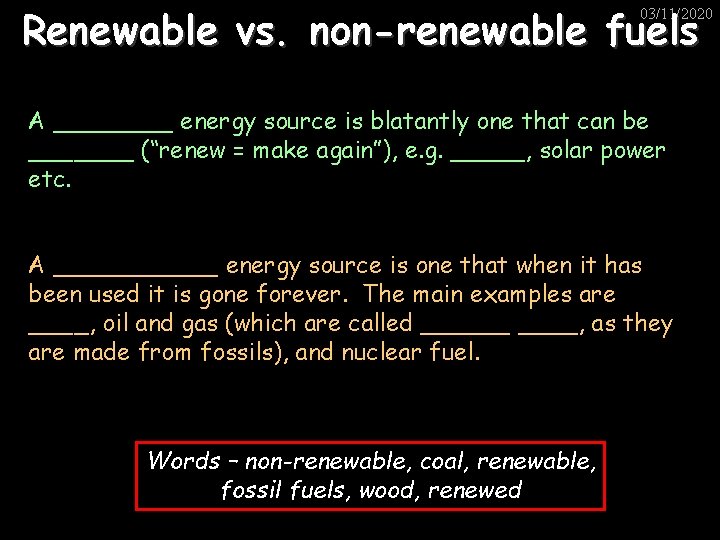

Renewable vs. non-renewable fuels 03/11/2020 A ____ energy source is blatantly one that can be _______ (“renew = make again”), e. g. _____, solar power etc. A ______ energy source is one that when it has been used it is gone forever. The main examples are ____, oil and gas (which are called ______, as they are made from fossils), and nuclear fuel. Words – non-renewable, coal, renewable, fossil fuels, wood, renewed

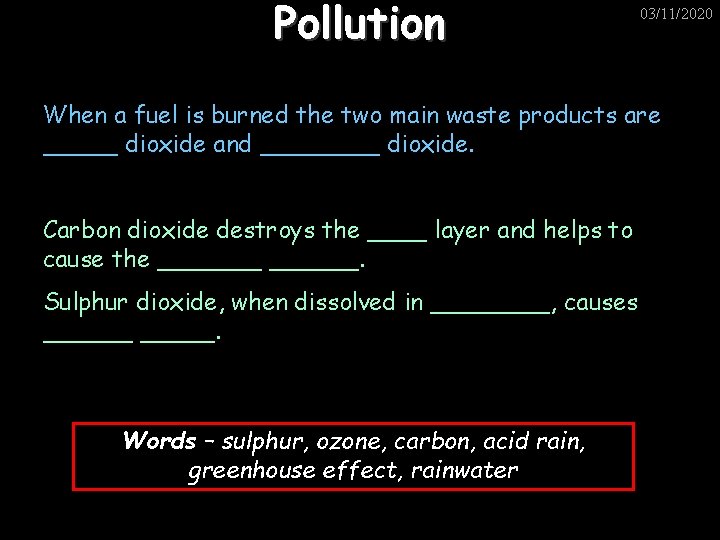

Pollution 03/11/2020 When a fuel is burned the two main waste products are _____ dioxide and ____ dioxide. Carbon dioxide destroys the ____ layer and helps to cause the _______. Sulphur dioxide, when dissolved in ____, causes ______. Words – sulphur, ozone, carbon, acid rain, greenhouse effect, rainwater

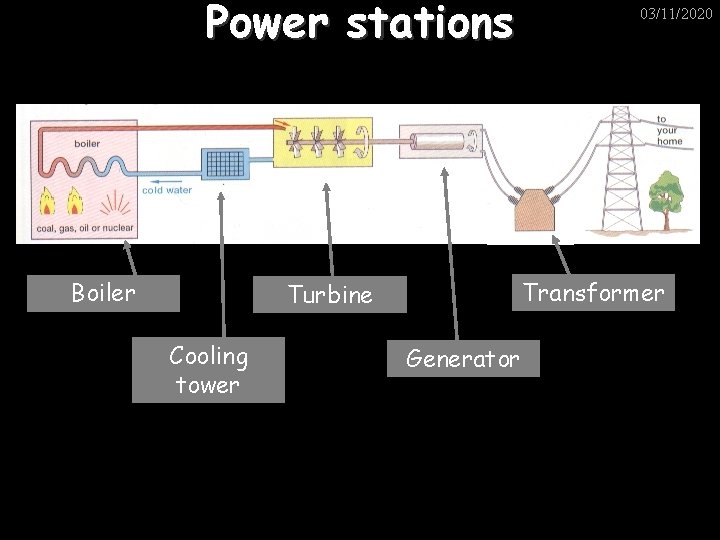

Power stations Boiler Transformer Turbine Cooling tower 03/11/2020 Generator

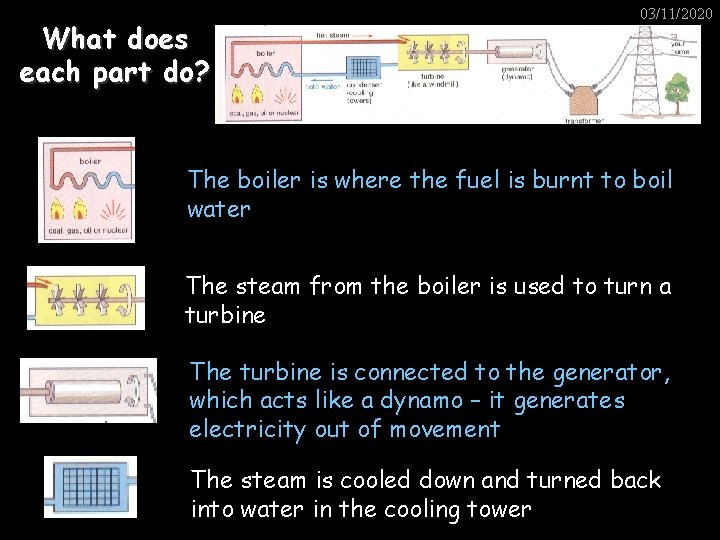

What does each part do? 03/11/2020 The boiler is where the fuel is burnt to boil water The steam from the boiler is used to turn a turbine The turbine is connected to the generator, which acts like a dynamo – it generates electricity out of movement The steam is cooled down and turned back into water in the cooling tower

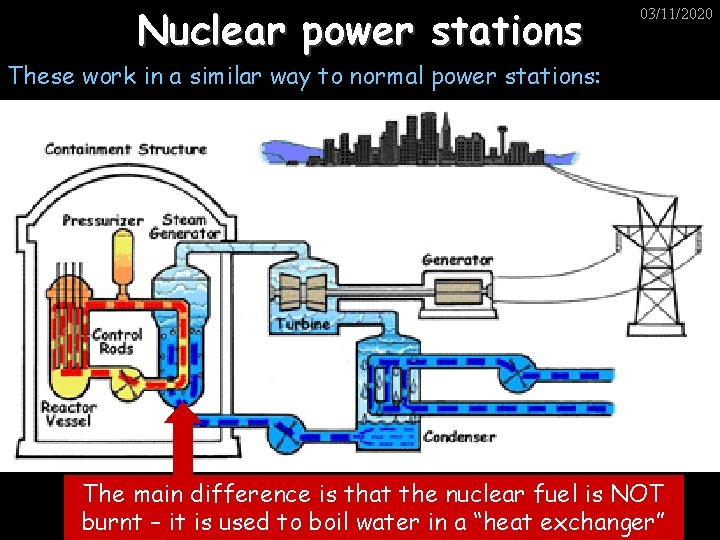

Nuclear power stations 03/11/2020 These work in a similar way to normal power stations: The main difference is that the nuclear fuel is NOT burnt – it is used to boil water in a “heat exchanger”

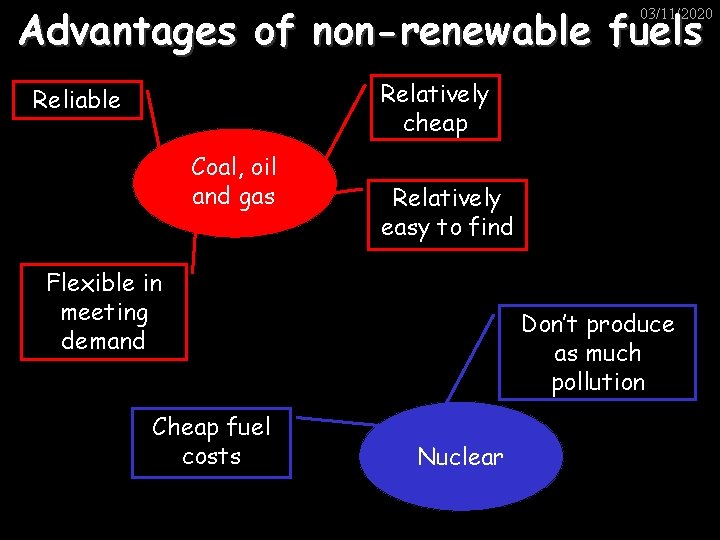

Advantages of non-renewable fuels 03/11/2020 Relatively cheap Reliable Coal, oil and gas Relatively easy to find Flexible in meeting demand Cheap fuel costs Don’t produce as much pollution Nuclear

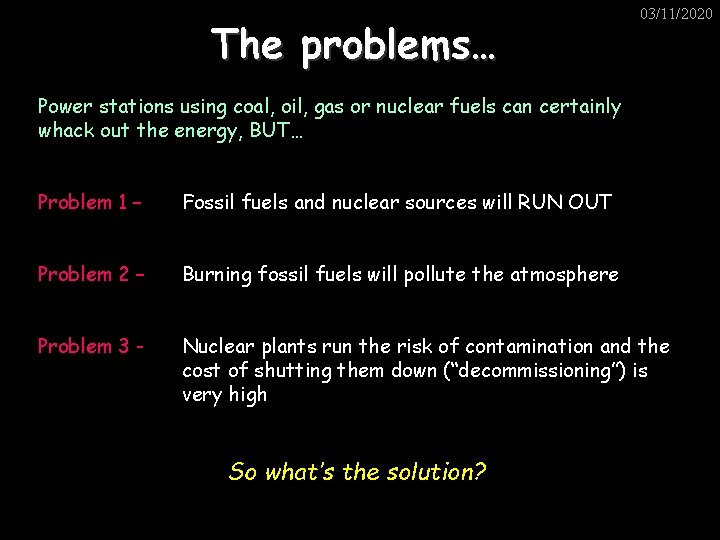

The problems… 03/11/2020 Power stations using coal, oil, gas or nuclear fuels can certainly whack out the energy, BUT… Problem 1 – Fossil fuels and nuclear sources will RUN OUT Problem 2 – Burning fossil fuels will pollute the atmosphere Problem 3 - Nuclear plants run the risk of contamination and the cost of shutting them down (“decommissioning”) is very high So what’s the solution?

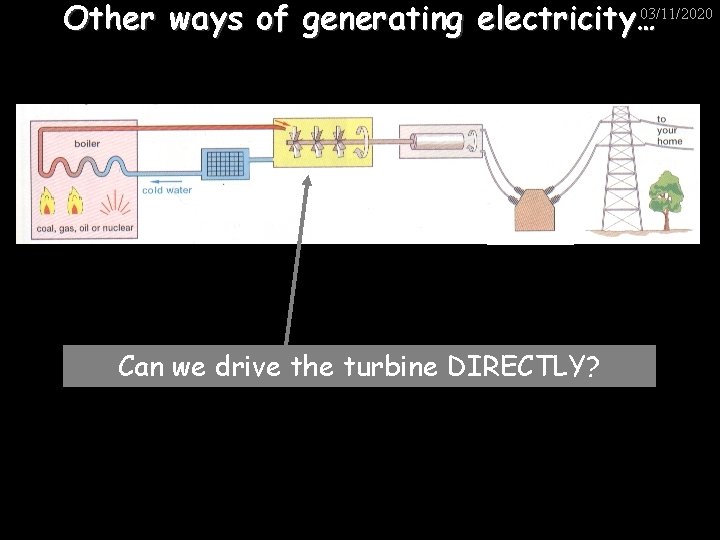

03/11/2020 Other ways of generating electricity… Can we drive the turbine DIRECTLY?

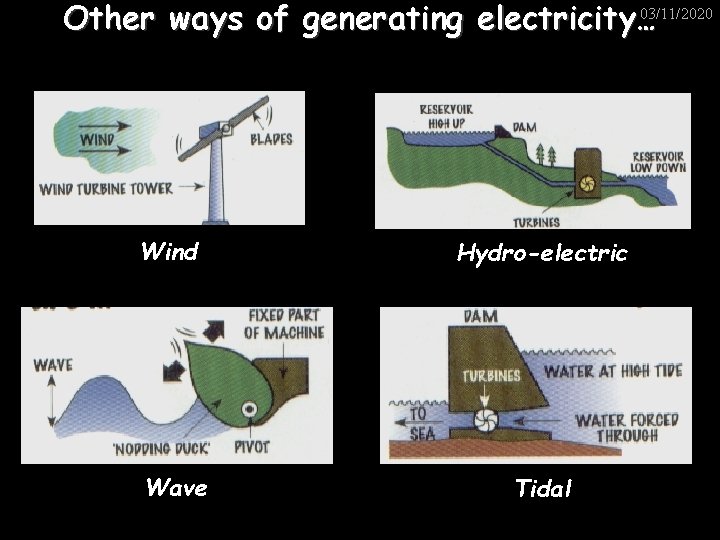

03/11/2020 Other ways of generating electricity… Wind Wave Hydro-electric Tidal

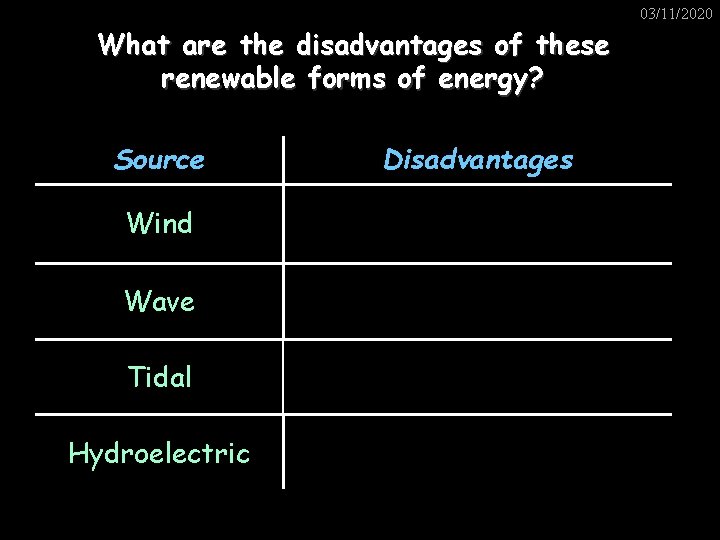

03/11/2020 What are the disadvantages of these renewable forms of energy? Source Wind Wave Tidal Hydroelectric Disadvantages

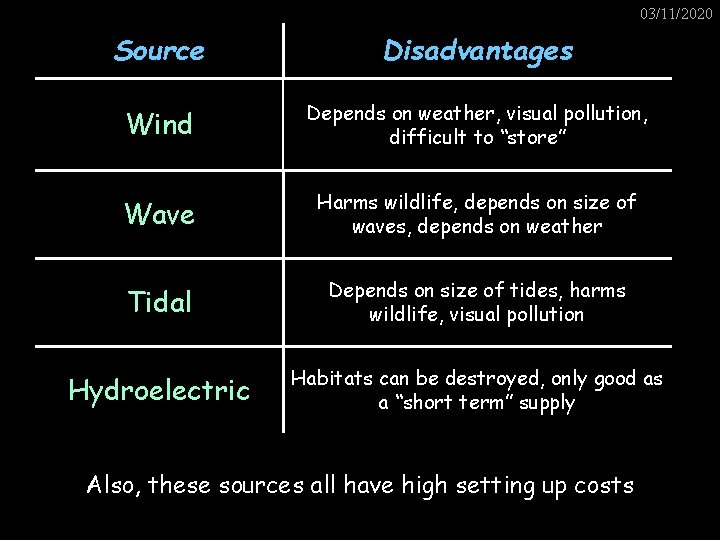

03/11/2020 Source Disadvantages Wind Depends on weather, visual pollution, difficult to “store” Wave Harms wildlife, depends on size of waves, depends on weather Tidal Depends on size of tides, harms wildlife, visual pollution Hydroelectric Habitats can be destroyed, only good as a “short term” supply Also, these sources all have high setting up costs

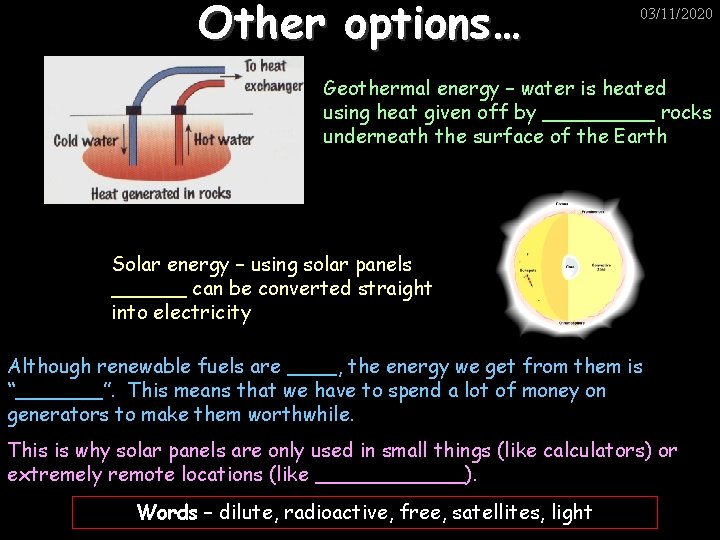

Other options… 03/11/2020 Geothermal energy – water is heated using heat given off by _____ rocks underneath the surface of the Earth Solar energy – using solar panels ______ can be converted straight into electricity Although renewable fuels are ____, the energy we get from them is “_______”. This means that we have to spend a lot of money on generators to make them worthwhile. This is why solar panels are only used in small things (like calculators) or extremely remote locations (like ______). Words – dilute, radioactive, free, satellites, light

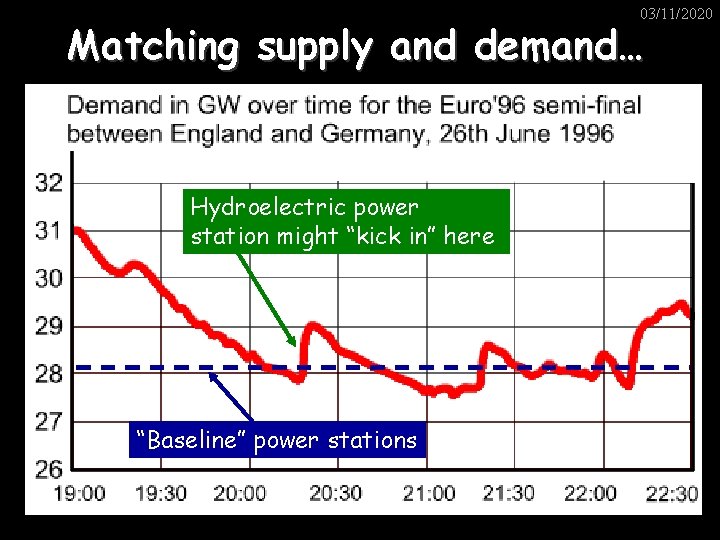

03/11/2020 Matching supply and demand… Hydroelectric power station might “kick in” here “Baseline” power stations

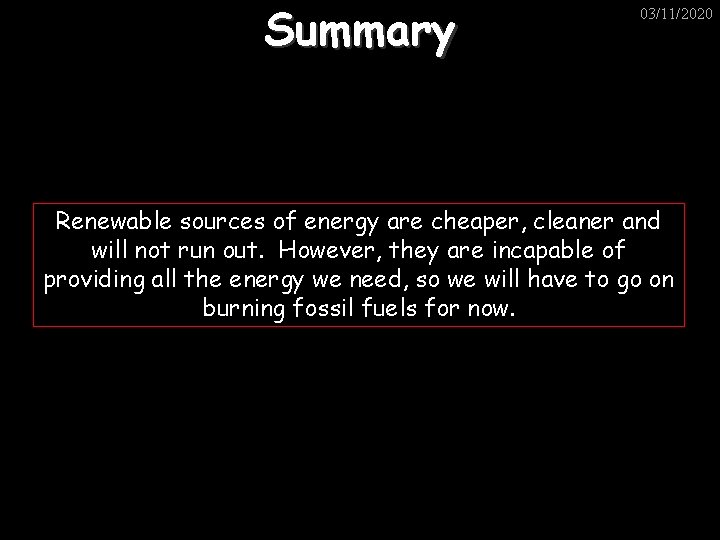

Summary 03/11/2020 Renewable sources of energy are cheaper, cleaner and will not run out. However, they are incapable of providing all the energy we need, so we will have to go on burning fossil fuels for now.

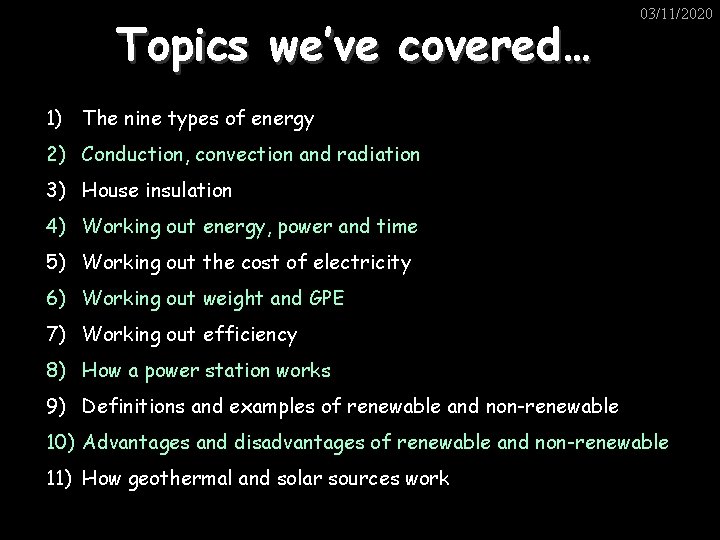

Topics we’ve covered… 03/11/2020 1) The nine types of energy 2) Conduction, convection and radiation 3) House insulation 4) Working out energy, power and time 5) Working out the cost of electricity 6) Working out weight and GPE 7) Working out efficiency 8) How a power station works 9) Definitions and examples of renewable and non-renewable 10) Advantages and disadvantages of renewable and non-renewable 11) How geothermal and solar sources work
