03 a Manage Team Foundation Server Steven Borg
03 a | Manage Team Foundation Server Steven Borg | Co-founder & Strategist, Northwest Cadence Anthony Borton | ALM Consultant, Enhance ALM

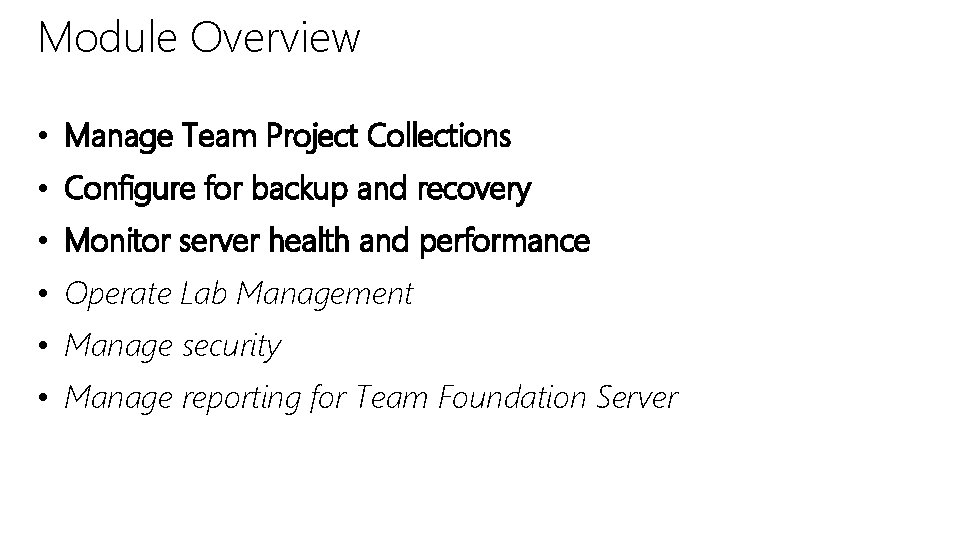

Module Overview • Manage Team Project Collections • Configure for backup and recovery • Monitor server health and performance • Operate Lab Management • Manage security • Manage reporting for Team Foundation Server
Microsoft Virtual Academy Manage Team Project Collections
What the Study Guide says… • Manage Team Project Collections. – moving project collections – managing team collections and projects – creating and configuring Team Project Collections – creating a team project using Share. Point and SQL Server Reporting Services (SSRS) – splitting and partitioning team project collections
MSDN Resources Topic Link moving project collections http: //examcr. am/YArj 14 managing team collections and projects http: //examcr. am/104 WDn. N creating and configuring Team Project Collections http: //examcr. am/10 opj 2 o creating a team project using Share. Point and SQL Server Reporting Services (SSRS) http: //examcr. am/10 opj 2 o splitting and partitioning team project collections http: //examcr. am/YAr. B 85

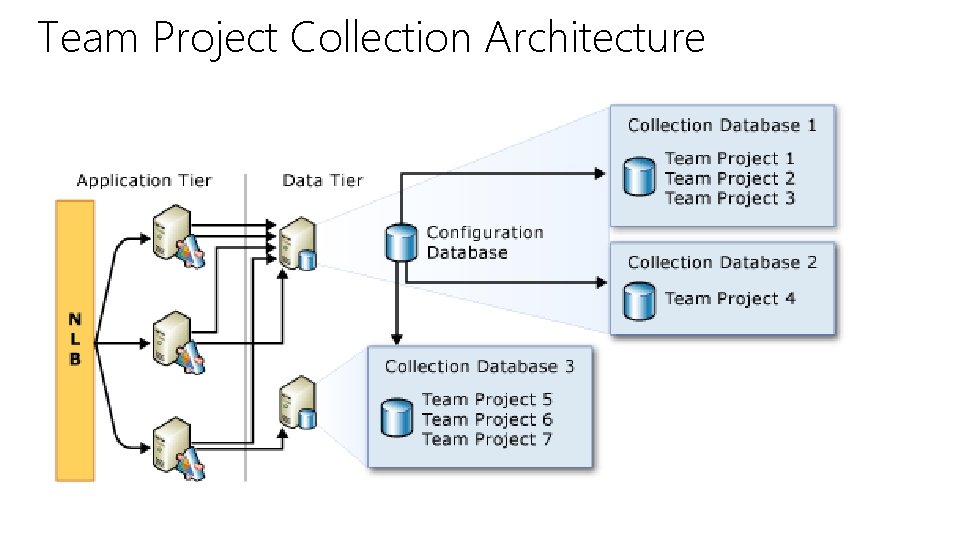

Team Project Collection Architecture
Create a Team Project Collection • Use the TFS Admin Console • Follow the Wizard

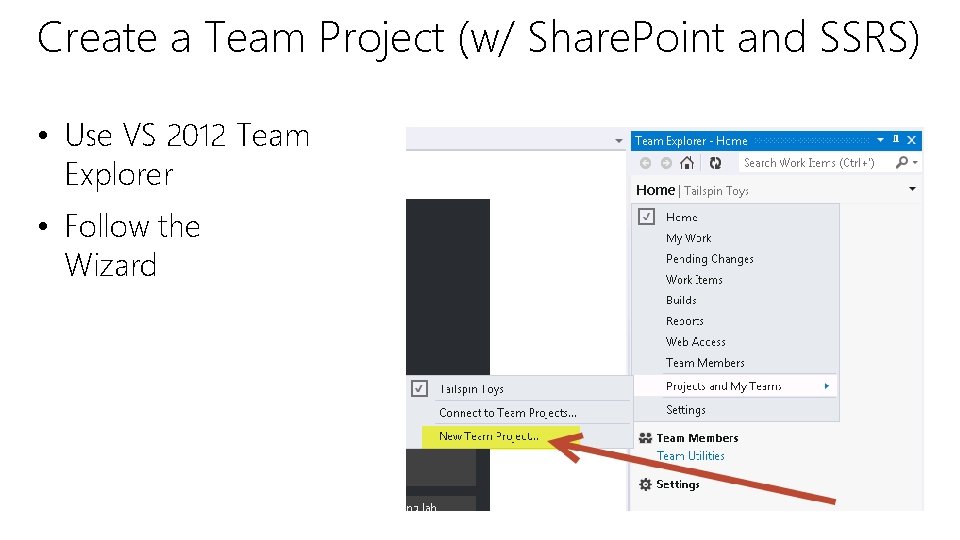

Create a Team Project (w/ Share. Point and SSRS) • Use VS 2012 Team Explorer • Follow the Wizard

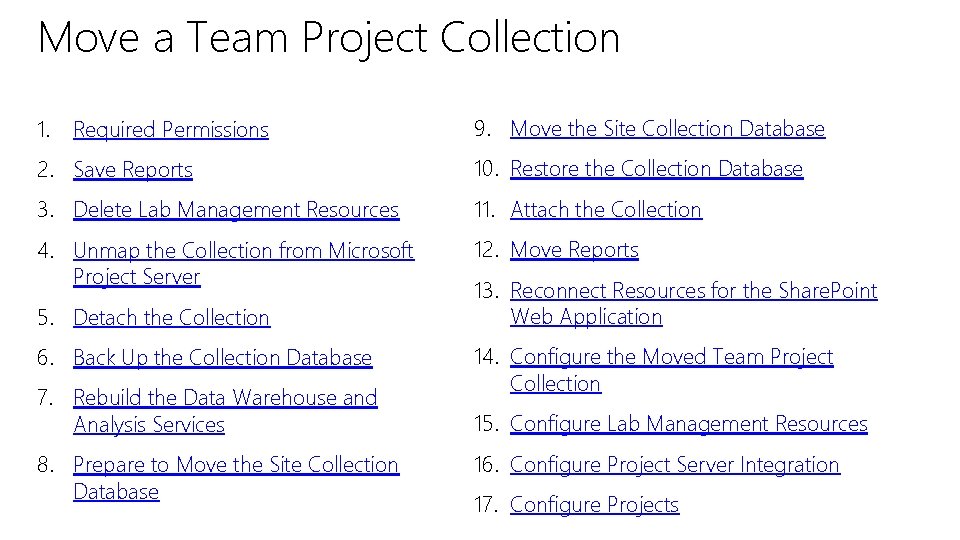

Move a Team Project Collection 1. Required Permissions 9. Move the Site Collection Database 2. Save Reports 10. Restore the Collection Database 3. Delete Lab Management Resources 11. Attach the Collection 4. Unmap the Collection from Microsoft Project Server 12. Move Reports 5. Detach the Collection 6. Back Up the Collection Database 7. Rebuild the Data Warehouse and Analysis Services 8. Prepare to Move the Site Collection Database 13. Reconnect Resources for the Share. Point Web Application 14. Configure the Moved Team Project Collection 15. Configure Lab Management Resources 16. Configure Project Server Integration 17. Configure Projects

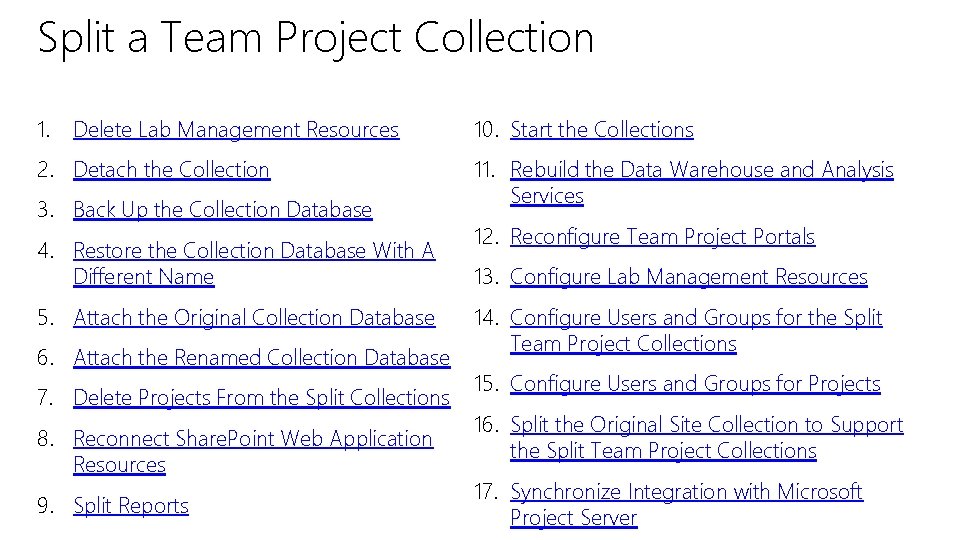

Split a Team Project Collection 1. Delete Lab Management Resources 2. Detach the Collection 3. Back Up the Collection Database 4. Restore the Collection Database With A Different Name 5. Attach the Original Collection Database 6. Attach the Renamed Collection Database 7. Delete Projects From the Split Collections 8. Reconnect Share. Point Web Application Resources 9. Split Reports 10. Start the Collections 11. Rebuild the Data Warehouse and Analysis Services 12. Reconfigure Team Project Portals 13. Configure Lab Management Resources 14. Configure Users and Groups for the Split Team Project Collections 15. Configure Users and Groups for Projects 16. Split the Original Site Collection to Support the Split Team Project Collections 17. Synchronize Integration with Microsoft Project Server
Split a Team Project Collection - Simple • Detatch Original TPC • Copy Original DB and restore with New DB name • Attach Original TPC • Attach New TPC • Clean up Team Projects

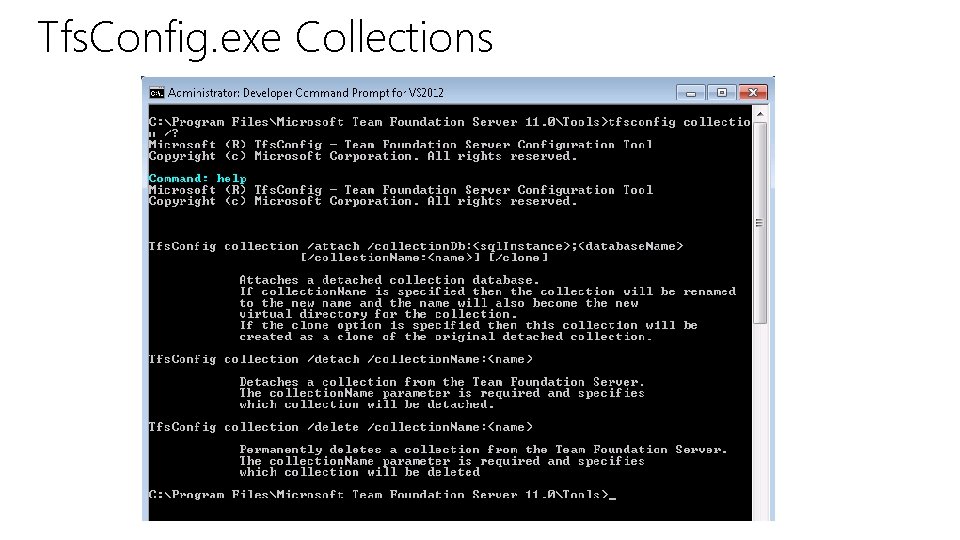

Tfs. Config. exe Collections
Microsoft Virtual Academy DEMO Manage Team Project Collections
Microsoft Virtual Academy Configure for backup and recovery

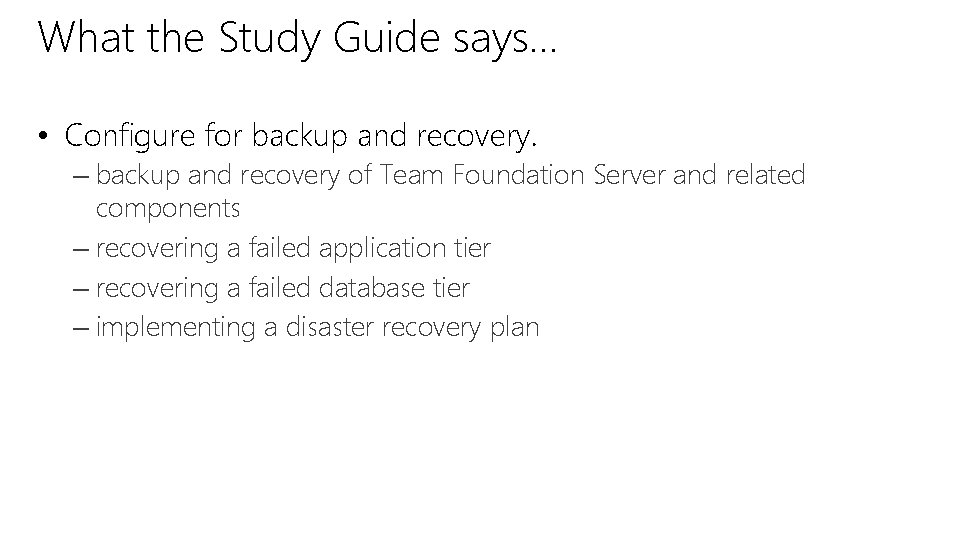

What the Study Guide says… • Configure for backup and recovery. – backup and recovery of Team Foundation Server and related components – recovering a failed application tier – recovering a failed database tier – implementing a disaster recovery plan
MSDN Resources Topic Link backup and recovery of Team Foundation Server and http: //examcr. am/13 yn 7 p. J related components recovering a failed application tier http: //examcr. am/YAr. WYd recovering a failed database tier http: //examcr. am/11 tm. Z 43 implementing a disaster recovery plan http: //examcr. am/11 n 8 LED clearing work item and version control caches http: //examcr. am/10 zgbp. D

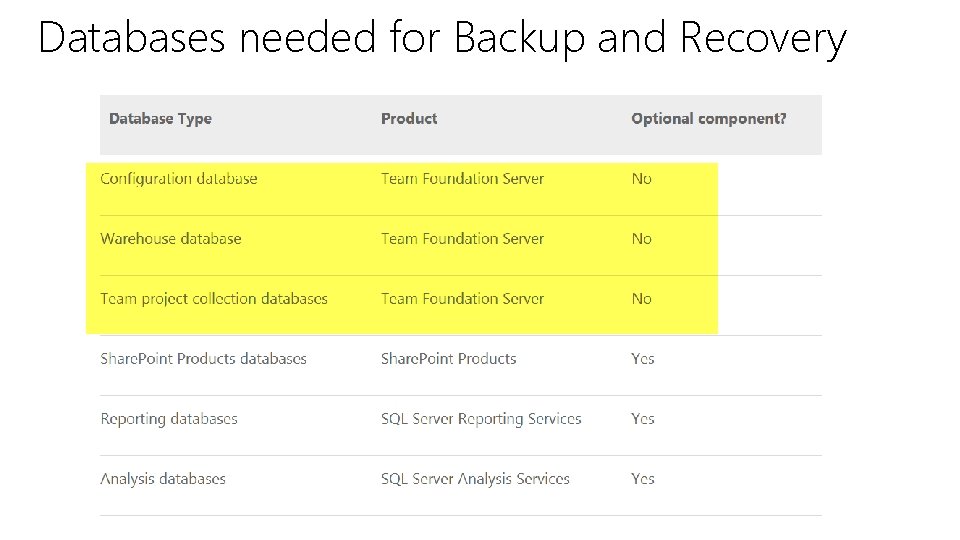

Databases needed for Backup and Recovery

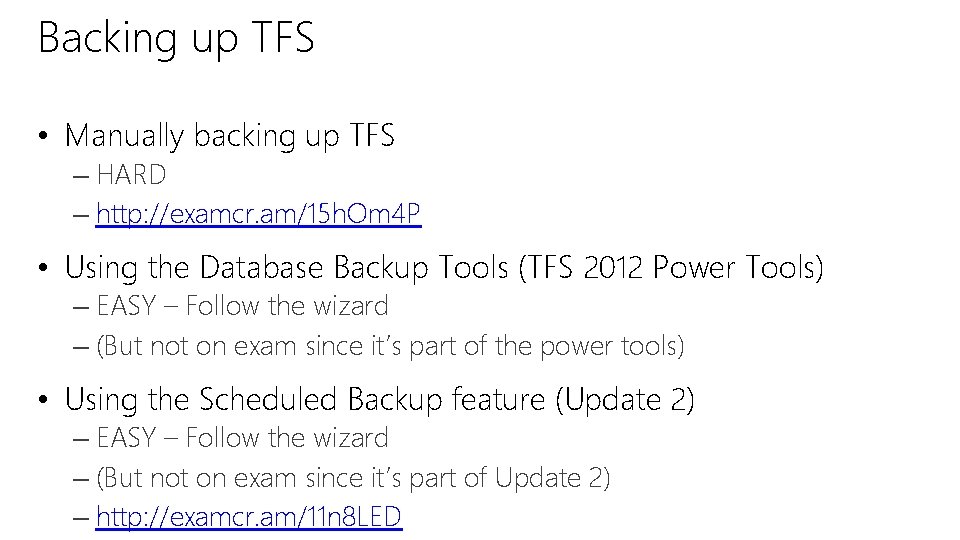

Backing up TFS • Manually backing up TFS – HARD – http: //examcr. am/15 h. Om 4 P • Using the Database Backup Tools (TFS 2012 Power Tools) – EASY – Follow the wizard – (But not on exam since it’s part of the power tools) • Using the Scheduled Backup feature (Update 2) – EASY – Follow the wizard – (But not on exam since it’s part of Update 2) – http: //examcr. am/11 n 8 LED

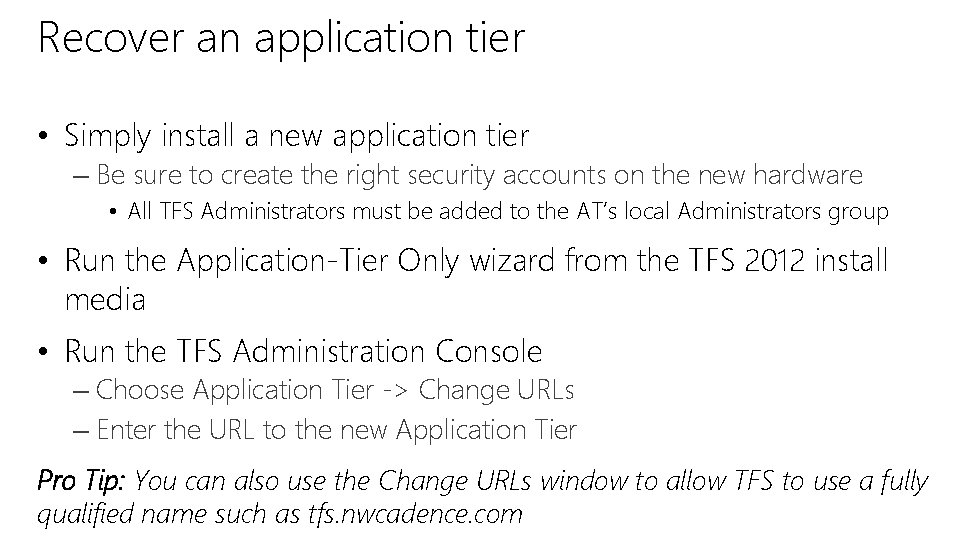

Recover an application tier • Simply install a new application tier – Be sure to create the right security accounts on the new hardware • All TFS Administrators must be added to the AT’s local Administrators group • Run the Application-Tier Only wizard from the TFS 2012 install media • Run the TFS Administration Console – Choose Application Tier -> Change URLs – Enter the URL to the new Application Tier Pro Tip: You can also use the Change URLs window to allow TFS to use a fully qualified name such as tfs. nwcadence. com
Recover a data tier • Restore the databases to a new SQL Server • Run the TFSConfig Remap. DBs command TFSConfig Remap. DBs /Database. Name: Server. Name; Database. Name /SQLInstances: Server. Name 1, Server. Name 2 [/Analysis. Instance: Server. Name] [/Analysis. Database. Name: Database. Name] [/preview] [/continue] [/usesqlalwayson] Pro Tip: With Update 2, this is now much easier since you can use the Scheduled Backup feature
Refreshing Data Caches on Client Computers • If Work Item caches are causing errors, invoke the Stamp. Workitem. Cache web method – On the New Server, and only once for entire organization – http: // {tfs. Name}: 8080/Work. Item. Tracking/v 3. 0/Client. Service. asmx – Invoke Stamp. Workitem. Cache method • If Version Control cache is causing errors, invoke the tf. exe workspaces command – On every client computer in the organization – tf workspaces /collection: http: //{tfs. Name}: 8080/tfs/Collection. Name
Microsoft Virtual Academy DEMO Configure for backup and recovery
Microsoft Virtual Academy Monitor server health and performance

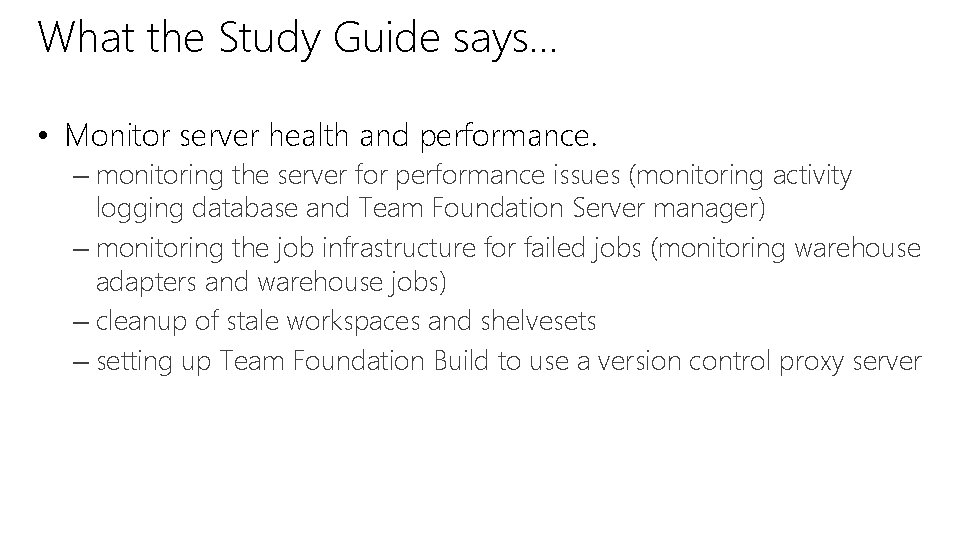

What the Study Guide says… • Monitor server health and performance. – monitoring the server for performance issues (monitoring activity logging database and Team Foundation Server manager) – monitoring the job infrastructure for failed jobs (monitoring warehouse adapters and warehouse jobs) – cleanup of stale workspaces and shelvesets – setting up Team Foundation Build to use a version control proxy server
MSDN Resources Topic Link monitoring the server for performance issues http: //examcr. am/18 ya 6 vb monitoring activity logging database monitoring the job infrastructure for failed jobs http: //localhost: 8080/tfs/Team. Foundatio monitoring warehouse adapters and warehouse n/Administration/v 3. 0/Warehouse. Control jobs Service. asmx (on TFS box) cleanup of stale workspaces and shelvesets http: //examcr. am/12 h. HQOS setting up Team Foundation Build to use a version control proxy server http: //examcr. am/132 i. UHz

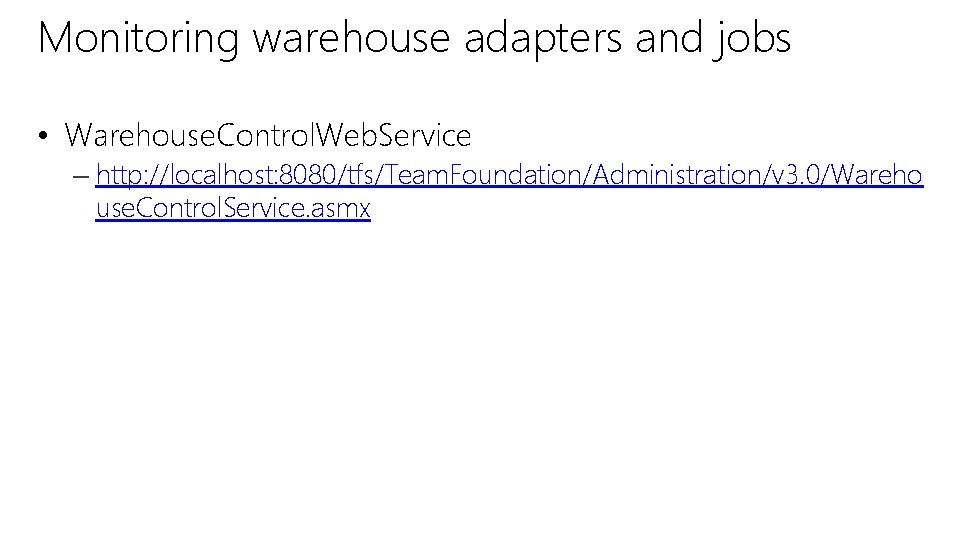

Monitoring warehouse adapters and jobs • Warehouse. Control. Web. Service – http: //localhost: 8080/tfs/Team. Foundation/Administration/v 3. 0/Wareho use. Control. Service. asmx
Performance of individual commands • Dbo. tbl_Command – Found in Tfs_Configuration database – Measures performance of individual commands • http: //localhost: 8080/tfs/_oi – Activity log – Job monitoring

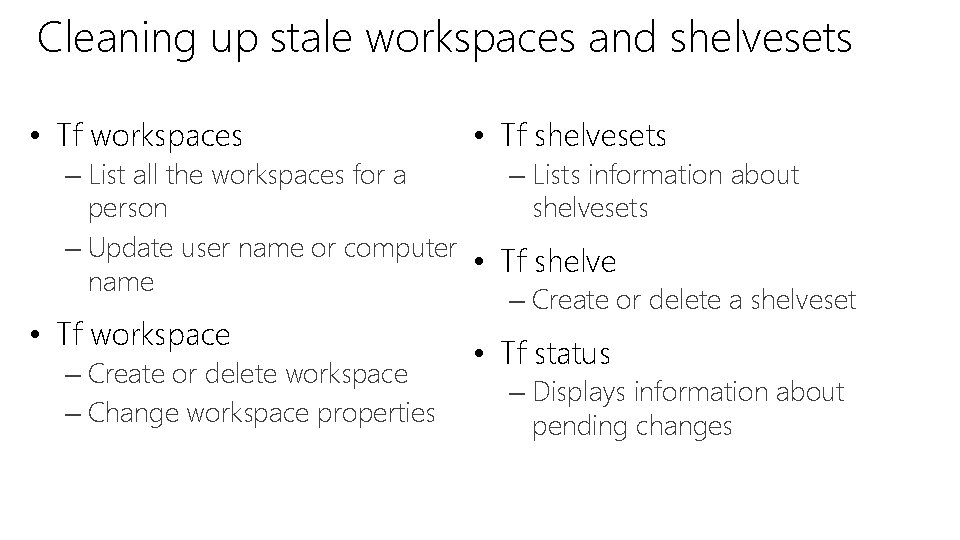

Cleaning up stale workspaces and shelvesets • Tf workspaces • Tf shelvesets – List all the workspaces for a – Lists information about person shelvesets – Update user name or computer • Tf shelve name – Create or delete a shelveset • Tf workspace – Create or delete workspace – Change workspace properties • Tf status – Displays information about pending changes
Configure Team Build to use a Proxy Server 1. On the server that is running Team Foundation Build Service, click Start, click Run, type regedit, and then click OK. 2. In the browser pane, expand HKEY_CURRENT USER to HKEY_CURRENT_USERSoftwareMicrosoftVisual. Studio10. 0Team. FoundationSourc e. ControlProxy. 3. In the details pane, set Enabled to True, and then set URL to http: //Proxy. Server: Port. 4. Proxy. Server is the name of the proxy server that you want Team Foundation Build Service to use, and Port is the number of the port on which the proxy server is listening for requests. (By default, this number is 8081. ) 5. On the File menu, click Exit to close Registry Editor.
Microsoft Virtual Academy DEMO Monitor server health and performance

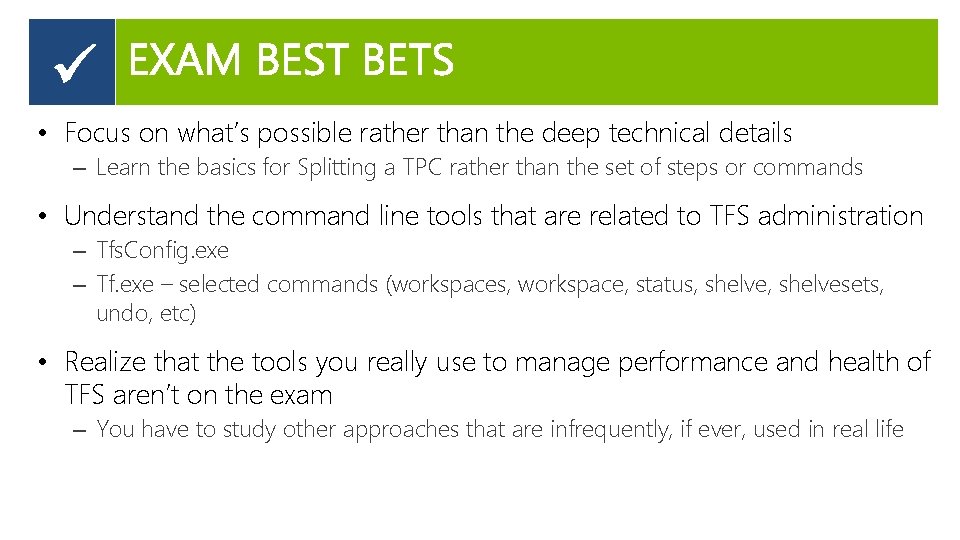

• Focus on what’s possible rather than the deep technical details – Learn the basics for Splitting a TPC rather than the set of steps or commands • Understand the command line tools that are related to TFS administration – Tfs. Config. exe – Tf. exe – selected commands (workspaces, workspace, status, shelvesets, undo, etc) • Realize that the tools you really use to manage performance and health of TFS aren’t on the exam – You have to study other approaches that are infrequently, if ever, used in real life
